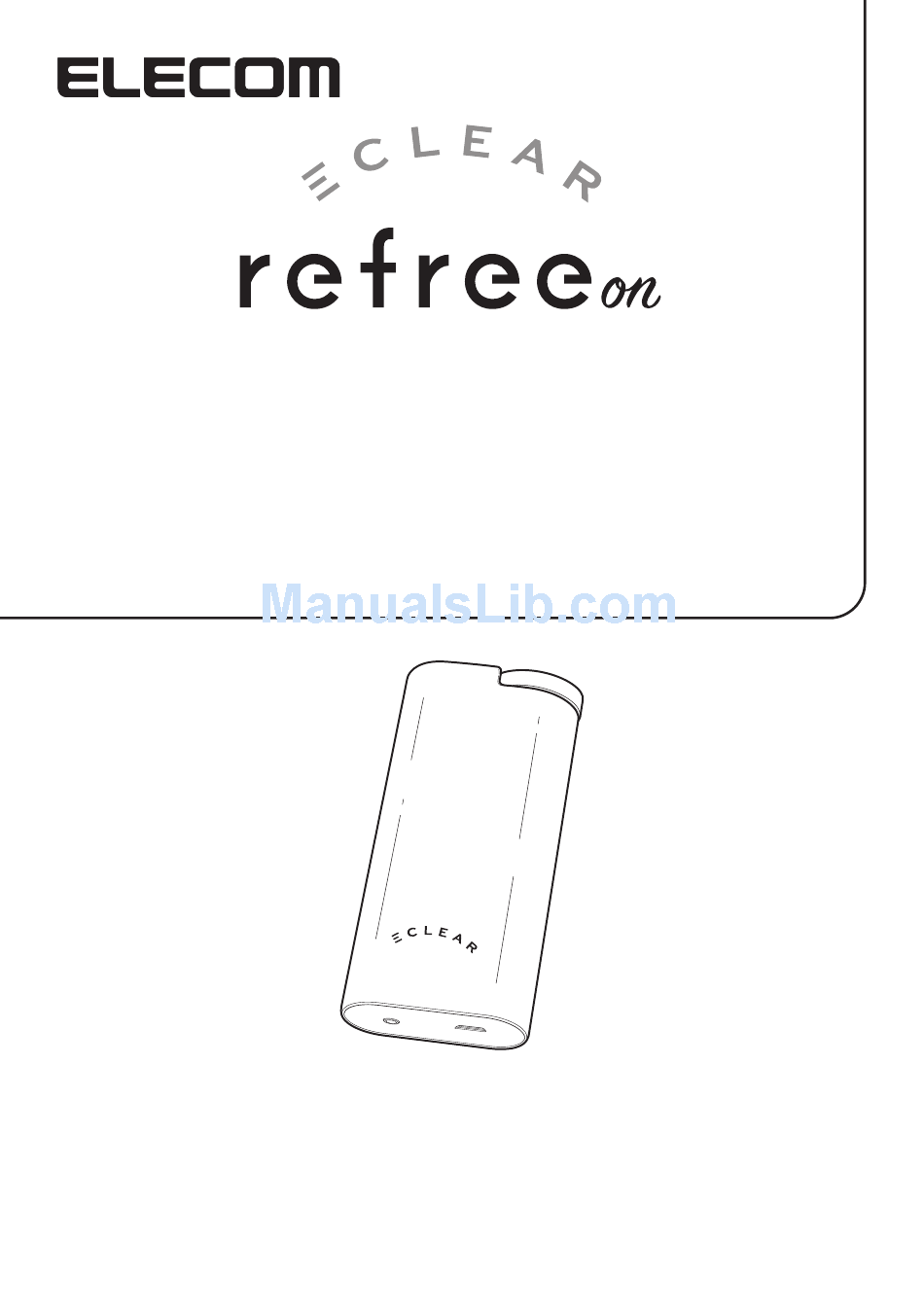

ECLEAR refree on
Instruction Manual
HCM-PH01 Series
For use in Hong Kong and Philippines only.
If you made your purchase in another country, please refer to that country' s manual.
www.elecom.co.jp/global/download-list/manual/
Thank you for purchasing Eclear Lean.
This manual details the operation method and precautions for the safe handling of the product.
Please read this manual before use. After reading, keep this manual in a safe location for future
reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elecom ECLEAR refree on
Summary of Contents for Elecom ECLEAR refree on
- Page 1 ECLEAR refree on Instruction Manual HCM-PH01 Series For use in Hong Kong and Philippines only. If you made your purchase in another country, please refer to that country’ s manual. www.elecom.co.jp/global/download-list/manual/ Thank you for purchasing Eclear Lean. This manual details the operation method and precautions for the safe handling of the product.
-
Page 2: Table Of Contents
Contents Forward About this product ････････････････････････････････････････････････････････3 ････････････････4 Safety Precautions （Be sure to always follow these precautions） Package contents ･････････････････････････････････････････････････････････9 Part names ･･････････････････････････････････････････････････････････････ 10 Pre-use Preparation for Use ･････････････････････････････････････････････････････ 11 Placement of the gel pad ････････････････････････････････････････････････ 13 Example of gel pad attachment ･････････････････････････････････････････ 14 In Usage How to use ･･････････････････････････････････････････････････････････････... -
Page 3: About This Product ････････････････････････････････････････････････････････3
About this product ■ Intended purpose This product is a massage appliance that combines low frequency and heating (this product is not a medical instrument). This instrument releases low frequency current to the body through electrodes attached on the body, which triggers vibration that is utilized to massage tired body parts. Furthermore, electric heat is used to provide heat for relaxing the muscles. -
Page 4: Safety Precautions ････････････････4
Safety Precautions (Be sure to always follow these precautions) In order to prevent personal injury or damage to property involving you or any other persons, please be sure to observe the precautions outlined below. ■ The degree of the possible damage or risk you may cause if you misuse this product against these precautions are described in the following categories: Sections with this heading have contents that “have a high possibility of DANGER... - Page 5 WARNING Be sure to observe following matters when performing heat operation. • Do not cover the gel pad with a towel or use it under a blanket and other such condi- tions in which heat can become confined. • Do not use the product while the body part to which a gel pad has been attached is pressed.
- Page 6 WARNING Do not connect the product to any devices other than special gel pads or USB cables. Furthermore, do not use any of the accessories with other products either. Doing so can potentially lead to burns, as well as heating or short circuiting that can cause accidents, fire, other problems and malfunctions.
- Page 7 Safety Precautions (Be sure to always follow these precautions) CAUTION Please make sure the main unit and the gel pad are connected correctly and securely before use. Check that each operation button functions correctly before use. Verify that the product operates normally and safely before use according to the opera- tions described by the Instruction Manual when using the product for the first time or if the device has not been used for long hours.
- Page 8 Safety Precautions (Be sure to always follow these precautions) CAUTION Stop using the product immediately and shut off power when a malfunction with the device occurs or when there are damages or cable disconnection of gel pads. Contact your retailer. Do not pull on the electrode cord but instead hold the plug when removing a gel pad from the base unit.
-
Page 9: Package Contents ･････････････････････････････････････････････････････････9
Main Unit Gel Pads (consumables) Special USB Cable Protective plate Storage pouch ECLEAR refree on Instruction Manual (This document) ■ Separately Sold Accessories Inquire the retailer for details on separately Gel Pad PH01 Model number: HCM-PH01G1 sold accessories. -
Page 10: Part Names
Part names ■ Main Unit LED light Low Frequency lamp Low frequency mode Switch button Power lamp Heat button Heat lamp Intensity dial Connection terminal (Main Unit side) USB connector inserting slot (base unit side) ■ Gel pad Plug Pad section Electrode cord ■... -
Page 11: Preparation For Use
Preparation for Use Be sure to charge the battery fully on first use (following purchase or after a long period without use) or if the batteries have run out during use. Charging Charging time: Approx. 2.5 hours ① Insert the USB micro B connector of a special USB cable to the USB connector insertion receptacle on the base unit. - Page 12 Preparation for Use Connecting gel pad to main unit ① Take gel pads out of the bag when using the product for the first time (Do not remove the protective film on the gel pad yet.) ② Verify that all LED lamps have turned off and that the power to the base unit has been shut off.
-
Page 13: Placement Of The Gel Pad
Placement of the gel pad Hold and peel off the protective film from gel pads ※ Use the pads by removing protective plates from the second use. ※ Peel off the protective plate slowly when removing a gel pad. Attach the gel pads on locations of the body where an operation is desired. Make sure the gel pad is firmly attached to your skin. -
Page 14: Example Of Gel Pad Attachment
Example of gel pad attachment ■ Low Frequency, Heat or Heat and Low Frequency Course Attach the gel pads on following types of locations on the body. Shoulder - trapezius muscle Upper arm - brachial muscles Arm - forearm flexor muscle group Upper and lower back - spinal column erector muscle Buttocks - gluteus maximus Thighs - hamstring muscle... - Page 15 Attach the gel pads to sandwich the joint. Attach one on the bottom of a foot and the oth- er on the calf or ankle of the foot. ※ Do not use the product simultaneously on both feet. ■ For Heat Course Attach gel pads for Heat Course by referencing following attachment examples aside from at- tachment examples for Low Frequency or Heated Low Frequency Courses.
-
Page 16: How To Use
How to use Three courses, the "Heat Course", "Low Frequency Course" and "Heated Low Frequency Course" are available with this product. There are five modes that can be selected with the "Low Fre- quency Course" and the "Heated Low Frequency Course". ❷... - Page 17 Using Low Frequency Course ① Turn the Intensity dial clockwise from the "-" condition (standby mode) to start the Low Frequency Course. The Low Frequency lamp flashes. Select the desired strength from the 10 levels. Turning the Intensity dial back to the “-” position terminates the Low Frequency Course and brings the product to the standby mode.
- Page 18 Using Heated Low Frequency Course The low frequency and heat alternating switching can be applied. The Low Frequency and Heat switches every minute. 1 分 1 分 1 分 1 分 1 minute 1 minute 1 minute 1 minute 低周波 温...
- Page 19 How to use ■ Changing to Heated Low Frequency Course while in Heat Course Turn the Intensity dial clockwise during an ongoing Heat Course to perform the Heated Low Frequency Course. ① Pressing on the Heat button while the Intensity dial is at the "-" position starts by heat.
- Page 20 How to use Storing ① Peel off the gel pad from the skin. Pinch the grip of the gel pad and peel it off being careful not to touch the adhesive surface. ② Remove the plug on gel pads from the base unit and attach it to the protective plate.
-
Page 21: Care Of This Equipment
Care of this equipment To care for the gel pad, disconnect it from the main unit. ■ Servicing gel pads The gel pad needs to be cared for in the following situations: • Gel pad has lost adhesiveness • When stimulation during use has weakened •... -
Page 22: How To Store
How to store Store this product in an environment meeting the following conditions: Storage temperature: -10° C to 60° C Storage humidity: 20 - 85% RH ■ Precautions for servicing and storing • Do not use benzine or paint thinner when caring for the product. -
Page 23: Disposal
Disposal ■ Request about recycling of lithium ion batteries A lithium ion battery is included in this product. It is a recyclable, valuable re- source, so please recycle. When disposing, follow the instructions from your local municipal government. • Do not disassemble the battery when disposing. •... - Page 24 Disposal ■ Removing lithium ion battery Do not disassemble this product unless you are disposing of it. The procedure described below outlines the steps taken to dispose of the WARNING product and is not intended for repairs. If you disassemble this product on your own, the functions will not be maintained and may cause failures or accidents.
-
Page 25: Troubleshooting
Troubleshooting Trouble Cause Solution Does not turn on Battery is not charged fully Turn off the power and charge or there is no power left in the battery. ➡ P.11 battery During charging Once the battery has been charged, remove the special USB cable before using the product. - Page 26 Trouble Cause Solution Gel pads do not stick to Transparent protective Remove the transparent protective the skin film is not removed from film from the adhesive surface of the adhesive surface of the gel pad. ➡ P.13 the gel pad The adhesive surface of Drip a few drops of water and rub the gel pad has become...
- Page 27 Troubleshooting Trouble Cause Solution There is no feeling Adhesive surface of The gel pad is a consumable. Stop of stimulation or the the gel pad is dirty or using it when the adhesive surface stimulation is weak damaged is damaged and purchase another gel pad.
-
Page 28: Product Specifications
Product specifications Series model number HCM-PH01 Rated input voltage DC 5V Internal battery Lithium ion battery (2,600 mAh*1, *2) Service life Approximately 5 years (according to our measurements) *3 Charging time Approximately 2.5 hours *4 Operating time Approximately 2.5 hours (with full charge) *5 Maximum output current 10 mA or less Rated output voltage... - Page 29 • The specification or appearance of this product might be changed without prior notice to improve the product quality. • ELECOM is not responsible for any damage to, or failure of other devices caused by using this product. • To export the part of this product applicable to strategic goods or services, export or service trading permission according to foreign currency laws is necessary.
