DisplayPort 1.2
Data Recovery Repeater
User's Manual for the
DPAX
25-0563
Doc No. : OE-H160602-00 / Rev1.0
Manual Contents
__________________________________________
Manual Contents
Installation; Connection with Copper cable
Connection with Copper cable and Optical
Extender (RX side)
Connection with Copper cable and Optical
Extender (TX side)
Pictorials
Figure 1 - Overall Connection of DPAX
Figure 2 - Connection of DPAX with Copper cable
Figure 3 - Connection of DPAX with Copper cable
and Optical fiber (RX side)
Figure 4 - Connection of DPAX with Copper cable
and Optical fiber (TX side)
1-0 Manual Contents
1-0
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-9
1-1
1-3
1-4
1-5
Advertisement
Table of Contents
Related Manuals for opticis DPAX
Summary of Contents for opticis DPAX
- Page 1 Data Recovery Repeater Pictorials Figure 1 – Overall Connection of DPAX Figure 2 – Connection of DPAX with Copper cable Figure 3 – Connection of DPAX with Copper cable and Optical fiber (RX side) Figure 4 – Connection of DPAX with Copper cable and Optical fiber (TX side) User’s Manual for the...

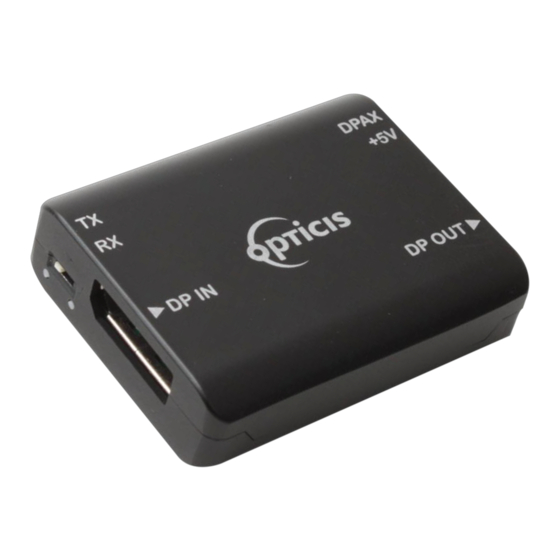

- Page 2 No special requirement of memory size, CPU speed and chipsets, if you’ve already installed graphic card that supports The new DisplayPort 1.2 Data Recovery Repeater, DPAX is an active repeater DisplayPort system properly on your Display Source. for DisplayPort video signal to increase video transmission of a DisplayPort ▪...
- Page 3 Important: Please keep the connection procedure below. Improper or no operation may result if the start-up sequence is not correctly followed. Connection with Copper cable Figure 3 – Connection of DPAX with Copper cable and Optical fiber (RX side) Step 1 Carefully unpack the contents in the shipping group.
- Page 4 - Reset the system by de-plugging and re-plugging the DP cable, or by de- plugging and re-plugging the USB to DC plug cables that are plugged to Figure 4 – Connection of DPAX with Copper cable and Optical fiber (TX side) DPAX module or transmitter and receiver module if connected with optical fiber.
- Page 5 No special maintenance is required for the DPAX module and power supplies. Complies with DisplayPort 1.2 standards Ensure that the cables and DPAX module are stored or used in a benign Supports Ultra High Definition (up to 3840x2160) at 60Hz environment free from liquid or dirt contamination.
- Page 6 Opticis warrants this optical DP module to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from Opticis or its authorized resellers. If a product does not work as warranted during the applicable warranty period,...
