Summary of Contents for ALLO STM

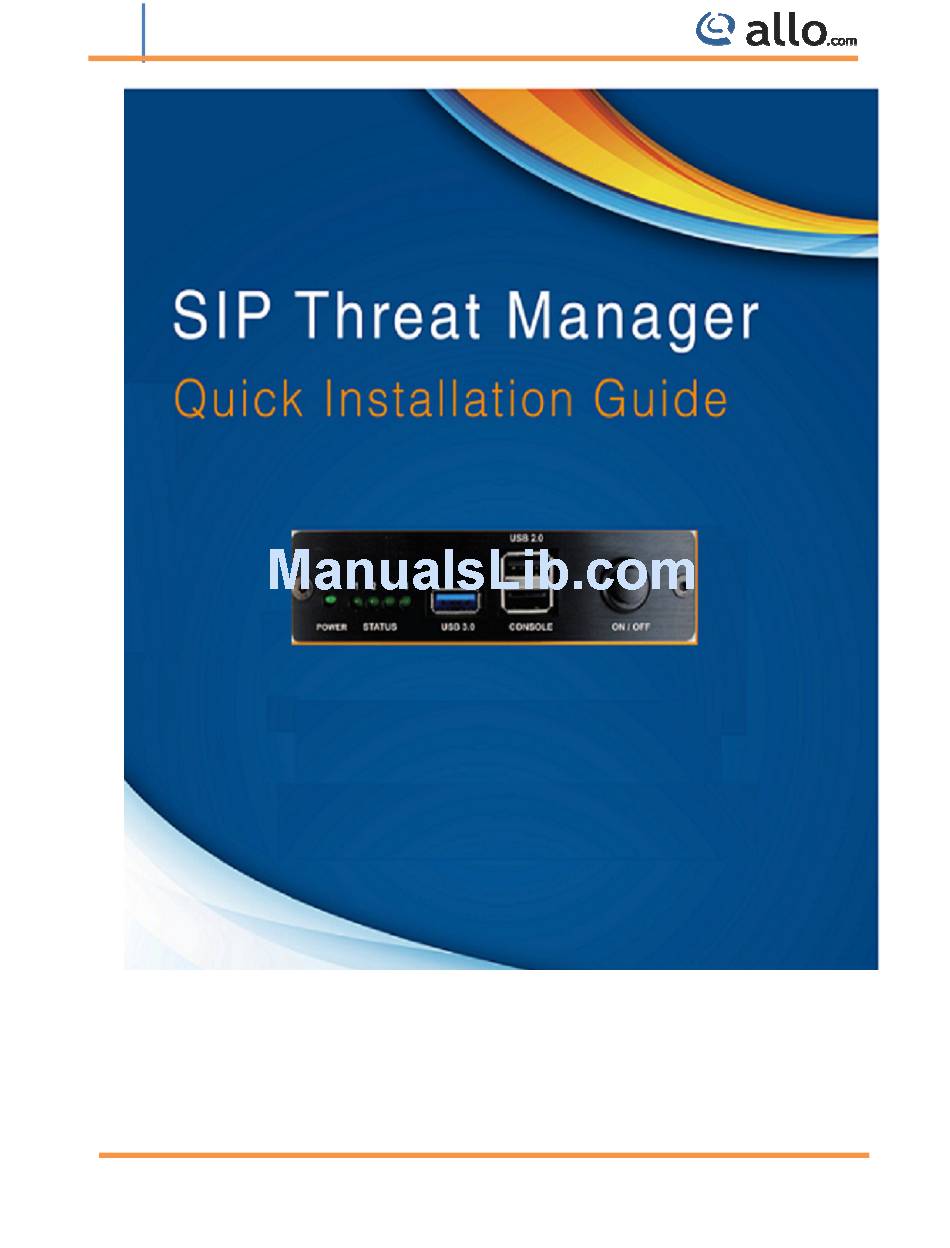

- Page 1 STM Quick Installation Guide STM Appliance 1 www.allo.com Version 2.0...
-
Page 2: About This Manual
About this manual This manual describes the Allo product application and explains how to work and use it major features. It serves as a means to describe the user interface and how to use it to accomplish common tasks. - Page 3 STM Quick Installation Guide STM Appliance 1 Icon Purpose Note Tip/Best Practice Important Caution Warning Bold indicates the name of the menu items, options, dialog boxes, windows and functions. • The color blue with underline is used to indicate cross-references and hyperlinks.
-
Page 4: Table Of Contents
Table of Contents About this manual ......................2 Document Conventions ..................... 2 1. Overview........................5 1.2 Notification LEDs (On the Front Panel of the STM)............5 2. Deployment Considerations..................6 3. Initial Setup & Configuration..................7 4. Accessing the WebUI ....................8 www.allo.com... -
Page 5: Overview
STM Quick Installation Guide STM Appliance 1 1. Overview Congratulations on your purchase of the allo STM appliance to protect your SIP based PBX, VOIP Gateway deployments. This Quick Start Guide describes the steps involved in setting up the allo STM Appliance. -
Page 6: Deployment Considerations
STM Appliance 1 2. Deployment Considerations The STM has been made to protect the SIP based PBX/Gateway Servers against SIP based network threats and anomalies. Thus it is recommended to deploy the STM along with the PBX/Gateway deployment as given in the following scenarios based on what is applicable in the user’s setup. -
Page 7: Initial Setup & Configuration
Some of the PBX/Gateway devices may have an exclusive LAN/Mgmt Interface for device management purpose other than the Data Interface (also referred as the WAN/Public Interface). In such cases LAN port of the STM should be connected to the Data Interface (WAN/Public Interface). -
Page 8: Accessing The Webui
Configure the STM Device IP Address from the “Device Settings” Page as per your local network range. Verify the IP address set to STM from the dashboard page. Once the user assigns the STM Device IP Address successfully, he can access the device using that IP address further. - Page 9 Alternatively the user can access the device via the static IP 10.0.0.1 and configure the network settings during first time installation. Connect a PC to the LAN port of the STM and assign the IP address 10.0.0.100/255.255.255.0 to the PC. Now you can access the device from the browser using the URL https ://<...
- Page 10 STM Quick Installation Guide STM Appliance 1 Figure 6: Login Page THE FULL VERSION MANUAL WILL PROVIDE YOU DETAILED INSTRUCTIONS ABOUT THE FULL FEATURE SET OF THE SIP THREAT MANAGER http://support.allo.com Any Technical assistance required, Kindly contact the support at THANK YOU! www.allo.com...
- Page 11 STM Quick Installation Guide STM Appliance 1 www.allo.com Version 2.0...
