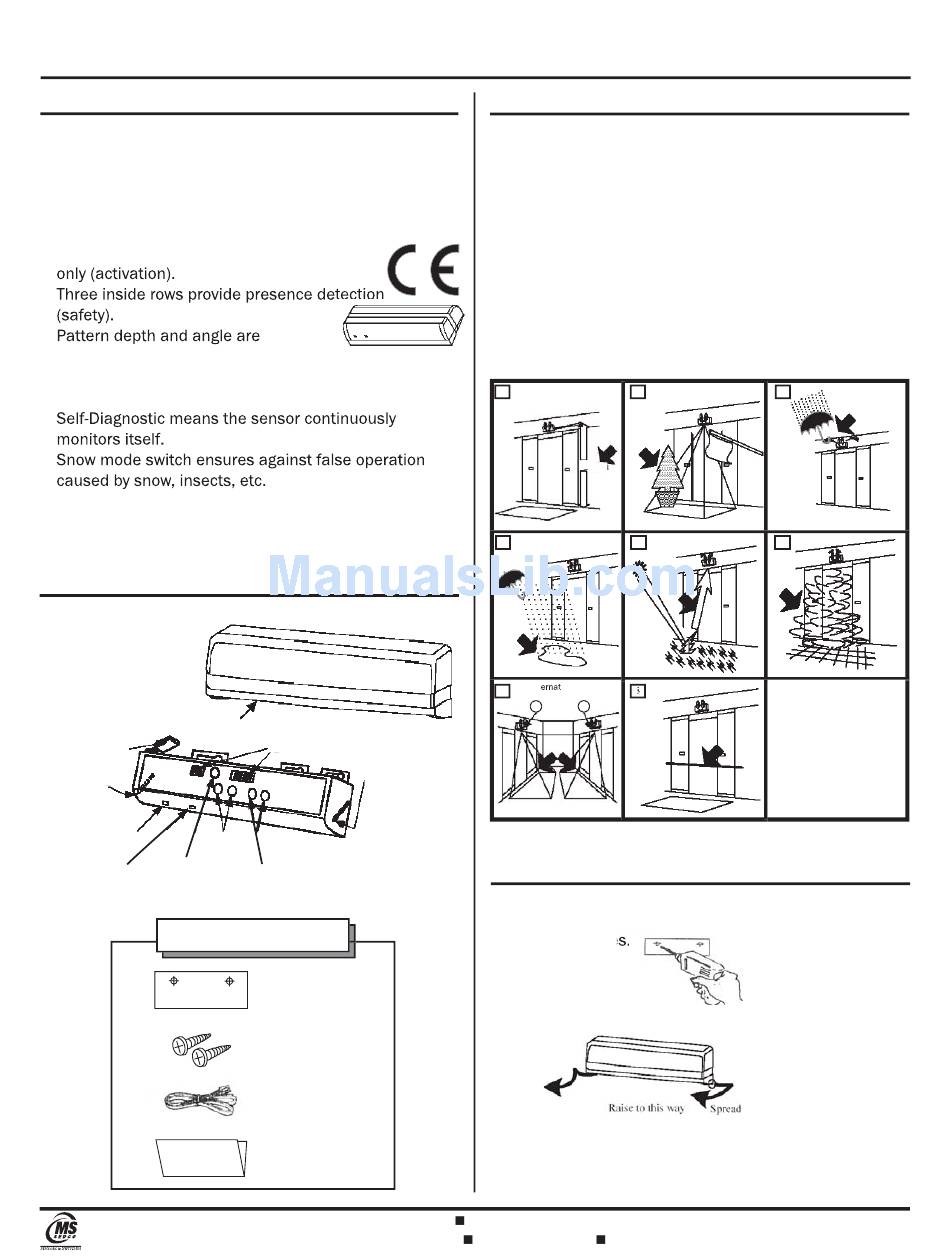

MS Sedco DH100 Installation Instructions

DH100
Sliding Pedestrian Door Motion & Presence Detector
Section 1

General Description

The DH100 is a floor reflection method (FRM) active
infrared combination motion and presence detector that
is designed to provide both activation and safety
detection for automatic sliding doors in a single device.
• Two outside rows provide motion detection
•
•
adjustable via dip switches and mechanical levers.
• Pattern width is adjustable via mechanical knobs.
• Frequency is selectable in four channels.
•
•
• Both motion and presence timers are independently
programmable.
Section 2

Parts Identification

Connector
Depth Adjustment
Lever Arm
(Inner 3 Rows)
Initializing
LED 2
Area Mask
(Inner 3 Rows)
Potentiometer
LED 1
(power supply &
detection)
Accessories
Telephone: (800) 842-2545/(317) 842-2545
Cover
DIP Switches
Depth Adjustment
Lever Arm
(Outer 2 Rows)
Area Mask
(Outer 2 Rows)
Mounting
Template
Mounting
Screws
Connection Cable
Instructions
8701 Castle Park Drive
Section 3

Mounting Information

1. Do not mount higher than 9 ft. (2.7m).
2. Do not leave any objects which may move in the
detection pattern.
3. Ensure rain or snow will not fall directly on unit.
4. Ensure snow or water can not accumulate on floor.
5. Ensure a minimum of reflected sunlight from the
floor.
6. Avoid steamy environments.
7. Use different frequency settings for sensors in close
proximity.
8. Use Infrared Safety Beams when required.
1 2
9'
(2.7m)
4 5
Use Alt e Frequency.
7 8
A A B B
Section 4

Mounting and Wiring

1. Using the mounting template provided, drill mounting
and wire hole
2. Remove cover using a screwdriv using a
Indianapolis, Indiana 46256
www.mssedco.com custsvc@mssedco.com
INSTALLATION INSTRUCTIONS
3
6
g template prov
ver.
(/MANU) DH100v0605
Page 1
