- Page 1 TransTech III+ ™ Transmission Service System Part No. 500-1100B USER MANUAL UNIT EQUIPPED WITH V-2 CONTROL BOARD...
- Page 2 Please study this Operators Manual to become thoroughly familiar with the TransTech™ III+ Transmission Service System. Thank you for choosing MotorVac. Sincerely, The MotorVac Team.
-
Page 3: Table Of Contents
Table of Contents Page System Features and Functions ………..…………………………………………….....………… Control Panel Features and Functions ….......……………………………………………...…….. Getting to Know the TranTech™ III+ ……..……………………………………………..………………..Safety Information and Precautions ………………………..……………………………………....4 - 5 TranTech™ III+ Initial Setup Procedure ………………………..……………………………………..... Transmission Service Procedure ………………………..…………………………………..…....Optional Procedure - Drain Pan for Filter Change ………………………..…………………………………... -
Page 4: System Features And Functions

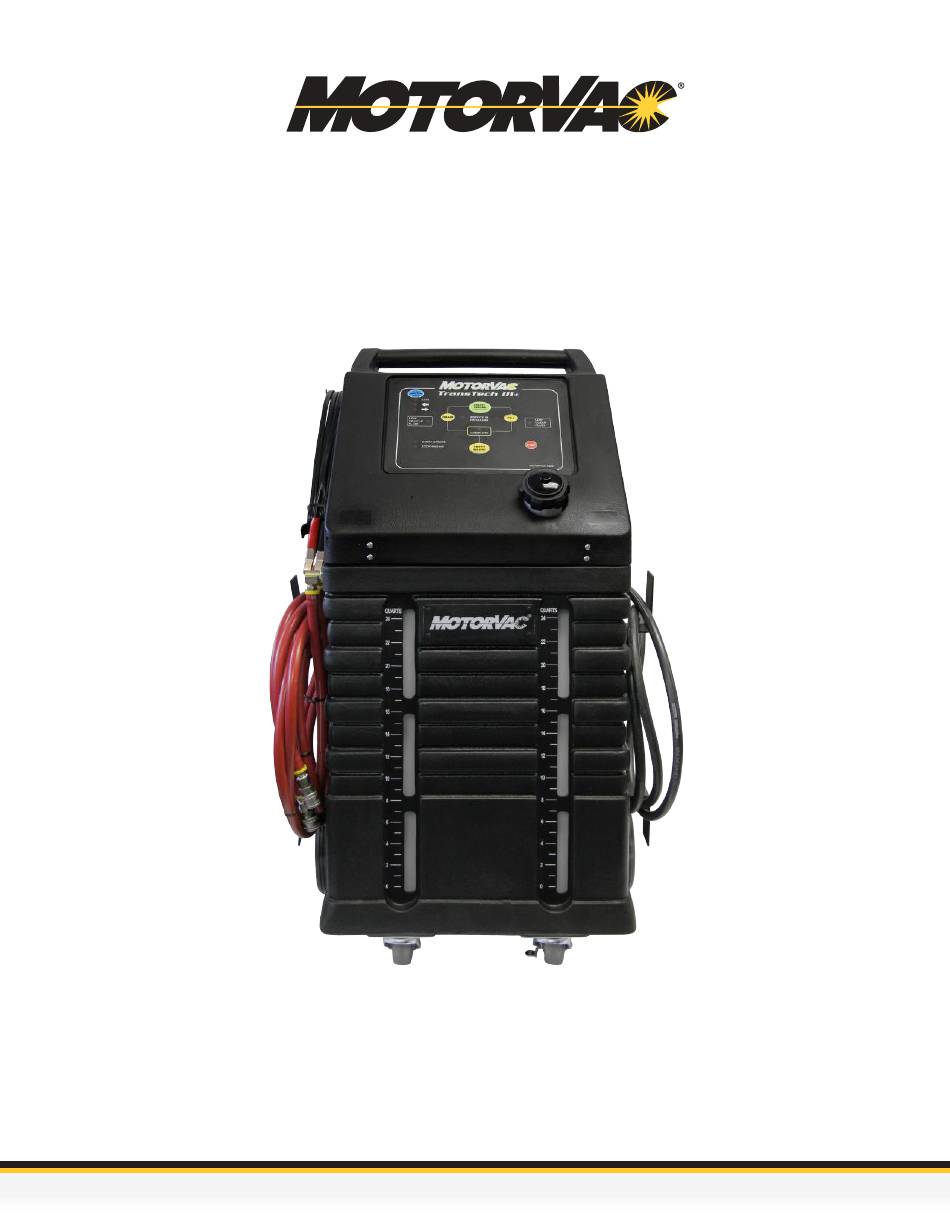

System Features and Functions The front of the TransTech™ III+ cabinet contains the control panel, the fluid fill neck for adding new transmission fluid, and the fluid level windows. TransTech lII+ FLOW DIRECTION MODE AUTO START / RESUME FLUID EXCHANGE SERVICE IN DRAIN FILL... -
Page 5: Control Panel Features And Functions
Control Panel Features and Functions START/RESUME Button - Begins & Resumes service DRAIN Button - Drains fluid from vehicle’s transmission. FILL Button – Adds fluid to the transmission. LOW VEHICLE FLUID LED - Illuminates when fluid in the vehicle in service is low or empty. -
Page 6: Getting To Know The Trantech™ Iii
Getting to Know the TransTech™ III+ Front Features Control Panel – All electronic operational functions are initiated at this location. See Control panel features section. Filler Port & Cap – New ATF is poured into unit before service. Right Side Features Disposal Hose Ball Valve - Open manually before EMPTY WASTE button is pushed. -
Page 7: Safety Information And Precautions
Safety Information and Precautions DANGER: 1. Vehicle exhaust gases contain carbon monoxide, which is a colorless and odorless lethal gas. 2. Only run engines in well-ventilated areas and avoid breathing exhaust gases. 3. Extended breathing of exhaust gases will cause serious injury or death. WARNING: 1. -
Page 8: Safety Information And Precautions
Safety Information and Precautions (Cont’d) Moving engine parts: 1. The engine cooling fan will cycle on and off depending on the coolant temperature and could operate without the engine running. 2. Wear safety goggles. 3. Always keep objects, clothing, and hands away from the cooling fans and engine parts. 4. -
Page 9: Trantech™ Iii+ Initial Setup Procedure
TransTech™ III+ Initial Setup Procedure The following procedure is only necessary for first time use or if the waste tank is fully evacuated for shipping purposes. Set-Up Instructions: 1. Fill the CLEAN FLUID tank with approximately 6 quarts (5.7 liters) of new ATF. 2. -
Page 10: Transmission Service Procedure
Transmission Service Procedure Inline Exchange Warning: It is not necessary to empty the waste tank before beginning an exchange. If beginning an exchange with fluid in the waste tank ensure that there is less fluid in the clean tank than the remaining capacity of the waste tank. -
Page 11: Optional Procedure - Drain Pan For Filter Change
Optional Procedure - Drain Pan for Filter Change Warning: It is not necessary to empty the waste tank before beginning an exchange. If beginning an exchange with fluid in the waste tank ensure that there is less fluid in the clean tank than the remaining capacity of the waste tank. -
Page 12: Changing Fluid Types
Changing Fluid Types Follow these steps if it is necessary to completely empty the clean fluid tank in order to change to another type of fluid. 1. Install an open adapter in either red service hose. (Fluid will exit both hoses if adapters are installed in both hoses). -
Page 13: Maintenance Procedures
Maintenance Procedures The following maintenance procedures should be performed on a routine basis: 1. Carefully clean the exterior with a soft cloth to keep the cabinet looking new. Check the cabinet for dents or impact markings, if found, inspect for damaged components. 2. -
Page 14: Troubleshooting And Additional Help
Troubleshooting and Additional Help Refer to the list below troubleshooting assistance. Problem Possible Cause 1. Unit does not power-up. No LED’s are Polarity is reversed on vehicle battery connection. illuminated Check connection to battery for a loose condition. Circuit breaker may be tripped. (Automatic reset). Faulty battery 2. -
Page 15: Error Alerts
Error Alerts The TransTech™ III+ has been designed to stop the service and alert the operator in certain instances if the unit is not functioning properly. See below for details. Alert Notification Cause Hardware Recovery Troubleshooting steps Fill Error The alarm sounds. There is a hardware or Empty the Clean ATF Press STOP button to... -
Page 16: Parts
Parts Service Parts for the TranTech™ III+ Transmission System. Please refer to the part numbers below when ordering parts. Part # Description 010-0027 Wheel (8 x 1.75) 010-1052 Bottle for adaptor tray 011-0003 Sorter rack for adapter tray 010-5004 Hose bracket 010-5500 Axle, Rear Wheels (½”...
