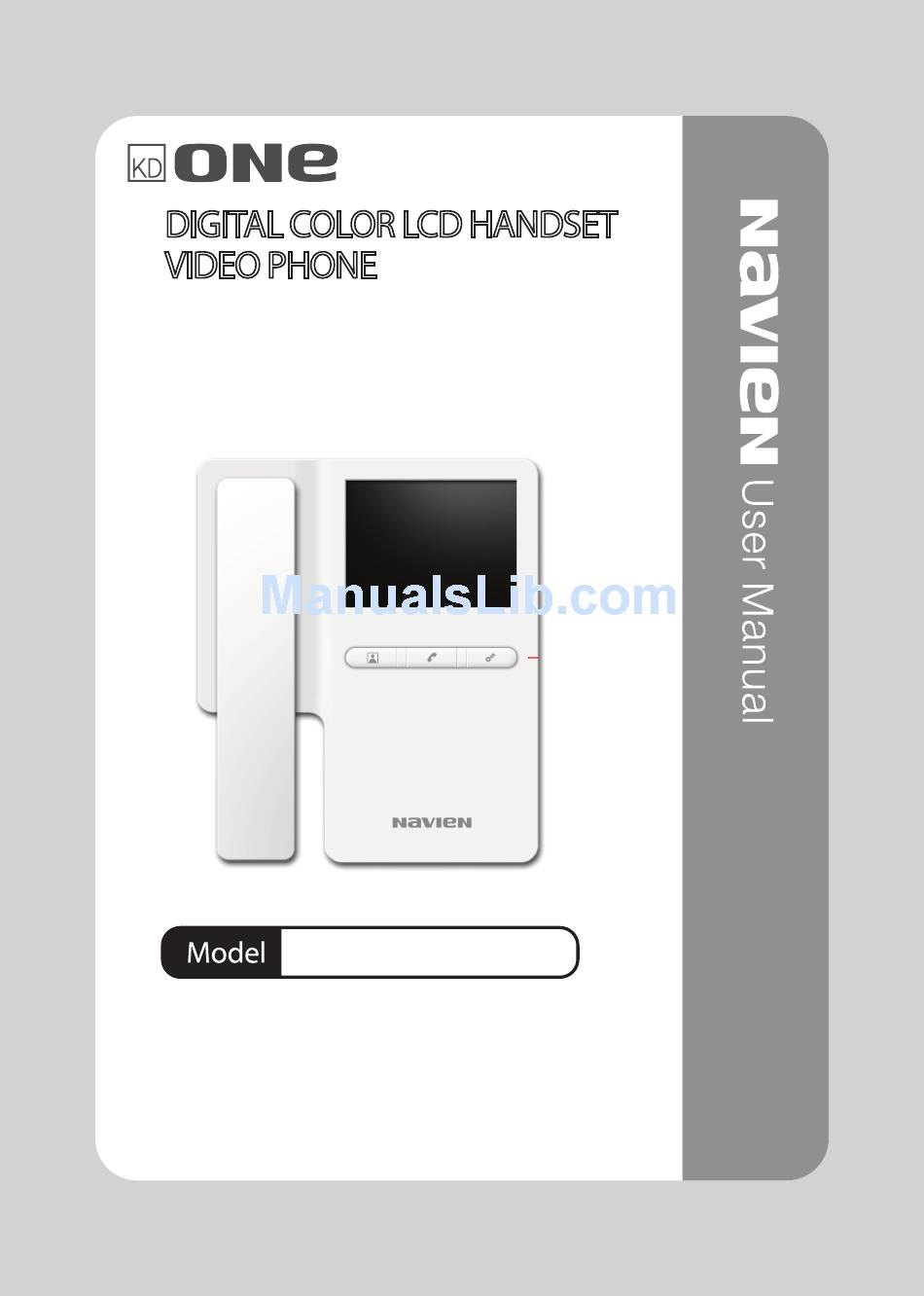

DIGITAL COLOR LCD HANDSET
VIDEO PHONE
UHA-432SG/M
• Please carefully read this User's Guide (In particular,
precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents
caused by abnormal operation of the product.
Advertisement
Related Manuals for Navien UHA-432SG
Summary of Contents for Navien UHA-432SG
- Page 1 DIGITAL COLOR LCD HANDSET VIDEO PHONE UHA-432SG/M • Please carefully read this User’s Guide (In particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents...
-
Page 2: Table Of Contents
Warning Important safeguards Components Installation Product speci cations Operation Wiring diagram Warranty... -
Page 3: Warning
WARNI N G • To prevent injury, the following safety precaution should be observed during installation, use and servicing of the unit. CAUTION RISK OF ELECTRIC SHOCKS DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE, REFER SERVING TO QUALIFIED SERVICE PERSONNEL This symbol is intended to alert the user to the presence of... - Page 4 For the customers This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.
-
Page 5: Important Safeguards
I m port a nt Saf e guar d s 1. Read Instructions All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. - Page 6 10. Grounding and Polarization This unit may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. The 2-wire polarized plug will t into the power outlet only one way.
-
Page 7: Components
COMPONENTS Main body ■ (Front) (Side) (Rear Connector) Handset Power I n di c at o r LED Connect i o n Termi n al f o r S/W Upgr a de Power On/OFF LCD Scr e en Connect i o n Termi n al f o r door Cam #1 Moni t o ri n g But t o n +( U P) But t o n... -
Page 8: Installation
I N STALLATI O N Standard height of video phone ■ 1. After determining the mounting locations for both the outside camera and inside monitor. 2. At the selected monitor mounting location, 1,450mm is suggested from the bottom. <Caution> Install the monitor away from the heat, moisture and direct sun rays. -
Page 9: Product Speci Cations
4" Color TFT LCD Screen Video 1Vp-p/75Ω, Composite input NTSC/PAL(Color) Temp. 0℃∼40℃ Environmental Circumstance Humidity Less than 90% (Relative humidity) Size 170(W) × 206(D) × 35(T) ㎜ Dimensions UHA-432SG : 750 g Weight UHA-432SGM : 770 g Mounting Wall surface mounted... -
Page 10: Operation
OPERATI O N 1. Talk When a visitor pushes a Call Button ■ When a visitor pushes the Call Button on the door-phone at the front door, the call is transferred to the Videophone. Call signal is ringing on When Hang-o the If you Hang-on the If you push the the Videophone, while... - Page 11 Intercommunication between videophones (when they are connected) ■ When a call signal comes When Hang-o the handset , If you Hang-on the Hand-set from another videophone, talking starts. while talking or the time limit Power indicator LED is ickering of 1 minute is reached, and home call melody ringing.
- Page 12 2. Storing and playing Images Storing images of a visitor (Video memory equipped model) ■ - Storing of images is done automatically during call signaling to the door-phone, depending on how the user has set up STILL/VIDEO storing in the user menu. - If there’s no storage space, the oldest image will be deleted so that a new image can be stored .
- Page 13 3. Menu setting functions How to control the call signal bell ■ - You can control the call signal bell volume the “+” or “-” switch located on the side of the product when in-bound or out-bound calling. - Using “+” or “-” switch, set the volume (1~3) and push the “SET” Button for con rm. Setting the picture quality ■...
- Page 14 USER mode(Video memory equipped model) ■ - USER mode is for the Video Memory module(VMM). - Enter “USER” mode by pressing the “SET” button in a standby state after power is on. - If VMM is not installed on your device, when you press the “SET” button, ERROR TONE will ringing. - USER mode ends automatically and standby mode is on when about 30sec passes without button input.
- Page 15 Setting the time (Video memory equipped model) ■ - This setting is for the displaying time on the stored Video(Still/Video) - In the USER mode, When the “+” or “-” button is pushed from the time set screen, “TIME” menu screen appears.
- Page 16 Video storage type set up mode(Video memory equipped model) ■ - Video storage type setup mode - If you push “+” or “-” button from Main menu, entered the “SAVE” menu screen appears (The present storage type appears under selection.) - Select either VIDEO or STILL as storage type using “+”...
- Page 17 Manager Mode ■ * Manager mode is the product setting mode that allows a installer to conquer the device environment(setting door-phone number and the type of door-phone camera) needed for operation. - Manager mode ends automatically and standby mode is on when about 1 minute passes without button input.
- Page 18 Setting CAMERA Number ■ * This is the mode that allows you to set the number of door-phones in line with the Videophone. * Set up as Door-phone 1 by default. - Select [CAMERA NUM] from the [MANAGER] MENU using the “UP” and “DOWN” buttons . If you push the “SET”...
- Page 19 Setting CAMERA TYPE ■ * This is a mode that allows you to set the type of the door-phone camera to be connected with the videophone. * Set up as PAL by default. - Select [CAMERA TYPE] from [MANAGER] MENU using the “UP” and “DOWN” buttons, and then if you push the “SET”...
-
Page 20: Wiring Diagram
WI R I N G DI A GRAM System Diagram ■... - Page 21 Wiring Diagram (Rear Terminal Board) ■ Door Door Phone 1 Phone 2 INTERCOM VOICE VOICE INTERPHONE...
- Page 22 Doorphone Wiring ■ MONITOR DOORPHONE POWER POWER DOOR1 VOICE VOICE TIV 4 VIDEO VIDEO or DOOR2 UTP 8 If UTP CABLE[CAT.5] is used, use 5 lines for GND line Intercom Wiring ■ MONITOR MONITOR VOICE VOICE TIV 2 or UTP 8 If UTP CABLE[CAT.5] is used, use 7 lines for GND line Interphone Wiring ■...
-
Page 23: Warranty
WARRANTY Products are supplied with two(2) years return to base warranty. From the date of purchase. We will repair or replace the defective item with a new or factory rebuilt replacement. Condition 1.This warranty applies to the original purchaser only. 2. - Page 24 4F, KOAMI Bldg., 22,Gukhoe-daero 76-gil,Yeongdeungpo-gu,Seoul, 150-870, Korea/KD One global business Dept. Website : www.kdone.co.kr...
