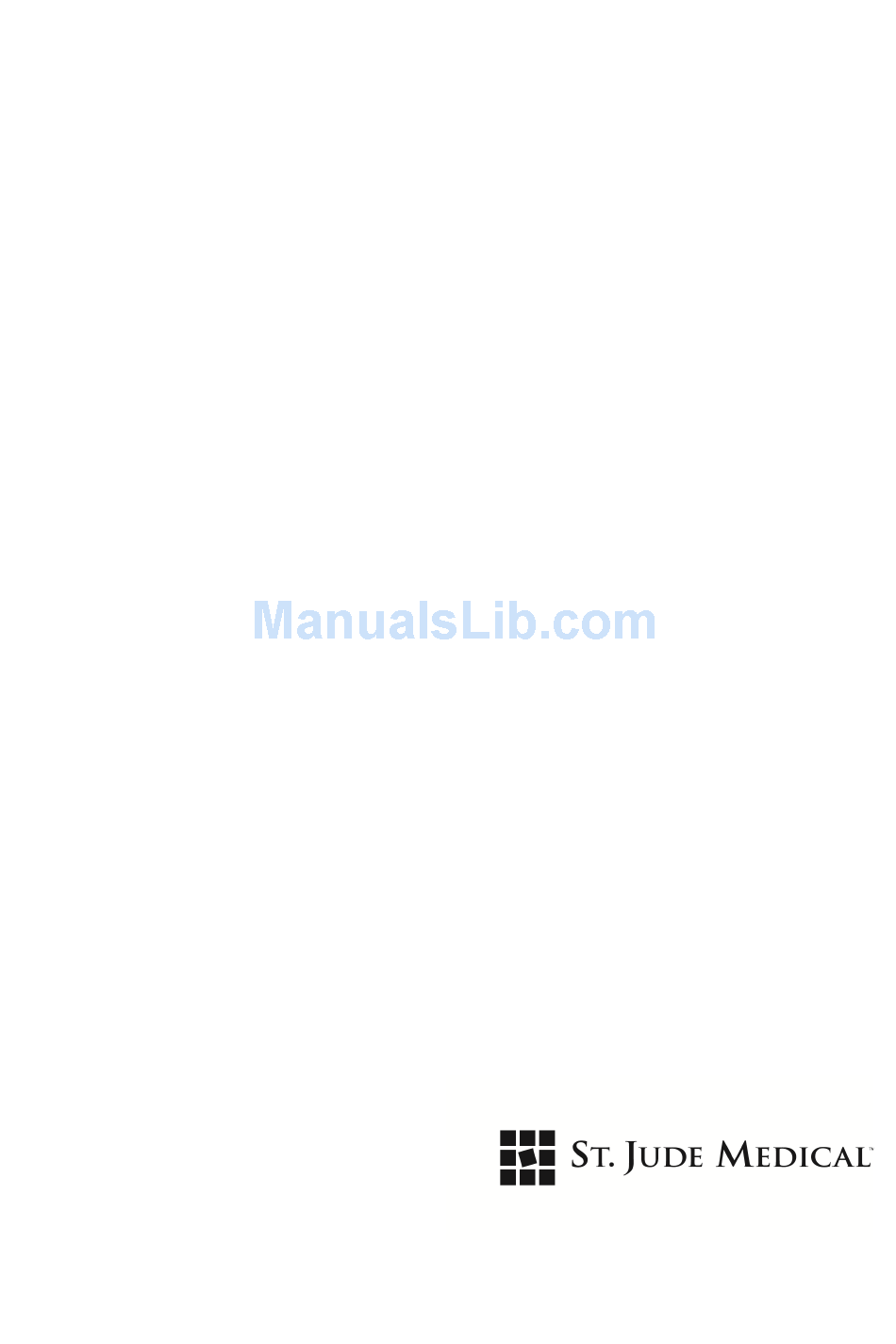

- Page 1 Merlin@home™ Transmitter Model EX1150, EX1150W User's Manual...
- Page 2 CAUTION: Federal (USA) law restricts this device to sale by or on the order of a physician. Unless otherwise noted, ™ indicates that the name is a trademark of, or licensed to, St. Jude Medical or one of its subsidiaries. ST. JUDE MEDICAL and the nine-squares symbol are trademarks and service marks of St. Jude Medical, LLC and its related companies.
-
Page 3: Table Of Contents
Contents Introduction ......................1 What Does the Merlin@home™ Transmitter Do? ..............1 Using your Merlin@home™ Transmitter with your Telephone ..........1 Using your Merlin@home™ Transmitter with a Wireless Broadband Kit ........ 2 Using your Merlin@home™ Transmitter with a Cellular Adapter ..........2 Can You Use the Transmitter While Traveling? .............. -
Page 5: Introduction
Introduction Your doctor has given you the Merlin@home™ transmitter that is part of the St. Jude Medical™ Merlin@home Remote Monitoring System. This manual describes this system and explains how to set up and use the transmitter. What Does the Merlin@home™ Transmitter Do? The Merlin@home™... -
Page 6: Using Your Merlin@Home™ Transmitter With A Wireless Broadband Kit
When the transmitter is not reading or sending information, it is idle. Leaving the transmitter connected to your telephone line does not affect your telephone's normal operation. You can still make and receive calls. NOTE: At any time during your Merlin@home session, you can interrupt your session to use the telephone. -
Page 7: Important Safeguards
Important Safeguards Always follow basic safety precautions when using electrical products, especially when children are present. These include: Read all instructions before using. Keep these instructions. WARNING For emergencies, call 911 Do not spill any liquid on the transmitter. If you spill any liquid, unplug the transmitter and wipe the liquid off right away. -
Page 8: Merlin@Home™ Sessions And Device Checks
transmitter. Moving the source of EMI away from the transmitter or turning the source of EMI off will usually allow the transmitter to return to its normal mode of operation. Sources of EMI may include communication equipment, wireless communication devices, household appliances, and industrial equipment. -
Page 9: Device Check
Device Check To conduct an unscheduled device check: Do one of the following: If only the green light is lit, go to Step 1. If the "Stars" icon is lit, go to Step 2. Press the Start button. The "Stars" icon lights up. Press the Start button for 3 to 4 seconds until you hear two beeps. -
Page 10: Technical Support
and serial number, settings, and battery status. Device — Your implanted device, also known as an ICD (implantable cardioverter-defibrillator), CRT-D (cardiac resynchronization therapy defibrillator), pacemaker, or CRT-P (cardiac resynchronization therapy pacemaker). Merlin@home session — A remote monitoring session in which your information is sent to the server, where the clinic can view your information. - Page 11 Symbol Description Product literature Consult instructions for use Follow instructions for use on this website USB wireless adapter USB wireless adapter's clip and USB cable Wireless access point Wireless access point's ethernet cable Wireless access point's power supply Manufacturer Authorized representative in the European Community Follow the instructions for use...
- Page 12 Symbol Description Direct current To identify the terminals to which a telephone adapter is to be connected Transmitter works with a landline telephone Interference may occur in the vicinity of this equipment Class II equipment. Meets safety requirements specified for Class II equipment according to IEC 60601-1.
- Page 13 Symbol Description Temperature limitations Humidity limitation TÜV Listed, US and Canada. Conforms to UL60601-1. Certified to CAN/CSA C22.2 No.601.1-M90 European conformity, affixed according to the relevant provisions of AIMD directive 90/385/EEC and RE directive 2014/53/EU Annex III. Hereby, St. Jude Medical declares that this device complies with the essential requirements and other relevant provisions of these directives.
-
Page 14: Technical Information
Technical Information The Merlin@home™ transmitter is Class II medical equipment and complies with IEC60601- 1:2012 and UL60601-1:2003 and CAN/CSA-C22.2 No. 601.1-M90. NOTES: • There are no user-serviceable parts in the Merlin@home transmitter. No calibration is required. Do not modify the Merlin@home transmitter. •... -
Page 15: Electromagnetic Compatibility
Optional transmitter accessories are: Model EX1151 Wireless USB Adapter series Model EX1170 Wireless Broadband Kit series NOTE: As with all wireless communications, there is a very small chance that transmitted information might be intercepted. For added security, your transmissions to the secure server are encrypted. - Page 16 Table 5. Guidance and manufacturer's declaration - electromagnetic immunity Test IEC 60601 Test Level (Actual Electromagnetic Environment - Level) Guidance Electrostatic ±8 kV contact Floors should be wood, concrete or Discharge (ESD) (±8 kV contact) ceramic tile. If floors are covered with IEC 61000-4-2 synthetic material, the relative humidity should be at least 30%.
- Page 17 Table 6. Guidance and manufacturer's declaration - electromagnetic immunity (conducted RF and radiated RF) Test IEC 60601 Test Immunity Electromagnetic Environment - Level Compliance Level Guidance Conducted 3 Vrms 3 Vrms Portable and mobile RF communications 150 kHz to equipment should be used no closer to IEC 61000- 80 MHz any part of the Merlin@home transmitter,...
-
Page 18: Radio Frequency Information
*Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast, and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. -
Page 19: Wireless Security
2.45 GHz. The effective radiated power is below the limits as specified in: Europe: EN ETSI 300 328 USA: FCC 47 CFR Part 15.249 NOTES: • Maintain a reasonable distance between other electronic equipment and the Merlin@home™ transmitter. •... -
Page 20: Fcc Information
Minimize the amount of objects or people between the transmitter and the patient Avoid holding the transmitter Move away from or turn the power off of equipment that could generate electromagnetic interference or strong magnetic fields FCC Information This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. -
Page 21: Warranty
transmitter not approved by St. Jude Medical could void your right to operate the Merlin@home transmitter. NOTES: • This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 22 WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ST. JUDE MEDICAL WILL NOT BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, CONSEQUENTIAL, OR INCIDENTAL, CAUSED BY DEFECTS, FAILURES, OR MALFUNCTIONS OF ITS PRODUCTS, WHETHER SUCH A CLAIM IS BASED ON WARRANTY, CONTRACT, TORT, OR OTHERWISE.
- Page 24 St. Jude Medical St. Jude Medical Cardiac Rhythm Coordination Center BVBA Management Division The Corporate Village 15900 Valley View Court Da Vincilaan 11 Box F1 Sylmar, CA 91342 USA 1935 Zaventem +1 818 362 6822 Belgium +32 2 774 68 11 sjm.com 2017-08 ARTEN100161338 A...
