Addvalue Innovation SABRE RANGER 5000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

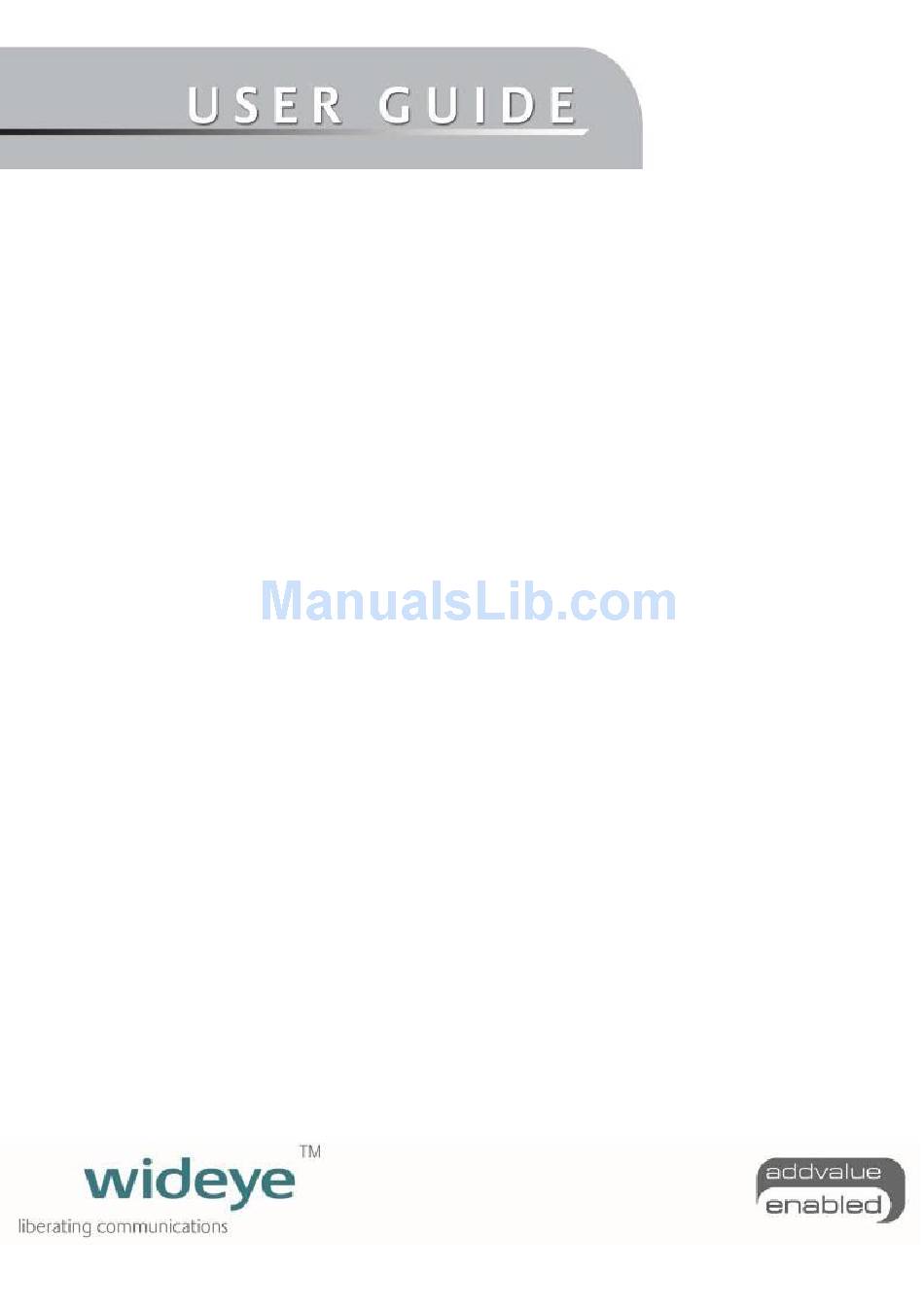

SABRE
Version :
Date
™
RANGER 5000
1.0 (draft)
:
11 Sep 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SABRE RANGER 5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Addvalue Innovation SABRE RANGER 5000

Summary of Contents for Addvalue Innovation SABRE RANGER 5000

  • Page 1 ™ SABRE RANGER 5000 Version : 1.0 (draft) Date 11 Sep 2017...

  • Page 2: Table Of Contents

    13. Appendix A: Terminal Block Pin Assignment .................... 60 14. Appendix B: Conduit & Accessories ......................62 15. Appendix C: Technical Summary ......................63 16. Appendix D: Backup Configuration Reference Table ................. 65 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 3: Copyright

    All rights reserved. This publication and its contents are proprietary to Addvalue Innovation Pte Ltd. No part of this publication may be reproduced in any form or by any means without the written permission of Addvalue Innovation Pte Ltd., 8 Tai Seng Link, Level 5 (Wing 2) Singapore 534158. Warranty Addvalue Innovation Pte Ltd has made every effort to ensure the correctness and completeness of the material in this document.
  • Page 4 This antenna used for this transmitter must be installed to provide a separation distance of at least 100cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 5 Local Radio service. AT BE BG CZ DK EE FR DE IS ES CY LU HU MT NL RO SI SK TR FI CH UK HR © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 6: Introduction

    You can use either the rugged mounting bracket (optional accessory) of the Sabre™ ™ Ranger 5000 (See figure 1 below.) or a VESA MIS-D bracket to mount the SABRE RANGER 5000 terminal. Figure 1 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 7: Quick Reference

    ™ The SABRE RANGER 5000 has a NPT ¾ inch hole for installing a conduit-fitting or a cable gland on the bottom part of the casing to route all the wires. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 8: Install The Sim Card

    Antenna Pointing LEDs Conduit-Fitting Hole Figure 3 2. Rotate the protective cover in a clockwise direction. 3. Open the SIM card cover and rotate in a clockwise direction. See figure 4. Figure 4 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 9 4. Slot the SIM card into the SIM card holder in the orientation as shown on figure 5. Figure 5 5. Insert the SIM card until it ‘clicks’ into place. 6. Rotate and move the SIM card cover back in place. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 10: Connect The Cables And Wires

    See appendix B for information about the conduit and its accessories. Figure 6 CON801 and CON802 Terminal Block Assignment Figure 7 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 11 (-) marking. Press and hold the orange tab on the terminal block while inserting the wire into the hole. NOTE: The sample wires below are used for reference. You may use different colour wires that met the electrical specifications. Figure 9 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 12 11 (RS232-RX) NOTE: If you use the Belden cable no. 9535 for 5-wire RS232 (RX, TX, RTS, CTS, GND), refer to figure 7 for the wire connections to the terminal block. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 13 2.6V. The maximum input voltage to be declared is lower than, 1.0V. The digital input ground is connected to pin 4 (GND), pin 7(GND) or pin 16(GND). © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 14 Use Belden cable no. 9841 or equivalent. The analogue input is connected to pin 20 (Analog-input) of CON801. This input will accept a signal of 0V to 32VDC. The analogue signal ground is connected to pin 19 (GND) of CON801. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 15 See figure 14 – * wires are not displayed to show the cable tie hole. Figure 14 3. Secure the wires together with a cable tie. Cable Tie Figure 15 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 16 ™ SABRE RANGER 5000 User Guide 4. Secure the conduit tightly to the adaptor to prevent water from getting into the conduit and the terminal. Figure 16 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 17 For ingress protection, it is important to ensure the screws are tightened to a torque value of 0.57 Nm (5.0 in-lbs), approximately 2 ½ to 3 turns for each screw. Figure 17 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 18: Optional Accessories

    Socket Head Cap Screws, M8 x 120mm, Full thread Flat Washers, M8 Saddle Clamps Bracket Wall (185 x 90 x 100)mm Split Washers, M8 Socket Head Cap Screws, M8 x 14mm Bracket Body (189 x 110 x 90)mm © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 19: Fix Optional Mounting Bracket To Sabre™ Ranger 5000

    Do not fully tighten the screws to assemble with a hex L-key, fasten the screws finger tight only as you need to adjust its actual position according to the satellite location later. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 20: Mount The Terminal On A Pole

    See figure 21 below. Figure 21 3. Use the supplied washers, socket head cap screws (M8 x 120mm), and the saddle clamps to mount the pre-assembled terminal on the pole. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 21 See figure 22. Figure 22 ™ 5. Tighten the screws to secure the SABRE RANGER 5000 terminal to the pole. Secure the conduit to the pole by using several cable ties. Figure 23 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 22: Terminal Grounding

    1. Unscrew one of the four mounting screws at the back of the terminal. 2. Insert the earth grounding wire lug in between the mounting bracket and the washer, and then tighten the screw. NOTE: Please seek professional local advice for earth grounding. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 23: Point The Antenna

    5°. See figure 26 below. The terminal is at a vertical position at the angle of 0° and at a horizontal position at the angle of 90°. Figure 26 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 24 ™ SABRE RANGER 5000 User Guide Insert the M5 bolt to lock the required position and tighten it to secure the angle of elevation. See figure 27. Figure 27 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 25: Navigate To The Web Console

    LEDs. Press and hold Pointing Mode button for more than 3 seconds to disable the Auto network registration mode and go to the manual network registration mode. Pointing Mode Button Antenna Pointing LEDs Figure 29 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 26 NOTE: indicates flashing green LED and indicates steady green LED. LEDs Signal Global Beam Signal Strength (dB) 0 – 40 41 – 47 55 and above © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 27 Figure 30 NOTE: Web Console will remind the user to change the password for the first time login for security purposes. A minimum of 6 characters are required for the new password. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 28 When the terminal is powered up while it is already pointed to the satellite, it will register to the network automatically. The LEDs will flash from right to left. When the network registration is successfully completed, all the LEDs will flash twice and turn off. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 29: Web Console

    - I/O Configurations - Backup/Restore - Web - Antenna Pointing Buzzer - GNSS Selection Terminal Info - Information - Logs - Data Log SMS Configurations - Information - Remote Control Language Support About © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 30 If the signal strength level indicated in the web console is low under a registered condition, you can slowly adjust the terminal’s elevation, azimuth angles and monitor the signal strength displayed in web console. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 31: Data

    Web Console login purposes. These are provided by your Service Provider if your network required a static IP address subscription. Leave it blank if you do not have such subscription Figure 34 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 32: Firewall

    Follow these steps to change the firewall setup. i. Click Edit to modify the predefined profile settings. You can edit the profile name and predefined rules to allow or reject incoming packets. Figure 36 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 33 Click Apply to the save the new incoming rules. Outgoing Rule i. Under Outgoing Rule tab, click the ‘+’ symbol besides the rule name to edit the existing rules. or click Add to add new rules. Figure 38 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 34 Click Edit to modify or Delete to delete the selected keywords. NOTE: Hostname filters will only take effect when HTTP/HTTPS rules are enabled under Data> Firewall> Setup. Re-activate your data connection for the new settings to take effect. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 35: Port Forwarding

    Enter the Destination Port number in the provided space. Example: TCP port 80 for web server. vi. Click Add to save the settings. NOTE: Re-activate your data connection for the new settings to take effect. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 36: Data Settings

    Navigate to Menu > Data > Data Settings to configure the data settings to Always On. To enable Auto PDP Context Activation i. Click Always On (Auto PDP Context Activation). ii. Click Update for the new configuration to take effect. Figure 43 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 37: Sms

    To save an unsent SMS, click Save and the unsent SMS will be saved in Drafts. iv. Check the box ☑ if you wish to store a sent SMS on to the SIM card. v. Click Append GPS to include your GPS location in the SMS. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 38: Inbox

    A single SMS or multiple SMSs can be deleted based on the selection. iii. Click OK to confirm the deletion, or Cancel to abort. To Refresh the Inbox list: i. Click Refresh and the list will be refreshed. Figure 45 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 39: Sent

    Select the draft SMS you plan to send. ii. Click Delete. iii. Click OK to confirm the deletion, or Cancel to abort. Refresh the draft list: i. Click Refresh and the list will be refreshed. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 40: Settings

    You are recommended to change the admin password for security reasons. Only one User and one Admin account are allowed. Add a user account: i. Click Add. Figure 47 ii. Enter New Password and Re-type Password. Figure 48 iii. Click Add. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 41: Ethernet

    Select Allowed List to allow the devices to access the terminal. iii. Enter the MAC address into the provided space and click Add to update the list. Click Update to make the new settings take effect. Figure 50 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 42: Security

    Select Disabled if you do not need to set the SIM PIN. iii. Enter the PIN number in the space provided and click Apply. Figure 52 NOTE: The SIM PIN depends on the SIM card. Consult your service provider if necessary © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 43: Terminal Settings

    Enter security code for factory reset (Default: 0000). NOTE: By default, the security code is 0000. Once you change the Terminal PIN, the Factory Reset password is changed to match the Terminal PIN. Figure 54 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 44: Firmware Upgrade

    Navigate to Menu > Settings > Terminal Settings> Firmware Upgrade to perform a firmware upgrade. Your terminal will reboot in Safe Mode once you click the Firmware Upgrade button. Figure 55 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 45: Remote Access

    Select Disabled if you do not need the feature. iii. Click Apply for the new configuration to take effect. iv. Enter the allowed Global IP address of the devices. Figure 57 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 46: Power Saving

    ™ SABRE RANGER 5000 User Guide 11.3.4.4 Power Saving Figure 58 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 47: Ciphering

    Select Enabled to enable the facility lock feature. ii. Select Disabled if you do not need the feature. configuration iii. Click Apply for the new to take effect upon the next reboot. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 48: Ip Watchdog

    Click Update for the new configuration to take effect vi. Tick “No ping request if IP traffic is detected within the ping interval” to save the data usage. Figure 61 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 49: I/O Configurations

    Based on the inactivity time, the terminal will deactivate the TCP connection if no serial data activity within the configured period. After the connection is closed, the terminal will be standby for another host’s TCP connection. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 50 Select Disabled if you do not need the feature. iii. Enter the IP addresses with the number of retries. iv. Enter the test intervals. v. Click Apply for the new configuration to take effect. Figure 63 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 51 Can be used to monitor the input voltage of a solar panel or an external battery. Serial Port Settings From the drop down menu, select the respective baud rates (from 4800 to 115200). Figure 64 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 52 By default, the terminal accepts all the IP addresses. Host Allow IP address range (IP/CIDR) of the computer allowed for remote access. Host Deny IP address range (IP/CIDR) of the computer rejected for remote access. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 53: Backup/Restore

    Click Restore. iii. Navigate to Menu > Settings > Terminal Settings> Reboot Terminal and click “Reboot terminal” to reboot the terminal for the new settings to take effect. Figure 65 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 54: Web

    Assisted Pointing Mode. By default, the antenna pointing buzzer is disabled. i. Select Enabled to enable the antenna pointing buzzer. ii. Click Update for the setting to take effect. Figure 67 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 55: Gnss Selection

    Navigate to Menu > Settings > Terminal Settings> GNSS Selection i. Select your GNSS option. ii. Click Update for the setting and reboot to take effect. Factory default: GPS and GLONASS Figure 68 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 56: Terminal Info

    Click Export all Logs in order to export the logs. From data log, user can check for the public IP address of the terminal. Example: 161.30.22.119 for the current activated data session (status: in progress). Figure 69 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 57: Sms Configurations

    This may incur airtime charges depending on the service provider. iv. Enter the SMS password for the remote control. v. Click update for the feature to take effect. NOTE: Refer to Sabre RANGER 5000 SMS Remote Control Feature User Guide for the SMS command. Figure 70 11.3.7 Language Navigate to Menu >...

  • Page 58: Web Console In Safe Mode

    Login to the Web Console in safe mode by typing http://RANGER5000 or http://192.168.1.35 into the address bar of any web browser. NOTE: The username and password of the Web Console are the same for Normal Mode and Safe Mode. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 59: Menu Overview

    You may need to supply this information when contacting your service provider. LOGS Navigate to Menu > Settings > Log to view the Event Log or Error Log of the terminal. Click Export all Logs in order to export the logs. © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 60: Appendix A: Terminal Block Pin Assignment

    ™ SABRE RANGER 5000 User Guide 13. Appendix A: Terminal Block Pin Assignment Figure 72 © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 61 DIGITAL INPUT 1 Max +32V IP 2 DIGITAL INPUT 2 Max +32V GROUND Analog Max +32V Input Local Max +32V Wakeup RS232/RX Debug Log Output only RS232/TX Debug Log Output only © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 62: Appendix B: Conduit & Accessories

    To Sabre™ Ranger 5000 NPT ¾” Conduit hole thread seal tape when assembling to Sabre™ Ranger 5000. Part No: 3805013 Part No: 7211977 Part No: 3805013 Part No: 1200232 Figure 73 Assembly View © 2017 Addvalue Innovation Pte Ltd. All rights reserved.

  • Page 63: Appendix C: Technical Summary

    5 x Antenna Pointing LED 1 x Antenna Pointing Buzzer 1 x Safe mode button 1 x SIM card holder 1 x Micro USB (Reserved) Firmware Upgrades Over-the-air or via Ethernet Port © 2017 Addvalue Innovation Pte Ltd. All rights reserved.
  • Page 64 Low power standby Mode: < 50mW Weight ~2.5Kg Dimensions 241(L) x 239(W) x 71(H) mm Wind loading Up to 125 mph (200kph) with mounting bracket is supplied by Addvalue Innovation Pte Ltd. Regulatory Approvals IC (Industry Canada) UL Safety Mark NEMA Type 4X RoHS IP66 Class 1 Div.

  • Page 65: Appendix D: Backup Configuration Reference Table

    Language Whilst the above information has been prepared by Addvalue Innovation Pte Ltd (“Addvalue”) in good faith, and all reasonable efforts have been made to ensure its accuracy, Addvalue makes no warranty or representation as to the accuracy, completeness or fitness for purpose or use of the information.
