IV. Specifications:

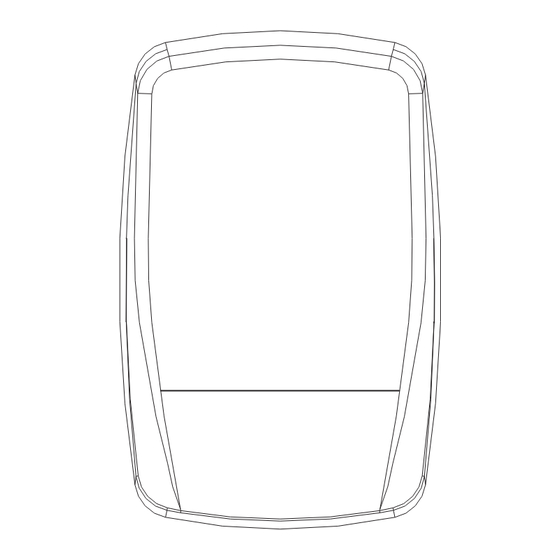

MSR-235 Burglar alarm
1.Power : DC12V+/-20%
<
2.Standard Current : 30mA
User's manual
3.Loading Current : 200mA Max.
(Before using the unit, please read the instructions)
4.Sound Level : 1M-110dB, 3M-100dB.
5.Battery Voltage : 6.0V/250mAh
6.Charging Current : 15mA
<
7.Strobe Current : 200mA
8.IP Standard : IP54
℃
℃
9.Tamperature : -20 ~+70
10.Dimension : 194(W)*300(H)*56.5(D)
mm
11.Weight : 0.78kg
-
876 0MSR2353-04
Advertisement
Table of Contents
Related Manuals for MiTEC MSR-235
Summary of Contents for MiTEC MSR-235
- Page 1 IV. Specifications: MSR-235 Burglar alarm 1.Power : DC12V+/-20% < 2.Standard Current : 30mA User's manual 3.Loading Current : 200mA Max. (Before using the unit, please read the instructions) 4.Sound Level : 1M-110dB, 3M-100dB. 5.Battery Voltage : 6.0V/250mAh 6.Charging Current : 15mA <...
- Page 2 MAC-408 wiring diagram MAC-408 AC AC - - + + NO COM NC MSR-235 Figure 6 DSC PC-1616 & PC-1832 wiring diagram PC-1616 PC 1832 & BELL RED BLK YEL Z1 COM MSR-235 Figure 7...
- Page 3 I Features Main Board Connection TAMPER tamper (NC), when the unit cover is opened or the chassis will trigger 1. Working indicator : When the normal power supply and internal battery is connected the red LED lights flashing. TAPMER. 2. Low-voltage alarm function: When the external power supply is lower than DC9.5V The positive power supply 12VDC (12V ~ 13.8V DC).
- Page 4 MAC 6 - 08 4. After reading this manual,please keep it for future reference. Warnning: 1. Dont exposed the unit in rain as shown below: ¡ I MSR-235 M SR - 200 MSR-235 Figure 4 MAC-604 wiring diagram MAC 6...
