MiTEC MAC-608 User Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
(Before using the product please read the specification first)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAC-608 and is the answer not in the manual?

Questions and answers

Related Manuals for MiTEC MAC-608

Summary of Contents for MiTEC MAC-608

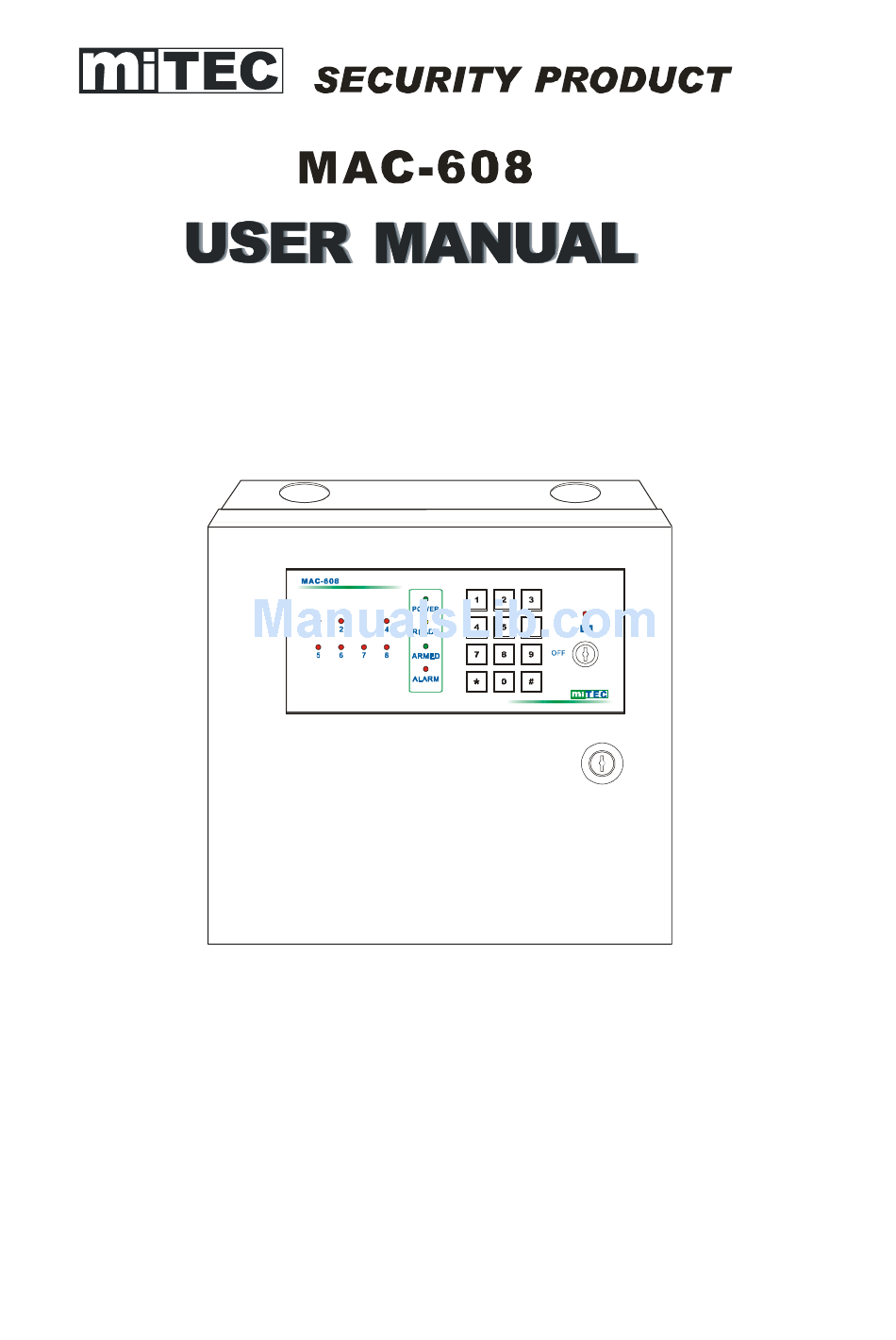

  • Page 1 (Before using the product please read the specification first)
  • Page 2 FEATURES POWER SOURCE AC100-240V 50/60Hz CHARGE DC14.5V/150mA FUSE T2.0A/250V CURRENT 200mA DC OUTPUT DC12V/1A(Max.) ALARM OUTPUT DELAY : 12A/14V DC or 7A/120V AC INDICATOR OUTPUT : THREE GROUPS DC 12V/40mA(Max.) DIMENSIONS : 284(W)X284(H)X86(D)mm WORK TEMPERATURE : -20°C-50°C WEIGHT : 4.0KG...

  • Page 3: Function Specification

    NOTICE 1. Don’t place this product under the rain and in wet conditions. 2. To prevent electric shock, make sure the circuit was cut off and connect AC power correctly before installing. 3. Before switch on power, Make sure all cable was correct connection. 4.
  • Page 4 DEFINE THE DEFENCE ZONE 【 Z1 】 EXIT/ Entry delay alarm circuit 1. EXIT delay: When start the keyboard or Remote Key Armed, the defence zone will Armed in normal state after EXIT delay of [T1} ,must be leave during the EXIT delay of [T1] and make [Z1]to be NC state ,other or ,it will trigger alarm.

  • Page 5: Panel Specification

    Panel specification ON/OFF Key Switch 1. When Key is in the ON position , start [Z7 ~ Z8 ] Armed * To start [Z1 ~Z6] alarm by keyboard or Remote Key. 2. System is Disarmed completely when Key is in the OFF position ,defence zone of [Z1~Z8] fail.
  • Page 6 PCB SPECIFICATION FUSE 1 2 3 4 1 2 3 NO CO M NO CO M Ke y Co m + 1 2 V AL - AR- CO M Z 6 CO M CO M Z 2 CO M DC12V Output Output 1 Output 2 Lamp Output...
  • Page 7 Time and password setting EXIT Delay time Setting (T1) ALARM output time setting (T3) POSITI ON DIP SW ITC H TIME DIP SW ITCH POSITION TIME O F F O F F O F F s e c o n d s O F F O F F O F F...
