Summary of Contents for BAE Audio 10DC

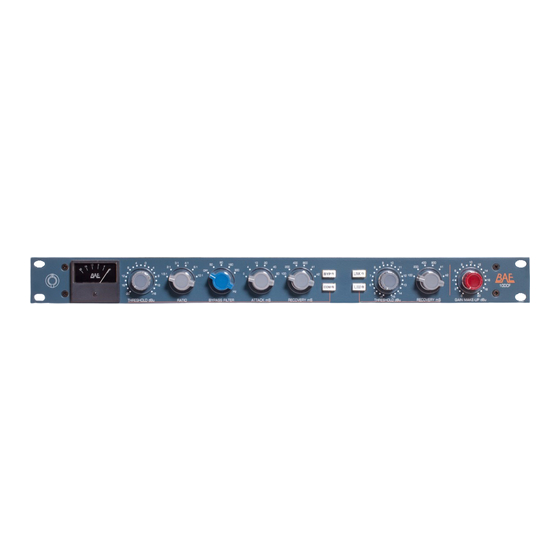

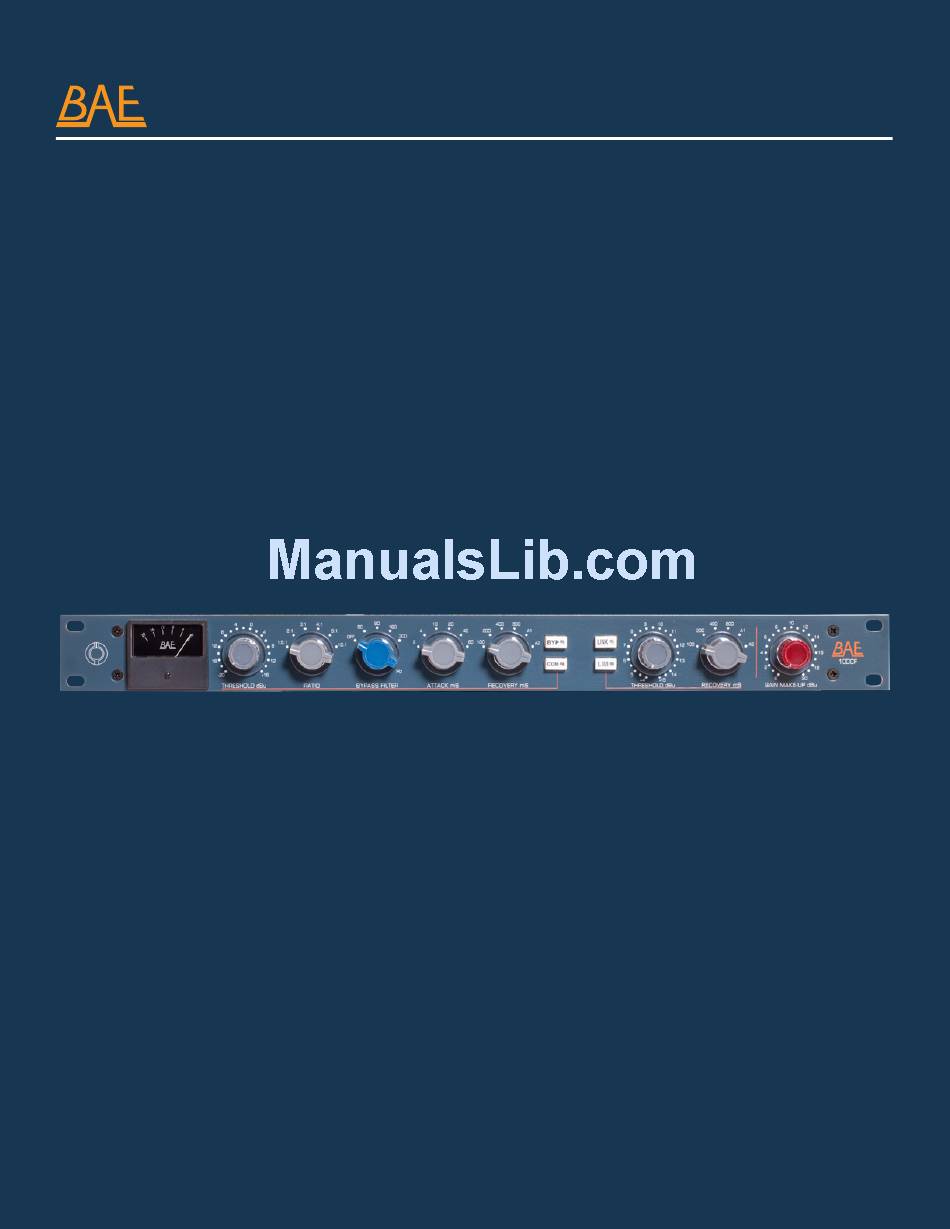

- Page 1 BAE AUDIO 10DC/DCF INSTRUCTION MANUAL...
- Page 2 BAE AUDIO – 10DCF SAFETY Read instructions - All the safety and operating instructions WARNING: should be read before operating the unit. The term “unit” here- TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, forth includes the remote power supply.
-
Page 3: Specifications
BAE AUDIO – 10DCF SPECIFICATIONS FREQUENCY RESPONSE 5Hz to 45kHz -1dB Measured at +8dBu NOISE -80dBu with 200Ω source MAXIMUM OUTPUT LEVEL +33dBu into 10kΩ +27dBU into 600Ω DISTORTION Varies from 0.03% to greater than 1% COMPRESSOR THRESHOLD: -20dBu to +16dBu with 2dB steps RATIO: 1.5:1 to 10:1 with 6 position switch... - Page 4 SETUP We know you can’t wait to plug in the 10DC but here are just a few things to know about during installation. When first powering on the 10DC, allow a few minutes of idle warmup. The components need time to charge before making any critical signal processing.
-
Page 5: Operation
A well-received feature to this style of compressor, the ATTACK control sets the amount of time it takes for the 10DC to begin compressing the signal once it is above the threshold. It is selectable in six steps from 2mS for fast response to peaks to 80mS for very slow response to retain the dynamics before compression takes control. -
Page 6: Gain Make-Up
BAE AUDIO – 10DCF LIMITER THRESHOLD: This sets the audio level at where the signal begins its compression. It covers a range from +4dBu to +15dBu in 1dB steps. Limiter functions are considered with more care and refinement as the recording device would be more sensitive to maximum levels, especially with digital media where there is not much give going into the red with metering. -
Page 7: Stereo Linking
STEREO LINKING The 10DC is equipped to be linked in stereo operation if desired. When using two 10DC units, either one of them could be used as the Master by simply setting the controls so that it compresses or limits more than the other unit. -
Page 8: Warranty Registration
EXTEND YOUR WARRANTY TO 5 YEARS! Without registering your product, our standard product warranty is 1 year. During the warranty period, BAE will at no cost to the customer (minus any shipping) repair the unit to full operating specifications. The warranty does not include units damaged or rendered defective as a result of accident or misuse. Disclaimer: All sales are subject to verification. -
Page 9: Recall Sheet
RECALL SHEET DATE: ARTIST: SONG:... - Page 10 www.baeaudio.com...
