Summary of Contents for BAE Audio 500C

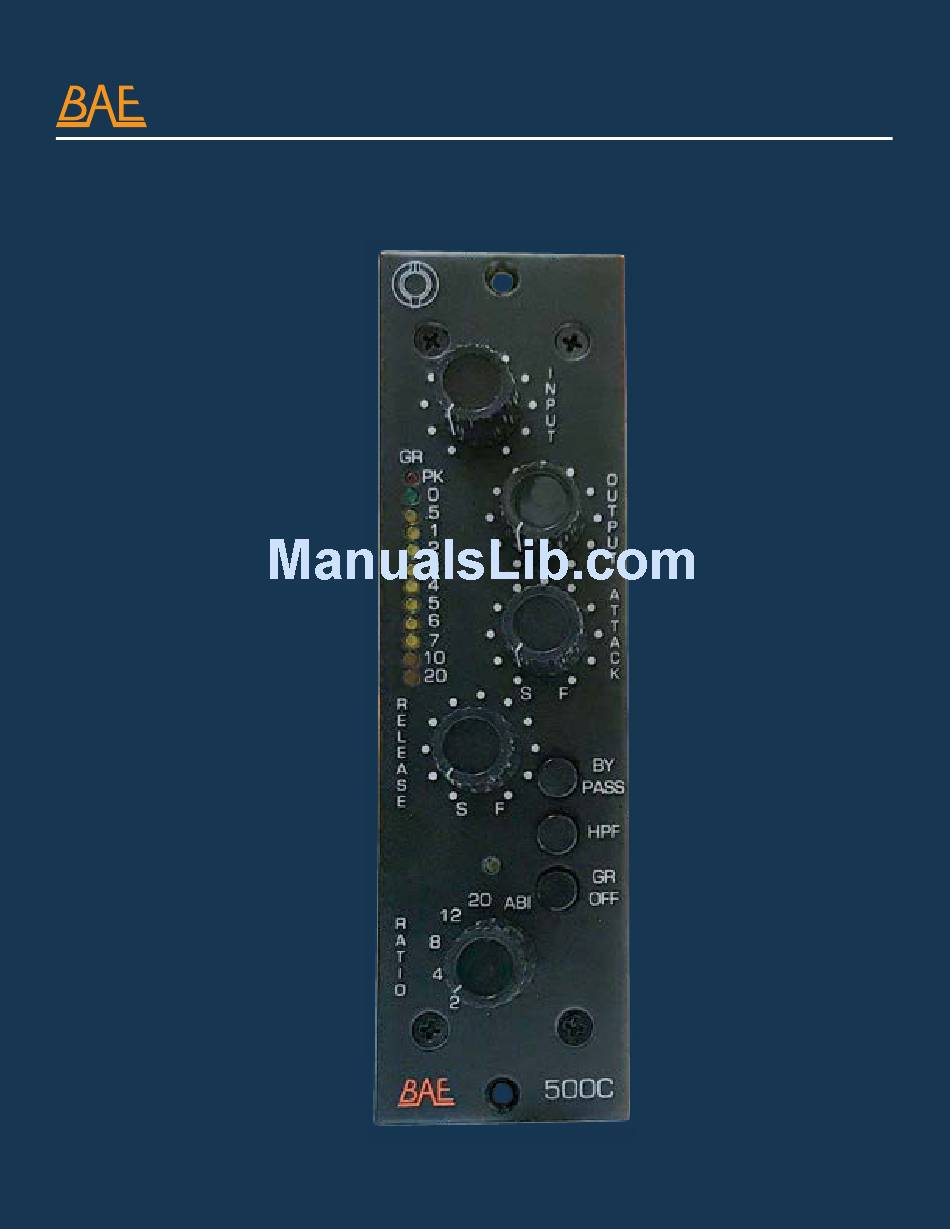

- Page 1 BAE AUDIO 500C INSTRUCTION MANUAL...
- Page 2 Output controls and an array of useful compression ratios allowing it to be useful in a broad variety of musical situations. It uses BAE’s proprietary discreet opamps and output transformer to deliver a transparent and warm sound. The 500C is housed in a sturdy, all metal full enclosure for shielding. Carefully crafted with the finest components.
- Page 3 BAE AUDIO – 500C Controls (Continued) Side Chain High Pass Filter: Engages a 6dB per octave high pass filter at approximately 125Hz to reduce the effect of low frequency signals on compressor operation. Gain Reduction On/Off: Engages or disengages the control signal to the gain reduction circuit effectively enabling or disabling gain reduction.
- Page 4 500 series rack and power supply to install your 500C. Make sure that the card is firmly seated in the slot and fully screw the installation screws into the 500 series rack enclosure. Your input and output connections...
- Page 5 ALL BAE pedals have a 5 year warranty on the circuit-electronics and one year on the footswitch. Warranty is only covered on part failure and not customer neglect. BAE audio is not responsible for injuries incurred whilst using our products nor any damage to other items related or non related to the use of our product.
- Page 6 RECALL SHEET...
- Page 7 NOTES...
- Page 8 www.baeaudio.com...
