ADP ezLaborManager Visual Reference Card
ADP 700 Timeclock Setup

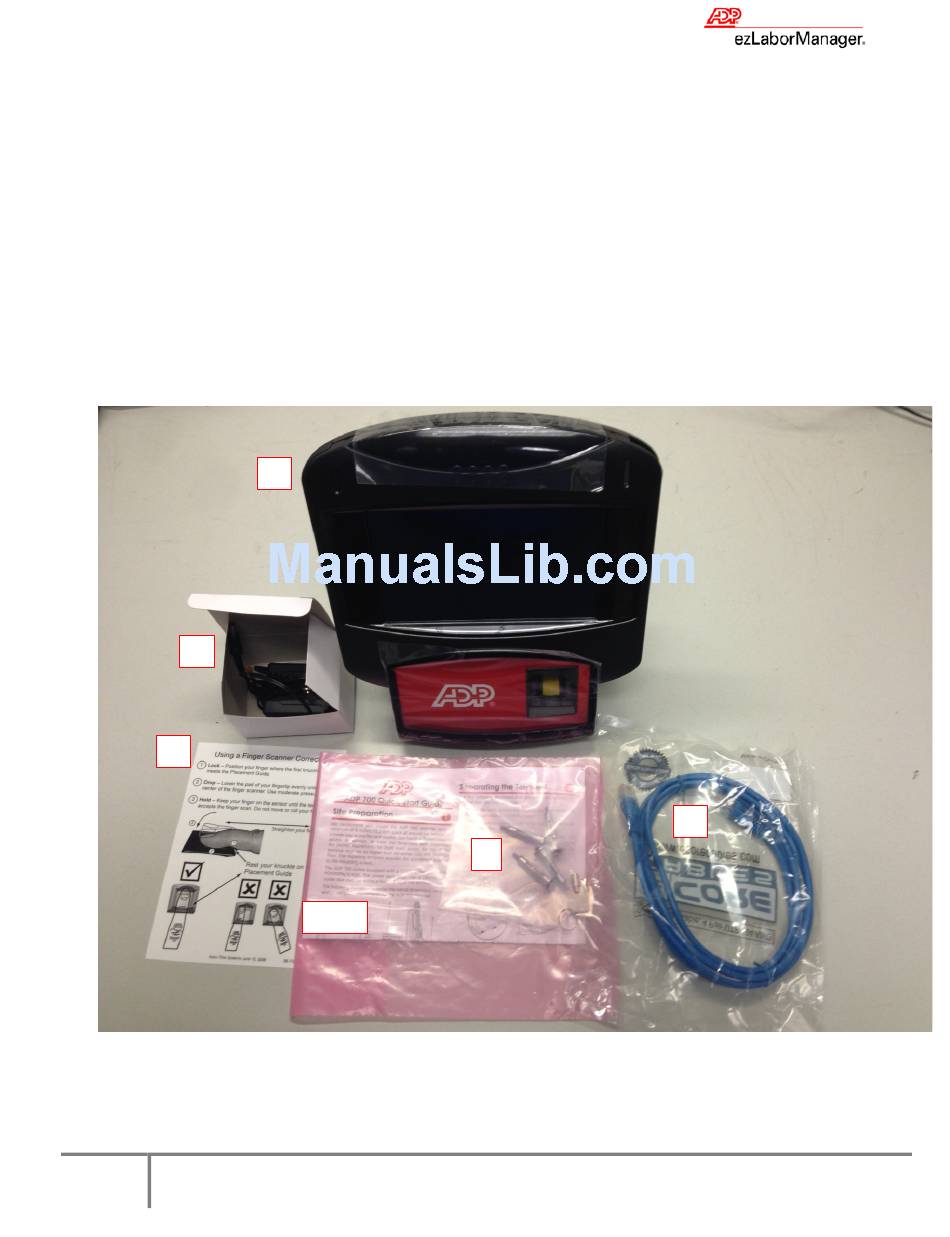

If you indicated on the order form that you intended to use an Ethernet connection; the contents of
1.
your timeclock boxes should contain:
A. ADP 700 Timeclock
B. Power Supply
C. Using a Finger Scanner instructions
D. ADP 700 Quick Start Guide
E. ADP 700 Installation and Setup Guide
F. Mounting hardware
G. 6 ft. Ethernet cable
B
C
1
K.E./M.D./S.M.
Setting up and Wiring an ADP 700 Timeclock
A
D & E
© 2014 by ADP, LLC
F
G
ADP 700 Timeclock Setup

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 and is the answer not in the manual?

Questions and answers

Related Manuals for Adp 700

Summary of Contents for Adp 700

  • Page 1 ADP ezLaborManager Visual Reference Card ADP 700 Timeclock Setup Setting up and Wiring an ADP 700 Timeclock If you indicated on the order form that you intended to use an Ethernet connection; the contents of your timeclock boxes should contain: A.
  • Page 2 B. Power Supply C. Using a Finger Scanner instructions D. ADP 700 Quick Start Guide E. ADP 700 Installation and Setup Guide F. Mounting hardware G. 6 ft. Ethernet cable H. 50 ft. Direct cable (or longer if so indicated on the order form) I.

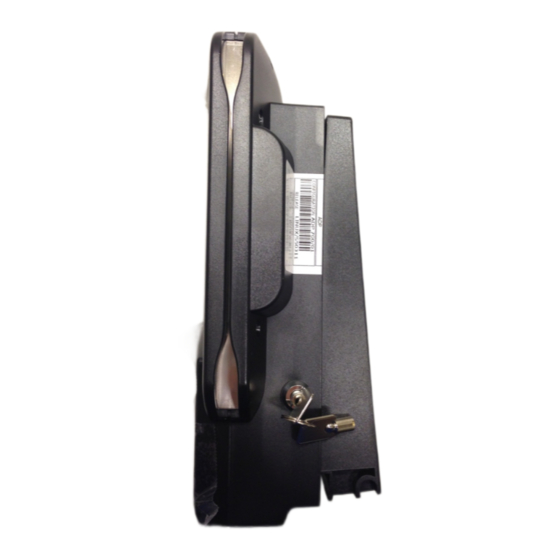

  • Page 3 ADP ezLaborManager Visual Reference Card ADP 700 Timeclock Setup Unscrew the thumbscrew on the left side of the timeclock. The screw should NOT come out, it should just be loose. ADP 700 Timeclock Setup K.E./M.D./S.M. © 2014 by ADP, LLC...
  • Page 4 ADP ezLaborManager Visual Reference Card ADP 700 Timeclock Setup Unlock the terminal with one of the provided keys and then gently pull the top of the timeclock towards you while you hold the back plate by inserting a finger into the round hole. The front plate will swing forward on its hinges.
  • Page 5 ADP ezLaborManager Visual Reference Card ADP 700 Timeclock Setup The back plate and inside of the timeclock will look like the photo below. Power Jack Ethernet Jack Serial Jack ADP 700 Timeclock Setup K.E./M.D./S.M. © 2014 by ADP, LLC...
  • Page 6 ADP ezLaborManager Visual Reference Card ADP 700 Timeclock Setup If using an Ethernet connection, hook up the cables like the photo below. Slightly tighten the zip tie so the power cable can’t be unplugged by pulling on it. Zip Tie ADP 700 Timeclock Setup K.E./M.D./S.M.
  • Page 7 ADP ezLaborManager Visual Reference Card ADP 700 Timeclock Setup If using the Direct timeclock, connect the white CAT 3 cable (this is not a phone cable) into the serial jack in the timeclock. Then connect the gray RJ11 adapter to the white cable and finally the black Keyspan USB cable to the gray RJ11 adapter.
