Axess-tel PG530 Operation Instruction Manual

Wireless phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PG530
Operation instruction
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PG530 and is the answer not in the manual?

Questions and answers

Related Manuals for Axess-tel PG530

Summary of Contents for Axess-tel PG530

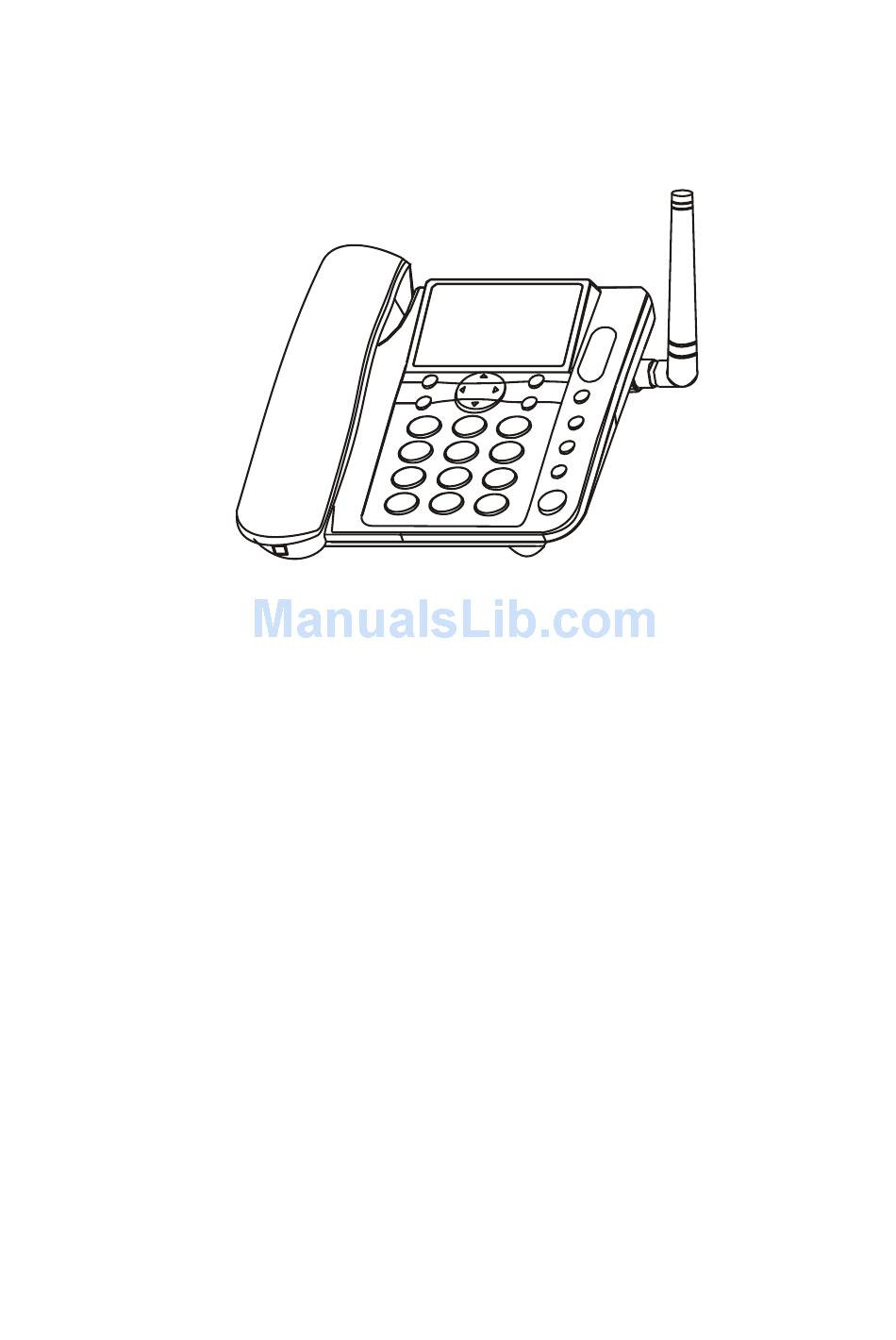

  • Page 1 PG530 Operation instruction...

  • Page 2: Table Of Contents

    Catalogue Introduction ..................3 Safely instruction ..............3 Checking the Parts ............4 Install your phone .............5 Technical Parameters and Service Conditions....6 1.4.1 Technical Parameters ..........6 1.4.2 Applicable conditions: ..........6 Getting To Know Your Phone ............7 Simple Instructions................10 ON/Off................10 Making a Call ..............10 Receiving a call...............
  • Page 3 5.3.2 Received Calls............17 5.3.3 Dialed Calls .............17 5.3.4 Recent Toll...............17 5.3.5 Call Info ..............17 Diverts calls ..............18 5.4.1 All Calls..............18 5.4.2 When Busy ..............18 5.4.3 Unanswered ............18 5.4.4 Unreachable ............18 5.4.5 Cancel All..............19 Audio profiles ..............19 5.5.1 Ringing tone ............19 5.5.2 Ringing volume............19 5.5.3...

  • Page 4: Introduction

    Congratulations on your purchase of Axesstel PG530 product. The PG530 Fixed Wireless Phone enables the subscriber to set up the phone anywhere GSM wireless service is available. Axesstel PG530 allows users to “get connected” to voice and data services with unprecedented ease.

  • Page 5: Checking The Parts

    1.2 Checking the Parts Check all the components according to the packing list when you open the package. Please contact your service provider if you find some parts missing or damaged. 1. PG530 2.Handset 3.Antenna and battery (optional) 4. Adapter 5.

  • Page 6: Install Your Phone

    1.3 Install your phone a. Install the handset b. Insert the adapter into the and the antenna. back of the base. Insert the adapter into the power socket. Caution: When assemble the antenna, first align the antenna hole with the connector on the side of the phone, then tighten antenna's screw until it firmly latches in with the connector.

  • Page 7: Technical Parameters And Service Conditions

    1.4 Technical Parameters and Service Conditions 1.4.1 Technical Parameters Work frequency: 850/1900MHz (Auto switch) Delivered Power: MAX: 2W（850MHz）/MAX: 1W (1900MHz) GSM Channel interval：200 KHz Receive sensitivity: ≤ -100dBm 1.4.2 Operation conditions: Environmental Temperature: -10℃～+40℃ Ambient noise: ≤ 60db(A) Relative Humidity: 45%～95% Atmospheric pressure: 86～106KPa Power Adapter: 110V~240V AC, 50Hz/60Hz, DC 4.6V 1000mA Battery: 1.2V 1300mAh rechargeable Ni-MH battery（optional）...

  • Page 8: Getting To Know Your Phone

    2. Getting To Know Your Phone...
  • Page 9 Keys explanation 1. The left soft key In Standby mode, enter the main menu by pressing this key. At Menu state, enter sub-menu or the interface of menu. At Edit state, confirm your operation by pressing this key. At Off-hook state, after dialing the number, begin connect to the GSM network by pressing this key.
  • Page 10 (keep on pressing it for several seconds) 5. * key At the off-hook state, it's equivalent to number key when you input the dial number. 6. # input mode key At the on-hook state, it's equivalent to number key when you input the dial number. If you press it long time you can get 'P'.

  • Page 11: Simple Instructions

    3. Simple Instructions 3.1 ON/Off At first, make sure the power is OFF and SIM card has been properly inserted into your phone. Turn on the power switch, then press and hold the key for 3 seconds. Wait for the banner of your service provider to appear and you can start to use. (The left bar shows the battery charge level, and the right bar shows you the signal strength of the cellular network at your current location.

  • Page 12: Receiving A Call

    3.3 Receiving a call When a call is coming, you could answer by picking up the handset or by pressing SPEAKER key. After you have finished the conversation, replace the handset to hook or press the SPEAKER key. If you don’t want to receive an incoming call, simply press the right soft key to reject the call.

  • Page 13: Input Mode

    At the all input state, press * to get special characters as follows: └┘, 。：; ？！ “ ” 、… - $ ( ) ￥ « » #‘’￡〈〉 + - * / = % ~ ¯ @ [ ] Use ▲ or ▼key to scroll through the character list, please pressing the figure about relative to the bottom of the character.

  • Page 14: Insert Number

    desired word! Press ▲and ▼ key to view the next matching word if the word is not the desire word. Once found the correct word, press the left soft key to confirm it. You can change “ABC” to “abc” in turn by press 1 key when you with this text input. 4.3.5 Insert number To add a number, change to the number input mode first, just press and hold # key until 123 appears.

  • Page 15: Basic Menu Functions

    5. Basic menu functions Press the left soft key to enter the main menu. You can scroll select by use ▲ or ▼ key. The scroll bar in the right of the screen will show you the location of the menu in the current level.

  • Page 16: Settings

    enter the Add new name submenu. Otherwise it will follow the default setting in the Save nos. to and don’t give you the option. (3) There have options: <NAME>, <SET GROUP>and three< NUMBER> in the Add new name submenu. NAME: input the name belongs to the phone number. SET GROUP: select the group you want to classify (no group, Family, Friends, Business, Colleague, VIP, and Society in order).

  • Page 17: Inbox

    to“Text Input”.) When you finish entering a new message, Press the left soft key allows you to input number, and then press the left soft key to operate it as follow. Select “Send” that you can send this message Select “Save” that the current message will be stored to outgoing messages 5.2.2 Inbox This function helps you browse the incoming message in SIM and its related information, such as Sender’s phone number and its owner and Reception date and...

  • Page 18: Settings

    5.2.6 Settings Define the key setting about message before you use it. In the Message settings, you can find submenus as follows. Messages Centre You can connect with your network service provider to get this number from the Short Message Service. In this submenu, input the number of your Messages center, press the left soft key.

  • Page 19: Diverts Calls

    Note: the Latest Call Duration shows you the latest call duration. All the Duration shows you all the duration time since last clear time. Select ‘Clear logs’ deletes all the call logs. PIN2 is needed in some operations, contact with your network provider to Caution: get this code.

  • Page 20: Cancel All

    Scroll with ▲or ▼ key to select operation when the settings have been made. 5.4.5 Cancel All All diverts are off. 5.5 Audio profiles This menu helps you to set up your phone sound setting. Press the left soft key to obtain the options as below.

  • Page 21: Set Time

    5.6.2 Set time Set the current time. In this menu, scroll with ▲ or ▼ key to select hour or minute, input the time from 00:00 to 23:59. After correctly inputting the time, press the left soft key to confirm. The phone doesn’t respond if error occurs.

  • Page 22: Security Settings

    Disable All: Select Disable All to disable all set call restrictions. Bar incoming: You can bar all incoming calls by selecting On or Off to enable or disable. * Restricted Dialing: you can set Restricted Dialing. Off: Restricted Dialing: you can view and add the restricted dialing list. * Anykey answer When this function is activated, you can answer an incoming call by pressing any key briefly.

  • Page 23: Reset Restart

    5.7.4 Reset Restart You can restore default data via this function. 5.8 Calculator: The calculator can perform adds, subtracts, multiplies and divides. Select the submenu and press the left soft key. Input the number with 0-9 key, use the character # get ‘.’. Press the symbol of * key time and again to select an operator ‘+”.”-”.”*”.”/”...

  • Page 24: Troubleshooting

    7. Troubleshooting Problems Possible cause and solution 1. No power Unable to power on 2. The switch on back locates wrong. Unable to connect to Poor signal. the network 1. Poor signal, try to adjust the antenna direction and phone location. Poor signal reception 2.

  • Page 25: Menu

    8. MENU MENU THREE FOUR Phone book View names Add new name Settings Edit Groups Group Filters No Group Family Friends Business Colleague Society Group Tones Save nos. to SIM card Choice Phone memory Used space Speed dial list Service New SMS Messages Inbox...
  • Page 26 By service When Busy Status By service Unanswered Status By service Unreachable Status By service Cancel All Audio Ringing tone profiles Ringing volume Earpiece Keyad tones Warning tone Message tone Clock Alarm Set time Set tone Repeat off Set time Set date Settings Phone Settings Set Language...
  • Page 27 Minute Minder Security settings SIM Password Phone Lock Change lockcode Reset Restart Calculator...

  • Page 28: Sar Information

    SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
  • Page 29 be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: PH7PG530. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.

  • Page 30: Safety Information

    Safety Information 1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS .POTE NTIALLY EXPLOSIVE ATMOSPHERES Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cauls e an explosion or fire resulting in bodily injury or even death.

  • Page 31: Radio Frequency Interference Statement

    U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if Not installed and used in accordance with the...
