Summary of Contents for Axess-tel PG110

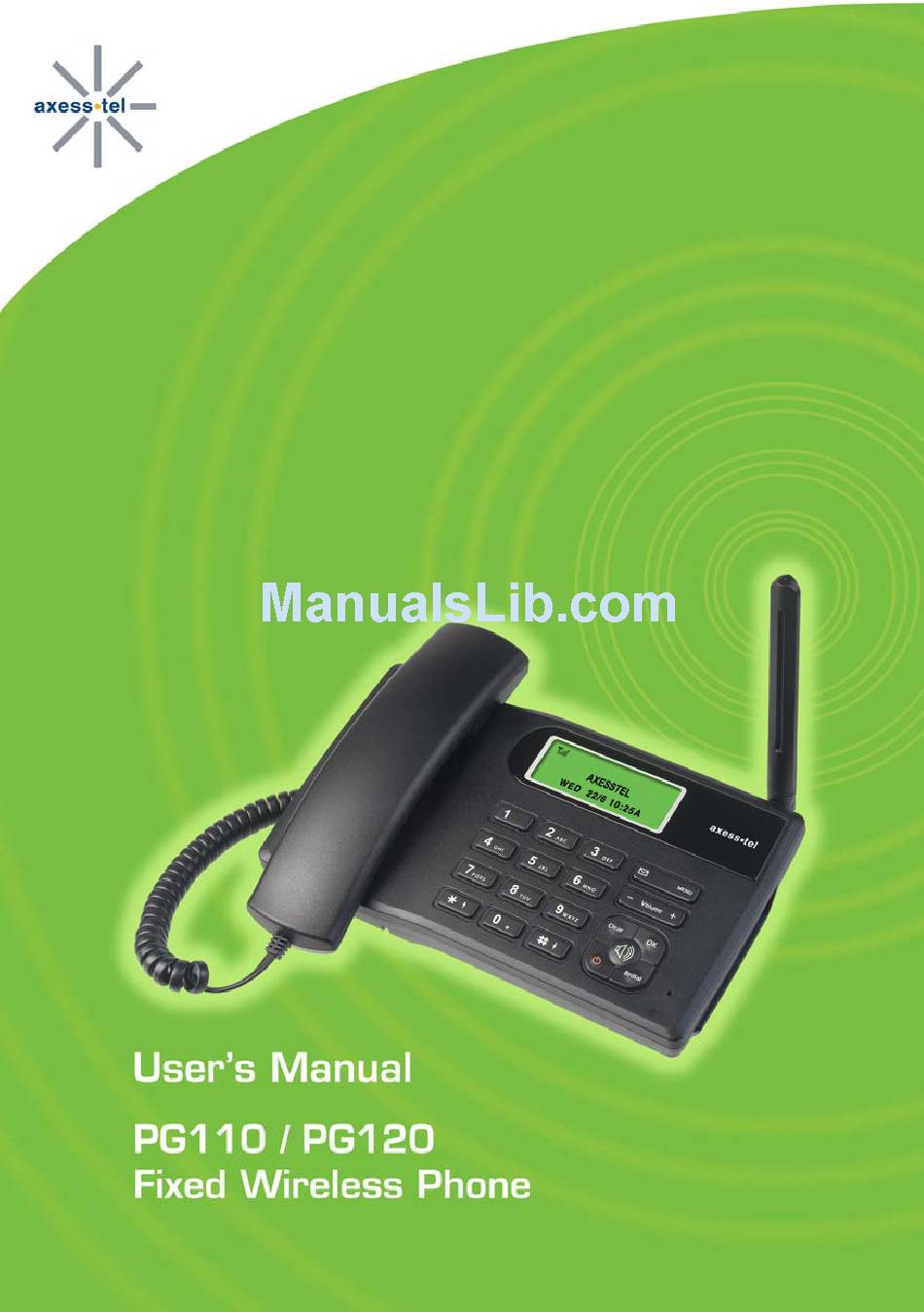

- Page 2 INTRODUCTION The PG110 and PG120 Fixed Wireless phones operate through a wireless connection instead of a landline phone cable, enabling the subscriber to set up the phone anywhere wireless service is available. Axesstel GSM Fixed Wireless Phones provides high quality and superior performance with many features such as superior voice quality, caller ID, three-way calling, call waiting, short message service, etc.
-
Page 3: Table Of Contents
TABLES OF CONTENTS Safety Precautions……………………….…..……….…..3 Checking Parts………. …………………….……………………..….…4 Setting up Your Phone…………….……….……………………..…7 Getting to Know Your Phone……………….……………….…………...9 Display Icons………………………..…. ……………………..…….…..10 Function Keys……..……………..……... ……………………. ………11 Basic Operation Making Calls …………..……………..…….……………...…….. 13 Redial……………………………….…………………...…………. 14 Receiving Calls ……………………….……………..….……….. 14 Adjusting Volumes ……………………….…………..….………. 15 Choosing the Ring Tone ………….…………….…………...…... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS 1. Avoid placing the phone in a dusty location, or near a source of gas or fire. 2. Don't shake, hit, or drop the phone. 3. If you clean the outside of the phone, use only a soft, dry cloth. The chemicals in alcohol, benzine or acetone can damage the surface of the phone. -
Page 5: Checking Parts
CHECKING THE PARTS After unpacking your phone, make sure that you have all the parts shown below. If any piece is missing or broken, please call your customer service center. 1. Main Unit 4. User Manual 2. Handset 5. Antenna 3. -
Page 6: Setting Up Your Phone
SETTING UP YOUR PHONE Installing SIM card 1. Remove SIM bracket cover. 2. Lift SIM bracket by pulling. 3. Insert proper SIM card. 4. Put the bracket back in place. 5. Close the cover. - Page 7 USING SIM CARD FOR THE FIRST TIME 1. Entering PIN code. NOTE1: The function of pin feature can be set on/off in PIN setup menu. ENTER PIN NOTE2: PIN code can be changed in PIN setup menu. 2. If an incorrect PIN code is entered, an error message displays.
- Page 8 SETTING UP YOUR PHONE Installing the phone This phone operates by receiving DC power from the AXESSTEL power adaptor, which connects to an electrical outlet. The phone is equipped with a rechargeable battery as a back up in case of an AC power failure. Desktop installation Attach the handset Connect the antenna...
- Page 9 SETTING UP YOUR PHONE Service Status Check Display in the Service Area When the phone’s power is turned on, LCD will display “Initializing” while the phone loads information from the SIM AXESSTEL card. After the loading is finished, LCD will display greeting THU 10/09 5:24P with date and time.
-
Page 10: Getting To Know Your Phone
GETTING TO KNOW YOUR PHONE 1. Antenna: Adjusting the position of antenna improves the sound quality of the call. 2. Menu: Press to access the phone menus. 3. Message: Press to retrieve messages. 4. Volume Key(-, +): Lets you adjust sound levels and scroll through the menu options and displays. -
Page 11: Display Icons
DISPLAY ICONS Icons display on the screen to indicate what features you are using, signal strength and battery status etc... AXESSTEL THU 10/09 5:24P Indicates the strength of the signal. More bars indicates stronger signal. Indicates the level of battery power. The more bars, the more power. -
Page 12: Function Keys
FUNCTION KEYS Press this key to retrieve messages. Press this key to display the phone's main menu. Press and Hold this key to turn on or off the FM radio. If there is an incoming call or if the user attempts to make an outgoing call while the FM radio is on, the FM radio turns off automatically Press this key to control the volume of keypad, earpiece... -
Page 13: Basic Operation
Basic Operation Making Calls Redial Receiving Calls Adjusting Volumes Choosing the Ring Tones Message Service -12-... - Page 14 MAKING CALLS 1. Make sure your phone is turned on. 2. Pick up the handset to hear a dial tone. When the phone fails to acquire service signal, you will hear "No Service" tone (intermittent tone). 3. Dial the number to call. The LCD window displays the number.
-
Page 15: Redial
REDIAL Redial the last number you dialed. 1. Pick up the handset or press <SPEACKER>. 2. Press <REDIAL>. 3. Press <*>, <#> to select number to redial. 4. Press <REDIAL> NOTE: You may not redial when there is no last number dialed stored in the memory. -
Page 16: Adjusting Volumes
ADJUSTING VOLUMES You can control the sound volumes including the key tone, Earpiece, speaker and the ringer Adjusting earpiece volume Pick up the handset and press <volume key> repeatedly during a phone call to adjust earpiece volume. Adjusting ring volume 1. -
Page 17: Message Service
MESSAGE SERVICE You can enter short message menu by pressing key “SMS” in the idle screen. This function provides text short message service, it can receive and send message. While a new message arrived, the phone will remind you with “1 New Message”. If the ring of SMS is open, you will hear the ring tone at the same time. - Page 18 Dial back：Allows you to dial back the sender. Save number：Allows you to save the phone number of the sender into the phone or the SIM card. Outbox This function is used to display the messages which have been sent and saved. It also can operate the message with Delete, Forward, Edit, Dial back，and Save number option.
-
Page 19: Useful Features
Storage status The total capacity of inbox and draft box depends on the capacity of SIM card. Enter this menu, the total numbers of the messages and the remained numbers will be displayed. Useful Features CALL HISTORY PHONE BOOK TIME SOUND CONFIGURATION SECURITY... - Page 20 -19-...
- Page 21 CALL HISTORY Your phone stores the last 10 outgoing calls, incoming, and missed Calls combined (only when Caller ID function is activated). You can display and redial these numbers. Incoming Call This function is used to display the latest 10 numbers you answered, and you can operate it with the operations of Dial to, Send message to, Delete, Save Number, Erase all, and Show Number.
-
Page 22: Phone Book
Phone Book This function can save the phone numbers and names into the SIM card or phone, and you can also browse, add, or delete them. Browse Enter this menu, you can browse the phone number which saved in the SIM card or the phone: press 【+】【-】... -
Page 23: Time
TIME Alarm This menu enables you to set alarm clock. If the alarm time is reached while the device is switched off, the device switches itself on and starts sounding the alarm tone. Last Call This menu display the last call information. Total Time This menu display the total time of calls Outgoing... -
Page 24: Sound
SOUND Ring Mode This menu allows you to select ring alert for call or mute for call. Ringing Tone This menu allows you to change ring tone for call alert. Ringing Volume This menu allows you to change ring volume for call alert. Keypad Tone This menu allows you to open or close keypad tone Connect Alert... -
Page 25: C O N F I G U R A T I O
CONFIGURATION Language This menu allows you to select different language. Call Divert Divert the incoming call to the voice mailbox or other number. The divert includes the following modes and each can be set to Activate, Deactivate, and Interrogate. When the Call forwarding is set to Activate, you can input the phone number to be diverted to according to the prompt on the screen. -
Page 26: Security
SECURITY Greeting Note Set the Greeting note open or closed, and edit the note at the same time. Call Barring Set to call barring or dialing in the various situations. You must subscribe the international long distance calling function with the network operator and get the call barring password before you can set the individual restriction functions. - Page 27 Own Number It can edit or delete the own number. Set PIN1 The PIN1 code can protect your SIM card and prevent your SIM card being used illegally. You can set the following: If currently the PIN1 code is set to off, select on. Input the correct PIN1 code and this function will work.
-
Page 28: Menu Option Table
MENU OPTION TABLE Clr Call Ringing Tone Ringing Volume 6.7 Auto Call -27-... -
Page 29: Specifications
SPECIFICATIONS 1900: TX 1850 ~ 1910 , RX 1930 ~ 1990 Frequency Range PG110 850 : TX 824 ~ 849 , RX 869 ~ 894 Channel Bandwidth 850 / 1900 Dual Band Stability of frequency 0.4 ppm External appearance (mm) - Page 30 SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
- Page 31 be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: PH7PG110. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
- Page 32 Safety Information 1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS .POTE NTIALLY EXPLOSIVE ATMOSPHERES Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cauls e an explosion or fire resulting in bodily injury or even death.
- Page 33 U.S.A. U.S.FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT INFORMATION TO THE USER NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if Not installed and used in accordance with the...
