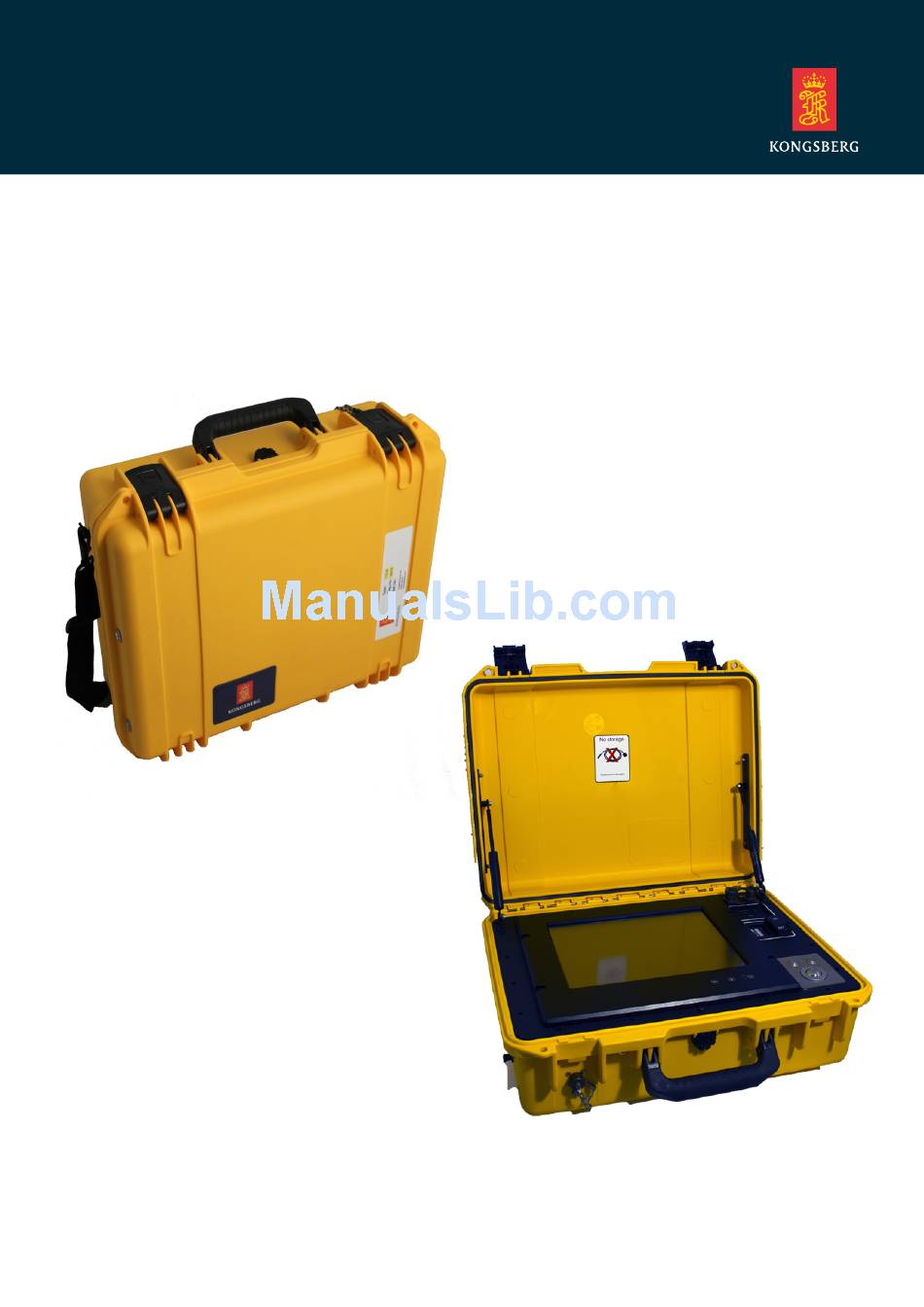

- Page 1 Instruction Manual TTC30 and TTC10 Transponder Test and Configuration...
- Page 3 Transponder test and configuration unit Instruction Manual 350839/C August 2017 © Kongsberg Maritime AS...
- Page 4 350839/C August 2017 © Kongsberg Maritime AS...
-
Page 5: Table Of Contents
Charging the TTC unit .....................17 Cleaning the TTC unit .....................18 ILLUSTRATED SPARE PARTS CATALOGUE ......19 Transponder Test and Configuration unit (TTC30) spare part.........20 Transponder Test and Configuration unit (TTC10) spare part.........20 Test transducer and cables spare part................20 DRAWING FILE..............21 TTC outline drawing......................22... - Page 6 350839/C...
-
Page 7: About This Manual
Microsoft Corporation in the United States and other countries. HiPAP ® is a registered trademark of Kongsberg Maritime AS in Norway and other countries. cNODE ® is a registered trademark of Kongsberg Maritime AS in Norway and other countries. -
Page 8: Ttc
TTC Instruction Manual Topics System description, page 7 General supply conditions, page 7 Support information, page 8 350839/C... -
Page 9: System Description
All equipment must be inspected for physical damage, i.e. broken controls and indicators, dents, scratches etc. during unpacking. If any damage to the equipment is discovered, the recipient must notify both the transportation company and Kongsberg Maritime so that Kongsberg Maritime can arrange for replacement or repair of the damaged equipment. -
Page 10: Support Information
Unless other arrangements have been made in the contract, the TTC warranty period (as specified in the contract) begins when the acceptance documents have been signed. Support information If you need support for your TTC you must contact Kongsberg Maritime AS. • : Kongsberg Maritime AS Company name •... -
Page 11: Main System Units
Main system units Main system units Topics TTC (Transponder Test and Configuration unit), page 10 350839/C... -
Page 12: Ttc (Transponder Test And Configuration Unit)

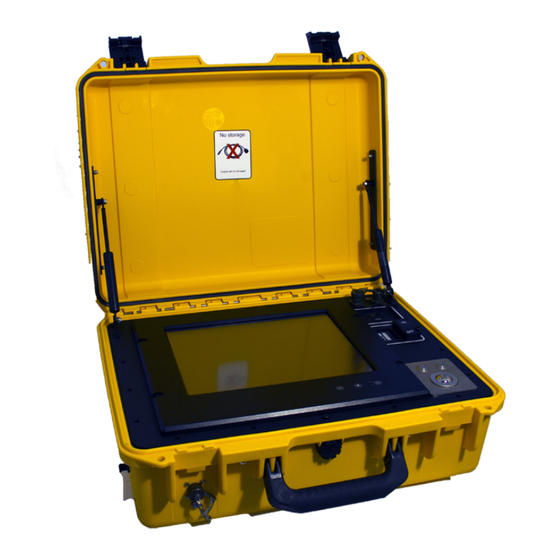

Two models are available: • TTC30 for medium frequency transponders • TTC10 for low frequency transponders The TTC can test all KONGSBERG transponder channels, Cymbal and HPR 400. It can also test telemetry transponders with internal and external sensors. -
Page 13: Getting Started
Getting started Getting started Topics Front panel, page 12 Powering up the unit, page 13 Main menu, page 13 Acoustic test, page 14 Configuring the transponder, page 14 350839/C... -
Page 14: Front Panel
TTC Instruction Manual Front panel The touch screen is mostly used when performing an acoustic test and transponder configuration. Connector (with protection cap) for Serial line. For service personnel only. (For program downloads and configuration purposes). Connector (with protection cap) for test transducer. Connector for USB and LAN. -
Page 15: Powering Up The Unit
Getting started Powering up the unit Procedure Place the unit in a suitable location. Open the case by pressing the handle knobs and pulling the handles up. Turn on the main power switch to load the software (this takes approximately 1.5 minutes). -
Page 16: Acoustic Test
TTC Instruction Manual Acoustic test Perform the acoustic test to make sure the transponder is functioning. Prerequisites Pre-deployment checks have been done. Context To set use left/right arrows to choose power level and tap to confirm TTC POWER your selection. Procedure Connect the test transducer cable to the upper right connector. - Page 17 Getting started If the configuration is not successful you will receive a warning message; Download config failed. Check all cables and try again. 350839/C...
-
Page 18: Maintenance
TTC Instruction Manual Maintenance All maintenance procedures you can do on the TTC are listed here. Topics Preventive maintenance schedule, page 17 Charging the TTC unit, page 17 Cleaning the TTC unit, page 18 350839/C... -
Page 19: Preventive Maintenance Schedule
Maintenance Preventive maintenance schedule In order to secure long and trouble-free operation of the TTC, certain specific preventive maintenance tasks must be done. The tasks are organized in a preventive maintenance schedule. • Annually – Clean the unit – Charge the battery Charging the TTC unit Context If the TTC battery indicator indicates LOW power then connect the charging cable and... -
Page 20: Cleaning The Ttc Unit
TTC Instruction Manual Cleaning the TTC unit Kongsberg Maritime recommends that the unit is switched off during cleaning. Use a damp lint-free, non-abrasive cloth and a neutral cleaner based on a non-abrasive cleaning solution or glass cleaner for best result. -
Page 21: Illustrated Spare Parts Catalogue
Illustrated spare parts catalogue Illustrated spare parts catalogue Topics Transponder Test and Configuration unit (TTC30) spare part, page 20 Transponder Test and Configuration unit (TTC10) spare part, page 20 Test transducer and cables spare part, page 20 350839/C... -
Page 22: Transponder Test And Configuration Unit (Ttc30) Spare Part
TTC Instruction Manual Transponder Test and Configuration unit (TTC30) spare part • TTC 30 Part name: • 345775 Part number: Transponder Test and Configuration unit (TTC10) spare part Transponder test and configuration unit for low frequency transponders. • TTC 10 Part name: •... -
Page 23: Drawing File
Drawing file Drawing file This chapter lists all the drawings needed for installation and maintenance. Topics TTC outline drawing, page 22 Test transducer outline drawing, page 23 350839/C... -
Page 24: Ttc Outline Drawing
TTC Instruction Manual TTC outline drawing Drawing 320350 350839/C... -
Page 25: Test Transducer Outline Drawing
Drawing file Test transducer outline drawing Drawing 332777 350839/C... -
Page 26: Technical Specifications
TTC Instruction Manual Technical specifications Topics Environmental requirements, page 25 Performance specification, page 25 Power requirements, page 25 Weight and outline dimensions, page 25 350839/C... -
Page 27: Environmental Requirements
: 100 to 240 Vac (47 to 63 Hz) Input voltage Weight and outline dimensions These weights and outline dimension characteristics summarize the physical properties of the TTC. TTC30 and TTC10 • : 386 mm x 488 mm x 185 mm Case dimensions 350839/C... - Page 28 TTC Instruction Manual • : Approximately 19.5 kg Weight Test transducer • : 2.5 m Cable length Serial line cable • : 5 m Cable length Mains power cable • : Approximately 2 m Cable length 350839/C...
