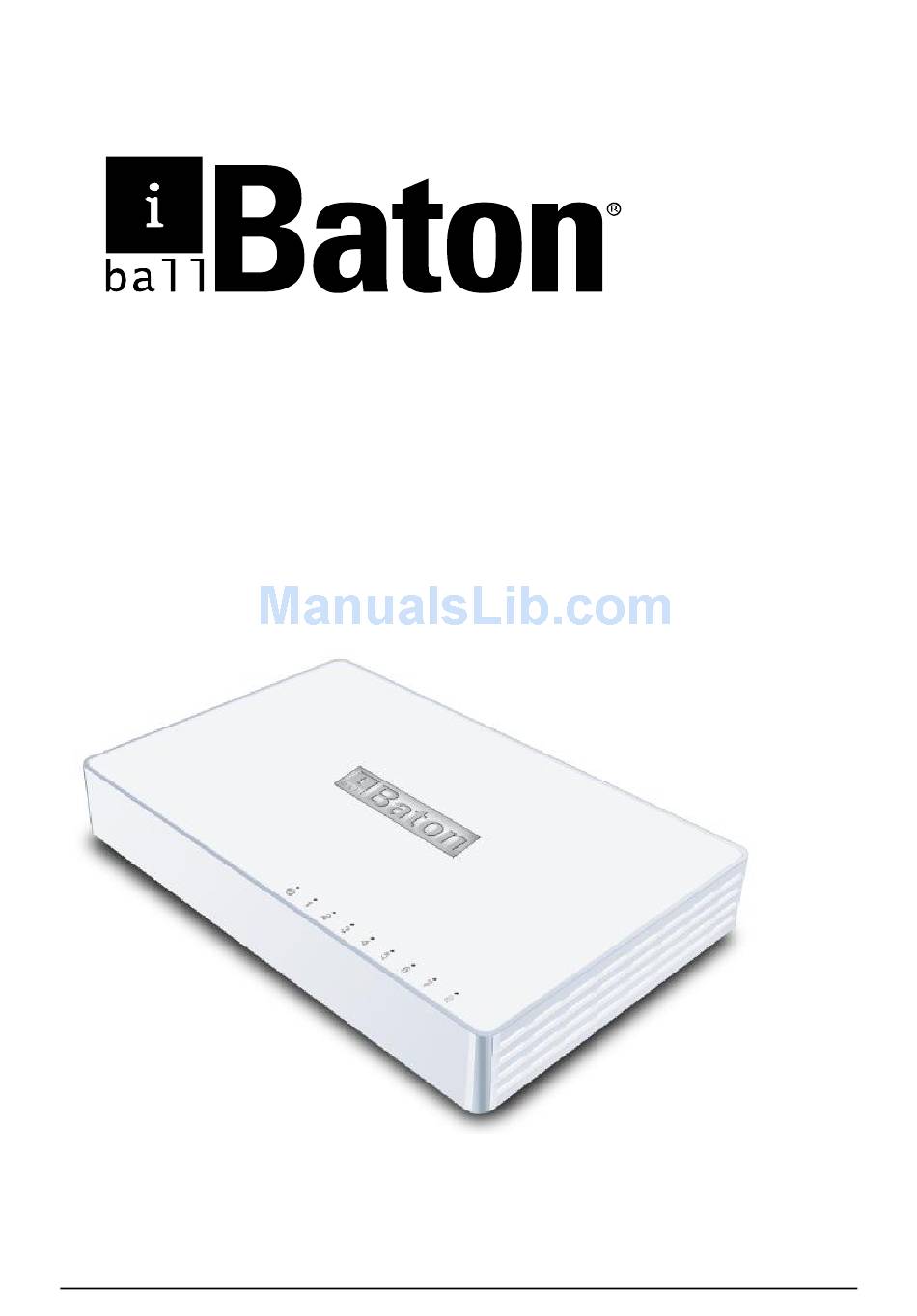

- Page 1 User Guide 8-Port Gigabit Desktop Switch Model No.: iB-LGDS18G Ver.: 3.0.0...
-
Page 2: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference residential installation. -
Page 3: Ce Mark Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 4: Package Contents
If any of the above listed contents are damaged or missing, please contact the dealer from whom you purchased the 8-Port Gigabit Desktop Switch (iB-LGDS18G) for assistance. Safety Notices Do not use this product near water. Avoid using this product during an electrical storm. -
Page 5: Chapter 1 Installation
Chapter 1 Installation 1) Please inspect the Power Adapter carefully, and make sure that it is properly connected to a power source. 2) Power on. It will be automatically initialized and the LED indicators should respond as follows: The Power LED indicator will light up. All of the port LED indicators will flash momentarily, which represents a resetting of the system. - Page 6 Specifications IEEE 802.3u 100Base-TX, Standards IEEE 802.3ab 1000Base-T Data Transfer 1000Mbps (Half Duplex), Rate 2000Mbps (Full Duplex) Protocol CSMA/CD 100BASE-TX: UTP category 5, 5e cable (maximum 100m) Network EIA/TIA-568 100Ω STP (maximum 100m) Media(Cable) 1000BASE-T: UTP category 5e, 6 cable (maximum 100m) EIA/TIA-568 100Ω...
-
Page 7: Chapter 3 Identifying External Components
LEDs (1-8): One LED indicator will light green when a device is connected to the corresponding port. It flashes when data is being transmitted or received on the connection. Rear Panel rear panel iB-LGDS18G consists 10/100/1000Mbps RJ45 ports. All ports can work as the uplink port. -
Page 8: Copyright And Trademarks
Best IT World (India) Pvt. Ltd. All rights reserved. Note: For any technical help on iBall Baton products please support.baton@iball.co.in contact www.iBallBaton.com...
