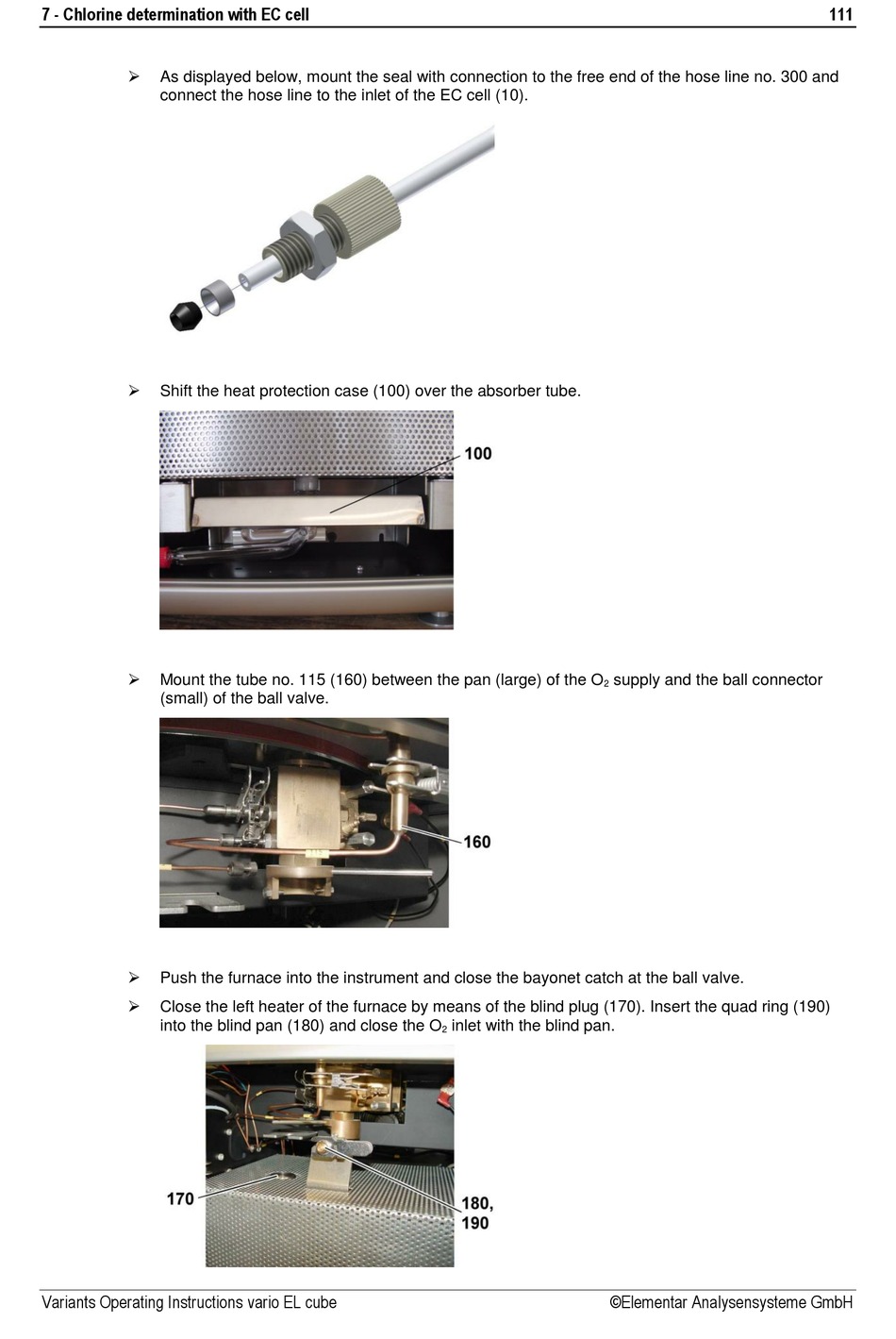

7 - Chlorine determination with EC cell

As displayed below, mount the seal with connection to the free end of the hose line no. 300 and
connect the hose line to the inlet of the EC cell (10).

Shift the heat protection case (100) over the absorber tube.

Mount the tube no. 115 (160) between the pan (large) of the O
(small) of the ball valve.

Push the furnace into the instrument and close the bayonet catch at the ball valve.

Close the left heater of the furnace by means of the blind plug (170). Insert the quad ring (190)
into the blind pan (180) and close the O
Variants Operating Instructions vario EL cube
2
inlet with the blind pan.
2
©Elementar Analysensysteme GmbH
supply and the ball connector
