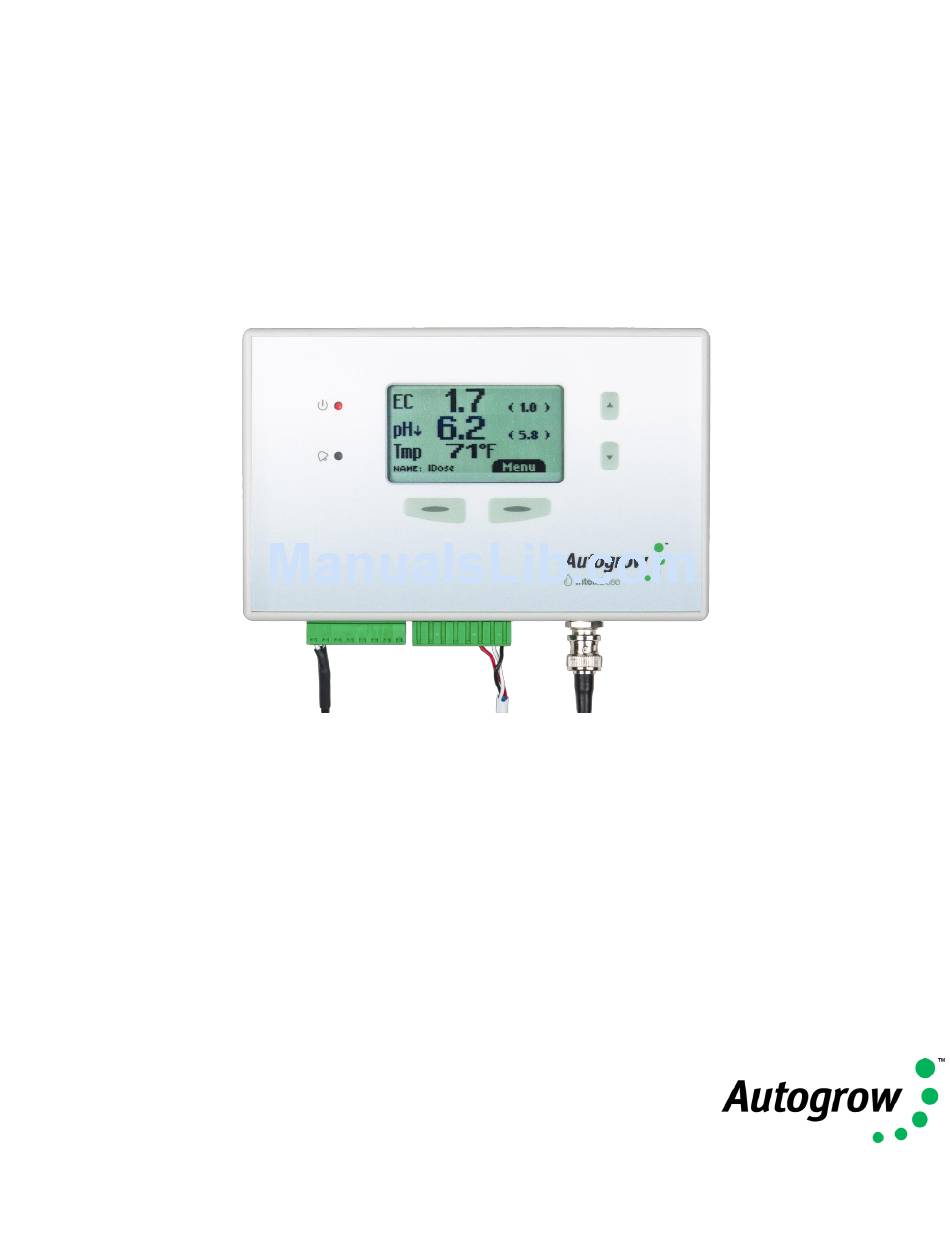

IntelliDose
Installation and User Guide
• Doses up to 9 parts of nutrient, additives and pH
• Measures Conductivity, pH, Temperature
• Displays EC, CF, TDS,
o
o
C,
F, pH
• USB – PC/Mac Interface (USB cable supplied)
• Variable ratios for nutrient part (change from vegetative to generative)
• Auto schedule of nutrient ratios and EC's
• Proportional Dosing (for rapid dosing between irrigations)
• Direct drive dosing pumps (keeps costs down)
• Irrigation with day/night control – precision timer
• Day/Night EC levels
• Water level control – to lower EC
©2017 Autogrow Systems Ltd V5.4
Advertisement
Table of Contents
Related Manuals for Autogrow IntelliDose
Summary of Contents for Autogrow IntelliDose
- Page 1 • Proportional Dosing (for rapid dosing between irrigations) • Direct drive dosing pumps (keeps costs down) • Irrigation with day/night control – precision timer • Day/Night EC levels • Water level control – to lower EC ©2017 Autogrow Systems Ltd V5.4...
- Page 2 IntelliDose Manual Contents Quick-start page with helpful hints Section A Introduction to the IntelliDose Hydroponic doser Section B Settings Section C Settings for simple 1- or 2-part doser Section D Settings for three-part doser Section E Proportional dosing (default OFF)
- Page 3 (2) Mount IntelliDose away from spray and humidity from tank and stock solution, preferably just outside grow room (3) Adjust the valve in the pipe to the sample pot to achieve a...
- Page 4 USB difficulties if the USB lead is over 2m (6ft) in length. If a cable longer than this is required we suggest using an “active” USB cable. These are available from most computer/electronics stores. ©2017 Autogrow Systems Ltd V5.4...
- Page 5 Section A - Introduction to the IntelliDose Hydroponic doser The IntelliDose hydroponic doser is, without doubt, the most advanced and user friendly doser on the market. It has a wide range of possible applications which we will discuss briefly in this section. To keep the user interface as simple as possible, only the readings and settings relevant to the selected features are displayed on the controller’s LCD and on the computer.
- Page 6 This is useful in irrigating (drip) systems that do not re-circulate as it allows rapid dosing after each irrigation occurs. This feature is not available with more than 2 part mixes. ©2017 Autogrow Systems Ltd V5.4...
- Page 7 These can be selected on IntelliGrow under setup. Outputs The outputs voltages for dosing and irrigation control are all dependent on the power supply adapter used. ©2017 Autogrow Systems Ltd V5.4...
- Page 8 4A. Normally we supply a 24V DC power supply. How to use this manual The IntelliDose has a number of advanced modes of operation and so we have divided this manual into sections, each of which represents a particular feature.
- Page 9 B1 – Setting from the PC/Mac ORDER OF SETTING UP A NEW CONTROLLER 1) Visit autogrow.com/intelligrow to get online 2) Set the configuration of the controller to match the physical equipment. Print the wiring diagram and connect the dosing valves accordingly.
- Page 10 Dosing times and intervals can be set by trial and error. Scheduling tab To set up the scheduling function, scroll down the page to Functions and tick the "Use scheduled settings". ©2017 Autogrow Systems Ltd V5.4...
- Page 11 IntelliDose Manual After saving, you'll see the scheduling icon showing up by your device name where you can manage your Schedules. ©2017 Autogrow Systems Ltd V5.4...
- Page 12 IntelliDose Manual If you need any help with setting Schedules, feel free to send us a message by clicking on the toggle to the right or emailing us directly - help.autogrow.com/intelligrow. ©2017 Autogrow Systems Ltd V5.4...
- Page 13 You have the option to export the data as a csv file if needed. Variable Options If you only wish to look at some key grow variables, you can do so by using the options and save it as your preference ©2017 Autogrow Systems Ltd V5.4...
- Page 14 The setting order is the same as when using IntelliGrow and the settings that you will access are also the same, so we suggest that you use the previous pages on IntelliGrow settings to guide you through the setting procedure. ©2017 Autogrow Systems Ltd V5.4...
- Page 15 Irrigation intervals and durations for day and night are also set here as is the water ON time for each addition of water. This should be set so that each time it adds water it dilutes the nutrient by about 0.1EC (1CF or 50ppm). ©2017 Autogrow Systems Ltd V5.4...
- Page 16 IntelliDose Manual Section C - Settings for simple 1 or 2 part doser In the advanced menu on the IntelliDose or the advanced tab on IntelliGrow, select the units that you wish to use and then select one or two-part dosing.
- Page 17 In addition, it is advisable to use a hand-held meter to check the EC and pH every day. If ever the hand-held instrument and controller readings differ then all probes should be cleaned, checked and recalibrated. ©2017 Autogrow Systems Ltd V5.4...
- Page 18 Changes will only happen if IntelliGrow is connected and on line. If the controller is taken “off-line” then when it is next connected if any change is required it will be made straight away. Normally, changes will take place at midnight preceding the date specified. ©2017 Autogrow Systems Ltd V5.4...
- Page 19 4 or 5 Amps. By selecting sequential dosing a 2Amp supply could be used. ©2017 Autogrow Systems Ltd V5.4...
- Page 20 IntelliDose Manual Section G - Installation Mount the IntelliDose controller within 1.5 metres of the sample pot but in a position well away from water splashes or mist/vapour rising from the reservoir tank. It should be mounted in a cool, dry place out of direct sunlight. Remove the screws holding the back on and fit the mounting feet, then screw to the wall.
- Page 21 DC coil to switch it on only when an irrigation is called for. 2) If the irrigation water is returned to the reservoir tank then allowance must be made for the level to rise a little above the float valve level. ©2017 Autogrow Systems Ltd V5.4...
- Page 22 IntelliDose Manual The power supply to the IntelliDose must be between 12V and 24V either AC OR DC. The outputs to the solenoid valves or pumps will be the same as the supply going into the controller. This means that if 24V AC solenoid valves are used then the supply adapter must provide 24V AC.
- Page 23 4) After filling the stock tanks leave the lids loose to allow air to enter the tank as the stock solution is drawn off via the solenoid valves (or drill a small hole through the lid) ©2017 Autogrow Systems Ltd V5.4...
- Page 24 If in doubt, check by blowing through the side tubes to see if they are blanked off. 5) Wire the two solenoid valves to their respective connections on the controller as shown in the wiring diagram ©2017 Autogrow Systems Ltd V5.4...
- Page 25 The common wire from the power supply is the bare silver wire. IMPORTANT The voltage at the outputs will always be the same as the voltage from the power adapter. We normally supply 24V DC unless a different voltage or AC has been specifically requested. ©2017 Autogrow Systems Ltd V5.4...
- Page 26 The connection diagram for more than three part nutrients must be printed by IntelliGrow software AFTER configuration has been complete. Please head to our online Help, found here: help.autogrow.com/intelligrow. If you are not intending to use IntelliGrow, please ask your supplier if they are able to pre-configure and print out the wiring diagram for you.
- Page 27 IntelliDose Manual Section H – Software installation Please head to our online Help, found here: help.autogrow.com/intelligrow. Section I – Maintenance Clean EC probe Remove shroud from end of probe. Clean the face of the probe, use a little kitchen liquid scouring cleaner such as “Jif" or "SoftScrub” on a clean “Scotchbrite” nylon scouring pad.
- Page 28 6 months and two years. As soon as the electrode shows signs of drifting or slow response it should be renewed. For storage, the tip of the pH probe must always be kept wet, if they dry out, they will not work. ©2017 Autogrow Systems Ltd V5.4...
- Page 29 4) pH fails to dose. Ensure that the controller is set for raise or lower to match the solution used. i.e. if you are using acid (pH down) then set the controller to pH lower and ensure that that pump/solenoid is connected to the pH lower output. ©2017 Autogrow Systems Ltd V5.4...
- Page 30 Sample pot supplied. Valves available separately with cables and flow restricting pipes Valves chemically resistant to 5% Phosphoric acid, 2% Nitric acid Compatible triple peristaltic pumps available separately as an alternative to solenoid valves. ©2017 Autogrow Systems Ltd V5.4...
- Page 31 IntelliDose Manual Section L – Advanced Irrigation Features IntelliDose firmware version 3.01 released March 2015 expands on the original irrigation functionality by providing the ability to control up to 4 irrigation stations with an optional master pump. Each station is assigned its own duration and control is either: ➢...
- Page 32 3.01 or later to verify the wiring diagram using IntelliGrow software. Please head to our online Help, found here: help.autogrow.com/intelligrow. This is especially important if upgrading an existing IntelliDose to the new firmware or if replacing an older IntelliDose with a newer one.
- Page 33 If individual irrigation pumps are used for watering each station then it is not necessary to use the Separate pump output. ©2017 Autogrow Systems Ltd V4.0...
- Page 34 When using single output or sequential irrigation then only one irrigation trigger can be specified: Upgrade If the firmware version of your IntellIDose is prior to 3.01 and you would like to take advantage of this new functionality please contact your local Autogrow distributor to find out how you can upgrade your controller.
