Summary of Contents for Niles GSS10
- Page 1 g a r d e n s p e a k e r s G S S 1 0 I N S T A l l A T I o N G u I d e...

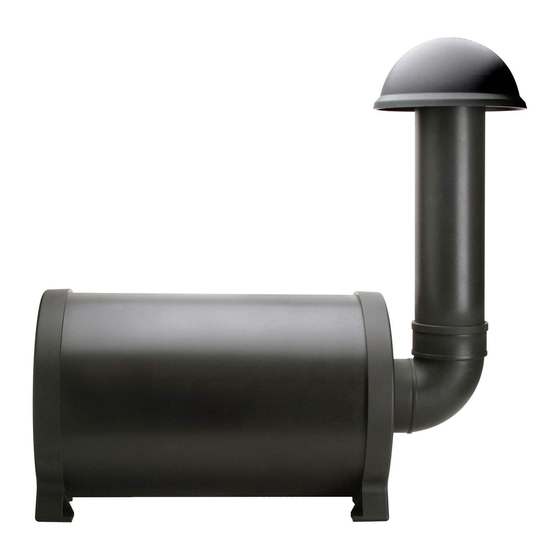

- Page 2 14AWG for wire runs up to 150 ft 12 AWG for wire runs up to 200 ft oPtionaL features A 70v transformer kit is available for the GSS10. It is the GSS70V, Niles Part Number FG01675 Gss10 assembLy Remove both the subwoofer and the bass port tube from their packaging.
- Page 3 This is called the boundary effect. You will get more bass response by mounting the GSS10 near a wall or other flat surface. You can increase the bass output even more by mounting the GSS10 in a corner location. This kind of placement gives the speaker two boundaries, further reinforcing the bass sounds.
- Page 4 The tube and its dome cover can be painted to match any environment. When painting the GSS10 port tube, be sure not to paint the underside of the dome. There are special filter screens that should not be painted over on the underside of the dome.
- Page 5 25 Hz to 110 Hz Product Weight: 25 lbs (11.4 kg) Recommended Burial Depth: 16-18” (40-45 cm) Max SPL: 110dB Impedance: 8 ohm nominal, 6 ohm minimum Temperature Extremes: -50F to 185F (-45° to 85° Celsius) NILES AUDIO – 1-800-BUY-HIFI – 1-760-710-0992...
- Page 6 notes WWW.NILESAUDIO.COM...
- Page 7 1-760-710-0992 CUStOmEr SErvICE HOUrS 8:00 AM to 5:30 PM PT tECHNICAl SUPPOrt HOUrS 6:00 AM to 4:00 PM PT ON tHE wEB w w w.nilesaudio.com EmAIl tECHNICAl SUPPOrt techsupport@nilesaudio.com EmAIl fOr PrOdUCt SUggEStIONS productsuggestions@nilesaudio.com NILES AUDIO – 1-800-BUY-HIFI – 1-760-710-0992...
- Page 8 1 - 8 0 0 - B U Y - H I F I – w w w . n i l e s a u d i o . c o m ©2011 The AVC Group, llC. All rights reserved. Niles and the Niles logos are registered trademarks of The AVC Group, llC.
