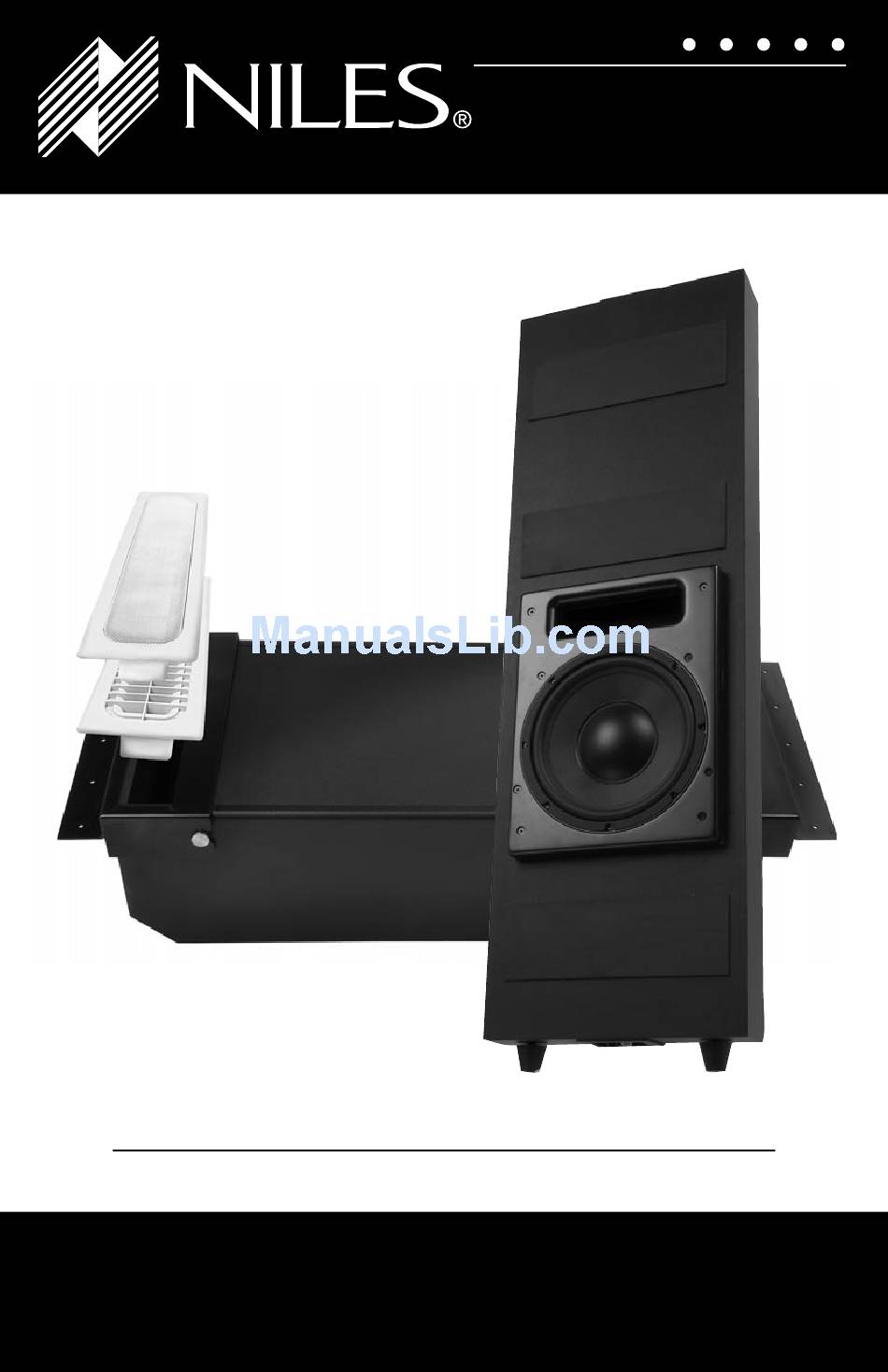

I N S T A L L A T I O N G U I D E
FOR USE WITH NILES SW10JM JOIST MOUNT SUBWOOFER
A N D N I L E S S W 1 0 W M WA L L M O U N T S U B W O O F E R
SW10JM SW10WM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW10WM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Niles SW10WM

Summary of Contents for Niles SW10WM

  • Page 1 FOR USE WITH NILES SW10JM JOIST MOUNT SUBWOOFER A N D N I L E S S W 1 0 W M WA L L M O U N T S U B W O O F E R SW10JM SW10WM...

  • Page 2: Table Of Contents

    Niles SWA-500M subwoofer amplifier, the SW10JM/SW10WM provide superior sonic quality in home theater and home audio bass reinforcement. Like all Niles products, the SW10JM and SW10WM are built to the highest standards of quality and reliability, and with proper installation and operation, you’ll enjoy years of trouble-free use.

  • Page 3: Introduction

    The Niles SW10JM Joist Mount Subwoofer is designed to fit discreetly in ceiling joists or sub- floors. The Niles SW10WM Wall Mount Subwoofer is designed to fit discreetly in walls. When properly installed, the SW10JM/SW10WM are virtually unnoticeable, visible only through the included Microperf™...

  • Page 4: Installation Flexibility

    The SW10JM mounts in ceiling joists or under floors and accommodates 16” and 24” on-center joist construction. The SW10WM adapts to in-wall installations and is designed to fit standard 2 X 4 construction. Mounting hardware is included and each model includes one Microperf™ grille and frame and one floor/cabinet grille (SW10JM only).

  • Page 5: Sw10Jm (Joist-Mount) Subwoofer

    The SW10JM/SW10WM were designed in the USA by Niles engineers. We use high quality components and have thoroughly tested each product to ensure that it meets our high standards.

  • Page 6: Tools Needed

    TOOLS NEEDED: • Pencil • Drywall Saw • Phillips Screwdriver • Drill (and assorted Bits) • Qty. 2; 2 x 4s (48” in length) • Wire strippers • Tape Measure • Level (Optional) • Awl (optional) • Staple gun (optional) •...

  • Page 7: Sw10Jm Placement

    Do not locate the SW10JM subwoofer close to lamps or furniture that might rattle or vibrate. Figure 2. Home Theater layout with SW10JM placement options NILES AUDIO CORPORATION – 1-800-BUY-HIFI or 1-305-238-4373...

  • Page 8: Sw10Jm In-Ceiling/In-Floor Installation

    SW10JM IN-CEILING/IN-FLOOR INSTALLATION The SW10JM subwoofer mounts directly to ceilings or sub-floors between joists and accommodates both 16" and 24" on-center joist construction. The included cardboard template matches the dimensions of the SW10JM and is used to position the subwoofer, the 2 X 4s that will support the subwoofer, and for marking the 4 pilot holes for cutting out an opening for the grille.

  • Page 9: Sw10Wm Installation - Floor Application

    3a. Mark 4 hole locations from template. This area will be used for the grille cutout. 3b. Cut thru sub-flooring (OSB, PLYWOOD, ETC.) between marks using appropriate tools. NILES AUDIO CORPORATION – 1-800-BUY-HIFI or 1-305-238-4373 Template Template 2 x 4 X Minimum...
  • Page 10 4. Attach the supplied front and rear brackets to the 2 x 4’s using the supplied 1.5" wood screws. NOTE: REMOVE THE STOP BLOCK FROM THE SW10JM PORT. THE STOP BLOCK IS INCLUDED TO PREVENT THE SUBWOOFER FROM DISENGAGING FROM BRACKETS UNTIL THE GRILLE IS INSTALLED.
  • Page 11 Thin the paint to prevent clogging of the grille holes and apply several light coats instead of one heavy one. NILES AUDIO CORPORATION – 1-800-BUY-HIFI or 1-305-238-4373 (CONTINUED) 3" Screws Cover...
  • Page 12 SW10JM INSTALLATION – FLOOR APPLICATION FLOOR APPLICATION – COMPLETE INSTALLATION New/Existing Construction 1. Use template to determine a suitable installation location. Place the SW10JM cardboard template in the desired location making sure the template is level and aligned correctly. You may want to staple the template in place for added ease.
  • Page 13 Begin with the ported end first. Front Bracket 6. Install the stop block between the bracket and cabinet at rear of cabinet as indicated in drawing. NILES AUDIO CORPORATION – 1-800-BUY-HIFI or 1-305-238-4373 Rear Bracket Subwoofer Screw Stop Block...
  • Page 14 Grille 3" Screws Floor 7. Install the included floor grille into the cut-out opening using the supplied screws. Hole Cut-out OPTIONAL: The grille can be painted to match most decors but should be painted before installation. Additionally, paint the grille separately from the loudspeaker frame.

  • Page 15: Sw10Wm Installation - Ceiling Application

    NOTE: REMOVE THE STOP BLOCK FROM THE SW10JM PORT. THE STOP BLOCK IS INCLUDED TO PREVENT THE SUBWOOFER FROM DISENGAGING FROM BRACKETS UNTIL THE GRILLE IS INSTALLED. NILES AUDIO CORPORATION – 1-800-BUY-HIFI or 1-305-238-4373 Template 2 x 4 X Minimum...
  • Page 16 4. Place the SW10JM subwoofer into the brackets aligning the attachment pins to the slots in the brackets. Begin with the ported end first. Subwoofer Front Bracket 5. Install the stop block between the bracket and cabinet at rear of cabinet as indicated in drawing.
  • Page 17 Thin the paint to prevent clogging of the grille holes and apply several light coats instead of one heavy one. NILES AUDIO CORPORATION – 1-800-BUY-HIFI or 1-305-238-4373 (CONTINUED) Hole Cut-out Ceiling 3"...
  • Page 18 SW10JM INSTALLATION – CEILING APPLICATION 1. Use template to determine a suitable installation location. Place the SW10JM cardboard template in the desired location making sure the template is level and aligned correctly. You may want to staple the template in place for added ease. 2a.
  • Page 19 Subwoofer Front Bracket 6. Install the stop block between the bracket and cabinet at rear of cabinet as indicated in drawing. Screw NILES AUDIO CORPORATION – 1-800-BUY-HIFI or 1-305-238-4373 Front Bracket 2 x 4 Rear Bracket Subwoofer Stop Block (CONTINUED)
  • Page 20 7. Install the included ceiling grille into the cut-out opening using the supplied screws. 8. Install the included ceiling grille into the frame. OPTIONAL: The grille can be painted to match most decors but should be painted before installation. Additionally, paint the grille separately from the loudspeaker frame. For best results when painting the grille, use a spray gun or airless sprayer.

  • Page 21: Amplifier Requirements & Wiring

    Figure 3. Line diagram showing 1 or more SW10JM connected to the SWA-500 We recommend 16 AWG 2-conductor speaker wire for runs up to 60 feet, with heavier high quality speaker wire used for longer runs. When permanently installing wire inside walls, be sure to use cable that is rated for in-wall use and has special jacketing for fire prevention.
  • Page 22 WIRING FOR NEW CONSTRUCTION For best results, avoid running speaker wire near AC wiring, as it may induce a 60Hz hum in the audio signal. It’s a good idea to run the speaker wire after the electrical wiring has already been completed, so that you can route the speaker wire at least three feet away from the electrical wiring.

  • Page 23: Sw10Wm (Wall-Mount) Subwoofer

    SW10WM (WALL MOUNT) SUBWOOFER The SW10WM Wall Mount subwoofer includes the following items: Preconstruction package: • 1 Ported cabinet (back box) with trim-out panel • 1 set of installation brackets with screws • 1 set of rubber feet Installation package: •...

  • Page 24: Sw10Wm Placement

    SW10WM so that the grille/frame is near a corner or sidewall and is as close to the main speakers as possible. Keep in mind that the SW10WM subwoofer is not magnetically-shielded and could cause interference if placed near a video display.

  • Page 25: Sw10Wm In-Wall Installation

    Be sure to mount the SW10WM securely, as the bass output could cause unwanted vibration if the SW10WM is able to move. Be sure the studs to which the SW10WM is mounted are securely braced so that the distance between them does not change and they are not able to move or shift.
  • Page 26 2b. Determine suitable wire routing method. The SW10WM is provided with terminal cups at both the bottom and top of the unit for convenience. Preparing the cabinet 3a. Remove the large bolts located at the top of the cabinet and flip the brackets over re-installing brackets with the same bolts, leaving them loose.
  • Page 27 5. Secure the brackets to the studs using the provided hardware. 6. Make necessary wire connections to terminal cups NOTE: THE SW10WM CABINET HAS THE NECESSARY TRIMOUT PANEL ALREADY INSTALLED. THIS WILL ALLOW SHEETROCK INSTALLERS THE EXACT LOCATION FOR CUTTING THE FRAME OPENING AND PREVENT DEBRIS FROM ENTERING THE CABINET DURING THE FINAL PHASES OF CONSTRUCTION.
  • Page 28 12. Insert the frame into the cut-out hole securing the frame with the supplied 2" screws where needed to ensure a snug fit against the wall. 13. Insert the metal grille into the frame pressing firmly all the way around the perimeter. TIP.

  • Page 29: Amplifier Requirements & Wiring

    AMPLIFIER REQUIREMENTS & WIRING The SW10WM is a passive (non-powered) subwoofer and must be used with a power amplifier. We strongly recommend the Niles SWA-500 subwoofer amplifier. Use with any other amplifiers could result in less than optimal performance. Figure 7. 1 or more SW10WM connected to the SWA-500 Figure 8.

  • Page 30: Specifications

    WIRING FOR NEW CONSTRUCTION For best results, avoid running speaker wire near AC wiring, as it may induce a 60Hz hum in the audio signal. It’s a good idea to run the speaker wire after the electrical wiring has already been completed, so that you can route the speaker wire at least three feet away from the electrical wiring.

  • Page 31: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If you experience a problem operating the SW10JM or SW10WM, consult this guide first. The most common problems relate to hook up. If the problem persists, or you have additional questions, call your local Niles dealer or Niles Technical Support at 1-800-289-4434, 305-238-4373 or techsupport@nilesaudio.com.

  • Page 32: Notes
