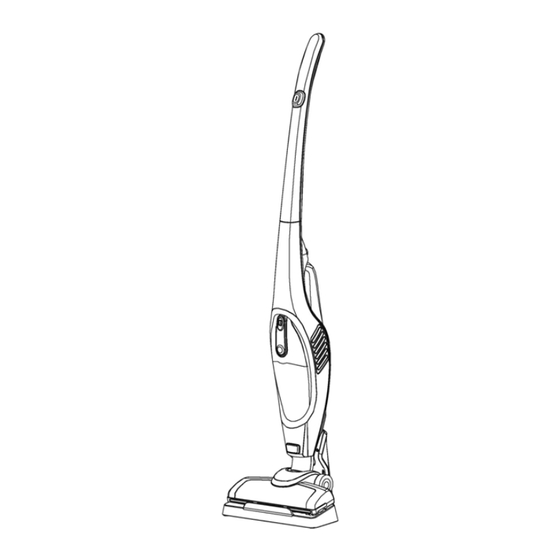

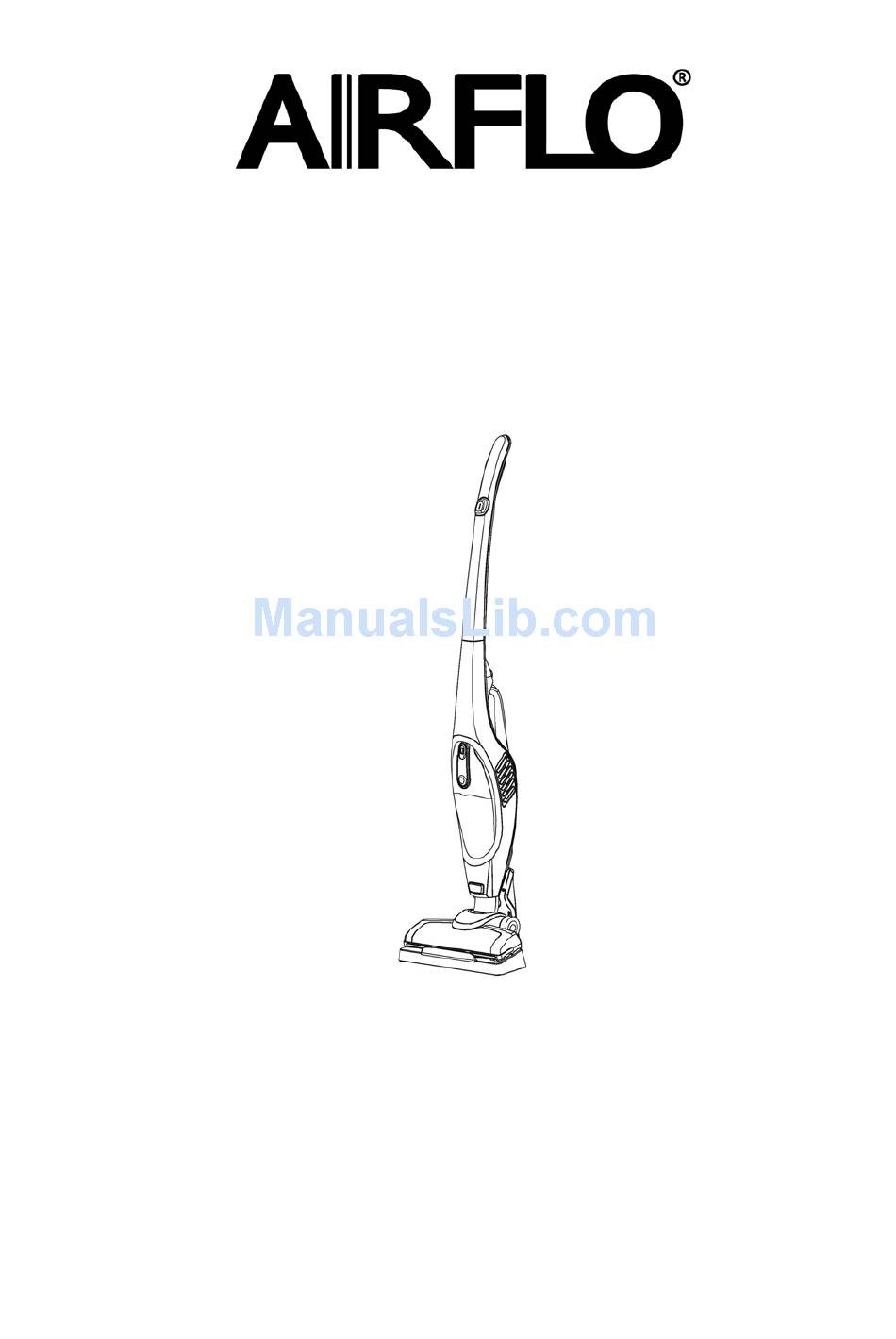

- Page 1 INSTRUCTION MANUAL 2-in-1 Power Vac Model AFV612/614...
-
Page 2: Important Safety Reminders
IMPORTANT SAFETY REMINDERS 1. Before using this appliance, check that the mains power voltage corresponds to the voltage shown on the rating label. 2. Do not use the appliance to vacuum water and other liquids; lighted stub, hot ashes and other combustible things; sharp objects; wood pieces, cement, calcimine and the like. - Page 3 PARTS 1. Handle 8. Dust barrel 2. Power switch 9. Motor brush 3. Set screw 10. Handheld vac 4. Handheld vac 11. Filter release button 5. Body 12. Charger / Base 6. Handheld switch 13. Adapter 7. Dust barrel release button...
- Page 4 ASSEMBLY Main unit Motor brush Connect the handle to the body. Connect the motor brush to the body Put a screw in to hold the two until it clicks into position. together. To remove the motor brush, press the knob and pull to remove the brush from the body.
- Page 5 NOTES ON INSTALLING *** When using the machine, make sure the filter is installed. 1. Press the handheld vac release button. 2. Remove the handheld vac. 3. Press the dust barrel release button. 4. Remove the dust barrel. 5. Check the filter if it’s inside. 6.
- Page 6 CHARGING 1. Turn the switch off. 2. Place the body on the charger base. 3. Connect the adapter to a power outlet. MAINTENANCE Filter replacement and cleaning 1. Press the handheld release button and remove the handheld. 2. Press the dust barrel release button and remove the dust barrel. 3.
- Page 7 Rotating brush cleaning 1. Turn the brush bottom screw to unlock position (see photo below) 2. Open the brush bottom fixed device. 3. Clean the rotating brush. 4. Put the rotating brush back. 5. Turn the brush bottom screw to lock position.
