AIRFLO AFV20 Instruction Manual

Wet & dry vacuum cleaner
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

INSTRUCTION MANUAL
Wet & Dry Vacuum Cleaner
AFV20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFV20 and is the answer not in the manual?

Questions and answers

Related Manuals for AIRFLO AFV20

Summary of Contents for AIRFLO AFV20

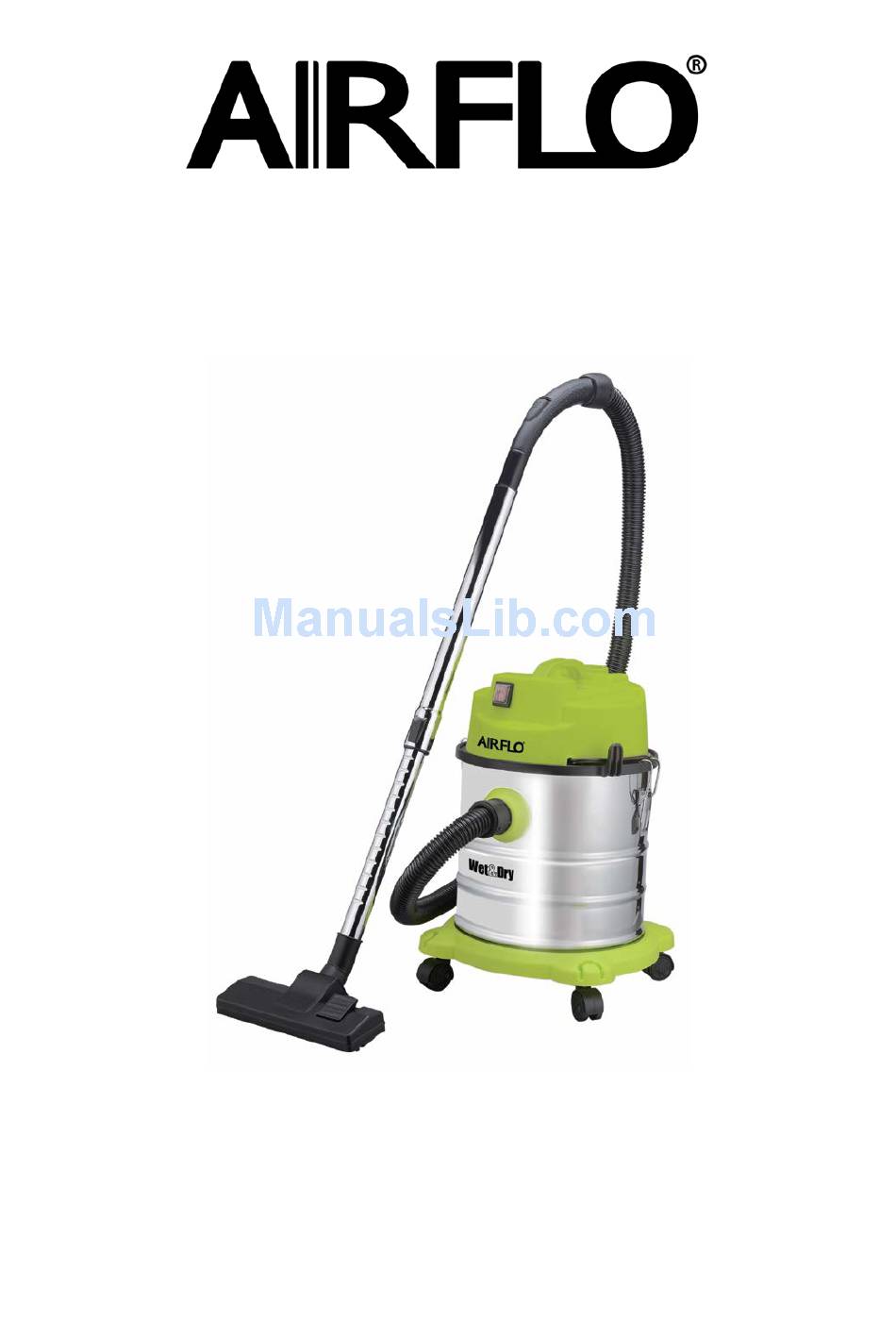

  • Page 1 INSTRUCTION MANUAL Wet & Dry Vacuum Cleaner AFV20...
  • Page 2 PARTS Hose assembly Rods Floor brush Filter bag 2-in-1 Crevice / Dusting brush...

  • Page 3: Important Safety Reminders

    IMPORTANT SAFETY REMINDERS (1) Before using, check if the local power supply is the same as the specification on the rating label. (2) Do not use machine in a combustible place in case the motor spark causes fire. (3) Do not jam the air inlet mouth, in case temperature rises and damages the motor. (4) Do not collect flammable objects such as glowing cigarette, gasoline, etc.
  • Page 4 (6) Do not collect objects which can easily attach to the filter such as chalk or powder as it will block the ventilation and will damage the motor. (5) Do not overturn the machine in case water goes into the motor and damages it. (6) Warning: If water comes out from air outlet mouth, do not overturn the machine when being repaired in case water goes into the motor and causes damage.
  • Page 5 (11) Do not use power cord if damaged. OPERATION (1) Connection Insert the hose connector into the air inlet mouth, as shown in the picture; make sure the connector is tightly fastened. Press the connector button as shown in the picture, and pull the connector out when you want to pull out the hose connector from the machine.
  • Page 6 (2) Operation 1. Insert the plug into the supply socket. 2. Press switch button. The machine will start to work. 3. You can adjust the airflow by pushing the sliding block up and down Protective device (1) When the tank is full of water, this Protective Device will rise up. Suction power will stop but an abnormal noise may indicate that the motor is running at a high speed.
  • Page 7 (2) Filter bag cleaning * Filter bag should be washed with clean and warm water when it is covered with dust. 1) Take off the filter 2) Wash 3) Dry Product Details Model Power Voltage Frequency AFV20 1200W 220V-240V 50/60HZ...
