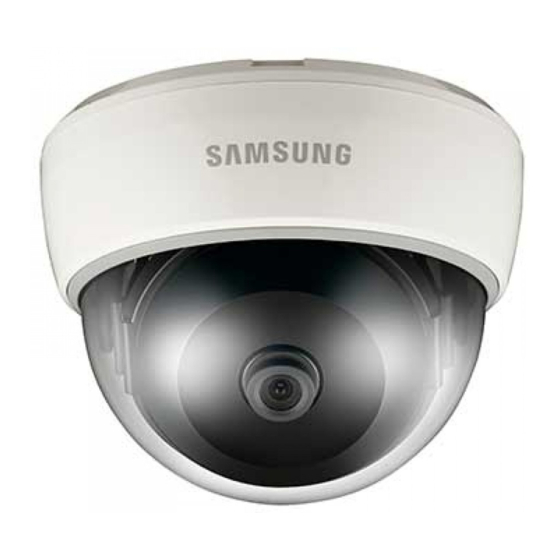

Page 1: Network Camera
NETWORK CAMERA SND-5011/SND-5061/ Quick Guide SND-7011/SND-7061 English... -
Page 2: What's Included
What’s Included Camera (SND-5011/7011 or SND-5061/7061) CD/DVD Quick Guide (Optional) Cable for the testing monitor Iron Screw connectIng WIth other devIce ` Monitor to install ` Power ` External Sensor Ethernet 2_ English... -
Page 3: Network Wiring Diagram
Wiring Instructions The BNC Out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes. If you keep the BNC cable connected, a risk of lightening may cause damage or malfunction to the product. If both PoE and DC12V are applied simultaneously, the product will be supplied with power from PoE. -
Page 4: Manual Network Setup
manual netWork setup Run <Ip Installer_v2.XX.exe> to display the camera search list. At the initial startup, both [auto set] and [manual set] will be grayed out. For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function. -
Page 5: Connecting To The Camera From A Shared Local Pc
connectIng to the camera From a shared local pc 1. Run the IP Installer. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser. -
Page 6: Connecting To The Camera From A Remote Pc Via The Internet
connectIng to the camera From a remote pc vIa the Internet Since using the IP Installer on a remote computer that is not in the Broadband Router’s network cluster is not allowed, users can access cameras within a Broadband Router’s network by using the camera’s DDNS URL. - Page 7 When the connection is successfully made, you will see the message of <(success)> on the screen. Samsung Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Samsung Techwin’s devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.
- Page 8 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660 Samsung House, 1000 Hillswood Drive, Hillswood Business Toll Free : +1-877-213-1222 Direct : +1-201-325-6920 Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS Fax : +1-201-373-0124 TEL : +44-1932-45-5300 FAX : +44-1932-45-5325 www.samsungcctvusa.com...
