Summary of Contents for AccuVein AV400

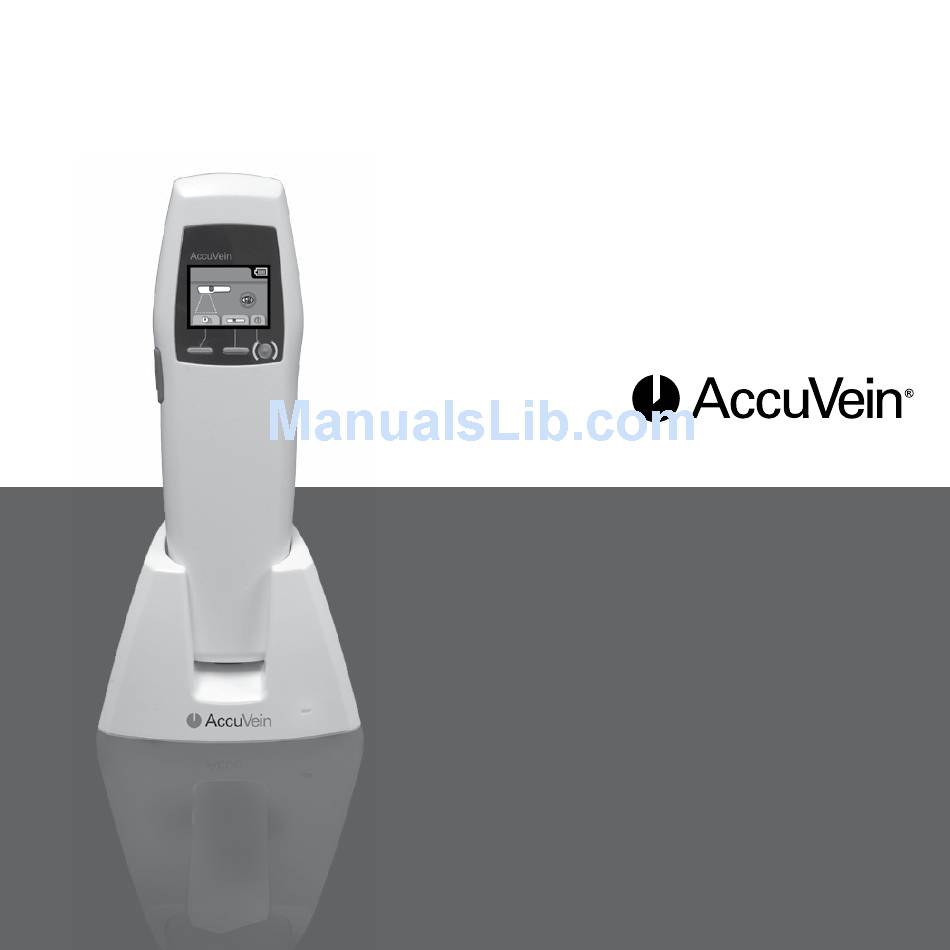

- Page 1 English AccuVein AV400 User Manual A health professional’s guide for use and operation of the AccuVein AV400...
- Page 3 Read all instructions, cautions, and warnings prior to use. This product should be operated only by qualified medical professionals. The AV400 should not be used as the sole vein location method, and it is not a substitute for sound medical judgment and the visual and tactile location of veins.
-
Page 5: Table Of Contents
Contents English AV400 AccuVein AV400 User Manual A health professional’s guide for use and operation of the AccuVein AV400 Basic Use Charging, Cleaning Warranty Product and Operation and Troubleshooting and Liability Specification Setup Charging the AV400 Warranty Summary Specifications Intended Use... - Page 6 Directive Logo. Return is allowed for proper disposal. Consult operating instructions Temperature limitation Refer to instruction manual/booklet Humidity limitation The AV400 emits laser radiation Do not use if package is damaged Type B Applied Part Keep dry Conformité Européenne (European Conformity).
- Page 7 Warnings and Cautions Patient and User Safety—Warnings CAUTION: Operation or use of the AV400 in a manner different than specified in this AV400 User’s Manual may result in hazardous radiation exposure. WARNING: The AV400 enables location of certain superficial veins and is not a substitute for sound medical judgment based on the visual and tactile location and CAUTION: Do not make any connections to the USB port on the AV400 device.
-
Page 8: Basic Use And Operation
The AV400 is intended to be used as a supplement to appro- priate medical training and experience. The AV400 should not AccuVein recommends fully charging the AV400 before first be used as the sole method for locating veins, and should be use. -
Page 9: Product Description
Basic Use and Operation Product Description The AV400 operates by using infrared light to detect veins be- When held directly overhead, the AV400 accurately locates neath the skin, then projecting the position of the veins on the the center of a vein. Increasing the displacement from direct- skin surface directly above the veins. -
Page 10: User Controls And Screens
Basic Use and Operation User controls and screens Lens LCD Screen Vein Illumination Window Lens Keypad Battery Compartment Door... - Page 11 Basic Use and Operation AV400 controls at a glance Power AV400 ON or OFF Turn vein display light ON or OFF Invert the projection About Product Select time-out Blue Button Left Button Display indications Center Button Do not shine in eyes...
- Page 12 Unit too hot. Bring the over illuminated background device below 33°C/90°F Projection on—illuminated Less than 2 minutes veins over dark background of battery charge remaining. Charge battery immediately. Selected time-out Unit faulted. Call AccuVein Support at (816) 997-9400. About product...
-
Page 13: Operating The Av400
Press the on/off button to power on or off the AV400. Blue button The blue button is located on the left side of the AV400. Press the blue button to power on the AV400 and turn on the vein display light. Press the button again to turn the vein display light off. - Page 14 Assess the Vasculature If performing venipuncture While the vein display light is on, shine the AV400 over the pa- If you are performing venipuncture, you may use an AccuVein tient’s skin. You can do this before palpation, scanning quickly...
-
Page 15: Charging, Cleaning And Troubleshooting
An animated battery charge icon will display when the AV400 is charging. The light on the When the AV400 battery gets low the battery indicator will charging cradle will only turn on when a device is detected. -
Page 16: Cleaning And Disinfecting
AccuVein support via telephone at (816) 997-9400 option 3. To clean the body of the AV400 and its charging cradle, you may use a cloth Warranty Summary moistened with 70% isopropyl alcohol, a 10% dilution of chlorine bleach in distilled water, or soap and water. -
Page 17: Product Specification
The AV400, CC300, and HF470 are intended for use in the electromagnetic environment earth mode specified below. The customer or the user of the AV400, CC300, or HF470 should assure that it Voltage dips, short <5 % U <5 % U Mains power quality should be is used in such an environment. -
Page 18: Specifications
4°C to 33°C (39°F to 90°F) Size 5 x 6 x 20 cm (2” x 2.4” x 7.9”) Humidity 5% to 85% RH Battery AccuVein® BA400 user non-condensing replaceable Li-Ion 3.6V. Pressure 75kPa to 106kPa BA400 – 3,100 mAh Transport Temperature -20°C to 50°C... - Page 20 AccuVein Inc. 40 Goose Hill Road Phone: (816) 997-9400 Cold Spring Harbor, NY 11724 www.accuvein.com/av400 0004962D...
