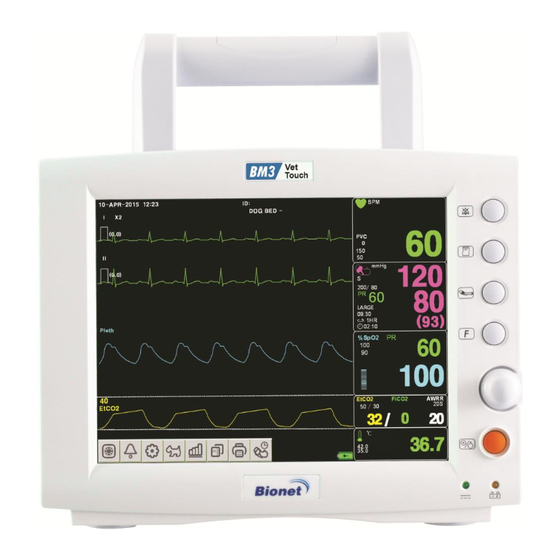

Page 1 BM3VET Touch User’s Manual Veterinary Patient Monitor Rev. 1.1(20160401)
Page 2: Table Of Contents
BM3VET Touch User’s Manual Table of Contents Table of Contents ..........................2 1. BASIC ..........................7 1.1 CE Standard Information ......................8 1.2 Read before Use ........................10 How to Contact Us ............................. 10 Warranty Period............................11 Warning, Caution, Note ..........................11 General Precaution on Environment ......................
Page 3 BM3VET Touch User’s Manual DEFAULT SETTING ..........................52 HEIGHT ..............................52 WEIGHT ..............................53 2.2 ALARM ............................ 54 Alarm for the Product ..........................55 PARAMETER1 LEVEL ..........................56 PARAMETER2 LEVEL ..........................56 ARRHYTHMIA LEVEL ........................... 57 ALARM REVIEW ............................. 57 ALARM VOLUME ............................
Page 4 BM3VET Touch User’s Manual 5 Position of 5-Lead ........................... 91 Position of 3-Lead Wire Electrodes ......................92 5.2 ECG Data Window ........................93 5.3 ECG Data Setup ........................96 ALARM LIMIT............................96 LEAD SELECT ............................97 QRS VOLUME ............................97 DISPLAY ..............................
Page 5 BM3VET Touch User’s Manual 8.3 NIBP Data Setup........................128 ALARM..............................129 CUFF SIZE ............................... 130 INFLATION ............................. 130 INTERVAL .............................. 131 NIBP STAT .............................. 132 NIBP VITAL SIGN ..........................133 UNIT SELECT ............................134 9. EtCO2 ..........................135 9.1 Introduction ........................... 136 9.2 EtCO2 Parameter Window ....................
Page 6 BM3VET Touch User’s Manual 11.2 Paper Change ........................167 12. MESSAGE LIST ......................168 13. DEFAULT SETTING VALUE..................169 13.1 HORSE-ICU Mode ......................169 13.2 DOG-ICU Mode........................172 13.3 PUPPY-ICU Mode ....................... 174 13.4 CAT-ICU Mode ........................176 14. TROUBLE SHOOTING ....................178 14.1 Noise in ECG ........................
Page 7: Basic
BM3VET Touch User’s Manual 1. BASIC 1.1 CE Standard Information 1.2 Read before Use Warranty Period Warning, Caution, Note General Precaution on Environment General Precaution on Electric Safety Equipment Connection Maintenance and Washing Equipment Connection Product Components Product Outline Principal features of Product...
Page 8: Ce Standard Information
BM3VET Touch User’s Manual 1.1 CE Standard Information Electromechanical safety standards met: Information supplied by the manufacturer of medical devices 1. EN 60601-1(2006) Medical electrical equipment Part1: General requirements for safety 2. EN 60601-1-2 (2007) (IEC 60601-1-2) Electromagnetic Compatibility Requirement and tests 3.
Page 9 BM3VET Touch User’s Manual 13. EN ISO 21647:2009 (ISO 80601-2-55:2011) Medical electrical equipment -- Particular requirements for the basic safety and essential performance of respiratory gas monitors 14. EN 980:2008 (EN ISO 15223-1:2012) Symbols for use in the labeling of medical devices (Medical devices -- Symbols to be used with medical device labels, labeling and information to be supplied -- Part 1: General requirements) 15.
Page 10: Read Before Use
BM3VET Touch User’s Manual 1.2 Read before Use BIONET services are always available to you. The following are address and phone numbers for contacting information, services, and product supplies. How to Contact Us Bionet Ltd. – Sales Department Product Supply Information #1101 11F E&C Venture Dream Tower3 38-21, Digital-Ro, 31-Gil, Guro-...
Page 11: Warranty Period
“Consumer’s protection law” noticed by Korea Fair Trade Commission.  Warranty period is 4 years.( Four years in USA).  We will repair or replace any part of the BM3VET Touch found to be defective in usual operating circumstance for free to you.
Page 12: General Precaution On Environment
BM3VET Touch User’s Manual General Precaution on Environment - Do not keep or operate the equipment in the environment listed below. Avoid placing in an area exposed to moisture. Avoid exposure to direct Do not touch the equipment sunlight with wet hands.
Page 13 BM3VET Touch User’s Manual CAUTIONS Before Installation Compatibility is critical to safe and effective use of this device. Please contact your local sales or service representative prior to installation to verify equipment compatibility. Defibrillator Precaution Patient signal inputs labeled with the CF and BF symbols with paddles are protected against damage resulting from defibrillation voltages.
Page 14 BM3VET Touch User’s Manual Electrocute Precautions To prevent skin burns, apply electrocute electrodes as far as possible from all other electrodes, a distance of at 15 cm/6 in. is recommended. Magnetic and electrical fields are capable of interfering with the proper performance of the device.
Page 15 MPSO as it will increase the chance of the single protective earth conductor interruption. Negligence BIONET does not assume responsibility for damage to the equipment caused by improperly vented cabinets, improper or faulty power, or insufficient wall strength to support equipment mounted on such walls.
Page 16 BM3VET Touch User’s Manual NOTES Power Requirements Before connecting the device to the power line, check that the voltage and frequency ratings of the power line are the same as those indicated on the unit’s label. If this is not the case, do not connect the s ystem to the power line until you adjust the un it to match the power source.
Page 17: General Precaution On Electric Safety
Check the items listed below before operating the equipment. 1. Be sure that AC power supply line is appropriate to use. (AC100 - 240V) 2. Be sure that the power source is the one supplied from Bionet. (DC18V,2.8A, BPM050S18F02 Made in BridgePower Co., Ltd.) 3.
Page 18: Equipment Connection
Manufacturer’s declaration - electromagnetic emission The BM3VET TOUCH system is intended for use in the electromagnetic environment specified below. The customer or the user of BM3VET TOUCH system should ensure that it is used in such an environment Emission test...
Page 19 Manufacturer’s declaration - electromagnetic immunity The BM3VET TOUCH system is intended for use in the electromagnetic environment specified below. The customer or the user of the BM3VET TOUCH system should ensure that it is used in such an environment Immunity test...
Page 20 BM3VET Touch User’s Manual The BM3VET TOUCH system is intended for use in the electromagnetic environment specified belo The customer or the user of the BM3VET TOUCH system should ensure that it is used in such an environment Immunity test...
Page 21 BM3VET Touch User’s Manual Radiated RF 3 V/m 3 V/m Recommended separation distance IEC 61000-4-3 80.0 MHz to 2.5 G 80.0 MHz to 2.5 G Where P is the maximum output power rat ing of the transmitter in watts (W) accordin...
Page 22 Recommended Separation Distances Between Portable and Mobile RF Communications Equipment and the BM3VET Touch system. The BM3VET TOUCH system is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The user of the BM3VET Touch system can help prevent electromagnetic...
Page 23 Guidance and manufacturer’s declaration - electromagnetic immunity The BM3VET TOUCH system is intended for use in the electromagnetic environment specified below. The customer or the user of the BM3VET TOUCH system should ensure that it is used in such an environment...
Page 24 BM3VET Touch User’s Manual Note 1) These guidelines may not apply in all situations. Electromagnetic propagation is affected by a bsorption and reflection from structures, objects and people. Note 2) It is essential that the actual shielding effectiveness and filter attenuation of the shielded loc ation be verified to assure that they meet the minimum specification.
Page 25: Maintenance And Washing Equipment Connections
BM3VET Touch User’s Manual Maintenance and Washing Equipment Connections Various methods can be used to clean the BM3VET TOUCH and its accessories. Please follow the methods mentioned below to avoid unnecessary damage or contamination to the Equipment. We do not repair free of charge regardless of warranty period if it is contaminated or damaged by using dangerous material not designated for washing.
Page 26 Warning Check the electrodes of batteries before changing them. · Operate BM3VET TOUCH with internal electric power supply when unsure of external ground connection. · Remove the 1st Battery when not using equipment for an extended period of time to avoid any damage.
Page 27: Product Components
BM3VET TOUCH OPERATION MANUAL Product Outline BM3VET TOUCH monitor is a product used for monitoring biological information of Canine and Feline. Main functions of the product include displaying information such as ECG, respiration, SpO2, NIBP, EtCO2 and temperature on its LCD screen and monitoring parameters, and alarming. It also prints out waves and parameters via a printer.
Page 28: Product Configuration
Warning In order to avoid electrical shock, do not open the cover. Disassembling of the equipment should be done only by service personnel authorized by BIONET Warning Users must pay attention on connection of any auxiliary device via LAN port or nurse calling.
Page 29: Features Of Main Body
BM3VET Touch User’s Manual Features of Main Body FRONT BACK Rev. 1.1 1.BASIC...
Page 30 BM3VET Touch User’s Manual Right Side Connector NIBP Connector SpO2 Connector Temperture Connector EtCO2 Connector Left Side Printer Rev. 1.1 1.BASIC...
Page 31 BM3VET Touch User’s Manual Accessories 3-Lead ECG Extension Cable 5-Lead ECG Extension Cable 3-Lead vet ECG Cable 5-Lead vet ECG Cable Reusable multisite SpO2 Probe SPO2 extension cable (2m) NIBP Extension Tube (3m) Reusable NIBP Infant Cuff Cuff Size : 210 * 60...
Page 32 BM3VET Touch User’s Manual Equipment Sign ATTENTION : Consult accompanying documents TYPE CF APPLIED PART : Insulated (floating) applied part suitable for intentional external and internal application to the Animal including direct cardiac application. "Paddles" outside the box indicate the applied part is defibrillator proof.
Page 33 BM3VET Touch User’s Manual Ground Printer Serial Port LAN Port AUX Connector Port DC Input Indicator DSUB 15pin external VGA port Battery Operation Indicator WIRELESS LAN power output Port 5.0V 0.9A DC Input Connector 2.8A Rev. 1.1 1.BASIC...
Page 34 BM3VET Touch User’s Manual TOUCH SCREEN LOCK NIBP Temperature Function Power on Power off Respiration Heart Pulse Rev. 1.1 1.BASIC...
Page 35: Function And Key
BM3VET Touch User’s Manual 1.4 Function and Key External Function The front panel of this product consists of an LCD screen and five function keys and one trim knob. Parameter windows Alarm 10-APR-2015 12:23 10 -A PR-2015 12 :23 ID :...
Page 36 BM3VET Touch User’s Manual Lock : Press the alarm and function key at the same time until lock icon is displayed. Unlock : Press the alarm and function key at the same time until Unlock icon is displayed. lock icon...
Page 37: Standard Power Supply Application
BM3VET Touch User’s Manual 1.5 Standard Power Supply Application DC Power  Product information  Manufacture: Bridgpower corp.  Model name: BPM050S18F02  Input power: Rated Voltage 100 – 240V Rated Line Frequency 50 – 60 Hz Current 1.5A Max at 100 VAC input Protection Internal primary current Fuse (2.0A)
Page 38: Battery Power Supply Application
BM3VET Touch User’s Manual 1.6 Battery Power Supply Application Battery power can be supplied for enabling portable use or for use during DC power failure. Operation 1. Battery Power LED is lighted on when the machine is in use. 2. The DC/battery power is only sustainable for 1 and a half hours.
Page 39 BM3VET Touch User’s Manual 5. The discharge condition of battery is indicated with on of 5 yellow boxes, each box showing a different level of charge available. (100% -> 75% -> 50% -> 25% ) When remaining battery is less than 25%, the battery icon box is turned to blinking red. The device will be turned off automatically after 5 minutes from that warning sign.
Page 40 BM3VET Touch User’s Manual To insert and remove the battery pack. Assembly or replacement, as shown in the figure below. The Impact of Lithium-Ion Battery Technology on the Battery The following are the key points you should know about Lithium-Ion battery technology: The battery will discharge on its own, even when it is not installed in a monitor.
Page 41 12 months. BIONET recommends that you remove the battery and store it near the monitor until it is needed for transport..
Page 42: General Menu Operation
BM3VET Touch User’s Manual 1.7 General Menu Operation Screen Composition Real time Wave Parameter Window Windows 10-JAN-2011 12:23 JOHN BED-001 HORSE (0.0) ALARM PARAMETER1 mmHg LEVEL (0.0) PARAMETER2 200/ Menu LEVEL windows Pleth ARRHYTHMIA LARGE LEVEL 09:30 (93) 02:10 ALARM REVIEW...
Page 43 BM3VET Touch User’s Manual NORMAL MODE 10-APR-2015 12:23 DOG BED - (0.0) ALARM mmHg (0.0) 200/ LARGE 09:30 (93) 02:10 Pleth %SpO2 EtCO2 FiCO2 AWRR EtCO2 50 / 37.0 T1 35.0 36.7 ℃ PARAMETER MODE 10-JAN-2011 12:23 BED-001 HAPPY HORSE...
Page 44: Menu Selection
BM3VET Touch User’s Manual Menu Selection 10-APR-2015 12:23 DOG BED - (0.0) ALARM mmHg (0.0) 200/ LARGE 09:30 (93) 02:10 Pleth %SpO2 EtCO2 FiCO2 AWRR EtCO2 50 / 37.0 T1 36.7 35.0 ℃ When the Trim Knob Key is turned, menus are selected in the order indicated above. The above screen shows that the MORE menus is selected.
Page 45: Menu Composition
BM3VET Touch User’s Manual Menu Composition More Menu Window When the additional menu is selected it will set and cancel the functions. SETUP SET PARA UNIT SELECT USER SERVICE SYSTEM NETWORK MAKER SERVICE Numerical value sign widow This window displays a measured parameter, function setup, and the boundary of parameter values.
Page 46 BM3VET Touch User’s Manual Menu selection by using Trim Knob key As the key is turned to the right, the menu selection moves clockwise. As the key is turned to the left, the menu selection moves counterclockwise. The menu selection is activated when you depress Trim Knob key.
Page 47 BM3VET Touch User’s Manual Word feature menu The following figure shows the screen where the word sequence menu is activated within the word sequence correction menu. Here, the cursor moves over the words when the Trim Knob key is turned in the clockwise direction.
Page 48 BM3VET Touch User’s Manual Operation menu The setup value changes without a selection when the menu is moved. ALARM ALARM PARAMETER1 PARAMETER1 LEVEL LEVEL PARAMETER2 PARAMETER2 LEVEL LEVEL ARRHYTHMIA ARRHYTHMIA LEVEL LEVEL ALARM REVIEW ALARM REVIEW ALARM ALARM VOLUME: VOLUME:...
Page 49: Animal/Data Management
BM3VET Touch User’s Manual 2. ANIMAL/DATA MANAGEMENT 2.1 ADMIT ANIMAL TYPE CHANGE ADMIT INFO DISCHARGE HEIGHT WEIGHT 2.2 ALARM Alarm for the Product PARAMETER1 LEVEL PARAMETER2 LEVEL ARRHYTHMIA LEVEL ALARM REVIEW ALARM VOLUME ALARM PRINT NURSE CALL REV. 1.1 2. ANIMAL/DATA MANAGEMENT 49...
Page 50: Admit
BM3VET Touch User’s Manual 2.1 ADMIT CHANGE ANIMAL INFO ANIMAL TYPE DEFAULT SETTING HEIGHT UNIT WEIGHT UNIT ADMIT ANIMAL TYPE: HORSE CHANGE ANIMAL INFO DEFAULT SETTING WEIGHT UNIT: HEIGHT UNIT: Rev. 1.1 2. ANIMAL/DATA MANAGEMENT 50...
Page 51: Animal Type
BM3VET Touch User’s Manual ANIMAL TYPE Set the patient environment of equipment in Animal Type. HORSE : LARGE ANIMAL // DOG: MEDIUM ANIMAL PUPPY : SMALL ANIMIAL // CAT: TINY ANIMAL ADMIT ANIMAL TYPE: HORSE CHANGE HORSE ANIMAL INFO DEFAULT...
Page 52: Default Setting
BM3VET Touch User’s Manual DEFAULT SETTING Parameter range settings, alarm settings, and Animal-specific initialization settings. ADMIT ANIMAL TYPE: HORSE CHANGE ANIMAL INFO DEFAULT SETTING WEIGHT UNIT: HEIGHT UNIT: HEIGHT Unit of height is set as Cm / Inch. ADMIT ADMIT...
Page 53: Weight
BM3VET Touch User’s Manual WEIGHT Unit of weight is set as Kg / LBS. ADMIT ADMIT ANIMAL ANIMAL TYPE: TYPE: HORSE HORSE CHANGE CHANGE ANIMAL ANIMAL INFO INFO DEFAULT DEFAULT SETTING SETTING WEIGHT WEIGHT UNIT: UNIT: HEIGHT HEIGHT UNIT: UNIT: Rev.
Page 54: Alarm
BM3VET Touch User’s Manual 2.2 ALARM Alarm is divided into two, alarm for the Animal’s condition and for the product’s condition. The Animal’s alarm sounds when the diagnostic functions (ASYSTOLE, VTAC/VFIB, and VTAC) are detected. Each alarm sound differs in order and volume according to the levels of HIGH, MEDIUM, LOW and MESSAGE.
Page 55: Alarm For The Product
BM3VET Touch User’s Manual Alarm for the Product The machine gives alarm sounds for its system with a related message flashing. Alarm Text ALARM LIMITS：The machine enables one to see and change the limits of alarm for all parameter functions.
Page 56: Parameter1 Level
BM3VET Touch User’s Manual PARAMETER1 LEVEL ECG, NIBP, SpO2, RESP and TEMP information about all of the alarm settings . ALARM PARAMETER1 NIBP-S SPO2-% RESP LEVEL MESSAGE MESSAGE MESSAGE MESSAGE PARAMETER2 NIBP-M SPO2-PR RESP-A LEVEL MESSAGE MESSAGE MESSAGE MESSAGE NIBP-D...
Page 57: Arrhythmia Level
BM3VET Touch User’s Manual ARRHYTHMIA LEVEL Diagnostics when the alarm is set. ALARM PARAMETER1 LEVEL ASYSTOLE HIGH PARAMETER2 LEVEL VTAC HIGH ARRHYTHMIA HIGH VTAC/VFIB LEVEL MEDIUM HIGH ALARM REVIEW ALARM VOLUME: ALARM PRINT: NURSE CALL: MESSAGE MEDIUM HIGH ALARM REVIEW After an alarm is triggered the alarms and data wave pattern can be reviewed.
Page 58: Alarm List
BM3VET Touch User’s Manual ALARM LIST When an alarm activates, this shows the order of the alarms. Up to 20 cases of alarm can be stored. ALARM PARAMETER1 TIME LIST KIND ALARM LEVEL LIST ASYSTOLE 2011/03/18 10:22:53 MEDIUM PARAMETER2 LEVEL...
Page 59: Alarm Volume
BM3VET Touch User’s Manual SAVE CONDITION This determines the alarm level of parameters which are saved in the alarm list when alarm occurs. If a higher level of alarm occurs than the previously determined alarm level, data would be saved in the alarm list.
Page 60: Alarm Print
BM3VET Touch User’s Manual ALARM PRINT ON / OFF settings for when the alarm information is printed on thermal paper. ALARM PARAMETER1 LEVEL PARAMETER2 LEVEL ARRHYTHMIA LEVEL ALARM REVIEW ALARM VOLUME: ALARM PRINT: NURSE CALL: NURSE CALL When an alarm is triggered, this activates the NURSE CALL function.
Page 61 BM3VET Touch User’s Manual NURSE CALL TYPE NURSE CALL function call when an alarm condition is met. NORMAL OPEN: RELAY OPEN when ALARM does not ring, CLOSE when ALARM does ring. NORMAL CLOSE: RELAY CLOSE when ALARM does not ring, OPEN when ALARM does ring.
Page 62 BM3VET Touch User’s Manual NURSE CALL LEVEL NURSE CALL alarm level is set to operate. LOW : If the alarm is raised above the LOW level NURSE CALL call. MEDIUM: If the alarm is raised above the MEDIUM level NURSE CALL call.
Page 63: Setup
BM3VET Touch User’s Manual 3. SETUP 3.1 SETUP SET PARA UNIT SELECT USER SERVICE SYSTEM NETWORK MAKER SERVICE FREEZE MENU Rev. 1.1 3.SETUP...
Page 64: Setup
BM3VET Touch User’s Manual 3.1 SETUP The Settings menu is displayed after pressing the icon shown above. SET PARA : On and Off measurement parameters of patient monitor. UNIT SELECT: Select a unit for pressure, ST, and temperature. USER SERVICE: This is the menu to set the connection used to interface with an external computer.
Page 65: Set Para
SYSTEM NETWORK MAKER SERVICE UNIT SELECT This is the menu for converting the units of BM3VET TOUCH. The units of parameters for pressure, ST LEVEL, Temperature are able to convert Pressure: kPa   mmHg mm   mV ℃   ℉...
Page 66: User Service
BM3VET Touch User’s Manual USER SERVICE The user is able to set the communication parameters, power supply filter. SETTING SET PARA SET UNIT SET BED NAME : NUMBER : DATE&TIME UNIT SELECT USER W-LAN : DEMO : SERVICE SOUND :...
Page 67 BM3VET Touch User’s Manual SET UNIT NAME Set up for Equipment name SETTING SET PARA SET UNIT SET BED NAME : NUMBER : DATE&TIME UNIT SELECT USER W-LAN : DEMO : SERVICE SOUND : SYSTEM AC FILTER : COLOR 60Hz...
Page 68 BM3VET Touch User’s Manual SET BED NUMBER Set up for Animal bed number. Allowable settings are from 1 to 10. SETTING SET PARA SET UNIT SET BED NAME : NUMBER : UNIT DATE&TIME SELECT USER W-LAN : DEMO : SERVICE...
Page 69 BM3VET Touch User’s Manual SET DATE & TIME Set date and time of equipment. Press the SET button after each input change you want to change the year, month, day, hour, minute, and second item during the setting will be entered.
Page 70 BM3VET Touch User’s Manual W-LAN Power supplying of W-LAN module could be adjusted with this function SETTING SET PARA SET UNIT SET BED NAME : NUMBER : UNIT DATE&TIME SELECT USER W-LAN : DEMO : SERVICE SOUND : SYSTEM AC FILTER :...
Page 71 BM3VET Touch User’s Manual DEMO Set ON/OFF DEMONTRATION of equipment. SETTING SET PARA SET UNIT SET BED NAME : NUMBER : DATE&TIME UNIT SELECT USER W-LAN : DEMO : SERVICE SOUND : SYSTEM AC FILTER : COLOR 60Hz SELECT NETWORK...
Page 72 BM3VET Touch User’s Manual COLOR SELECT This is the menu to set the waveform and parameter color selection. It has ten colors below table. The color of parameter could be changed to one of ten colors from following table. SETTING...
Page 73: System
BM3VET Touch User’s Manual SYSTEM System able to change and verify Equipment version information and system information. SETTING SET PARA MAIN VER 1.02.EHCDECBAA ECG VER 1.00 UNIT 1.00 SELECT NIBP VER USER VGA OUTPUT: SERVICE SYSTEM NETWORK MAKER SERVICE VGA OUTPUT: Turn on VGA output in order to connect external monitor Rev.
Page 74: Network
BM3VET Touch User’s Manual NETWORK Setup network connection. SETTING SET PARA UNIT SELECT USER CENTRAL: DHCP: SERVICE SYSTEM HOST IP 192.168.030.100 DEVICE IP 192.168.030.101 NETWORK SUBNET 255.255.255.000 MAKER SERVICE GATEWAY 192.168.030.001 00:02:BD:80:00:00 MAC ADDR CENTRAL : I If this is ON, system transfers parameter data to the computer where Host IP is assigned.
Page 75 BM3VET Touch User’s Manual DEVICE IP: Press the SET button to set the address of the sending and receiving equipment DEVICE IP DEVICE IP SUBNET : Press the SET button to set SUBNET SUBNET Rev. 1.1 3.SETUP...
Page 76 BM3VET Touch User’s Manual GATEWAY : Press the SET button to set the address that set up a connection at the network settings window GATEWAY GATEWAY MAC ADDR : Press the SET button to set the hardware address for the network settings (MAC ADDR 는...
Page 77: Maker Service
BM3VET Touch User’s Manual MAKER SERVICE Maker service is a menu used by the manufacturer. SETTING SET PARA HR SOURCE: PASSWORD SWEEP SPEED USER SERVICE UNIT SELECT SYSTEM MAKER SERVICE FREEZE MENU If you select the icon which is located in the far left of the icon menu by controlling the rotary switch, the wave window is held and is maintained as the previous status, at the same time the parameter windows is normally showing the current Animal’s status.
Page 78: Trend
BM3VET Touch User’s Manual 4. TREND 4.1 TREND GRAPHIC TREND TABLE TREND TREND WINDOW SETUP Rev. 1.1 4.TREND...
Page 79: Trend
BM3VET Touch User’s Manual 4.1 TREND TREND shows saved data graphically displayed with numeric values. Real-time data recording interval is 1 minute. Amount of saving time for this data will be 168hours. The following entries are stored. (HR,ST,PVC,NIBP(S/M/D),RESP,SPO2%,SPO2-PR,TEMP, EtCO2,FiCO2,AWRR) TREND...
Page 80: Graphic Trend
BM3VET Touch User’s Manual GRAPHIC TREND Wave Data can be stored and reviewed according to section. TREND TREND TABULAR GRAPHIC WINDOW TREND TREND SETUP 15-02-2011 22:13 GRAPHIC TREND HR(80) ST(0.2) PVC(0) 350BPM 2.0mV 99/min 150RPM -2.0 22:13 22:28 22:43 22:58 |<...
Page 81: Tabular Trend
BM3VET Touch User’s Manual TABULAR TREND One can see the stored data at the time previously set up. TREND TREND TABULAR GRAPHIC WINDOW TREND TREND SETUP TABULAR TREND 15-FEB 2011 22:13 15-FEB 15-FEB 15-FEB 15-FEB 15-FEB 15-FEB 22:12 22:12 22:12...
Page 82: Trend Window Setup
BM3VET Touch User’s Manual TREND WINDOW SETUP Set the trend display window that will show on the real time wave window. TREND TREND TABULAR GRAPHIC WINDOW TREND TREND SETUP SET TREND PARA RESP NIBP TEMP SPO2 EtCO2 TIME PERIOD: 30MINS...
Page 83 BM3VET Touch User’s Manual SET TREND PARA Set visible parameters on the screen. TREND TREND TABULAR GRAPHIC WINDOW TREND TREND SETUP SET TREND PARA TEMP SPO2 RESP NIBP EtCO2 TIME PERIOD: 30MINS 60MINS 90MINS 3HRS 6HRS TIME PERIOD PARA Set visible time period in a screen.
Page 84 BM3VET Touch User’s Manual TREND PRINT Graphic: select the number which selects a graphic trend and press print to print the selected trend. Table: select the table number to be print and press print to print all the data in the selected Animal admit (Admit) table.
Page 85: Ecg
BM3VET Touch User’s Manual 5. ECG 5.1 Introduction Colors and Standards of Cables Position of ECG Connector and Measuring Cable Attaching Electrodes to the Animal Choosing an ECG lead for Arrhythmia Monitoring Information on the ECG waveform 5 Position of 5-Lead Position of 3-Lead Wire Electrodes 5.2 ECG Data Window...
Page 86: Introduction
BM3VET Touch User’s Manual 5.1 Introduction It calculates the heart rate with 3 or 5 leads ECG signal acquisition and performs the alarms according to the set values. Colors and Standards of Cables AHA：American Heart Association (U.S.A. Certification) IEC：International Electro technical Commission (Europe Certification)
Page 87 BM3VET Touch User’s Manual IEC 3LEAD CABLE AHA 3LEAD CABLE IEC 5LEAD CABLE AHA 5LEAD CABLE Rev. 1.1 5.ECG...
Page 88 BM3VET Touch User’s Manual IEC 3LEAD AHA 3LEAD IEC 5LEAD AHA 5LEAD Rev. 1.1 5.ECG...
Page 89: Attaching Electrodes To The Animal
BM3VET Touch User’s Manual Attaching Electrodes to the Animal 1. Shave excess hair. With a piece of cotton pad moistened with alcohol, clean the Animal’s skin where the electrodes should be mounted. Avoid wrinkled or uneven skin areas. Wipe off the alcohol with a dry cotton pad.
Page 90: Choosing An Ecg Lead For Arrhythmia Monitoring
BM3VET Touch User’s Manual Choosing an ECG lead for Arrhythmia Monitoring It is very important to select a suitable lead for arrhythmia monitoring. Guidelines for non-paced Animals:  QRS should be tall and narrow(recommended amplitude > 0.5mV)  R wave should be above or below the baseline (but not bi-phasic) ...
Page 91: Position Of 5-Lead
BM3VET Touch User’s Manual 5 Position of 5-Lead Rev. 1.1 5.ECG...
Page 92: Position Of 3-Lead Wire Electrodes
BM3VET Touch User’s Manual Position of 3-Lead Wire Electrodes Rev. 1.1 5.ECG...
Page 93: Ecg Data Window
BM3VET Touch User’s Manual 5.2 ECG Data Window QRS: Detects QRS, and Pace Detector flashes when QRS is Indicators: detected. Detects and displays the Animal’s pace maker and flashes. Heart Rate Alarm Heart Rate Alarm Limit: Decides the Limit: Decides the...
Page 94 BM3VET Touch User’s Manual Safety Precautions Warning CABLES — Route all cables away from Animal's throat to avoid possible strangulation. CONDUCTIVE CONNECTIONS — Extreme care must be exercised when applying medical electrical equipment. Many parts of the human/machine circuit are conductive, such as the Animal, connectors, electrodes, transducers.
Page 95 BM3VET Touch User’s Manual INTERFACING OTHER EQUIPMENT — Devices may only be interconnected with each other or to parts of the system when it has been determined by qualified biomedical engineering personnel that there is no danger to the Animal, the operator, or the environment as a result. In...
Page 96: Ecg Data Setup
BM3VET Touch User’s Manual 5.3 ECG Data Setup A setup window appears at lower part of the screen when the Trim Knob Key is pressed in the ECG Parameter Window. Selection is made by pressing the Trim Knob Key, while movement across the menu is performed by turning the key either clock or anticlockwise.
Page 97: Lead Select
BM3VET Touch User’s Manual LEAD SELECT Select channels from I to V in ECG Lead I, II, III show up in case of connecting 3-Leads Animal Cable. Lead I, II, III, aVR, aVL, aVF, V show up in case of connecting 5-Leads Animal Cable.
Page 98: Display
BM3VET Touch User’s Manual DISPLAY Set the sweep speed and waveform size. ALARM ECG FILTER: MONITOR MODERATE MONITOR LEAD MAXIMUM DIAGNOSIS SELECT SWEEP SPEED: 6.25mm/s 12.5mm/s VOLUME: 25mm/s 25mm/s 50mm/s DISPLAY ECG SIZE: X0.25 X0.5 ARRHYTHMIA SETTING ECG VIEW: ST / PVC...
Page 99 BM3VET Touch User’s Manual ECG SWEEP SPEED ECG speed on the LCD is 25 mm/s. Speed is changeable to 6.25, 12.5, 25, 50mm/s. ALARM ECG FILTER: MONITOR MODERATE MONITOR LEAD MAXIMUM DIAGNOSIS SELECT SWEEP SPEED: 6.25mm/s 12.5mm/s VOLUME: 25mm/s 25mm/s...
Page 100 BM3VET Touch User’s Manual ECG VIEW The number of ECG waves can be configured with this function. There are 2 traces of 1 CH data at the ECG wave.  3LEAD or 5LEAD : 1CH ALARM ECG FILTER: MONITOR MODERATE...
Page 101: Arrhythmia Setting
BM3VET Touch User’s Manual ARRHYTHMIA SETTING Analysis setting is divided to 3 menus. ALARM ARRHYTHMIA: LETHAL LETHAL LEAD SELECT ARRHYTHMIA ASYSTOLE VTAC VTAC/VFIB ALARM HIGH HIGH HIGH VOLUME: LEVEL HIGH DISPLAY ARRHYTHMIA SETTING ST / PVC PACE MAKER: HIGH MEDIUM MESSAGE ARRHYTH：...
Page 102: St/Pvc
BM3VET Touch User’s Manual ARRHYTHMIA ALARM LEVEL Diagnostic alarm level is set ALARM ARRHYTHMIA: LETHAL LETHAL LEAD SELECT ARRHYTHMIA ASYSTOLE VTAC VTAC/VFIB ALARM HIGH HIGH HIGH VOLUME: LEVEL HIGH DISPLAY ARRHYTHMIA SETTING ST / PVC PACE MAKER: HIGH MEDIUM MESSAGE ST/PVC ST signal and setting related ST menu and PVC menu.
Page 103 BM3VET Touch User’s Manual ST ANALYSIS: ON/OFF ST analysis signal. ALARM ST ANALYSIS: LEAD SELECT PVC ANALYSIS: VOLUME: DISPLAY ISO (R-) ST (R+) ARRHYTHMIA SETTING ST / PVC > < > < PACE MAKER: INITIAL SETUP PVC ANALYSIS: Decision maker to display PVC value sign with ON/OFF...
Page 104 BM3VET Touch User’s Manual INITIAL SETUP: ST measurements to factory settings (ISO R-: 80, ST R +: 108 ALARM ST ANALYSIS: LEAD SELECT PVC ANALYSIS: VOLUME: DISPLAY ISO (R-) ST (R+) ARRHYTHMIA SETTING ST / PVC > < > <...
Page 105 BM3VET Touch User’s Manual PACE：Sets up ON/OFF to indicate that the Animal has PACE. The PACE menu option enables/disables the pacemaker detection program. ALARM LEAD SELECT VOLUME: DISPLAY ARRHYTHMIA SETTING ST / PVC PACE MAKER: Be aware of the warning below when monitor an animal with a pacemaker.
Page 106 BM3VET Touch User’s Manual CAUTION FDA POSTMARKET SAFETY ALERT The United States FDA Center for Device and Radiological Health issued a safety bulletin October 14, 1998. this bulletin states “that minute ventilation rate-adaptive implantable pacemakers can occasionally interact with certain cardiac monitoring and diagnostic programmed rate.”...
Page 107: Trouble Shooting
BM3VET Touch User’s Manual Trouble shooting Problem : Inaccurate heart rate and/or false a systole. Solution : Check ECG signal from Animal: 1. Check/adjust lead placement. 2. Check/perform skin preparation. 3. Check/replace electrodes. Check amplitude of ECG waveform: 1. Select ECG parameter label.
Page 108: Spo
BM3VET Touch User’s Manual 6. SpO 6.1 Outline Connector Location and Measuring Cable 6.2 SpO2 Data Window Signal and Data Validity 6.3 SpO2 Data Setup ALARM RATE VOLUME LEAD FAULT Condition SPO2 Messages Rev. 1.1 6. SpO2...
Page 109: Outline
BM3VET Touch User’s Manual 6.1 Outline SPO2 monitoring is a noninvasive technique used to measure the amount of oxygenated hemoglobin and pulse rate by measuring the absorption of selected wavelengths of light. The light generated in the probe passes through the tissue and is converted into an electrical signal by the photodetector in the probe.
Page 110: Spo2 Data Window
BM3VET Touch User’s Manual 6.2 SpO2 Data Window Alarm Limit： Indicates an SpO alarm limit pulse rate： Indicates an SpO pulse %SpO2 rate Strength indicators： Oxygen Concentration in the Indicates SpO Strength in a bar Blood(SpO2 value) graph. : Indicates %SpO in numbers.
Page 111: Signal And Data Validity
BM3VET Touch User’s Manual Signal and Data Validity It is extremely important to determine that the probe is attached to the Animal correctly and the data is verifiable. To make this determination, three indications from the monitor are of assistance—signal strength bar, quality of the SPO2 waveform, and the stability of the SPO2 values.
Page 112 BM3VET Touch User’s Manual Stability of SPO2 Values The stability of the displayed SPO2 values can also be used as an indication of signal validity. Although stability is a relative term, with a small amount of practice one can get a good feeling for changes that are artifactual or physiological and the speed of each.
Page 113: Spo2 Data Setup
BM3VET Touch User’s Manual 6.3 SpO2 Data Setup ALARM ： SpO alarm limit set up. RATE VOLUME： SpO volume set up. HR SOURCE: Heart rate in ECG window source selection menu( same as ECG menu). SWEEP SPEED: ECG and SpO waveform display sweep speed selection menu(same as ECG menu).
Page 114: Alarm
BM3VET Touch User’s Manual ALARM Two menus: ALARM LIMIT, ALARM provided in the alarm menu Number setting of alarm value of %SpO 0 ~ 100 2 is Warning sound or message displays when an alarm is triggered. SpO2 ALARM SpO2-%...
Page 115: Lead Fault Condition
BM3VET Touch User’s Manual LEAD FAULT Condition When using a reusable finger probe, there is a system alarm to alert you when the probe is off the Monitor. The monitor defaults this “ LEAD FAULT” condition as a System Warning alarm, however, you can set it as a System ALARM LEVEL in Monitor Defaults.
Page 116: Respiration
BM3VET Touch User’s Manual 7. RESPIRATION 7.1 Outline 7.2 RESPIRATION Data Window 7.3 RESPIRATION Data Setup Alarm APNEA DETECT RESPIRATION SPEED RESPIRATION SIZE Rev. 1.1 7. RESPIRATION 116...
Page 117: Outline
BM3VET Touch User’s Manual 7.1 Outline Respiration expands the skin area of the chest, causing changes in the resistance of the skin. Through this it calculates respiration value per minutes and performs the alarm function according to the set value.
Page 118 BM3VET Touch User’s Manual IEC 5LEAD CABLE AHA 5LEAD CABLE IEC 3LEAD AHA 3LEAD IEC 5LEAD AHA 5LEAD Rev. 1.1 7. RESPIRATION...
Page 119: Respiration Data Window
BM3VET Touch User’s Manual Note RR uses the ECG cable and lead wires. Alcohol (Ethanol 70%, Isopropanol 70%, Window cleaner) Alcohol (Ethanol 70%, Isopropanol 70%, Window cleaner) 7.2 Respiration Data Window Breathe indicator: Indicates the detected breath Apnea Limit Setting: Apnea...
Page 120: Respiration Data Setup
BM3VET Touch User’s Manual 7.3 Respiration Data Setup ALARM: Respiration alarm setting menu APNEA DETECT: A menu to setup APNEA alarm display SWEEP SPEED: A menu to setup Wave Display of speed RESP SIZE: A menu to setup Wave Display...
Page 121: Alarm
BM3VET Touch User’s Manual ALARM Alarm menu provide ALARM LIMIT and ALARM SOUND . RESP ALARM RESP RESP-A APNEA MESSAGE MESSAGE DETECT: SWEEP SPEED: 12.5mm/s ALARM LEVEL ALARM HIGH RESP MESSAGE SIZE: MESSAGE MEDIUM HIGH <- Alarm Limit of Respiration Numeric Value is 5 ~ 150bpm Alarm Limit of RESPIRATION APNEA Numeric Value is 3 ~ 30sec.
Page 122: Respiration Speed
BM3VET Touch User’s Manual RESPIRATION SPEED Wave pattern speed is 6.25 , 12.5 , 25 mm/s. RESP ALARM APNEA DETECT: SWEEP SPEED: 12.5mm/s RESP SIZE: 6.25mm/s 12.5mm/s 25mm/s RESPIRATION SIZE Set wave pattern size X2~ X10. RESP ALARM APNEA DETECT:...
Page 123: Nibp
BM3VET Touch User’s Manual 8. NIBP 8.1 Outline 8.2 NIBP Data Window 8.3 NIBP Data Setup ALARM CUFF SIZE INFLATION INTERVAL NIBP STAT NIBP VITAL SIGN UNIT SELECT Rev. 1.1 8. NIBP 123...
Page 124: Outline
BM3VET Touch User’s Manual 8.1 Outline This function is to measure minimum, Maximum and average blood pressure by using Oscillometric method Position of NIBP Connecter and cuff NIBP Connector NIBP Connector INFANT CUFF Rev. 1.1 8. NIBP 124...
Page 125 BM3VET Touch User’s Manual POSITION OF CUFF (CAT) POSITION OF CUFF (DOG) WARNING Noninvasive blood pressure monitoring is not recommended for Animals with hypotension, hypertension, arrhythmias or extremely high or low heart rate. The software algorithm cannot accurately compute NIBP or Animals with these conditions.
Page 126: Nibp Data Window
BM3VET Touch User’s Manual The maintenance is performed every 2 years. Check the following list to ensure device operates properly and safety at all times. 1. Check for proper cuff size. 2. Check for residual air left in the cuff from a previous measurement.
Page 127 BM3VET Touch User’s Manual 10-APR-2015 12:23 DOG BED - (0.0) ALARM mmHg (0.0) 200/ LARGE 09:30 (93) 02:10 Pleth %SpO2 EtCO2 FiCO2 AWRR EtCO2 50 / 37.0 T1 36.7 35.0 ℃ POWER OFF When power is cut off during pressure, air runs out of the CUFF automatically.
Page 128: Nibp Data Setup
BM3VET Touch User’s Manual 8.3 NIBP Data Setup ALARM： A menu to set the Alarm CUFF SIZE：A menu to select cuff size INFLATION: Initial Pressurization setting menu INTERVAL ：A menu to set Interval time when measuring the blood pressure automatically...
Page 129: Alarm
BM3VET Touch User’s Manual ALARM The alarm provides ALARM LIMIT and ALARM SOUND. Alarm setting Numeric Value of Systolic, Diastolic, and mean pressure is 10 ~ 360mmHg. The menu which decide activate of warning sign and message display when the respiration alarm is...
Page 130: Cuff Size
It is a function for set the maximum initial inflation pressure value.The range of initial inflation pressure value of BM3VET TOUCH is as follows. LARGE : 120 – 250 mmHg / MEDI. : 120 – 250mmHg / SMALL : 60 – 140mmHg Default Value: LARGE : 170 mmHg / MEDI.
Page 131: Interval
BM3VET Touch User’s Manual INTERVAL This menu is used for selecting intervals when measuring the blood pressure automatically. Select a target interval from 1min, 2, 3, 4, 5, 10, 15, 20, 30, 1hour, 2, 4, 8. INTERVAL is set after the start, press the NIBP KEY to initiate readings.
Page 132: Nibp Stat
BM3VET Touch User’s Manual If you select the icon from the main screen of the equipment you can select the measurement cycle. NIBP 1MIN 2MIN 3MIN 4MIN 5MIN 10MIN 15MIN 20MIN 30MIN Warning Periodically check Animal limb circulation distal to the cuff. Check frequently when using auto NBP in 1 and 2 minute intervals.
Page 133: Nibp Vital Sign
BM3VET Touch User’s Manual NIBP VITAL SIGN 15 recently measured blood pressure values and pulse rates are recorded. NIBP TIME SYS / DIA (MEAN) ALARM 2011/03/18 10:22:53 120 / 80 (94) 65BPM 2011/03/18 10:23:53 120 / 80 (94) 65BPM CUFF SIZE:...
Page 134: Unit Select
BM3VET Touch User’s Manual UNIT SELECT It is a function to set blood pressure measurement unit. The blood pressure measurement unit provides mmHg and kPa. NIBP ALARM CUFF SIZE: LARGE INFLATION: 170mmHg INTERVAL: NIBP STAT: NIBP VITAL SIGN UNIT SELECT:...
Page 135: Etco2
BM3VET Touch User’s Manual . EtCO2 9.1 INTRODUCTION 9.2 EtCO Parameter Window 9.3 EtCO Parameter Setting Menu ALARM LIMIT WAVEFORM SCALE EtCO2 SWEEP SPEED APNEA DETECT MODULE INFO MODULE SETUP ZERO MODULE RESET Rev. 1.1 9.EtCO2 135...
Page 136: Introduction
BM3VET Touch User’s Manual 9.1 Introduction ETCO2(End-Tidal CO2) is a device to see the concentration of end-tidal carbon dioxide, which uses a method of measurement based on the non-dispersed IR absorption of CO2 using IR ray by sampling a certain part of respiration through pipe during respiration.
Page 137 BM3VET Touch User’s Manual EtCO2 accessories for sidestream applications EtCO2 monitoring accessory uses the accessories for LoFlo™ sidestream module of Respironics Company. The airway adapters for sidestream intubated applications 3473ADU-00 Airway Adapter Weight: 4.5 grams Deadspace – adds approximately 7...
Page 138 BM3VET Touch User’s Manual Connecting the LoFlo Sample Kit 1. The sample cell of the sampling kit must be inserted into the sample cell receptacle of the LoFlo Module as shown in Figure 1. A “click” will be heard when the sample cell is properly inserted.
Page 139 BM3VET Touch User’s Manual EtCO2 connector position and accessory (Mainstream, Respironics) EtCO2 Connector EtCO2 Connector CAPNOSTAT 5 mainstream CO2 sensor and connector Mainstream sensor Mainstream sensor connector EtCO2 accessories for mainstream applications EtCO2 monitoring accessory uses the accessories for CapnoStat 5 microstream sensor of Respironics Company.
Page 140 BM3VET Touch User’s Manual The airway adapters for mainstream intubated applications 6063-00 Single-Animal Use Airway Adapter Intended for use when monitoring Animals with ET Tube sizes >4.0 mm 6312-00 Single-Animal Use Airway Adapter Intended for use when monitoring Animals with ET Tube sizes <=4.0 mm...
Page 141 BM3VET Touch User’s Manual Connecting the CAPNOSTAT® 5 CO2 Sensor to the Host System 1. Insert the CAPNOSTAT 5 CO Sensor connector into the receptacle of the host monitor as shown in Figure 1. 2. Make sure the arrows on the connector are at the top of the connector and line up the two keys of the connector with the receptacle and insert.
Page 142: Etco2 Parameter Window
BM3VET Touch User’s Manual 9.2 EtCO2 Parameter Window APNEA detection time AWRR FiCO2 EtCO2 Upper/lower limit value of 50 / alarm FiCO2 S: Display of apnea setting time in seconds Upper/lower limit value of alarm: Display of alarm setting range value for concentration of CO...
Page 143: Etco2 Parameter Setting Menu
BM3VET Touch User’s Manual 9.3 EtCO2 Parameter Setting Menu ALARM: A menu to set the alarm limit WAVE SCALE: menu to set the size of waveforms on the on-screen SWEEP SPEED: Speed to draw the signal waveform. (6.25mm/s, 12.5mm/s, 25mm/s) APNEA DETECT: Menu for the detection of apnea MODULE INFO.: Menu where you can see the MODULE information...
Page 144: Alarm Limit
BM3VET Touch User’s Manual ALARM LIMIT (Upper/lower limit value of alarm) Upper/lower limit value of alarm differs depending on the position of measurement. The basic setting range of alarm setting value for EtCO2, FiCO2, AWRR, APNEA. EtCO2 ALARM EtCO2 FiCO2...
Page 145: Waveform Scale
BM3VET Touch User’s Manual WAVEFORM SCALE (Measured waveform scale setting) This sets the range of measured waveform versus pressure. Selectable numerical value means the maximum pressure range value that is shown with waveform. Pressing the knob switch key and then selecting the desired range value displays the selected pressure range value below the upper dotted line among two dotted lines in the left middle of wave window.
Page 146: Apnea Detect
BM3VET Touch User’s Manual APNEA DETECT Turn the APNEA detection alarm off and on EtCO2 ALARM WAVE SCALE: 40mmHg SWEEP SPEED: 12.5mm/s APNEA DETECT: MODULE INFO. MODULE SETUP ZERO MODULE RESET APNEA ALARM: This performs a function to set the display of apnea message alarm.
Page 147: Module Info
BM3VET Touch User’s Manual MODULE INFO This is information for handling the EtCO2 module. EtCO2 ALARM WAVE SCALE: 40mmHg SENSOR PN SWEEP OEM ID SPEED: 12.5mm/s SENSOR SN APNEA DETECT: HW Revision NUM TOTAL USE TIME MODULE INFO. LAST ZERO TIME PUMP TOTAL USE TIME 0 MIN.
Page 148: Module Setup
BM3VET Touch User’s Manual MODULE SETUP This is information for handling the EtCO2 module. EtCO2 BAROMETRIC ALARM PRESSURE: 36.0 WAVE SCALE: TEMPERATURE: 40mmHg NO BREATH DETECT TIMEOUT: SWEEP SPEED: 12.5mm/s COMPENSATION: ANESTHETIC APNEA DETECT: AGENT: CURRENT ETCO2 20 S TIME PERIOD: MODULE INFO.
Page 149 BM3VET Touch User’s Manual CURRENT ETCO2 TIME PERIOD: This setting is used to set the calculation period of the ETCO value. The end-tidal CO value is the highest peak CO value of all end of expirations (end of breaths) over the selected time period.
Page 150: Zero
BM3VET Touch User’s Manual ZERO This function is used to initiate a Capnostat zero. A zero is used to correct for differences in airway adapter types. The Capnostat zero must be performed free of any CO2. EtCO2 ALARM WAVE SCALE:...
Page 151: Module Reset
BM3VET Touch User’s Manual MODULE RESET This performs a function to reset handling the EtCO2 module. EtCO2 ALARM WAVE SCALE: 40mmHg SWEEP SPEED: 12.5mm/s APNEA DETECT: MODULE INFO. MODULE SETUP ZERO MODULE RESET Warning If defibrillation is performed while doing CO2 monitoring, remove the CO2 FilterLine from Animal Defibrillation without removing the FilterLine can result in serious electrical burn, shock, or injury due to electric discharge energy.
Page 152: Troubleshooting
BM3VET Touch User’s Manual 9.4 TROUBLESHOOTING Following is a list of some of the messages that may appear on the monitor when monitoring CO2. The message should clear when normal operating criteria are met or a solution is found. * SENSOR OVER TEMP - Cause : The sensor temperature is greater than 40’C...
Page 153 BM3VET Touch User’s Manual Note In the following monitoring conditions, the measured values may be inaccurate. Read the measured values carefully. 1. When using this in an environment of using nitrous oxide gas of high concentration 2. When using this in an environment where abrupt temperature change takes place 3.
Page 154: Temperature
BM3VET Touch User’s Manual 10. TEMPERATURE 10.1 Outline 10.2 Temperature Data Window 10.3 Temperature Data Setup ALARM LIMIT UNIT SELECT Rev. 1.1 10.TEMPERATURE 154...
Page 155: Outline
BM3VET Touch User’s Manual 10.1 Outline This function is used to indicate the changes of resistance generated by the changes of temperature in numbers. The function involves the process of transferring the changes into electric signals. Temperature Connector and Measuring Cable...
Page 156: Temperature Data Window
BM3VET Touch User’s Manual 10.2 Temperature Data Window Unit： Displays temperature unit. Temperature： Displays temperature. Alarm limit on the least low temperature ： Indicates temperature limits Note The minimum measuring time required to obtain accurate readings at the specific body site is at least 3 minutes.
Page 157: Temperature Data Setup
BM3VET Touch User’s Manual 10.3 Temperature Data Setup ALARM： Temperature measurement alarm set UNIT: Temperature measurement unit set TEMP ALARM TEMP UNIT: ℃ Rev. 1.1 10.TEMPERATURE 157...
Page 158: Alarm
BM3VET Touch User’s Manual ALARM Alarm menu provide ALARM LIMIT and ALARM. Setting numeric value is 15.0℃ ~ 45.0℃. TEMP ALARM TEMP1 42.0 MESSAGE 30.0 TEMP UNIT: ℃ ALARM LEVEL ALARM HIGH MESSAGE MESSAGE MEDIUM HIGH <- UNIT SELECT Able to select unit between °C, °F.
Page 159: Print
BM3VET Touch User’s Manual 11. PRINT 11.1 Print Printer and Heat Sensitivity Paper Function and Setup Menu 11.2 Paper Change Rev. 1.1 11. PRINT 159...
Page 160: Print
BM3VET Touch User’s Manual 11.1 Print Printer and Heat Sensitivity Paper A printer used to print data onto thermal paper. Size of the thermal paper roll: 58mm wide x 38mm in diameter any thermal paper of same size can be used for the printer.
Page 161: Function And Setup Menu
BM3VET Touch User’s Manual Function and Setup Menu PRINTER PRINTER SPEED: 25mm/s WAVE FORM 1: WAVE FORM 2: SpO2 WAVE FORM 3: RESP PRINTER KEY: REAL TIME PRINTER TIME: CONT 1. Press the PRINT Key for continuous printing. 2. Select Printing Speed 25, 50 mm/s.
Page 162 BM3VET Touch User’s Manual 3. Set up ALARM PRINT in the MORE menu to activate print on ALARM. ALARM ALARM PRINT 4. Data is printed in a selected wave form along with personal information of the Animal. 3 channels select 3 parameters to print.
Page 163 BM3VET Touch User’s Manual PRINTER PRINTER SPEED: 25mm/s SPO2 RESP SpO2 RESP WAVE FORM I: EtCO2 IBP1 WAVE FORM II: SpO2 WAVE FORM III: RESP PRINTER KEY: REAL TIME PRINTER TIME: CONT PRINTER PRINTER SPEED: 25mm/s SPO2 RESP SpO2 RESP...
Page 164 BM3VET Touch User’s Manual PRINTER KEY This menu is setup printing time delay in normal printing. There are two menus for time configuration. One is Real-time, another is Delayed Time. Real-time: This configuration makes printing out the newest data when the Printer Key is pushed.
Page 165 This is configuration of printed time in normal printing. If the print out is not stopped in manual by PRINTER KEY, BM3VET TOUCH print out for setup time after starting print out with PRINTER KEY. The configuration of time could be setup with 4 types in CONTINUOUS, 10 sec, 20 sec and 30 sec.
Page 166 BM3VET Touch User’s Manual Thermal Paper Storage To avoid fading of traces or deterioration, follow these precautions: Note These precautions apply to both unused paper as well as paper that has already been run through the printer. • Store in cool, dark locations. Temperature must be below 27°C (80°F). Relative humidity must be between 40% and 65%.
Page 167: Paper Change
BM3VET Touch User’s Manual 11.2 Paper Change Open the window of the printer. Insert the paper roll offered with the product into the printing unit. Place the roll in a proper way so that the printed paper can roll out upwards.
Page 168: Message List
BM3VET Touch User’s Manual 12. MESSAGE LIST Function Message Details LEAD FAULT Cable is not properly connected. CHEK PROBE Probe is off animal. LEAD FAULT Cable is not properly connected. LEAD FAULT Cable is not properly connected. RESP APNEA APNEA gives an alarm.
Page 169: Default Setting Value
BM3VET Touch User’s Manual 13. DEFAULT SETTING VALUE 13.1 HORSE-ICU Mode Alarm level High Medium Message Asystole VTAC/VFIB VTAC NIBP - S NIBP - M NIBP - D -Rate RR-Apnea T( ْ C) EtCO2 FiCO2 AWRR LEAD FAULT BATTERY Rev. 1.1...
Page 170 BM3VET Touch User’s Manual Parameter Limits High NIBP-S NIBP-M NIBP-D -Rate RR(RESP) RR-Apnea T ْ C/ ْ F 30.0/86.0 42.0/107.6 -0.4 AWRR EtCO2 FiCO2 Rev. 1.1 13. DEFAULT SETTING VALUE...
Page 171 BM3VET Touch User’s Manual Display Patient Age Primary ECG Arrhythmia LETHAL Detect Pace Print Waveform1 LEAD II Print Waveform2 SpO2 Print Waveform3 Resp Alarm Print NIBP Interval NIBP Cuff Size LARGE RR(RESP) Lead Alarm Volume QRS Volume Pulse Volume ECG Lead Fault...
Page 172: Dog-Icu Mode
BM3VET Touch User’s Manual 13.2 DOG-ICU Mode Alarm level High Medium Message Asystole VTAC/VFIB VTAC NIBP - S NIBP - M NIBP - D -Rate RR-Apnea T( ْ C) EtCO2 FiCO2 AWRR LEAD FAULT BATTERY Parameter Limits High NIBP-S NIBP-M...
Page 173 BM3VET Touch User’s Manual T ْ C/ ْ F 30.0/86.0 42.0/107.6 -0.4 AWRR EtCO2 FiCO2 Display Patient Age Primary ECG Arrhythmia LETHAL Detect Pace Print Waveform1 LEAD II Print Waveform2 SpO2 Print Waveform3 Resp Alarm Print NIBP Interval NIBP Cuff Size MEDI.
Page 174: Puppy-Icu Mode
BM3VET Touch User’s Manual 13.3 PUPPY-ICU Mode Alarm level High Medium Message Asystole VTAC/VFIB VTAC NIBP - S NIBP - M NIBP - D -Rate RR-Apnea T( ْ C) EtCO2 FiCO2 AWRR LEAD FAULT BATTERY Parameter Limits High NIBP-S NIBP-M...
Page 175 BM3VET Touch User’s Manual T ْ C/ ْ F 30.0/86.0 42.0/107.6 -0.4 AWRR EtCO2 FiCO2 Display Patient Age Primary ECG Arrhythmia LETHAL Detect Pace Print Waveform1 LEAD II Print Waveform2 SpO2 Print Waveform3 Resp Alarm Print NIBP Interval NIBP Cuff Size...
Page 176: Cat-Icu Mode
BM3VET Touch User’s Manual 13.4 CAT-ICU Mode Alarm level High Medium Message Asystole VTAC/VFIB VTAC NIBP - S NIBP - M NIBP - D -Rate RR-Apnea T( ْ C) EtCO2 FiCO2 AWRR LEAD FAULT BATTERY Parameter Limits High NIBP-S NIBP-M...
Page 177 BM3VET Touch User’s Manual T ْ C/ ْ F 30.0/86.0 42.0/107.6 -0.4 AWRR EtCO2 FiCO2 Display Patient Age Primary ECG Arrhythmia LETHAL Detect Pace Print Waveform1 LEAD II Print Waveform2 SpO2 Print Waveform3 Resp Alarm Print NIBP Interval NIBP Cuff Size...
Page 178: Trouble Shooting
BM3VET Touch User’s Manual 14. TROUBLE SHOOTING 14.1 Noise in ECG - Gel is dry - Electrodes does not stick well to skin The Animal’s skin Apply ECG gel or water to the area of is extremely dry contact then use the electrode...
Page 179: Spo2 Malfunction
BM3VET Touch User’s Manual 14.2 SpO2 malfunction Connectors of the equipments are in bad condition? The extension cables Replace extension cables are disconnected The probe is Replace the probe in bad condition? Repair the ECG B/D 14.3 Temp malfunction The probe is...
Page 180: Nibp Malfunction
BM3VET Touch User’s Manual 14.4 NIBP malfunction Are leaks from the hose Replace the hose of cuff connector of cuff Repair the NIBP B/D 14.5 Abnormality in NIBP measurements The Animal moved Make sure the Animal remains while measuring still during diagnosis...
Page 181: Failure In Battery Recharge
BM3VET Touch User’s Manual 14.6 Failure in battery recharge ( the battery does not fully recharge in 6 hours or more) Replace the adapter The output voltage of (the battery will not be changed the adapter is 18V at the rate lower than 17V)
Page 182: Power Failure
BM3VET Touch User’s Manual 14.7 Power failure The adapter connector Replace the adapter is in bad condition The output voltage of the Replace the adapter adapter is lower than 18V Repair the power B/D Execute the “admit:” function “Admit” has been...
Page 183: Periodic Noises
BM3VET Touch User’s Manual 14.8 Periodic noises All alarm has been turned off Display lead fault Turn functions not in use off message appears (Mode-Display-Set para) The printer Replace the printer function abnormally Repair the accompanying Equipment Rev. 1.1 14. TROUBLE SHOOTING...
Page 184: Print Failure
BM3VET Touch User’s Manual 14.9 Print failure The paper tray cover Shut the cover tight is not properly shut The printing face of Reverse the paper face paper has been reversed Repair the printer and printer B/D Rev. 1.1 14. TROUBLE SHOOTING...
Page 185: Specification
BM3VET Touch User’s Manual 15. SPECIFICATION Ease of use Additional Function Monitor Environmental Specifications Power Specification Accessories Included Option Rev. 1.1 15. SPECIFICATION...
Page 186: Ease Of Use
BM3VET Touch User’s Manual Ease of use · Battery operation · Attached printer · Table and graphic trend Additional Function · LAN Connection Monitor Environmental Specifications · Operating Temperature： 15°C to 40°C (59°F to 104°F) · Storage Temperature： - 10°C to 60°C (14°F to 140°F) ·...
Page 187: Specification
BM3VET Touch User’s Manual Specification Display, Resolution 8.0” color TFT, 800 x 600 pixels Dimension, Weight 238(W) x 250(H) x 163(D) mm, Approx. 3.1kg Parameter ECG, Heart Rate, Respiration Rate, SpO2, Pulse Rate, Systolic BP, Diastolic BP, Mean BP, 1 x Temperature, EtCO2, FiCO2, Airway...
Page 188 BM3VET Touch User’s Manual Respiration Performance Method Thoracic impedance Channel selection RA-LA or RA-LL 5 – 120 Breath per minute Measurement range ±1 Breath per minute Accuracy Apnea alarm SpO2 Performance Saturation range 0 to 100% 70 to 100% ±2 digits...
Page 189: Accessories Included
BM3VET Touch User’s Manual Accessories Included 1. Main body of BM3VET Monitor 1 EA 2. 3-Lead Animal Cable (MECA3(AHA), MECE3(IEC)) 1 EA 3. 3-Lead Animal Extension Cable 1 EA 4. NIBP extension horse (NBPCBL-400) 1 EA 5. Reusable small animal NIBP cuff (ICUFF-430) 1 EA 6.
Page 190: Abbreviations And Symbols
BM3VET Touch User’s Manual Abbreviations and Symbols Abbreviations and symbols which you may encounter while reading this manual or using the monitor are listed below with their meanings. Abbreviations amps alternating current adult ARRYTHM arrhythmia ASYS asystole Auto, AUTO automatic...
Page 191 BM3VET Touch User’s Manual kg, KG kilogram kilopascal liter, left left arm, left atrial pounds liquid crystal display light emitting diode left leg M mean, minute meter MIN, min minute MM, mm millimeters MM/S millimeters per second MMHG, mmHg millimeters of mercury...
Page 192 BM3VET Touch User’s Manual precordial lead volt V-Fib, VFIB ventricular fibrillation VTAC ventricular tachycardia multiplier when used with a number (2X) Symbols & ° degree(s) > greater than < less than – minus number percent ± plus or minus Rev. 1.1...
Page 193: Product Warranty
Date of Purchase Hospital Name : Customer Address : Section Name : Phone : Sales Agency Manufacturer * Thank you for purchasing BM3VET TOUCH * The product is manufactured and passed through strict quality control and through inspection. Rev. 1.1...
Page 194 BM3VET Touch User’s Manual International Sales & service Bionet Co., Ltd. : #1101 11F E&C Venture Dream Tower3 38-21, Digital-Ro, 31-Gil, Guro-Gu, Seoul 08376, REPUBLIC OF KOREA Tel: +82-2-6300-6410 / Fax: +82-2-6300-7798 / e-mail: sales@ebionet.com Website: www.ebionet.com U.S.A sales & service representative Bionet America, Inc.

Bionet BM3VET Touch User Manual

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for Bionet BM3VET Touch

Summary of Contents for Bionet BM3VET Touch

Table of Contents
