1) Remove the sprayer and components from the crate it was shipped in. In the crate
you will find the following components to assemble: main outlet duct, stationary
duct, control valve, vertical hydraulic cylinder and brackets, clean water tank and
bracket, side step, auxiliary ducts and JA nozzles, fan cage cover for disconnect, and
accessory box with the required fasteners to assembly the sprayer.

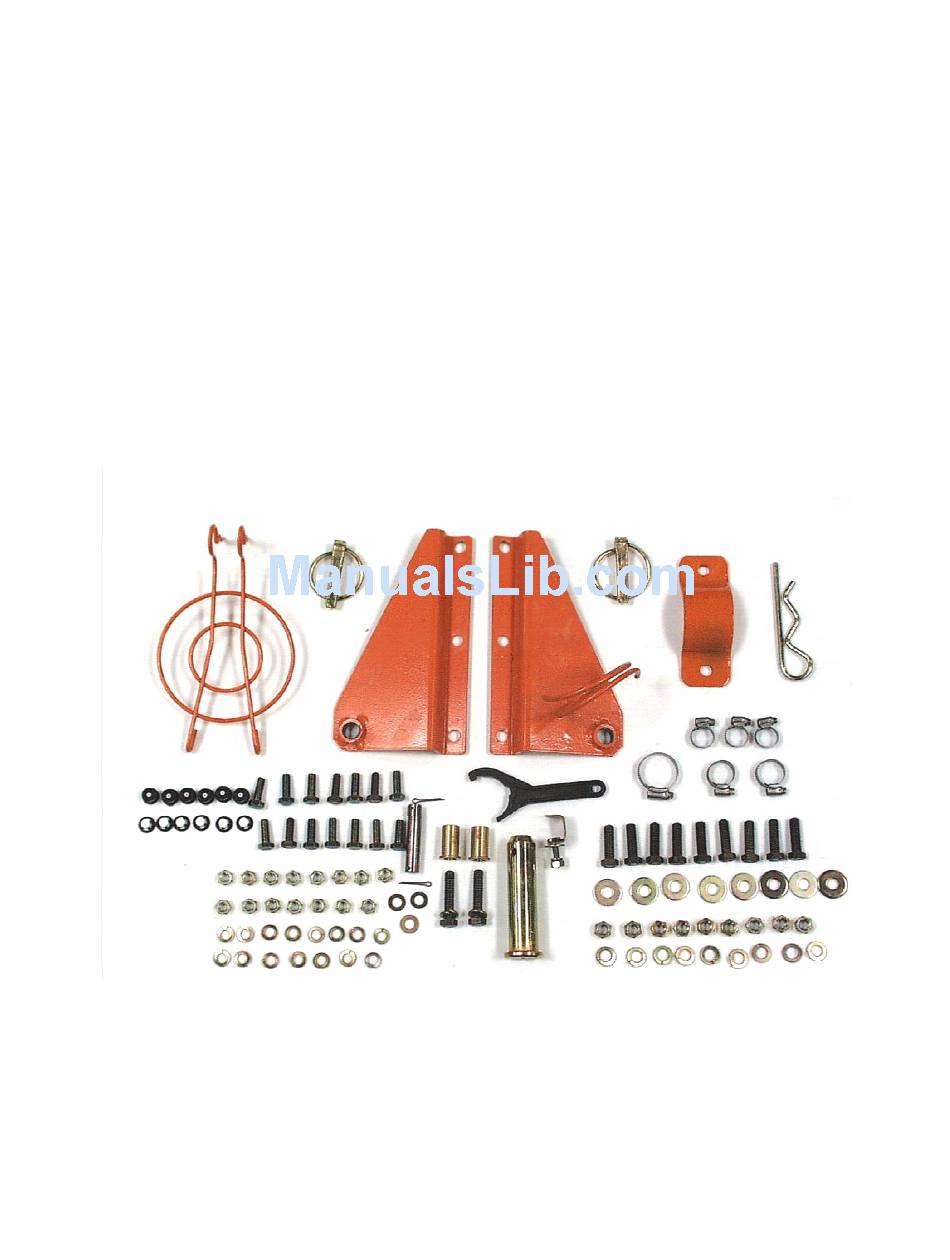

The above picture shows the parts that you will find inside the accessory box. The
hardware will be used in the assembly of the sprayer. You will also notice that there
is 2 vertical cylinder brackets, pivot bushings for duct, pin for vertical cylinder, fan
disconnect cover, plate for attaching the fresh water tank bracket, 6 JA nozzles with
swirl cores, hose retaining clip, spanner wrench, and pins for your convenience when
attaching the sprayer to the tractor. You will also find the operator's manual.
03/23/05
J600 CHT Assembly
Accessory Box
J600CHT Assembly – DRAFT
Prepared for Jacto
Service Seminar 3/2005
DRAFT COPY
Advertisement
Table of Contents
Related Manuals for Jacto J600
Summary of Contents for Jacto J600
- Page 1 J600 CHT Assembly 1) Remove the sprayer and components from the crate it was shipped in. In the crate you will find the following components to assemble: main outlet duct, stationary duct, control valve, vertical hydraulic cylinder and brackets, clean water tank and bracket, side step, auxiliary ducts and JA nozzles, fan cage cover for disconnect, and accessory box with the required fasteners to assembly the sprayer.
- Page 2 Using a liquid dish soap will help to install the hoses to the valve. 03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto Service Seminar 3/2005 DRAFT COPY...
- Page 3 The picture below shows the proper positioning of the stationary duct. 03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto Service Seminar 3/2005 DRAFT COPY...
- Page 4 Next install the two bolts through the bushings while making sure the bushings stay aligned and then tighten the bolts. 03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto Service Seminar 3/2005 DRAFT COPY...
- Page 5 03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto Service Seminar 3/2005 DRAFT COPY...
- Page 6 Auxiliary Duct Retainer Clips Nozzle Branches 03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto Service Seminar 3/2005 DRAFT COPY...
- Page 7 Install the retaining bolt and tighten. 2) Install the clean water tank bracket onto the left frame post as shown below. Install the clean water tank into the bracket. 03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto Service Seminar 3/2005 DRAFT COPY...
- Page 8 7) Engage PTO shaft with tractor RPM at low speed and then raise RPM until you reach 540 RPM at PTO. 03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto Service Seminar 3/2005 DRAFT COPY...
