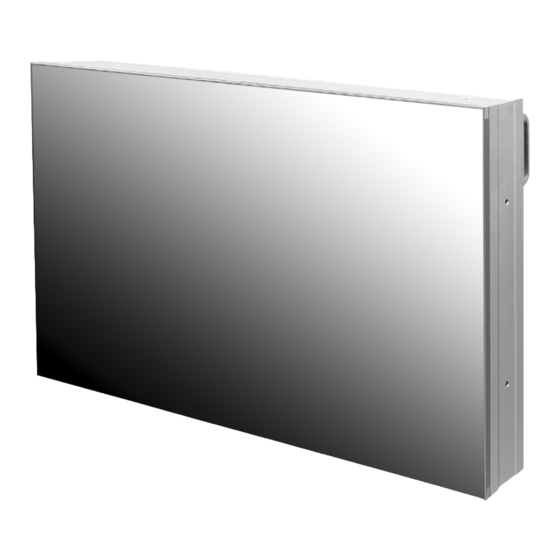

- Page 1 A revolutionary multi PDP Infinitely expandable multi PDP Multi-PDP User’s Manual Multi-PDP Thank you for your purchasing our Multi-PDP. Please read through this user's manual for safety before installing this product. This product is manufactured for Multi Plasma display model only.
-
Page 2: Table Of Contents
Notice of users 5.7 Image Adjustment - Graphics & Video A-grade device 5.8 Orion PDP HOME PAGE It is a device designed for business purpose with a safety certificate for electromagnetic 6. Other tips interference, which user should be mindful of. -
Page 3: How To Keep Safely
Multi-PDP Infinitely expandable 1. HOW TO KEEP SAFELY If it operates abnormally, stop using it Do not place any liquid-containing Do not pull out or hang down the Do not lean against the product or keep Do not put any foreign material into the Do not put it at any place with much immediately. -
Page 4: How To Install
Multi-PDP Infinitely expandable 2. HOW TO INSTALL • The set is installable in diverse ways such as on a wall, or stand etc. STAND TYPE (OPTIONAL) • Install this set only at a location where adequate ventilation is available. • This set is designed to be mounted either horizontally or vertically. •... -
Page 5: Wall Type
Multi-PDP Infinitely expandable 3. Guidance for Users Front view WALL TYPE (OPTIONAL) • The set can be installed on the wall as shown below. (For further information, refer to the optional ‘Wall Mounting Bracket Installation and Setup Guide'.) Guide Pin Back view Hanger Hanger... -
Page 6: Input/Output Terminals
Multi-PDP Infinitely expandable Input/Output Terminals Set ID Switch Setting • Example of switch - This is Dyadic System. In case of PDP set ID 1 and ID 9, set the ID switch as shown in the below figure RS-232C OUT RS-232C IN VIDEO S-VIDEO... -
Page 7: How To Connect Cables
Multi-PDP Infinitely expandable 4. How to Connect Cables 4.1. Connection of one set multi-PDP PC & DVI Connection RS-232C OUT RS-232C IN • MSCS (Multi-Screen Control System) that we supply and RS-232C of PDP monitor can VIDEO 1 2 3 4 5 6 7 8 S-VIDEO control all functions of Multi-PDP, such as On/Off and screen control. -
Page 8: Vcr Connection
Multi-PDP Infinitely expandable VCR Connection RS-232C OUT RS-232C IN VIDEO S-VIDEO 1 2 3 4 5 6 7 8 COMPONENT DVI-D OUT DVI-D IN AC INPUT 1 2 3 4 5 6 7 8 RS-232C COM1 PC(MSCS) to control Multi-PDP RS-232C OUT RS-232C IN VIDEO... -
Page 9: Dvd & Dtv Connection
Multi-PDP Infinitely expandable DVD & DTV Connection RS-232C OUT RS-232C IN VIDEO 1 2 3 4 5 6 7 8 S-VIDEO COMPONENT DVI-D OUT DVI-D IN AC INPUT 1 2 3 4 5 6 7 8 RS-232C COM1 •Component Input ports PC(MSCS) to control Multi-PDP You can get better image quality by RS-232C OUT... -
Page 10: Connection Of M X N Multi-Pdp 17~18
Multi-PDP Infinitely expandable 4.2. Connection of M x N Multi-PDP RS-232C OUT RS-232C IN RS-232C OUT RS-232C IN RS-232C OUT RS-232C IN VIDEO VIDEO VIDEO • When connecting a number of Multi-PDP through Daisy Chain(Link), surrounding noise may 1 2 3 4 5 6 7 8 S-VIDEO 1 2 3 4 5 6 7 8 S-VIDEO... -
Page 11: Connection Of 3 X 3 Multi-Pdp
Multi-PDP Infinitely expandable 4.3. Connection of 3 x 3 Multi-PDP 4.4. Setting ID of M x N Multi-PDP • Identity number (ID) indicates the location of each Multi-PDP. • When you look at the Multi-PDP screens in front of Multi-PDP. ID 1 ID 2 ID 3... -
Page 12: Setting And Operation Of Mscs
Multi-PDP Infinitely expandable 5. Setting and operation of MSCS • Activate MSCS.exe file. 5.2 Set ‘Multi-Screen’ Set Multi Screen Select total number of connected Multi-PDP sets. -In case the number is 9, set the Total Screen at “9”. Select an arrangement way in ‘Select M X N’ -Select a desirable arrangement way among 1*9, 3*3, and 9*1. -
Page 13: Configure Diverse Screens
Multi-PDP Infinitely expandable 5.4 Set several screens at a time 5.3 Configure diverse screens • You can configure diverse screens as you want. • You can configure diverse screens as you want. Select a desirable Input Source in “Select input”. Select a desirable Input Source in “Select Input”... -
Page 14: Use Pdp Control
Multi-PDP Infinitely expandable 5.5 Use “PDP Control” 5.6 Slide Control • Transmit PDP Control Data to selected ID of M-PDP. • Set the slide show list as you want. It can be repeated. • If checking ‘all M-PDP” box, the Data will be sent to all connected M-PDP, disregarding PDP ID. Select a desirable screen arrangement in Screen Configurations. -
Page 15: Image Adjustment - Graphics & Video
Multi-PDP Infinitely expandable 5.7 Image Adjustment - Graphics & Video Select a Input source for image adjustment. -Select a PC to control PC screen. -When pressing the Start button, the saved screen arrangement is automatically -Click the White Balance button. displayed for preset time. -
Page 16: Orion Pdp Home Page
Multi-PDP Infinitely expandable 6. Other tips 5.8 Orion PDP HOME PAGE 6.1 Before considering as a failure Before calling for any repair, check the following and then refer to a near A/S center. • If you are in connection with the Internet, you can reach our URL clicking Help and Orion PDP Home Page. -
Page 17: About Plasma Display Panel
Multi-PDP Infinitely expandable 7. Resolution of PC video signal 6.2 About Plasma display panel 7.1 DVD/DTV The followings are phenomena caused by characteristics of the plasma display panel. Resolution Aspect Ratio Since it is not any failure, you may use it at rest. 480i 720 x 480 16:9... -
Page 18: Specifications
Multi-PDP Infinitely expandable memo 8. Specifications Product name MIS-4201 Power supply 100 ~ 240V AC. 50/60Hz Power consumption 400W Plasma display panel 42inch, 16:9 aspect ratio Contrast ratio 3,000 :1 (Dark room) Brightness 1,000 cd/m (w/o Film) Front filter Low reflection coating film...
