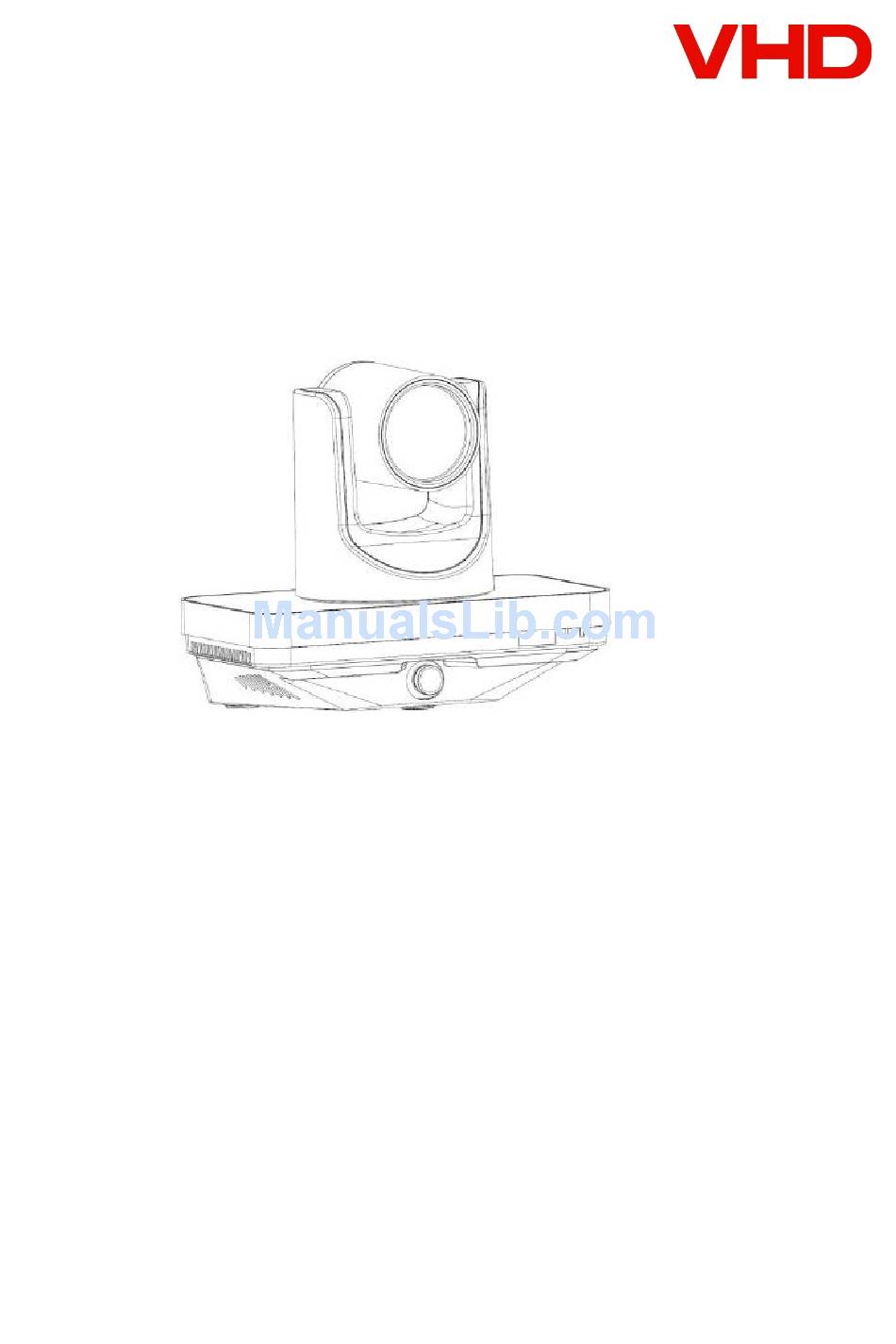

VHD-V800
User manual V1.2
ValueHD Corporation
Copyright:
All contents of this manual, the copyright belongs to ValueHD Corporation, without the
permission of the Company, shall not be arbitrary imitation, copy, family copy or translation.
This manual does not have any form of warranty, position, or other implication. The product
specifications and information mentioned in this manual are for informational purposes only
and are subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VHD-V800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ValueHD VHD-V800

Summary of Contents for ValueHD VHD-V800

  • Page 1 ValueHD Corporation Copyright: All contents of this manual, the copyright belongs to ValueHD Corporation, without the permission of the Company, shall not be arbitrary imitation, copy, family copy or translation. This manual does not have any form of warranty, position, or other implication. The product specifications and information mentioned in this manual are for informational purposes only and are subject to change without notice.
  • Page 2 ValueHD Corporation Preface： Thank you for using the company's integrated high-definition intelligent teaching tracking camera. This manual details the general principles and methods of the functions of the camera, the installation and operation of the camera. Before installing and using the user, please read in detail.
  • Page 3 ValueHD Corporation List Note ........................3 Product Feature .......... Fejl! Bogmærke er ikke defineret. Product Spec ..........Fejl! Bogmærke er ikke defineret. Standard Accessories ......... Fejl! Bogmærke er ikke defineret. Remote Control .......... Fejl! Bogmærke er ikke defineret. Host ............Fejl! Bogmærke er ikke defineret.
  • Page 4 ValueHD Corporation Precautions  Electrical safety The installation and use of this product must strictly comply with local electrical safety standards.  Carefully transport Transport, storage and installation process to prevent heavy pressure, severe vibration, soak damage to the product.

  • Page 5: Product Feature

    ValueHD Corporation Product Feature  Integrated design Integrated design, can also output 5 high-definition 1080P (close-up machine 3, panoramic machine 2) video. Students track with  Lens can be replaced Panorama lens can be replaced, compatible with C / CS interface lens, easy to cope with different sizes of classroom needs.
  • Page 6 ValueHD Corporation  Ultra frame rate 1080P output frame rate up to 60fps  AAC audio coding Features AAC audio encoding, better sound quality, less bandwidth.  Local storage Close-up machine to support the local storage function, no NVR can be realized U disk local direct recording tracking video.

  • Page 7: Product Spec

    ValueHD Corporation Product Spec Product Model VHD-V800 Product Name Integration of high - definition intelligent teaching tracking camera Auto Tracking Camera HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, Video System 720p/50, 720p/30, 720p/25 Senser 1/2.7 inch, CMOS, Effective Pixels：2.07 Million...
  • Page 8 ValueHD Corporation Preset Accuray 0.1° Panorama camera 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, Video System 720p/50 Senser 1/2.7 inch, CMOS, Effective Pixels：2.07 Million Scanning Scanning Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 Automatic iris Low Light 0.05 Lux @ (F1.8, AGC ON)
  • Page 9 ValueHD Corporation Audio Bit Rate 96Kbps, 128Kbps, 256Kbps TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, 组播等 Support Protocols Input/Output Interface 1xHDMI: Version 1.3 2x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M HD Output standard Network Interface 2xRJ45: 10M/100M Ethernet Interface Audio Interface 1-ch: 3.5mm Audio Interface, Line In...
  • Page 10 ValueHD Corporation Standard accessories When opening the package, check and confirm all attachments that should be provided Power adapter, camera power V800 integrated HD intelligent Remote control, control supply x1 teaching tracking camera x1 camera x1 AC power extension cord, camera...

  • Page 11: Remote Control

    ValueHD Corporation Remote Control 1. Standby button Press the camera to enter standby mode and press the camera again to turn it on again.。 2、Number button Set Preset or Call Preset 3、* button Use with other buttons 4, set the preset position...
  • Page 12 ValueHD Corporation In manual focus mode, you can focus on close backlight ON / OFF button. To cancel this function, objects by pressing [far] to focus on distant objects press the backlight ON / OFF key again. or [proximal]. 17, PTZ reset button...
  • Page 13 ValueHD Corporation Introduction to Host Interface 5、The video system selects the rotary switch 1、Close-up machine 6、RS232 OUT interface 2、Panorama machine 7、RS232 OUT interface 8、RS232 IN interface 9、LAN Network interface 10、LINE-IN interface 11、RS485 interface 12、Reset 13、SDI OUT interface 14、SDI interface 15、HDMI interface 3、Install the positioning hole...
  • Page 14 ValueHD Corporation Interface Interface Function name SYSTEM Camera video output system selection SELECT Use RS232 cable for communication between the camera and the RS232 OUT recording and broadcasting host, the camera can output the director command, but also can receive the control command from the...
  • Page 15 ValueHD Corporation Network interface, providing a network connection for the camera DC 12V Connect the power adapter to provide a 12V power supply for the camera...
  • Page 16 ValueHD Corporation The setting of video system The sixteen rotary switches are used to set the format of the output video for the video port (video format).VIDEO SYSTEM Switch Video format Switch Video format position position 1080p60 720p30 1080p50 720p25...

  • Page 17: Quick Installation

    ValueHD Corporation Quick installation Wall installation Step 1: Four holes on the wall that correspond to the size and position of the wall mounts, and the wall mounts are fixed to the walls Step 2: Place the alignment holes of the camera at the mounting brackets on the wall mounts...
  • Page 18 ValueHD Corporation  Live camera installation location Description：  Teacher installed close to the classroom axis, height of 2.2 meters;  student machine installed in the classroom before any position, height of 2.2 meters, installed in the recommended location.  Camera system connection...
  • Page 19 ValueHD Corporation Network mode system connection diagram Serial port system connection diagram Description：  Teacher mode, student machine, board computer, video recorder between the network mode and serial mode support, network mode support protocol: UDP, TCP; serial mode baud rate: 9600 ...
  • Page 20 ValueHD Corporation  Teacher machine / student machine / board computer can be sent to track the process of the state code or switch code to the recording and broadcasting host, recording and broadcasting host according to the instructions received video switching action ...
  • Page 21 ValueHD Corporation...

  • Page 22: Tracking Function

    ValueHD Corporation Tracking Function 1 Tracking Configuration 1.1 Tracking Configuration Tool： Free installation, mouse double click, you can open the tracking configuration tool. 1.2 Tracking Configuration Interface： 2 Tracking parameter configuration Tracking parameter configuration selection 1) Teacher-side tracking interface selection...
  • Page 23 ValueHD Corporation 3) Board-side tracking interface selection Go to the board-edge tracking configuration interface Targeting interface selection 4) Targeting interface selection Go to the director-side configuration interface 2.2 Language selection Choice of Chinese or English 2.3 Teacher-side tracking parameter configuration...
  • Page 24 ValueHD Corporation Set the panorama bit: Trim pan, that is, preset 0, set the preset 0 with the remote control. Call the panorama: Call the Trim Scene. Set the station bit: close-up station, that is, preset 1, the remote control can be used to set the preset Call the station bit: call the special machine station.
  • Page 25 ValueHD Corporation Panorama lens position calibration ： Check the "Show Verification Cross", the Close-up / Panorama preview image display the check icon, and control it up and down by the PTZ to ensure that the center of the image is coincident with the center of the panorama image, and then click [Check] To achieve the panorama lens calibration;...
  • Page 26 ValueHD Corporation Version Information：Displays the version information of the writer and panorama. 6) Set the shield area Click [Display] to display the current configuration tracking area and mask area in the preview image. Select the [tracking area], the left mouse button click on the preview image, drag any direction, set the tracking area;...
  • Page 27 ValueHD Corporation 1) Student side tracking parameter configuration Refer to the teacher side configuration 2) Student side close-up settings Refer to the teacher side configuration 3) Student end panorama IP address Refer to the teacher side configuration 4) Student side basic parameter configuration Camera mounting height：Student camera distance from the ground vertical height, set the range:...
  • Page 28 ValueHD Corporation Tracking settings：Set the student side of the camera's work mode, select: boot tracking For other parameters please refer to the teacher side configuration 6) Set the shield area Student cameras do not need to set the tracking area, outside the shield area belongs to the tracking area.
  • Page 29 ValueHD Corporation neighborhood or on the boundary, as shown in the following figure: 7) Turn on tracking Click 【Application (*)】, display as 【Application】, the configuration parameters take effect! Click 【Get】 to get the current camera configuration parameters; Click [Default] to restore the default configuration parameters;...
  • Page 30 ValueHD Corporation 1) Board-side close-up machine IP address Board-side close-up machine IP address 2) Board-side close-up machine settings Refer to the teacher side configuration 3) Panorama Panorama IP address Panorama IP address 4) the basic parameters of the board configuration Tracking sensitivity：Detection of the sensitivity of the blackboard action, set the range: 0 ~ 4, the...
  • Page 31 ValueHD Corporation Board-side enable：Check the "√", open the panel to enable; Other parameters please refer to the teacher side configuration; 6) Set the shield area Refer to the teacher side configuration 7) Turn on tracking Click 【Application (*)】, display as 【Application】, the configuration parameters take effect!
  • Page 32 ValueHD Corporation Click [Default] to restore the default configuration parameters; Click 【Open Tracking】, the camera enters the automatic tracking state, you can turn off the tracking configuration tool; Click [stop tracking], the camera enters the stop tracking state, you can configure the tracking parameters;...
  • Page 33 ValueHD Corporation Baud rate：Communication protocol Select the serial port, the serial port baud rate is 9600K bps, can not be modified. Protocol：Camera and recording and broadcasting host communication between the serial port or network, need to select UDP, TCP and a serial port, the default selection: UDP.

  • Page 34: Network Function

    ValueHD Corporation first blackboard when there is action, send a blackboard to switch code, blackboard no action, to determine whether there is action in the student area, and finally judge the teacher action. For example, when the teacher is not in the platform area or is moving, send the teacher panorama switch code, the...
  • Page 35 ValueHD Corporation Method 2: In the Division I camera upgrade software configuration items to modify, and then click Settings: 3. After changing the camera IP need to restart the camera,...
  • Page 36 ValueHD Corporation There are two ways: Method 1: Manual power off Method 2: Click on the page system configuration item to restart (for remote) Operation tips Teacher machine factory default IP: 1、Close-up machine 192.168.100.81 2、Panorama machine 192.168.100.82 Student machine factory default IP: 1、Close-up machine 192.168.100.91...

  • Page 37: Menu Settings

    ValueHD Corporation Menu settings This description mainly describes the special 2. EXPOSURE machine menu, panoramic machine menu only to Move the cursor to the Exposure item in the explain the difference. main menu and press [home] button, EXPOSURE 1. Main menu menu appears, as shown in the following figure.
  • Page 38 ValueHD Corporation Gain Limit: Can be set: 0 ~ 15. (Valid only in Colour auto, aperture and brightness modes) White balance mode is automatic Anti-flicker: can be set items: off, 50Hz, 60Hz. Red fine tune (Valid only for automatic and brightness priority) Aperture: Can be set: F1.8, F2.0, F2.4, F2.8,...
  • Page 39 ValueHD Corporation White Balance Sensitivity: Can be set: High, soft, 5S Medium, Low Distortion correction: can be set items: open, off (close-up machine without this menu) 4. Image Note： Move the cursor to "Image" in the main menu and press the [HOME] key to enter the image page, 1080p60 and 1080p50 do not support as shown in the following figure.
  • Page 40 ValueHD Corporation Left and right settings: can be set items: items: Off, 1 ~ 5（Close-up machine has no that standard, reverse. option） Adjust the image when the setting is frozen: Can be set: On, off. 7. SETUP Display information: Can be set: On, Off.
  • Page 41 ValueHD Corporation 8. Communication settings (only Zoon) Setting Move the cursor to "Communication Settings" in Language Chinese the main menu and press the [HOME] key to enter Protocol VISCA the setup page, as shown in the following figure. VISCA address...
  • Page 42 ValueHD Corporation 9. Information（Only the panorama has） Restore Defaults In the main menu, move the cursor to "Info" and press the [HOME] key to enter the information page, as shown in the following. Restore Default? Modify Information [Home] Confirmation Version 6.2.11...
  • Page 43 ValueHD Corporation RS-232 Interface Camera Windows DB-9 1. DTR 1.CD 2. DSR 2.RXD 3. TXD 3.TXD 4. GND 4.DTR 5. RXD 5.GND 6. GND 6.DSR 7. IR OUT 7.RTS 8. NC 8.CTS 9. RI Camera Mini DIN Function 1. DTR 1.DTR...

  • Page 44: Protocol List

    ValueHD Corporation Size Protocol list Note: The serial port of the camera follows the standard VISCA / Pelco-D / Pelco-P protocol. For secondary development, the camera can be controlled according to the standard protocol. To provide a detailed list of VISCA / Pelco-D / Pelco-P protocol, Please contact the manufacturer to obtain.

  • Page 45: Maintenance And Troubleshooting

    ValueHD Corporation Maintenance and Troubleshooting The maintenance of the camera If the camcorder is not used for a long time, disconnect the power switch after use and disconnect the AC adapter from the AC outlet  When removing dust from the camera case, use a soft cloth or tissue When cleaning the camera lens, please use a dry soft cloth to wipe, such as dirt is serious, please use a mild detergent gently wipe.
  • Page 46 ValueHD Corporation Sound failure  No sound 1、Please check the host's audio connection 2、Please check the IP Camera audio parameter settings, whether the monitoring function is enabled Tracking fault Teacher Side Tracking location is not accurate, always biased in one direction 1, to repeat the panoramic lens position calibration;...
  • Page 47 1、Check whether the network is on the same network segment； 2、Check if the IP camera has been duplicated； ValueHD Corporation Add: 3F No.2 Honghui Industrial Park, Xin’an Street, Bao’an District, Shenzhen, China. Zip code：518055 Website： www.valuehd.com.cn Tel：400-099-1206/ 0755-86644431 Copyright ©ValueHD Corporation 2016. Keep all right.
