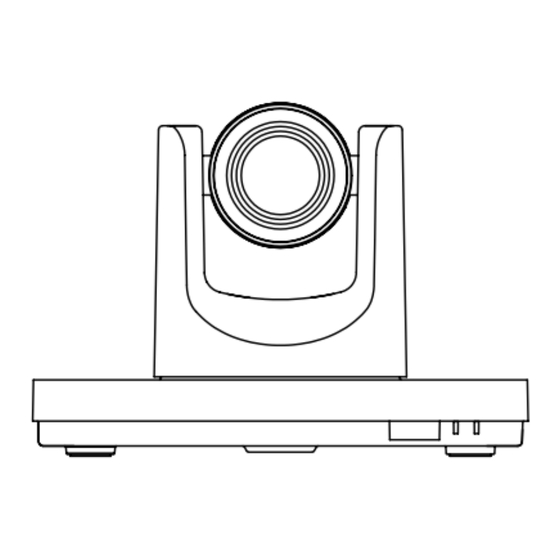

VHD-V500N
HD Video Conferencing IP-Camera
User Manual
V1.3
(English)
ValueHD Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VHD-V500N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ValueHD VHD-V500N

Summary of Contents for ValueHD VHD-V500N

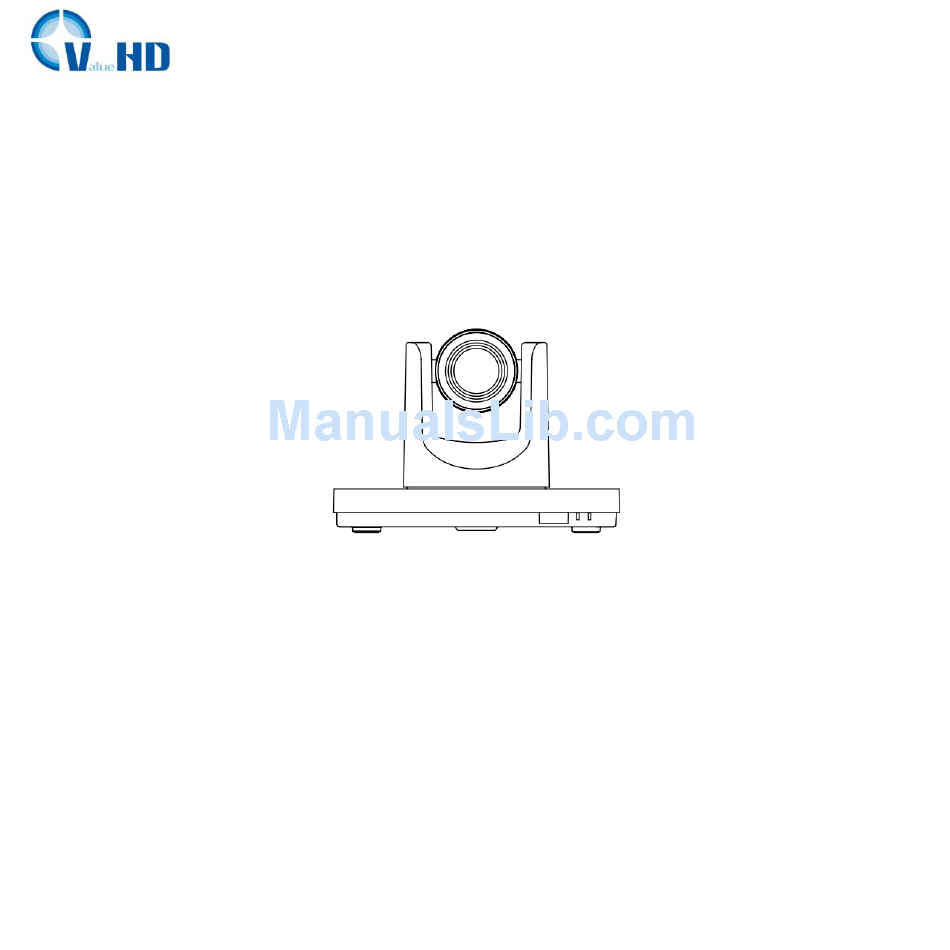

  • Page 1 VHD-V500N HD Video Conferencing IP-Camera User Manual V1.3 (English) ValueHD Corporation...
  • Page 2 ValueHD Corporation Preface Thanks for using this HD Video Conferencing IP-Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: ...

  • Page 3: Table Of Contents

    ValueHD Corporation Contents 1、 Note · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 3 2、...

  • Page 4: Note

    ValueHD Corporation Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.

  • Page 5: Supplied Accessories

    ValueHD Corporation Supplied Accessories When you unpack, check that all the supplied accessories are included: Camera ........1PCS AC power adaptor ..... 1PCS Power cord ........1PCS RS232 cable ........ 1PCS Remote controller ......1PCS User manual(Optional) ....1PCS CD ..........1PCS...

  • Page 6: Quick Start

    ValueHD Corporation Quick Start Step1. Please check connections are correct before starting...
  • Page 7 ValueHD Corporation Step2. Setting of the bottom switches Set both of the switch1 and switch2 to ‘OFF’. That is ‘Normal Working Mode. SW-1 SW-2 Modes Normal Working Mode Step3. Setting of the system select switch The option of video format:...
  • Page 8 ValueHD Corporation CAUTION: a. After changing the switch, you need to restart the camera to take effect. Step4. Press the Switch ON/OFF button on the rear of the camera, the power lamp light. Step5. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the process of initialization is finished.

  • Page 9: Features

    ValueHD Corporation Features 1. The camera provides a high performance in low illumination situations, particularly suitable for which room's lighting is not very well. 2. With maximum resolution of 1920 x 1080 and output frame rate up to 30 frames / sec, this camera provides high-definition as well as fluent video.

  • Page 10: Product Specification

    ValueHD Corporation Product Specification Video System 1080i/60,1080i/50,1080p/30,1080p/25,720p/60,720p/50,NTSC PAL Video Output Interface HDMI,HD-SDI,CVBS Tilt Speed Range 1.7° ~ 69.9° /s Sensor Type CMOS、1/2.7 inch Flick Mount Supportable Effective Pixel: 2.12 million; Sensor Pixel Number of preset Total Pixel: 2.20million ≤0.1° Scanning Mode...

  • Page 11: Main Unit

    ValueHD Corporation Main Unit 1. Lens 11. RJ45 interface 2. Sensor for the Remote Commander 12. USB interface 3. Power lamp 13. Audio out interface 4. Standby lamp 14. CVBS interface 5. Bottom switches 15. HD-SDI interface 6. Tripod screw hole 16.

  • Page 12: Ir Remote Controller Explanation

    ValueHD Corporation IR Remote Controller Explanation 0. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 1. Position Buttons To set preset or call preset 2.
  • Page 13 ValueHD Corporation become dark. In this case, press the backlight ON / OFF button. To cancel this function, press the backlight ON / OFF button. 5. Focus Buttons Used for focus adjustment. Press [AUTO] adjust the focuses on the center of the object automatically. To adjust the focus manually, press the [MANUAL] button, and adjust it with [Focus＋] (Focus on far object) and [Focus－] (Focus on near object)

  • Page 14: Use Ir Remote Controller

    ValueHD Corporation USE IR Remote Controller When the camera is working, you can use Move up: Press [ ] remote controller to perform panning, tilting, Move down: Press [ ] zooming and focusing, store and call back preset Move left: Press [ ] positions.
  • Page 15 ValueHD Corporation effective in full auto exposure mode) 3. Focus Control 5. Presets Set/Clear Focus Far: Press [FOCUS+] button (NOTE: Effective only in manual focus mode) Focus Near: Press [FOCUS-] button (NOTE: Effective only in manual focus mode) Press and hold the button, the action of focus continues and stops as soon as the button is released.
  • Page 16 ValueHD Corporation 6. Recalling the Preset 7. Camera Selection Press the button corresponding to the camera you want to operate. 8. Camera IR Address Set Press any of the numeric buttons 0-9 directly to recall stored preset positions and settings.

  • Page 17: Rs-232 Interface

    ValueHD Corporation RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND...

  • Page 18: Serial Communication Control

    ValueHD Corporation Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control The camera can be controlled via RS232, the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s.
  • Page 19 ValueHD Corporation VISCA Command List Part 1 Camera-Issued Messages Ack/Completion Message Command Function Command Packet Comments z0 4y FF Return when the command is accepted. ACK/Completion (y: Socket No.) Messages z0 5y FF Return when the command has been Completion (y: Socket No.)
  • Page 20 ValueHD Corporation Returned when no command is executed z0 6y 05 FF in a socket specified by the cancel No Socket (y: Socket No.) command, or when an invalid socket number is specified. Returned when a command cannot be z0 6y 41 FF executed due to current conditions.For...
  • Page 21 ValueHD Corporation Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF Manual Focus 8x 01 04 38 03 FF AF On/Off Auto/Manual 8x 01 04 38 10 FF...
  • Page 22 ValueHD Corporation 8x 01 04 0B 02 FF Down 8x 01 04 0B 03 FF Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position Reset 8x 01 04 0C 00 FF 8x 01 04 0C 02 FF...
  • Page 23 ValueHD Corporation CAM_ApertureMode( Auto 8x 01 04 05 02 FF Sharpness Auto sharpness) Manual 8x 01 04 05 02 FF Sharpness Manual Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture(sharp ness) Down...
  • Page 24 ValueHD Corporation DownRight 8x 01 06 01 VV WW 02 02 FF Stop 8x 01 06 01 VV WW 03 03 FF 8x 01 06 02 VV WW AbsolutePosition 0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF 8x 01 06 03 VV WW...
  • Page 25 ValueHD Corporation Center 8x 01 04 AA 01 FF Bottom 8x 01 04 AA 02 FF p: Color Hue setting 0h (− 14 degrees) to CAM_ColorHue Direct 8x 01 04 4F 00 00 00 0p FF Eh ( +14 degrees...
  • Page 26 ValueHD Corporation CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position CAM_BrightPosInq 8x 09 04 4D FF...
  • Page 27 ValueHD Corporation y0 50 03 FF CAM_RegisterValueI mm: Register No. (00 to FF) pp: Register 8x 09 04 24 mm FF y0 50 0p 0p ff Value (00 to FF) p: Color Gain setting 0h (60%) to Eh CAM_ColorGainInq 8x 09 04 49 FF...
  • Page 28 ValueHD Corporation y0 50 03 FF ww: Pan Max Speed Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF zz: Tilt Max Speed y0 50 0w 0w 0w 0w wwww: Pan Position Pan-tiltPosInq 8x 09 06 12 FF...
  • Page 29 ValueHD Corporation y0 50 02 FF Bottom p: Color Hue setting 0h (− 14 degrees) to CAM_ColorHueInq 8x 09 04 4F FF y0 50 00 00 00 0p FF Eh ( +14 degrees y0 50 00 FF High CAM_AWBSensitivit 8x 09 04 A9 FF...
  • Page 30 ValueHD Corporation p: AF sensitivity q.bit0: Picture flip(1:On, 0:Off) rr.bit6~3: Color Gain(0h(60%) to CAM_EnlargementBl y0 50 00 00 00 00 00 00 00 0p Eh(200%)) 8x 09 7E 7E 03 FF ockInq 0q rr 0s 0t 0u FF s: Flip(0: Off, 1:Flip-H, 2:Flip-V, 3:Flip-HV) t.bit2~0: NR2D Level...
  • Page 31 ValueHD Corporation Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed...
  • Page 32 ValueHD Corporation Pelco-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed...

  • Page 33: Menu Setting

    ValueHD Corporation Menu Setting 1. MENU EXPOSURE Press [MENU] button to display the main menu Mode Auto on the normal screen, using arrow button to move ExpCompMode the cursor to the item to be set. Press the [HOME] Backlight button to enter the corresponding sub-menu.
  • Page 34 ValueHD Corporation Backlight: Set the backlight compensation, COLOR Optional items: On, Off (Effective only in Auto WB Mode Auto mode ) RG Tuning DRC:DRC strength, Optional items: 0 ~ 8. BG Tuning Bright: Intensity control, Optional items:00~17. Saturation (Effective only in Bright mode) Anti-Flicker Flicker: Anti-flicker.
  • Page 35 ValueHD Corporation Sat.: Saturation. Optional items: 60% ~ 200%. Luminance: Brightness adjustment. Optional Hue: Chroma adjustment, Optional items:0 ~ items: 0 ~ 14 Contrast: Contrast adjustment. Optional items: IR Filter: IR Filter, Optional items:1 ~ 3 0 ~ 14 AWB sens:...
  • Page 36 ValueHD Corporation NOISE REDUCTION P/T/Z NR2D-Level 3 SpeedByZoom On NR3D-Level 3 AF-Zone Center D-HotPixel AF-Sense Select Item Select Item Change Value Change Value [Menu] Back [Menu] Back SpeedByZoom: The depth of field scale switch, NR2D-Level: 2D noise reduction. Optional Optional items: On, Off...
  • Page 37 ValueHD Corporation Off(When set to On, useless in 88 30 01 FF SETUP Command) Language Net Mode: Set the serial port control Protocol VISCA networking, Optional items: Serial, Paral V_Address Baudrate: Serial port baud rate. Optional items: V_AddrFix 2400, 4800, 9600...
  • Page 38 ValueHD Corporation Optional items: Yes, No address and VISICA Address Save: Save Options. Optional items: Yes, No Note: Press [HOME] button to confirm, All parameter restore default, Include IR Remote...

  • Page 39: Equipment Setup And Internet Connection

    ValueHD Corporation Equipment Setup and internet connection 1. Operating Environment Operating System: Windows 2000/2003/XP/vista/7 Network Protocol: TCP/IP Client PC: P4/128MRAM/40GHD/ support scaled graphics card, support DirectX8.0 or more advanced version. 2. Equipment Installation 1) Connect internet camera to your internet or to your PC directly via internet cable.

  • Page 40: Ipcamera Visited/ Controlled By Lan

    ValueHD Corporation Picture 1.2 Connect by router /interchanger IP camera visited/ controlled by LAN Setup IP address 1.1 Connect IP Camera to internet (or PC), then turn on the power on IP Camera, shown as above. NOTE If IP Camera connect to PC,PC IP address need manual allocation, PC IP internet segment must keep the same as IPC, then IPC can be visited.
  • Page 41 ValueHD Corporation If IPC IP address and PC IP address not in the same internet segment, IPCSearch software can modify IP address, subnet mask and port number etc. In IPCSearch window, select the device (IPC) needed to be modified, enter new IP in "IP" bar, subnet mask in "Mask"...
  • Page 42 ValueHD Corporation NOTE IP camera default IP address"192.168.0.136", port "80",user "admin", password "admin". Visit/Access IP Camera 2.1 Input http://192.168.1.136 to IE ( better with IE web browser, others will cause little latency),a login window pop up, input login name: admin, password: admin, language and code stream are selectable, shown as...
  • Page 43 ValueHD Corporation Input login name and password, click "Login", then pop up below window...
  • Page 44 ValueHD Corporation ！ NOTE If user first time use this equipment, must install a player software. Please click "Download Player" (only for new user). 2.3 Click to run, the player will be downloaded and installed automatically 2.4 After player installation finished, login again then viewing window shown as below:...

  • Page 45: Ip Camera Accessed/Controlled By Wan (Internet)

    ValueHD Corporation IP Camera accessed/controlled by WAN (internet) 1. Setup IPC accessed/controlled by manufacturer dynamic DNS Currently there 2 dynamic DNS: Dyndns.org, 3322.org 1.1 Setup interchanger data: 1.1.1 Open interchanger UPnP function: Take TP-LINK router as example, open the router, and then:...
  • Page 46 ValueHD Corporation ！ NOTE If router not support UPnP function, please set up router port mapping. 1.1.2 Router Port Mapping Setup: Take TP-Link Router as example, in the router interface, select "Transit rule"--"Virtual server"--add a new mapping port into the router list, as below: Server port number: 80 (as default) IP address: the IP address of the monitoring computer (here take 192.168.1.126 as example)
  • Page 47 ValueHD Corporation Check DNS: Take TP-Link router as example, enter router homepage, click "operation state"—"WAN port state" showing DNSIP address. ！ NOTE If DNS address not correct, the camera cannot be connected to internet. 2. Dynamic DNS visit camera 2.1 Set dynamic DNS to IPC Login IPC via web browser, click "Parameters"—"Network"—"DDNS"—"Dynamic DNS".

  • Page 48: Vlc Stream Media Player Monitoring

    ValueHD Corporation 2.2 Camera accessed by dynamic DNS Set domain name to camera, setup the parameter, then dynamic DNS can access camera. Access link:http://hostname :port number For example, setup host computer name: youdomain.f3322.org, camera port number: 81, Access link should be: http://youdomain.3322.org:81...

  • Page 49: Ip Camera Parameter Setup

    ValueHD Corporation 1.2 Input URL address: rtsp://ip: port/11(Main stream); rtsp://ip: port/12(Sub stream)(When port set as rtsp, default port value is 554 that can be omitted as rtsp://ip/11 or rtsp://ip/12) IP Camera parameter setup Homepage introduction 1.1 Menu All pages include 2 menu bars:...
  • Page 50 ValueHD Corporation Real time monitoring: displaying video image Parameter setup: with function buttons 1.2 Video viewing window Video viewing window must be same as video resolution, the bigger the resolution is, the bigger the playing area is. Double click viewing window, will show full-screen, double click again, will return to initialized size.
  • Page 51 ValueHD Corporation 1.6 PTZ Setup 1) PTZ direction control box: Up, down, left, right, oblique button as above 2) Zoom: "+"for long distant objects,"-"for short distant objects. 3) Focus: "+"for zooming in,"-"for zooming out. 4) Speed: select corresponding speed and click direction button to realize PTZ speed up or speed down.
  • Page 52 ValueHD Corporation 1.7 Image Setup 1) Image adjust Pull the bar in the above box, can adjust color/hue, brightness, contrast, saturation. 2) Flip/Mirror Image can be flipped or mirrored. 3) Powerfreq...
  • Page 53 ValueHD Corporation 50HZ or 60HZ (selectable to fit the local power frequency, avoid flashing). 4) Scene 3 modes available: auto, indoor, outdoor 5) Black & White On: black and white mode Off: color mode 6) Default Click "Default" button, turn to default...
  • Page 54 ValueHD Corporation Media 3.1 Video Setup...
  • Page 55 ValueHD Corporation 1) Resolution Main bit flow support 1920x1080,1280x720,minor bit flow support 640x360,320x180,the bigger resolution is, the clearer the image will be, more network bandwidth will be taken. 2) Bit Rate User can assign bit flow/stream, normally speaking, the bigger bit flow is, the clearer the image will be.
  • Page 56 ValueHD Corporation 1) Encoded Format:G711a, G711u, G726. 2) Input Gain: volume definable. 3) Output Vol: No such function on hardware, pls ignore this line shown on software interface. 4) Main Stream / Sub Stream : On: encoding with audio signal;...
  • Page 57 ValueHD Corporation 3.4 OSD Setup 1) Time Stamp: On/Off. Current time will be shown on up right corner when select "on". 2) Camera Name: On/Off. The camera name you edited will be shown on up left corner. Parameter Setup 4.1 Network settings...
  • Page 58 ValueHD Corporation LAN Setup: Initialized default IP address: 192.168.0.136; Camera network parameters can be setup via "installation guide" HTTP Port: IP address marks the device in network, the device can run multiple network programs, each program transmit the data via ports, hence data transmit between port and port, this port setup is to assign a port to...
  • Page 59 ValueHD Corporation RTSP Port: IPC support rtsp protocol, can play video directly via VLC, etc. ONVIF Port: Support ONVIF protocol, default port as 1018. 2) DDNS Select "Provider" 3322.org,input 3322.org server login name(account name) and password, "Your domain name" is the assigned domain name from 3322.org server.
  • Page 60 ValueHD Corporation 4) FTP In order to use FTP function, firstly apply account name/login name and password from FTP server, and meanwhile apply for storage space with authority of writing and building sub-directory. 4.2 Event Motion Detect If the user wants to monitor a area, when an exception occurs in the region, start alarm, select motion detection.
  • Page 61 ValueHD Corporation 1) Auto capture...
  • Page 62 ValueHD Corporation 2) Record 3) Cover Area Four regions optional, after clicking region options, move black box via the mouse to the region need to hide.
  • Page 63 ValueHD Corporation System settings 5.1 User 2 authorities: admin / guest, admin with the highest authority that can make any settings. guest can only operate PTZ, browsing video, recording on PC and image capture, etc., without setting authority. The default passwords are "admin", "guest".
  • Page 64 ValueHD Corporation 1) Reboot: click "OK" button, the device will reboot. 2) Factory Default: click "OK" button, the setting will be restored to the factory default settings, and restart. 3) Backup data: click the "OK" button, the system will save all current settings.
  • Page 65 ValueHD Corporation 5.5 Storage Device(Need TF card) 5.6 System Log (history)

  • Page 66: Maintains And Trouble Shooting

    ValueHD Corporation Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.  Use soft cloth or tissue to clean the camera cover.
  • Page 67 ValueHD Corporation Installation: Visit IP Camera address, click [Download ], download dialog box will pop up, select [Run] or [Save] to download. After downloading finished,the installation interface pops up, it will automatically install the plug-in, when installation finished, the video image is displayed.
  • Page 68 ValueHD Corporation Copyright Notice All contents of this manual, whose copyright belongs to ValueHD Corporation. Cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only, and the content will be updated at any time without prior notice.
