Wulfsberg P-2000 Installation Manual

Transceiver systems. 400-049200-11 series; 400-049300-11 series; 400-049300-11 series
Hide thumbs Also See for P-2000:

Advertisement

Quick Links

Download this manual See also: Operator's Manual

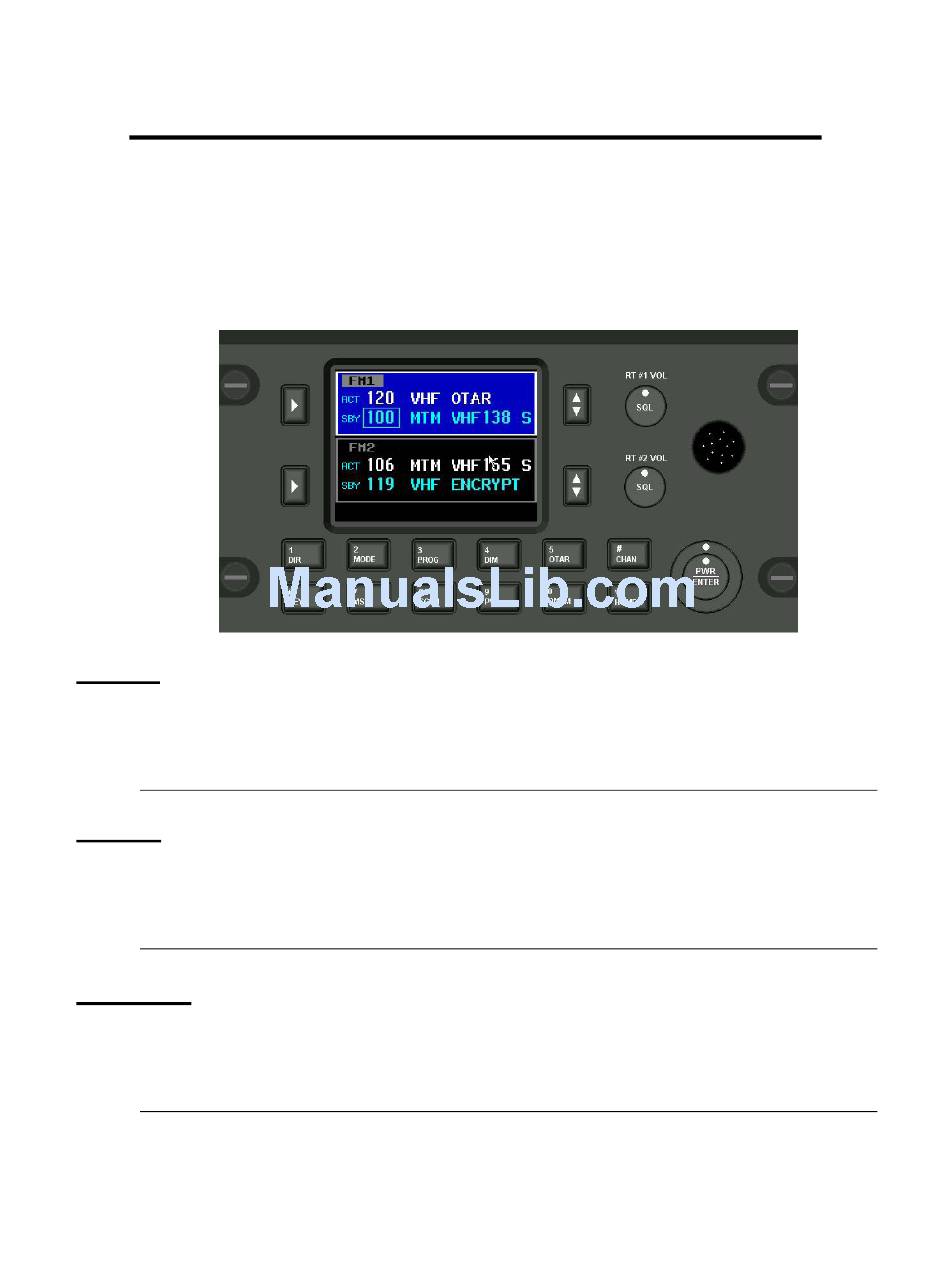

Installation Manual
P-2000 and C-2000/RT-2000
Transceiver Systems
P-2000
Part Number: 400-049200-11-xxx-xxxx-xxxx
Hardware Mod: 1
C-2000
Part Number 400-049300-11-xxx-xxxx-xxxx
Hardware Mod: 1
RT-2000
Part Number 400-049400-11-xxx-xxxx-xxxx
Hardware Mod: 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Wulfsberg P-2000

Summary of Contents for Wulfsberg P-2000

  • Page 1 Installation Manual P-2000 and C-2000/RT-2000 Transceiver Systems P-2000 Part Number: 400-049200-11-xxx-xxxx-xxxx Hardware Mod: 1 C-2000 Part Number 400-049300-11-xxx-xxxx-xxxx Hardware Mod: 1 RT-2000 Part Number 400-049400-11-xxx-xxxx-xxxx Hardware Mod: 1...

  • Page 2: Rf Exposure Information

    Transmit no more than 50 % of the time. Measurable RF energy exposure occurs only when transmitting. Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. Page 2 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...

  • Page 3: Section 1 - General Information

    The P-2000 is designed to be drop-in replacement for the C-962A/S Control unit for the Wulfsberg RT-9600/7200 transceiver systems also known as the ARC-513 with the exception of the 28 Volt input power. Due to increased 28 power requirements of the P-2000, wire size Publication No. 150-049106 Page 3 of 41 Rev.
  • Page 4 B. C-2000 Control Display Unit The Wulfsberg C-2000 is a control display unit that can be used as a slave control head with a P-2000 panel mount transceiver, or as a primary or slave control head for the RT- 2000 remote transceiver.
  • Page 5 P-2000/C-2000/RT-2000 INSTALLATION MANUAL Technical Characteristics A. P-2000 Panel Mount Transceiver CHARACTERISTICS DESCRIPTION Certification In Process (STC Helicopter and Fixed Wing Aircraft) Software DO-170B Level D Environmental DO-160D [(B4/F1)X]BAB[S/U]EXXXXXZZAZZ[J/F]M[XXC3]XXA FRW-2000-(VHF,UHF-1,UHF-2, 800) Industry Canada Emission Designator 156 – 158 MHz Part 80.379, 87.187(l), 16K0F3E 136 –...
  • Page 6 .25 VMRS into 150 ohm Carbon or Carbon Equivalent Transmit Distortion < 2%. @ 1 kHz Sidetone Fidelity 6 dB max variation, 350 Hz to 2500 Hz Page 6 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 7 P-2000/C-2000/RT-2000 INSTALLATION MANUAL Sidetone Output Adjustable 0 to –30 dB below rated output. Publication No. 150-049106 Page 7 of 41 Rev. A P-2000 Installation Manual Oct 2003...
  • Page 8 Display Options LCD Color or LCD Color with NVG compatibility Channel Memory 240/255/510 Depending on options Data Bus CAN Serial with Wulfsberg Proprietary Protocol C. RT-2000 Remote Mount Transceiver CHARACTERISTICS DESCRIPTION Certification In Process (PMA/STC Helicopter and Fixed Wing Aircraft)
  • Page 9 Any combination of one or bands listed below 136-174 MHz, 136-174 MHz (NTIA Compliant) 403-470 MHz, 380-470 MHz 450-520 MHz 806-870 MHz Data Bus CAN Serial with Wulfsberg Proprietary Protocol Encryption Options DES/DES-XL/DES-OFB/AES/DVP/DVI OTAR Options MDC1200 OTAR, P25 OTAR Trunking Options...
  • Page 10 < 2%. @ 1 kHz Sidetone Fidelity 6 dB max variation, 350 Hz to 2500 Hz Sidetone Output Adjustable 0 to –30 dB below rated output. Page 10 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 11 P-2000/C-2000/RT-2000 INSTALLATION MANUAL Available Configuration Variations A. P-2000 Part Number Matrix 400-049200-AB-CDE-WWWW-XXXX Major Hardware Version 1 = Initial Release Major Software Version 1 = Initial Release Reserved for future use (Always marked "0") Faceplate Option 1 = Black Face Plate...
  • Page 12 Reserved for future use (Always marked "0") Faceplate Option 1 = Black Face Plate 2 = Grey Face Plate Display Option 1 = Standard Display 2 = NVG Compatible Display Page 12 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 13 3 = 450 - 520 MHz 4 = 806 - 870 MHz 5 = 136 - 174 MHz (NTIA Compliant) 6 = 380 - 470 MHz |-----Reserved (Always marked "0") Publication No. 150-049106 Page 13 of 41 Rev. A P-2000 Installation Manual Oct 2003...
  • Page 14 P-2000/C-2000/RT-2000 Installation Manual D. Antenna Options The following antennas are required for use with the P-2000/RT-2000 Transceivers. Antenna Name Wulfsberg Part Frequency Band FAA Certification Number AT-695 121-0019-000 136-174 MHz AT-462 121-014378-01 380-520 MHz AT-806 121-019079-01 806-870 See Figure 2-1, 2-2,2-3 for envelope drawings of antennas.

  • Page 15: Section 2 - Installation

    Wulfsberg warranty. B. P-2000 Mechanical Installation (1) Select the P-2000 mounting location. Insure that unit will be easily accessible and clearly visible to the operator. The location should be free from excessive moisture, vibration, heat and noise generating sources. The unit has standard Dzus mount dimensions as shown in Figure 2-1.
  • Page 16 C. C-2000 Mechanical Installation (1) Select the P-2000 mounting location. Insure that unit will be easily accessible and clearly visible to the operator. The location should be free from excessive moisture, vibration, heat and noise generating sources. The unit has standard Dzus mount dimensions as shown in Figure 2-1.
  • Page 17 Ensure the antenna is adequately grounded to the aircraft skin (<5 mohm is a standard rule of thumb). (4) P-2000/RT-2000 antennas should be mounted a minimum of 20 cm from each other. (5) Wulfsberg recommends the use of RG-193 on most installations. Installers can substitute other types of coax than RG-193 to get better performance especially at higher frequencies.
  • Page 18 P-2000/C-2000/RT-2000 Installation Manual This page intentionally left blank. Page 18 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 19 P-2000/C-2000/RT-2000 INSTALLATION MANUAL Remove this page and insert 154-049200 (P-2000 outline), Sheet 1 of 1 (Fig. 2-1). Publication No. 150-049106 Page 19 of 41 Rev. A P-2000 Installation Manual Oct 2003...
  • Page 20 P-2000/C-2000/RT-2000 Installation Manual Remove this page and insert 154-049300 (C-2000 Outline), Sheet 1 of 1 (Fig. 2-2). Page 20 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 21 P-2000/C-2000/RT-2000 INSTALLATION MANUAL Remove this page and insert 154-049400 (RT-2000 Outline), Sheet 1 of 1 (Fig. 2-3). Publication No. 150-049106 Page 21 of 41 Rev. A P-2000 Installation Manual Oct 2003...
  • Page 22 P-2000/C-2000/RT-2000 Installation Manual Remove this page and insert 154-049065 (RT-2000 Mounting Tray), Sheet 1 of 1 (Fig. 2-5). Page 22 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 23 P-2000/C-2000/RT-2000 INSTALLATION MANUAL Remove this page and insert 121-0019-000 (AT-695 Outline), Sheet 1 of 1 (Fig. 2-6). Publication No. 150-049106 Page 23 of 41 Rev. A P-2000 Installation Manual Oct 2003...
  • Page 24 P-2000/C-2000/RT-2000 Installation Manual Remove this page and insert 121-014378 (AT-462), Sheet 1 of 1 (Fig. 2-7). Page 24 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 25 P-2000/C-2000/RT-2000 INSTALLATION MANUAL Remove this page and insert 121-049079 (AT-806), Sheet 1 of 1 (Fig. 2-8). Publication No. 150-049106 Page 25 of 41 Rev. A P-2000 Installation Manual Oct 2003...

  • Page 26: Section 3 - Electrical Installation

    P-2000/C-2000. In this case, the user will go to the audio panel to change the volume - not the P-2000 or C-2000.
  • Page 27 Figure 3.1 shows diagrams that use a single P-2000 and Single C-2000/RT-2000. They attempt to show how single and multiple Mic/Headset interfaces can be used.
  • Page 28 P-2000/C-2000/RT-2000 Installation Manual Remove this page and Insert P-2000 Block diagrams Page 1 here. Fig 3.1 Page 28 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 29 P-2000/C-2000/RT-2000 INSTALLATION MANUAL Remove this page and Insert P-2000 Block diagrams Page 1 here. Fig 3.2 Publication No. 150-049106 Page 29 of 41 Rev. A P-2000 Installation Manual Oct 2003...
  • Page 30 P-2000/C-2000/RT-2000 Installation Manual Remove this page and Insert P-2000 Block diagrams Page 1 here. Fig 3.3 Page 30 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 31 However, with the examples given by the manufacturer and the technical descriptions of connector pins, a competent designer should be able to create wiring diagrams for their specific application. Publication No. 150-049106 Page 31 of 41 Rev. A P-2000 Installation Manual Oct 2003...

  • Page 32: Signal Name

    P-2000/C-2000/RT-2000 Installation Manual 4. Connector Pin Number and Descriptions The following tables and pin descriptions are for the P-2000/C-2000/RT-2000 J101(DB-15) and J102 (DB-15) connectors. J101 Pin Numbers and Signal Names SIGNAL NAME Headset 1 Out H Headset 1 Out L...
  • Page 33 3 - CAN Data H This bi-directional pin provides for data communications between a C-2000 and P-2000 or RT-2000. Voltage levels range between 0 and 5 VDC. This pin is only used when a system incorporates a C-2000. Twisted Shielded wire should be used with this pin.
  • Page 34 Use shielded wire. 10 - Shield Ground All shields of signals originating at the P-2000 or RT-2000 and terminating at other equipment should be connected to this pin and left un-terminated at the other equipment.
  • Page 35 19 - 28 VDC Aircraft Power This pin provides 28 VDC aircraft power to the unit. Loading requirements and proper circuit breaker choices are P-2000: 4 amps, RT-2000: 4 amps, C-2000: 2 amps. 20 - 28 VDC Aircraft Ground This pin provides the ground return for the 28 VDC aircraft power to the unit.
  • Page 36 J102. The choices for these pins are listed in the table below: Pin 3 Pin 4 Selection Ground Ground Ground Ground 5 - ISP Start Discrete This pin is used only during Flash software loading during maintenance. Page 36 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...
  • Page 37 Reserved for future use. 13 - Reserved Spare #3 Reserved for future use. 14 - Reserved Spare #4 Reserved for future use. 15 - Ground Ground. Publication No. 150-049106 Page 37 of 41 Rev. A P-2000 Installation Manual Oct 2003...

  • Page 38: Section 4 - Installation Checkout Procedure

    (14) Transmit using each transceiver and verify no interference with other systems on the aircraft such as GPS, AM comms and NAV receivers. Page 38 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...

  • Page 39: Section 5 - Continued Airworthiness Instructions

    Flexcomm 2000 system components. The aircraft maintenance personnel should be in possession of and refer to these manuals during inspections. The Flexcomm 2000 system includes a P-2000 panel mount transceiver or a C-2000 control head and a RT-2000 remote mount transceiver and suitable antennas.
  • Page 40 Record the actual values measured and the measurement setup. Use this information to track any degradation in the antenna system on future system checkouts. Repeat for FM2. Page 40 of 41 Publication No. 150-049106 P-2000 Installation Manual Rev. A Oct 2003...

  • Page 41: Section 6 - Configuration Procedures

    P-2000 to be disabled so that there is only one location in the system for volume control – the audio panel. In this case set this value to “YES”.
