Summary of Contents for Zonar Systems EVIRNET

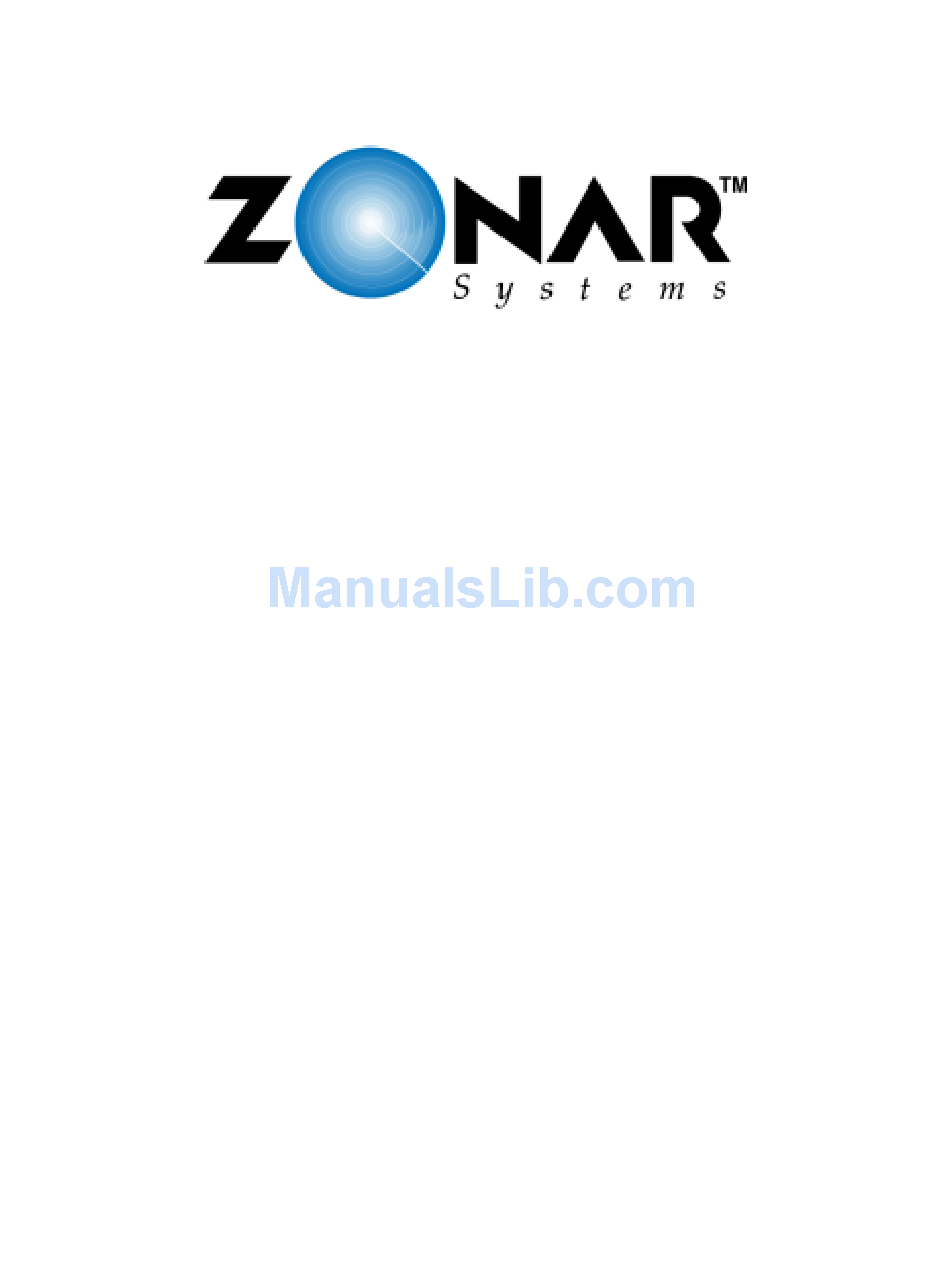

- Page 1 EVIRNET™ Base Station Owners Manual © 2004 Zonar Systems LLC 19518 International Blvd., Suite 101 Seattle, WA 98188 ph 206.878.2459 fax 206.878.3082 www.ZonarSystems.com...
-
Page 2: Table Of Contents
System Overview Specifications Introduction: The Zonar EVIRNET™ base station radio is a transceiver operating at 902 to 928MHz in the ISM (Industrial Scientific and Monitoring) band of frequencies. The base station radio connects to a PC via serial port, software on the PC communicates with EVIRNET radios located in vehicles through this base station. -
Page 3: Fcc Part 15 Class B Compliance
The preceding statement must be included as a CAUTION statement in manuals for OEM products to alert users on FCC RF Exposure compliance. Warning (Part 15.21) Caution: Any change or modification not expressly approved by Zonar Systems could void the user’s authority to operate the equipment. Page 3 of 9... -
Page 4: Warranty
EVIRNET™ Base Station Limited Warranty Zonar does not represent or warrant that the hardware and software are free of bugs or errors and shall not be liable for any losses (financial or non-financial) occurring as a result of such bugs or errors. No other warranty express or implied, including any warranties of merchantability or particular purpose, is provided for any hardware or software provided pursuant to this contract. -
Page 5: Getting Started
EVIRNET™ Base Station Getting Started: Connect the base station to a PC with a 9 pin “DB-9” serial cable (supplied), then connect the 12VDC regulated power supply (supplied) to the base station. On the PC, install the ZonarCom 3.x software if it has not been installed yet. - Page 6 EVIRNET™ Base Station The updating of data from the “Read Settings” button signifies that the PC is communicating with the base station, if it is not, please contact Zonar Systems for support. Transceiver ID: This is ID of the transceiver Network ID: This typically set to “1”...
-
Page 7: System Components
EVIRNET™ Base Station System Components: 1. 12VDC Power Supply 2. EVIRNET™ Base Station (shown with 1/2Wave antenna) 3. Serial Data Cable. Page 7 of 9... -
Page 8: System Overview
EVIRNET™ Base Station System Overview: The basic system is comprised of a base station connected to a PC, and from one to several hundred remote transceivers located typically in a vehicle. BASE STATION AND COMPUTER REMOTE VEHICLES WITH EVIRNET RADIOS... -
Page 9: Specifications
EVIRNET™ Base Station System Specifications: • Frequency Hopping Spread Spectrum Radio • 902 MHz to 928 MHz • 500mW transmit power • -103 dBm Sensitivity • 53 Hopping Channels • Operating Temp -20C to +70C • Range 1500FT Obstructed, 4000FT+ Unobstructed...
