DIURNAL PLANT GROWTH CHAMBER
115 Voltage
Installation - Operation Manual
SRI21D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRI21D and is the answer not in the manual?

Questions and answers

Related Manuals for shelolab SRI21D

Summary of Contents for shelolab SRI21D

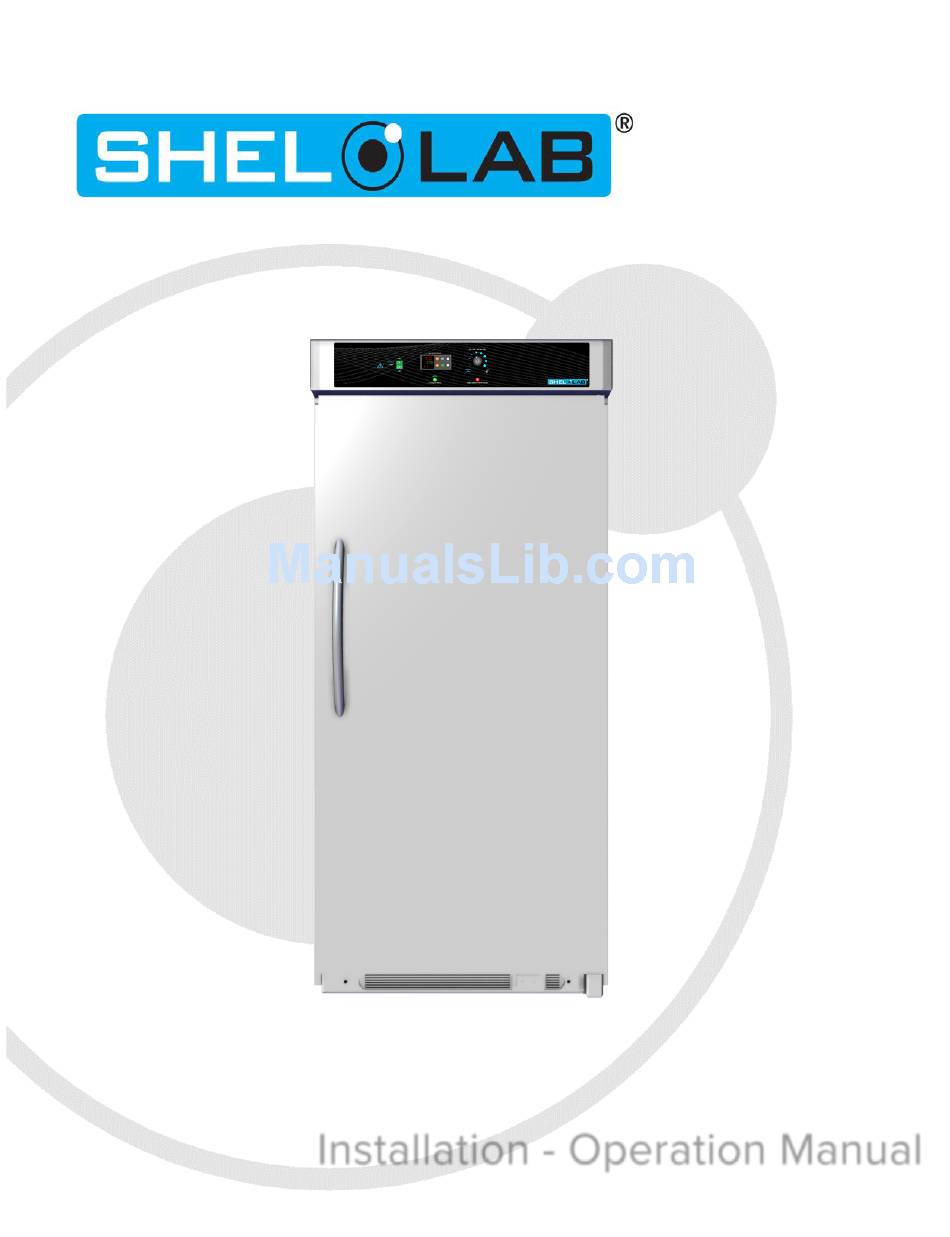

  • Page 1 DIURNAL PLANT GROWTH CHAMBER 115 Voltage Installation - Operation Manual SRI21D...
  • Page 2 Not for Fly Cultivation This unit is not designed to hold fruit flies (Drosophila melanogaster). Use with flies voids the manufacturing warranty and risks damaging the unit. Other incubator models in the SRI family are manufactured specifically for fly applications. Talk to your distributor or customer service representative to identify a model compatible with your study or production model.
  • Page 3 SRI21D DIURNAL PLANT GROWTH CHAMBER 115 Voltage Installation and Operation Manual Part Number (Manual): 4861744 Revision: February 12, 2018 These units are compliant with the following standards for use within an ambient air pressure range of 22.14 – 31.3 inHg (75 – 106 kPa), with no flammable, volatile, or combustible materials being heated.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ................................ 5 Read this Manual ..................................5 Safety Considerations and Requirements ........................5 Contacting Assistance ................................6 Engineering Improvements..............................6 Temperature Reference Sensor Device .......................... 7 RECEIVING YOUR UNIT ............................9 Inspect the Shipment ................................9 Orientation Photo .................................

  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing a SHEL LAB unit. We know you have many choices in today’s competitive marketplace when it comes to constant temperature equipment. We appreciate you choosing ours. We stand behind our products and will be here for you if you need us. EAD THIS ANUAL Failure to follow the guidelines and instructions in this user manual may create a protection...

  • Page 6: Contacting Assistance

    INTRODUCTION ONTACTING SSISTANCE Phone hours for Sheldon Technical Support are 6 am – 4:30 pm Pacific Coast Time (west coast of the United States, UTC -8), Monday – Friday. Please have the following information ready when calling or emailing Technical Support: the model number and the serial number (see page 11). EMAIL: support@sheldonmfg.com PHONE: 1-800-322-4897 extension 4, or (503) 640-3000 FAX: (503) 640-1366...

  • Page 7: Temperature Reference Sensor Device

    INTRODUCTION EMPERATURE EFERENCE ENSOR EVICE Must be purchased separately Temperature Reference A reference sensor device is required for calibrating the incubator temperature display. Reference devices must meet the following standards: Accurate to at least 0.1°C • The device should be regularly calibrated, preferably by a third party. Temperature Probe Use a digital device with a wire thermocouple probe that can be introduced into the incubation chamber through the unit access port.
  • Page 8 INTRODUCTION P a g e...

  • Page 9: Receiving Your Unit

    RECEIVING YOUR UNIT NSPECT THE HIPMENT When a unit leaves the factory, safe delivery becomes the responsibility of the carrier. • Damage sustained during transit is not covered by the manufacturing defect warranty. • When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you find any damage to the unit, follow the carrier’s procedure for claiming damage or loss.

  • Page 10: Orientation Photo

    RECEIVING YOUR UNIT RIENTATION HOTO Figure 1: SRI21D Control Panel Temperature Probe Cultivation Chamber Day Period Door Gasket Wire Shelf, Fluorescent 1 of 4 Chamber Door Illumination Blubs 10 | P a g e...

  • Page 11: Recording Data Plate Information

    RECEIVING YOUR UNIT ECORDING LATE NFORMATION The unit data plate contains the chamber model number and serial number. Record this information below for future reference. The data plate is located on the unit exterior, on the top, right side. • Model Number Serial Number 11 |...
  • Page 12 RECEIVING YOUR UNIT 12 | P a g e...

  • Page 13: Installation

    INSTALLATION NSTALLATION HECKLIST For installing the unit in a new workspace. Pre-Installation  Check that the required ambient conditions, ventilation, and spacing for the chamber are met, page 14. Unit dimensions may be found on page 67 •  Check for performance-disrupting heat and cold sources in the environment, page 14 ...

  • Page 14: Required Ambient Conditions

    INSTALLATION EQUIRED MBIENT ONDITIONS The SRI chambers are intended for use indoors at room temperatures between 15°C and 30°C (59°F and 86°F), at no greater than an ambient 80% Relative Humidity (at 25°C / 77°F). Allow a minimum of 4 inches (100 mm) between the unit and walls or partitions, and 2.5 inches (60 mm) of clearance above the top of the chamber for unobstructed airflow.

  • Page 15: Power Source Requirements

    INSTALLATION OWER OURCE EQUIREMENTS When selecting a location for the unit, verify that each of the following requirements is satisfied. Power Source: The power source must match the voltage and ampere requirements listed on the unit data plate. These units are intended for 115 VAC 50/60 Hz applications at 9 amps. Supplied voltage must not vary more than 10% from the data plate rating.

  • Page 16: Install The Chamber In Location

    INSTALLATION NSTALL THE HAMBER IN OCATION Install the unit in a workspace location that meets the criteria discussed in the previous entries of the Installation section. EVELING The unit must be level and stable for safe operation. Ensure that the chamber is placed on a flat and level surface, prior to placing the unit in operation.

  • Page 17: Adjust Shelves

    INSTALLATION DJUST HELVES Note: The form factor of the shelves may vary slightly by year of production. The unit ships with its shelves installed in the incubation chamber. Tape, foam, and other packing dunnage is used to secure the shelves during transit and prevent damage to the chamber interior. Remove all shipping dunnage from the shelving.

  • Page 18: Deionized And Distilled Water

    INSTALLATION EIONIZED AND ISTILLED ATER Do not use deionized water to clean the chamber. Use of deionized water may corrode metal surfaces and voids the warranty. Sheldon Manufacturing recommends the use of distilled water in the resistance range of 50K Ohm/cm to 1M Ohm/cm, or a conductivity range of 20.0 uS/cm to 1.0 uS/cm, for cleaning applications.

  • Page 19: Graphic Symbols

    GRAPHIC SYMBOLS The unit is provided with graphic symbols on its interior and exterior surfaces. These symbols identify hazards, as well as the functions of the adjustable components, and important notes in the user manual. Symbol Definition Consult the user manual. Consulter le manuel d'utilisation Temperature Display Indique l'affichage de la température...
  • Page 20 GRAPHIC SYMBOLS 20 | P a g e...

  • Page 21: Control Panel Overview

    CONTROL PANEL OVERVIEW Figure 3: Control Panel Power Switch The power switch controls all power to the chamber and its systems. Power is supplied when the switch is illuminated and in the ( I ) ON position. ( O ) is the OFF position. Temperature Controller The controller arrow buttons are used to adjust the temperature set point, perform calibrations, and adjusting the parameter settings of the Day –...
  • Page 22 CONTROL PANEL OVERVIEW Display Indicators A small “1” toward the bottom center of the screen indicates the controller is routing power to the heating element to warm the chamber. During normal operations, this indicator will flicker frequently as the heating element competes with the refrigeration compressor to maintain the set point temperature.

  • Page 23: Operation

    Manual Modes and the Day – Night Auto Cycle the manual day mode, as indicated by the The SRI21D comes from the factory set to operate in manual night mode, which combination of 2, 3, 5 runs indefinitely with the chamber illumination lights off, and at a steady-state temperature.
  • Page 24 OPERATION End-users can re-program the start times, as well as the temperature set points for both phases. The controller clock can be set to local time. Please see the Programming the Clock and Day – Night Cycle procedure on page 32. After the auto –...

  • Page 25: Put The Chamber Into Operation

    OPERATION UT THE HAMBER INTO PERATION Perform the following steps and procedures each time the chamber is installed in a new workspace environment. Requires approximately 9 hours. Verify that all the procedures in the Installation section of this manual have been performed. 2.

  • Page 26: Set The Manual Day Mode Temperature Set Point

    OPERATION Note: Make sure the day – night auto cycle is not running prior to setting either of the manual mode temperature set points. A red graph symbol will be illuminated on the right side of the controller homepage if the cycle is active. See the instructions below for terminating the cycle. Cycle Active ET THE ANUAL...
  • Page 27 OPERATION Put the unit in manual day mode (continued) 4. Advance to the Event 1 parameter a. Press the green Advance key 3 times to reach the parameter. Event 1 Parameter: Off 5. Change the parameter to ON. a. Press the Up Arrow once. This parameter controls the day-illumination lights •...
  • Page 28 OPERATION Put the unit in manual day mode (continued) 8. Launch the manual day mode and return the display to the homepage. a. Press the Reset key twice to save the Event 2 parameter as On, launch the day mode, and return to the homepage. Home Page: Day Mode Active 2, 3, 5 Set the manual day mode temperature...

  • Page 29: Set The Manual Night Mode Temperature Set Point

    OPERATION Note: Make sure the day – night auto cycle is not running prior setting the manual mode temperature set points. A red graph symbol will be illuminated on the right side of the controller homepage if the cycle is active. Cycle Active ET THE ANUAL...
  • Page 30 OPERATION Put the unit in manual night mode (continued) 4. Advance to the Event 1 parameter. a. Press the green Advance key 3 times to reach the parameter. Event 1 Parameter: On 5. Change the parameter to OFF. a. Press the Up Arrow once. This parameter controls the chamber day-illumination •...
  • Page 31 OPERATION Put the unit in manual night mode (continued) 8. Launch the manual night mode and return the display to the homepage. a. Press the Reset key twice to save the Event 2 parameter as Off, launch the night mode, and return to the home page.

  • Page 32: Program Clock Times And Cycle Temperature Set Points

    OPERATION ROGRAM LOCK IMES AND YCLE EMPERATURE OINTS A quick reference chart for this procedure is available at its end on page 37. Steps 1 – 4 of this procedure set the controller clock to your local time. The clock runs on a 24-hour format.
  • Page 33 OPERATION Setting the chamber clock to local time 3. Save the hour and scroll to current clock time minute page. a. Press the Advance button once to both save the hour setting and advance to the minute page. “Mi1” is the clock minute. •...
  • Page 34 OPERATION Programming the day phase parameters Save the day phase start hour and scroll to the day phase start minute page. a. Press the Advance button once to save the hour setting and advance to the minute page. “Mi2” is the day phase start minute. •...
  • Page 35 OPERATION Programming the day phase parameters 11. Save the Day Phase set point and scroll to the night phase start hour page. a. Press the Advance button once to save the day set point setting and advance to the night hour page. “hoU4”...
  • Page 36 OPERATION Programming the Cycle Night Phase Parameters 15. Save the night start minute and scroll to the night phase temperature set point page. a. Press the Advance button once to save the start minute setting and advance to the night temperature set point. “T.SP5”...
  • Page 37 OPERATION Quick Summary: Programing the Current Clock Time and Auto Cycle Parameters hoU1: Clock Hour t.SP3: Day Phase Set Point Mi1: Clock Minute hoU4: Night Phase Start Hour hoU2: Day Phase Start Hour Mi4: Night Phase Start Minute Mi2: Day Phase Start Minute t.SP5: Night Phase Set Point Adjust Clock Hour Adjust Clock Minute...

  • Page 38: Load The Chamber

    OPERATION OAD THE HAMBER The manufacturer strongly recommends waiting at least 8 hours after placing the chamber in operation before loading samples in the chamber. This safeguards samples against temperature instability. The samples should by placed at least 1 inch (25 mm) away from the chamber walls. Good spacing allows for maximum air circulation and a higher degree of temperature uniformity.

  • Page 39: Launching The Day - Night Cycle

    OWER UTLET The SRI21D is provided with a 115 voltage, 1 amp power outlet inside the chamber. Do not attach powered equipment that draws more than 1 amp. Verify that any powered accessory equipment used inside the chamber can safely and effectively operate within your selected temperature range.

  • Page 40: Set The Over Temperature Limit

    OPERATION Note: Test the OTL system at least once per year for functionality. ET THE EMPERATURE IMIT The chamber must be operating at your incubation application temperature and must be stable for at least 1 hour prior to setting the OTL. Set the OTL when the unit is running stable at the hottest temperature of your application.

  • Page 41: User Maintenance

    USER MAINTENANCE Warning: Prior to any maintenance or cleaning of this unit, disconnect the power cord from the power supply. Avertissement: Avant tout entretien ou nettoyage de cet appareil, débranchez le cordon d'alimentation de l'alimentation. LEANING AND ISINFECTING If a hazardous material or substance has spilled in the unit, immediately initiate your site Hazardous Material Spill Containment protocol.

  • Page 42: Minimizing Contamination Exposure

    USER MAINTENANCE Disinfecting Keep the following points in mind when carrying out your laboratory, clinical, or production space disinfection protocol: Turn off the unit to safeguard against electrical shocks. • Disinfect the unit using commercially available disinfectants that are non-corrosive, non- •...

  • Page 43: Refrigeration And Defrosting

    USER MAINTENANCE EFRIGERATION AND EFROSTING The refrigeration compressors of most home refrigerators run periodically in order to maintain an average chamber temperature centered on the thermostat setting. This results in temperature oscillations of up to 2° or 3°C and reflects the fact that affordable refrigeration compressors cannot provide the high degree of temperature stability needed for laboratory applications —...
  • Page 44 USER MAINTENANCE Factors in Ice Build Up Incubators and diurnal chambers used for biologic oxygen demand studies and other closed- container applications will generally require infrequent and very short defrost runtimes. However, runtimes may be prolonged and occur more frequently if the incubator is used in a high humidity environment with the door opened several times a day or left open for prolonged periods.
  • Page 45 USER MAINTENANCE Turning Off the Automatic Defrost Deactivating the defrost thermostat will result in ice accumulation and a gradual loss of cooling efficiency. Incubators used for BOD and other closed-container applications with the defrost thermostat turned off will likely require manual defrosting every 6 months.
  • Page 46 USER MAINTENANCE Note: Performing a temperature display calibration requires a temperature reference device. Please see the Reference Sensor Devices entry on page Error! Bookmark not defined. for device requirements. Temperature calibrations are performed to match the chamber temperature display to the actual air temperature in the incubation chamber.
  • Page 47 USER MAINTENANCE Temperature Stabilization The chamber air temperature must stabilize in order to perform an accurate calibration. Additionally, the unit must be calibrated twice — once at your application day temperature and then at your application night temperature to compensate for the extra heat generated during the day mode by the day illumination bulbs in the chamber.
  • Page 48 USER MAINTENANCE Temperature Display Calibration – Day Temperature Reference Device Once the day temperature has stabilized, compare the reference device temperature reading and the reading of the chamber controller. a. If the readings are the same, or a difference between the two falls within the acceptable range of your protocol, the display is calibrated for day temperature.
  • Page 49 USER MAINTENANCE Calibrating for Day Temperature (Continued) 5. Scroll to the Calibration Offset option. a. Press the green Advance button 3 times until “i.CA” appears in the green middle display line. Current Offset 0 6. Enter the current calibration offset. a.
  • Page 50 USER MAINTENANCE Calibrating for Day Temperature (Continued) Reference Device 9. Compare the reference device reading with the chamber temperature display again. Chamber Display a. If the reference device and the chamber temperature display readings are the same or the difference falls within the range of your protocol, the chamber is now calibrated for day temperature.
  • Page 51 USER MAINTENANCE Saving the Day Calibration (Continued) 11. Jump to the Memory Management menu page. a. Push and hold both the Up and Down Arrow Button simultaneously for 10 seconds. b. The display will advance to the Operations page after approximately 5 seconds, then to the Memory Management (Set) page after another five seconds.
  • Page 52 USER MAINTENANCE Saving the Day Calibration (Continued) 15. Save the current calibration value in the memory slot and return to the home page by pressing the Reset Button (∞) twice. The first Reset Button press saves the current calibration value in •...
  • Page 53 USER MAINTENANCE Night Temperature Calibration (Continued) Reference Device 4. A display calibration offset must be entered to match the current display value to the reference device reading.  Reference Device 5. Determine the offset value and record it for use in three steps. The offset value is the difference between the reference •...
  • Page 54 USER MAINTENANCE Night Temperature Calibration (Continued) Scroll to the Calibration Offset option a. Press the green Advance button 3 times until “i.CA” appears in the green middle display line. Current Offset 0 8. Enter the current calibration offset. a. Use the Up and Down arrow keys to enter the offset in the red numerical display line.
  • Page 55 USER MAINTENANCE Night Temperature Calibration (Continued) Reference Device 11. Compare the reference device reading with the chamber temperature display again. a. If the reference device and the chamber temperature display readings are the same or the difference falls within the range of your protocol, advance to Saving the Night Calibration on page 56.
  • Page 56 USER MAINTENANCE Saving the Night Calibration (Continued) 13. Navigate to the Settings Menu page (SEt). a. Push and hold both the Up and Down Arrow Button simultaneously for 10 seconds. The display will advance to the Operations page after • approximately 5 seconds, then to the Settings Menu page after another five seconds.
  • Page 57 USER MAINTENANCE Saving the Night Calibration (Continued) 17. Save the current calibration value in the memory slot and return to the Home Page by pressing the Reset Button (∞) twice. The first Reset Button press saves the current calibration value in the presently selected calibration long-term memory slot (Set 1).
  • Page 58 USER MAINTENANCE Figure 16: Summary chart for calibrating night temperature Prior to calibrating, verify that 6 is illuminated, indicating the unit is in the manual night mode. Home Page Operations Menu Current Calibration Value Push Push 3 19.0 times hold both 19.0 oPEr...

  • Page 59: Diagnostics - Temperature Issues

    USER MAINTENANCE IAGNOSTICS EMPERATURE SSUES If the unit is experiencing temperature issues, use the following guide to gather information on the unit, prior to contacting Technical Support. Gathering and sharing this information with Tech Support significantly increases the chance a service technician will be dispatched with the parts needed to fix your unit during their first visit.
  • Page 60 USER MAINTENANCE SDRAP Data Log What is the unit doing? See pages 64 - 65 for the detailed walkthrough of the SDRAP questions. SDRAP Record SDRAP Answers and Any Notes Here et Point, present setting: isplay, present Temperature reading: eference device, present reading: mbient, present temperature:...
  • Page 61 Record Data Here Model Type: The unit data plate lists the model type. Verify you are attempting to diagnose an SRI21D. What is the operating The Temperature block in the Unit temperature range of the unit? Specifications chapter, page 68.

  • Page 62: Required Items

    USER MAINTENANCE Required Items You must have the following items on hand to answer the diagnostic questions. A temperature reference device – A calibrated digital thermometer with sensor probes. The device must be at least as accurate as the temperature display of your unit. A copy of the user manual for the unit –...
  • Page 63 USER MAINTENANCE Does the car actually have gas in the tank? Have you physically verified the computer is Note: plugged in? Yes, we are going ask some very basic questions. Please bear with us. Methodical verifications and the elimination of assumptions are often the quickest means of getting a unit back into operation.
  • Page 64 USER MAINTENANCE Diagnostic Data Procedure – SDRAP Questions et point? What is the present set point of the unit? See the Set Temperature entry in the “Operation” chapter of the user manual for how to display the present set point. Figure 17: Set Point in Green isplay? What temperature is presently showing in the chamber temperature display?
  • Page 65 USER MAINTENANCE mbient? What is the room temperature? For best results, measure the temperature in the same section of the room where the unit is • located. Do not place your thermometer on the unit. Room Air Temperature ilot Lights? 1) Is the heating active indicator on the control panel flashing or otherwise illuminating.
  • Page 66 USER MAINTENANCE Share! Share the SDRAP and Unit Specifications data with Technical Support. This data is crucial for offsite personnel making accurate remote diagnoses. The information is used to help ensure service techs are dispatched with the tools and parts needed to fix your unit during the first visit. Facilities Technicians SDRAP and Unit Specifications data are also useful to any institutional repair technicians at your facility who may be responsible for servicing of out-of-warranty units.

  • Page 67: Unit Specifications

    UNIT SPECIFICATIONS The SRI21D is a 115 voltage unit. Please refer to the chamber’s data plate for individual electrical specifications. Technical data specified applies to units with standard equipment at an ambient temperature of 25°C and a voltage fluctuation of ±10%. The temperatures specified are determined in accordance to factory standard following DIN 12880 respecting the recommended wall clearances of 10% of the height, width, and depth of the inner chamber.

  • Page 68: Max Shelves For Unit

    80.0 lb / 36.0 kg *20lbs / 9kg with the weight evenly distributed across the shelf. EMPERATURE Temp Range Uniformity 0° to 45°C ±0.5° @ 20°C OWER Model Voltage Amperage Frequency 50/60 Hz SRI21D 68 | P a g e...

  • Page 69: Parts And Consumables

    PARTS AND CONSUMABLES Ordering Parts and Consumables If you have the Part Number for an item, you may order the item directly from Sheldon Manufacturing by calling 1-800-322-4897 extension 3. If you are uncertain that you have the correct Part Number or if you need that specific part, please contact Sheldon Technical Support for help at 1-800-322-4897 extension 4 or (503) 640-3000.
  • Page 70 P.O. Box 627 Cornelius, OR 97113 support@sheldonmfg.com sheldonmanufacturing.com 1-800-322-4897 (503) 640-3000 FAX: 503 640-1366...
