O W N E R ' S M A N U A L
INSTALLATION • OPERATION • MAINTENANCE
SAFETY PRECAUTIONS • REPAIR PARTS

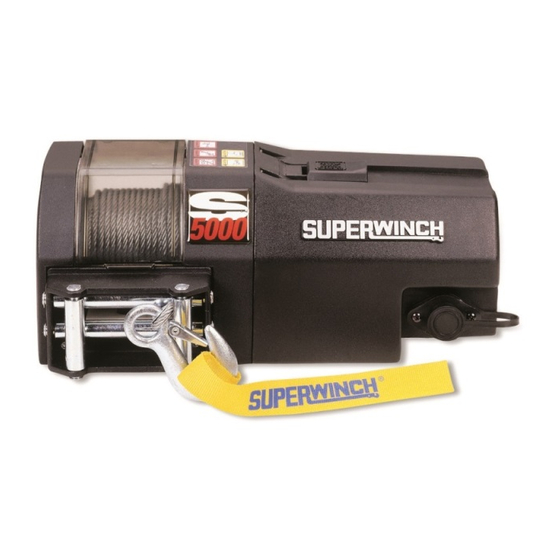

S3000, S4000, S5000
12 & 24 Volt DC
Electric Winches
With Remote Control
READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLATION
AND OPERATION OF YOUR SUPERWINCH PRODUCT.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Superwinch S3000

Summary of Contents for Superwinch S3000

  • Page 1 O W N E R ’ S M A N U A L INSTALLATION • OPERATION • MAINTENANCE SAFETY PRECAUTIONS • REPAIR PARTS S3000, S4000, S5000 12 & 24 Volt DC Electric Winches With Remote Control READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLATION AND OPERATION OF YOUR SUPERWINCH PRODUCT.
  • Page 2 I N T R O D U C T I O N S P E C I F I C A T I O N S Thank you for purchasing an S series winch from Superwinch. It has been designed and S3000 manufactured to provide years of trouble-free operation.
  • Page 3 D I M E N S I O N S Motor Wire Rope Max. Pulling Capacity Load Speed Current Layer lbs. lbs. kg ft/min m/min Amps S3000, S4000, S5000 21.6 4,000 1818 1,000 16.0 3,000 1361 DRUM SUPPORT 2,000 12.4 2,600...
  • Page 4 Reducing by the load on the wire rope. the end of the motor becomes approximately 10% per layer 1. The S3000, S4000, and S5000 uncomfortably hot to touch, thereafter. winch is rated at 3,000, 4,000, stop winching and allow the...
  • Page 5 5 TURNS of wire rope AROUND I N F O R M A T I O N I N F O R M A T I O N Superwinch offers a wide ( C O N T. ) THE WINCH DRUM since the ( C O N T.
  • Page 6 When attaching wires to the motor metal jewelry. Do not lean over bat- the minimum recommended power for the name of a Superwinch dealer terminals and solenoid (relay), hold tery while making connections. sources. If the winch is in heavy use, near you.

  • Page 7: Pendant Operation

    PULLING OUT THE WIRE ROPE TIPS FOR EXTENDING THE LIFE OF To prevent I N S T A L L A T I O N YOUR WINCH unauthorized C O N T. The wire rope has been installed on use of the winch, remove pendant 1.

  • Page 8: Brake Operation

    Each additional layer of wire rope Repair should be done by reduces brake capacity approxi- Authorized Superwinch Repair mately 10%. When powering the Centers ONLY. Do not attempt winch in, the brake is disengaged to disassemble the gearbox.
  • Page 9 Handsaver 87-31120 Wire Rope Assembly w/hook 1/4"x50' (S5000) 1577A Wire Rope Assembly w/hook 7/32"x60' (S4000) 1514A Wire Rope Assembly w/hook 3/16"x60' (S3000) 1511C M6 x 1 x 16mm Button Head Screw 89-22290-02 12 Volt Complete Motor (S5000) 90-33294 24 Volt Complete Motor...

  • Page 10: Torque Specifications

    12V Wired Solenoid Assembly 89-32327 24V Wired Solenoid Assembly 89-32328 S3000, S4000 8AWG x 5' (neg.) Leadwire Assy. 89-23306-01 S5000 2AWG x 5' (pos.) Leadwire Assembly 89-22635-34 S3000, S4000 8AWG x 5' (pos.) Leadwire Assy. 89-23306-04 S5000 6AWG x 5' (neg.) Leadwire Assembly.

  • Page 11: Troubleshooting Chart

    TROUBLESHOOTING CHART If a problem arises, contact your nearest Superwinch dealer or repair center. Symptom Possible Cause(s) Corrective Action Motor will not operate or 1. Damaged or stuck CAUTION Disengage runs in one direction only solenoid clutch before performing this test to prevent pow- ering the wire rope drum.
