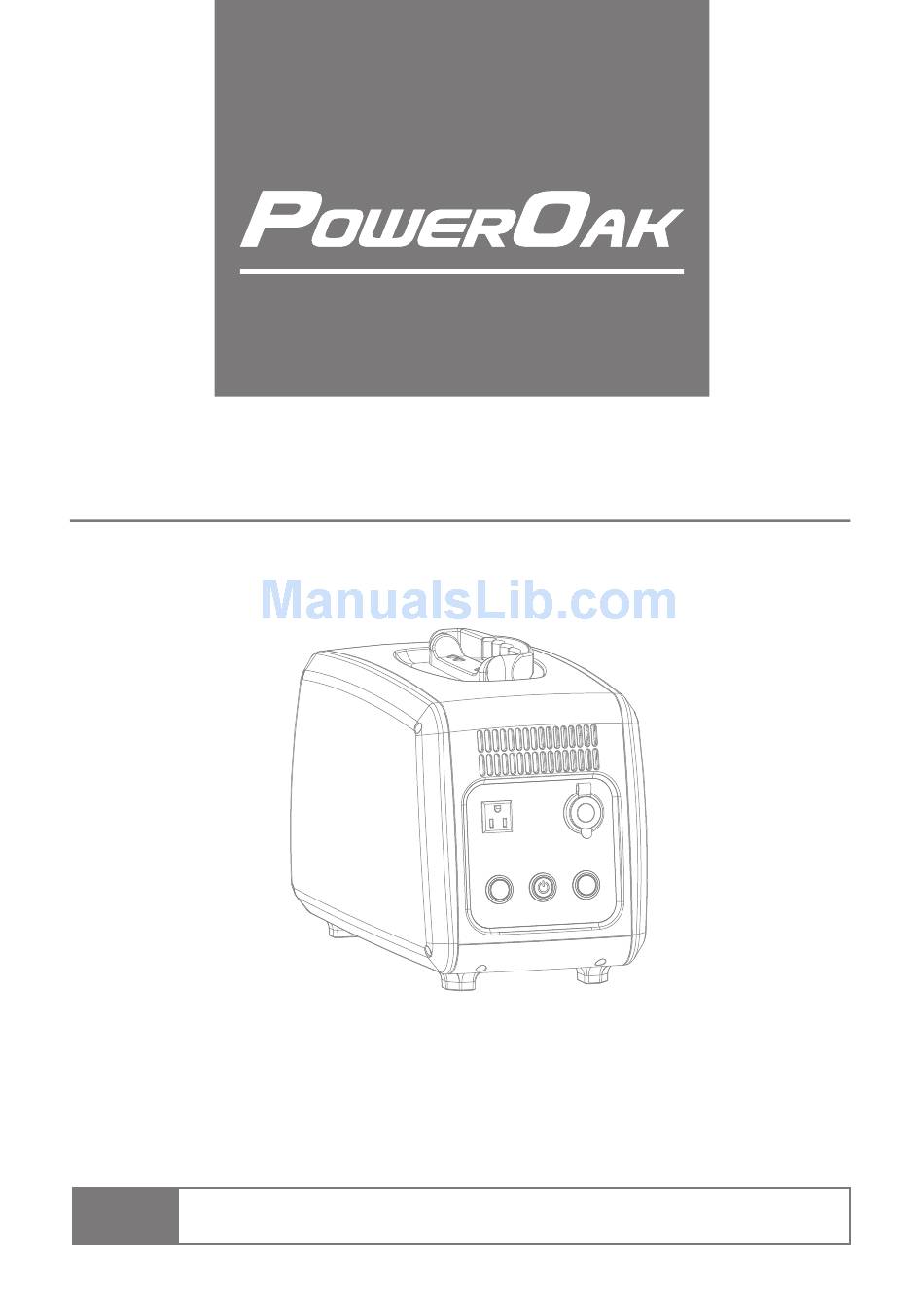

PS10B
Operating Manual
Many thanks for buying POWEROAK Portable Power Station.In order to use this product safely, p
lease read this manual carefully; and please safekeep this manual (including letter of guarantee) so
that you can read it any time you need.Please refer and keep the additional detail file together wit
h this manualif it's offered.
Disobeying safety considerations may cause human injury such as fire hazard or
Note:
electric shock, etc.
Portable Power Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS10B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerOak PS10B

Summary of Contents for PowerOak PS10B

  • Page 1 PS10B Operating Manual Many thanks for buying POWEROAK Portable Power Station.In order to use this product safely, p lease read this manual carefully; and please safekeep this manual (including letter of guarantee) so that you can read it any time you need.Please refer and keep the additional detail file together wit h this manualif it’s offered.

  • Page 2: Table Of Contents

    Contents Packing Confirmation Preface Safety Considerations Name of the parts Lifting &Handling AC Charging Solar Charging AC Output Estimated Backup Time Charge & discharge simultaneously Storage How to Keep Long Using Life of Polymer Lithium Battery Recycle of Lithium ion battery Malfunction &...

  • Page 3: Packing Confirmation

    1.The confirmation of products and accessories Solar Input Plug AC input Plug Product specifications and guarantee...

  • Page 4: Preface

    2.Preface Please pay attention to the following content when reading the operating instruction. ● Whether the content of the product manual content is changed without information. ● In the case that appearance and specifications of some products have changed, whether the reason of the change informed or not.

  • Page 5: Safety Considerations

    Circle means the behavior that is required during the operation of the produc t. The specific required behavior is illustrated or described in the picture. For safe use of PS10B, we pasted notice label, please use the product with reference to the man ual content and label.
  • Page 6 Dangerous Do not touch this product and connector socket, when your hands are wet It may cause electric shock. Do not connect the metal to AC input and AC output It may cause electric shock, fever, fire etc Do not wipe when the liquid inside of this product gets into your eyes. Please rinse and seek medical advice urgently.It may cause blindness.
  • Page 7 Warning Please keep the place clean where you use or storage the product. It may cause short circuit, smoke or fire accident if powdered or small metal object contact the terminal. CAUTION Pls check the products before using When you found the products have damage, rupture, cracks, fever and other abnormal, stop using it and contact selling shop or our customer service center.
  • Page 8 Caution For unusual conditions such as rusting,rare smell,heating , please stop using the product Immediately and contact the agent shop or Customer Service Center of our company. This product is very heavy, please mind when operation. It may cause lumbar pain or hurt. Please do not make the label stuck to the product dirty or fall.

  • Page 9: Name Of The Parts

    4.The name of the parts Handle DC output button AC output socket Power Button AC output indicator AC input socket AC output button AC input indicator DC 12V output socket Solar inputIndicator Capacity Indicator Solar input Socket DC output indicator...

  • Page 10: Lifting &Handling

    5.Lifting & Handing 1. Pull The Handle Up 2.Moving by carry handle Notice Notice Keep the product away from anything Hold the handle steady. when moving. 3.Placed at smooth surface Notice Please put the product at smooth surface. And indicator be easier to see. 4.Do not placed where unsteady...

  • Page 11: Ac Charging

    6.AC Charging 1.Press the power button:Power button indicator lights, also the capacity status is shown. AC Output DC 12V AC ON Capacity DC ON AC OUT DC OUT Please turn the power off for long period no-operation status 2.Connect AC cable Notice Make sure the AC cable plug is inserted into the AC input socket ACCharging...
  • Page 12 7.Solar Charging 1.Special solar input connector 1# Red wire harness connect to positive pole 2# Black wire harness connect to negative pole 2.Connect the solar panel to solar input connector: Red wire harness connect to positive pole and b lack wire harness connect to negative pole of solar panel.(attention: solar panel voltage:DC18V- DC54V) 3.Press power on/off: power indicator lights up and also SOC indicator 4.Plug the solar input connector into solar energy input port: SOC indicator twinkle once a second...

  • Page 13: Solar Charging

    6.Light indicator Indicator State Indication Power off, no electric inside 4 indicators off 75 100 1 green on Twinkle per second, charging, SOC 0%~25% 75 100 2 green on Twinkle per second, charging, SOC25%~50% 75 100 3 green on Twinkle per second, charging, SOC50%~75% 75 100 Twinkle per second, charging, SOC75%~100% 4 green on...

  • Page 14: Ac Output

    8.AC output 1.Press the on/off button AC Output DC 12V AC ON Capacity DC ON AC OUT DC OUT Please turn the power off for long period no-operation status 2.Match the frequency of thee electronic appliance.(50Hz or 60Hz) Note Standard frequency : 50Hz . Different frequency may lead to abnormal operati on of the electronic product, it may also lead to the breakdown of the electroni 50Hz c appliance.
  • Page 15 4.Using of electrical appliances Make sure electric appliances is powered off before using them. Confirm the battery level according to indicator 1-4 lights during the processing Usage time is varied due to the ambient temperature or change of the li-ion battery state. It’s normal if the product is heat in the output process Connect To Electric Device...
  • Page 16 6.Discharging SOC indicators Indicator State Indication 4 green on Discharging,SOC75～100% 75 100 3 green on Discharging,SOC50～75% 75 100 2 green on Discharging,SOC25～50% 75 100 1 green on Discharging,SOC0～25% 75 100 Green Output 50Hz AC output indicator Output 60Hz Inverter over load, over temp; battery low voltage, Twinkle between over voltage;...

  • Page 17: Estimated Backup Time

    17.5 hours hours hours 430Wh 80Wh 90Wh Model PS10B back up calculation Power Consumption ≈ 1400 Hours Note Above data as a reference. we collect the approx values when we develop it with ambient tempera ture of 25°C and full charged,these values may vary regarding to different electrical appliance man ufacturer or other else.

  • Page 18: Charge & Discharge Simultaneously

    10.Function of Charging & Discharging Simultaneously PS10B power station can be discharged while charging In the condition of charging, it can supply power to electric appliance at the same time. Connect To Electric Device...

  • Page 19: Storage

    10.Storage method 1.Full charge Fully charge the power station before long term storage Fully charge the power bank at least once a year. Note please refer to the content in page 11 2.Shut down all the buttons After fully charged, pull out AC input connector from AC input port,Shut down on/off buttons AC Output DC 12V AC ON...

  • Page 20: How To Keep Long Using Life Of

    Otherwise, it shortens cycle life of lithium battery. Don’t discharge battery when SOC is 0 PS10B cuts off discharging automatically. But electric device connecting to AC output port shorte ns cycle life of lithium battery. Shut it down when no need to use Wasting the electricity inside the battery is another reason of less cycle life of lithium battery.

  • Page 21: Recycle Of Lithium Ion Battery

    13.Recycle of lithium ion battery. After use, complete lithium-ion batteries can be recycled . Please do not disassemble, be sure to contact the retail store or our “customer service center”...

  • Page 22: Malfunction & Maintenance

    14.Malfunction & Maintenance For the occasions that the following "corresponding disposal"is not available, please stop using the product immediately and contact the retail store or "customer service center" of our comp any. Corresponding disposal Phenomenon Status Main reason AC wire is not connected No enough power or not connected well supply...

  • Page 23: Product Specification Parameters

    Take the warranty brochure from retail store, you need to register 『retail store name•purchase date』etc. Th e warrant is 1 year from the date of purchase. ■   Product consult service contact No: SHENZHEN POWEROAK NEWENER co., ltd +86 755 2370 5980...
  • Page 24 FREE REPAIR REGULATIONS 1.For product failure caused by manufacturing reasons, please bring the guarantee and vouchers of purchase date (invoices, etc.) to retail store. It is free to repair or replace the product during the 1 year warranty period under normal use,. In addition, customer should bear the necessary shipping costs when needed.
