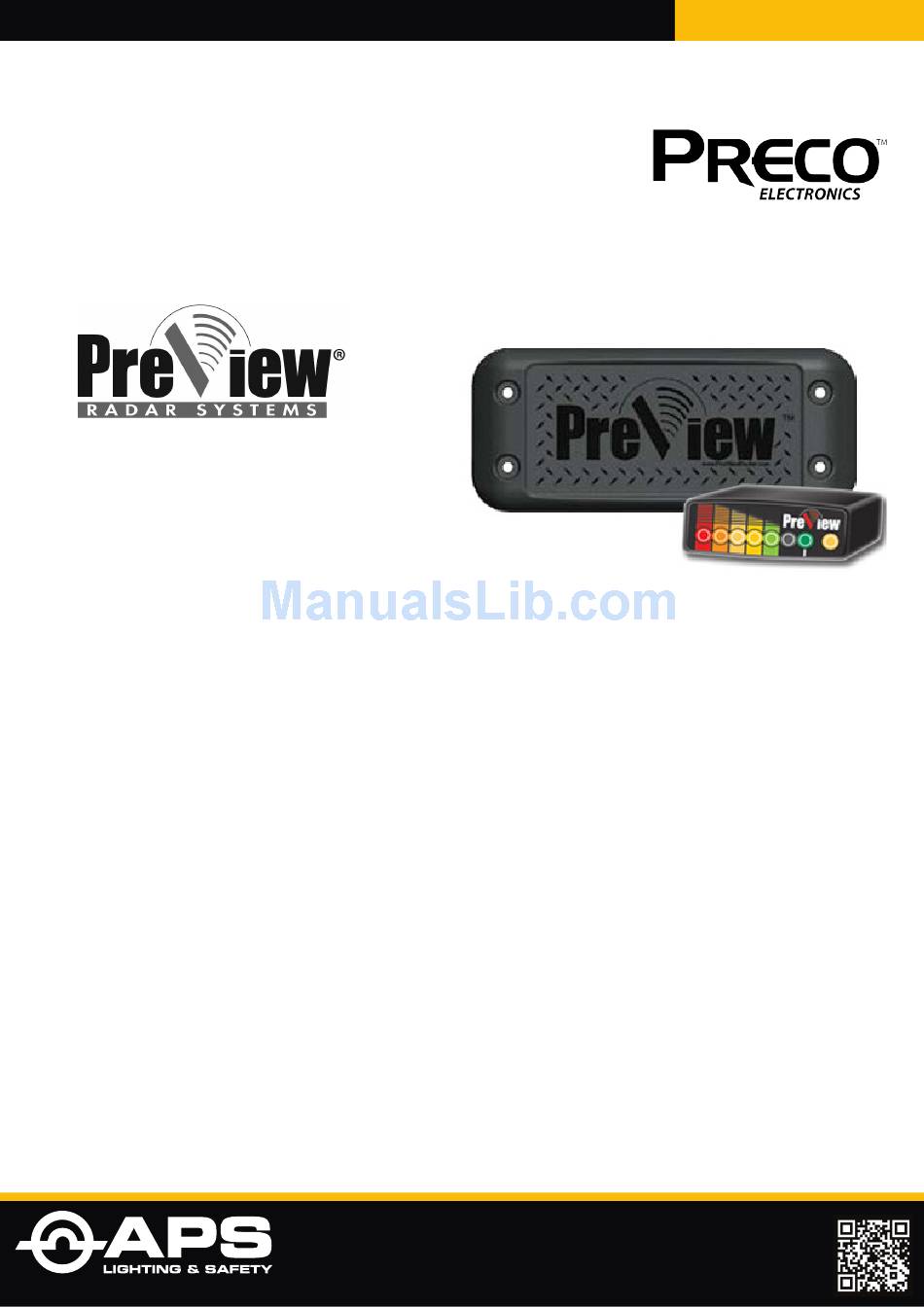

COLLISION ALERT SYSTEMS
WorkSight® PreView®
WS6010/WS6015/WS6020
Operating Manual
www.aps-supply.com
APS USA
610 Gateway Center Way, Suites J & K
San Diego, CA 92102 USA
P: 1 619 263 4164
F: 1 619 263 6814
APS: Singapore
APS Australia
U48 / 9 Vision Street,
Wangara WA 6065 Australia
P: 61 (8) 9302 2369
F: 61 (8) 6305 0047
APS-SUPPLY.COM
Colombia
Chile
Perú
Brasil

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS6010 and is the answer not in the manual?

Questions and answers

Summary of Contents for PreView WS6010

  • Page 1 COLLISION ALERT SYSTEMS APS-SUPPLY.COM WorkSight® PreView® WS6010/WS6015/WS6020 Operating Manual APS USA APS: Singapore APS Australia 610 Gateway Center Way, Suites J & K Colombia U48 / 9 Vision Street, San Diego, CA 92102 USA Chile Wangara WA 6065 Australia Perú...
  • Page 2 COLLISION ALERT SYSTEMS APS-SUPPLY.COM FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3: Table Of Contents

    Sensor Power Connection ..............Aux. Output Electrical Connection ............Display Unit Installation ................Cable Installation ..................Initial System Power Up and Test ............PreView® Daily Maintenance ................Testing and Maintenance ................ Troubleshooting ....................Specifications ..................... Warranty Information ..................PreView® Configuration Options: ..............
  • Page 4: Product Description

    The WorkSight PreView Model WS6020 has a twenty foot (six meters) detection range, the WS6015 has a 15 foot detection range (4.5 meters), and the WS6010 has a 10 foot detection range (3 meters).
  • Page 5: Sensor/Antenna Description

    The operator display continuously monitors communication from the WorkSight PreView sensor and in the event of a system failure or malfunction, will notify the operator with a fault indication. A switch* is provided on the front panel of the display allowing the vehicle operator the ability to adjust the buzzer volume to three different levels or to provide an alarm acknowledge and silence the buzzer.
  • Page 6 COLLISION ALERT SYSTEMS APS-SUPPLY.COM Figure 2. Operator Display Item Description Illuminates green continuously after power is applied to the system. Status LED The status will change from green to red if a system malfunction occurs. Illuminate to give operator a relative distance measurement to the Range Indications closest detected object.
  • Page 7: Object Detection Capability

    Any energy that strikes an object reflects a certain amount of this energy back to the PreView sensor. If the returned energy is of sufficient magnitude, it is used to indicate object presence and determine the object’s distance.
  • Page 8 COLLISION ALERT SYSTEMS APS-SUPPLY.COM Figure 3. Object Reflection APS USA APS: Singapore APS Australia 610 Gateway Center Way, Suites J & K Colombia U48 / 9 Vision Street, San Diego, CA 92102 USA Chile Wangara WA 6065 Australia Perú P: 1 619 263 4164 P: 61 (8) 9302 2369 Brasil www.aps-supply.com...
  • Page 9: Installation Instructions

    36” (1M) +/- 12” (0.3M) above the ground. The sensor face should be perpendicular to the ground with the “PreView” graphic in normal position. Select a location that will provide some protection from impact and debris while allowing an unobstructed view of the target hazard area.
  • Page 10: Sensor Power Connection

    This will allow the operator view of the display while also looking out one of the side mirrors. The WorkSight PreView display unit comes equipped with a mounting bracket and hardware. If desired, the display unit can be mounted to the display bracket with the supplied hardware.
  • Page 11: Initial System Power Up And Test

    COLLISION ALERT SYSTEMS APS-SUPPLY.COM Routing of the cable should start at the sensor. Allow for a small service loop in the cable at the sensor and secure the cable every few feet (~1M) with tie wraps. When ready to enter the cab, drill a 1” (24mm) hole and feed the display connector through.
  • Page 12: Preview® Daily Maintenance

    Detach this page and place with daily operator maintenance procedures. Safety Message to Operators of Vehicles with PreView Systems 1. The PreView system is intended as an Object Detection System and should not be relied upon as your first line of defense for the safe operation of the vehicle.
  • Page 13 COLLISION ALERT SYSTEMS APS-SUPPLY.COM 7. The assistant should continue walking through the area at the rear of the vehicle while the operator notes the area that detection occurs. 8. Next, walk from the center of the rear of the vehicle straight back, away from the vehicle.
  • Page 14: Troubleshooting

    COLLISION ALERT SYSTEMS APS-SUPPLY.COM Troubleshooting Display Status LED is not illuminated: • Verify that DC power (9-33V) is applied to the sensor. • Verify that the cable between the sensor and display is connected. Display Status LED is RED • Check connection between display and sensor.
  • Page 15: Specifications

    COLLISION ALERT SYSTEMS APS-SUPPLY.COM Specifications SENSOR SPECIFICATIONS (Typical) Transmitter: Pulsed RF transmitter at 5.8GHz operating under FCC Part 15.249 Electronics: Solid state Connector: Deutsch DT06-08SA-E008 Sealing: Encapsulated to protect from dust and moisture, designed to meet IP67. Housing Material: Polycarbonate radome Dimensions: 4.4”H x 10.5”W x 1.4”D (11.2cm x 26.7cm x 3.6cm) Weight:...
  • Page 16: Warranty Information

    COLLISION ALERT SYSTEMS APS-SUPPLY.COM Warranty Information MANUFACTURER STANDARD LIMITED WARRANTY AND LIMITATION OF LIABILITY Manufacturer warrants that on the Date of Purchase this Product will conform to Manufacturer’s published specifications for the product, which are available from Manufacturer on request, and Manufacturer warrants that the product is free from defects in materials and workmanship.
  • Page 17: Preview® Configuration Options

    PreView® Safety Alert System – The PreView Radar Sensor detects an object in the blind spot. Once the object is detected, PreView triggers the back-up alarm to either increase the sound of the alarm OR change the beep rate to alert pedestrians outside of the vehicle of the danger.
  • Page 18 COLLISION ALERT SYSTEMS APS-SUPPLY.COM NOTES APS USA APS: Singapore APS Australia 610 Gateway Center Way, Suites J & K Colombia U48 / 9 Vision Street, San Diego, CA 92102 USA Chile Wangara WA 6065 Australia Perú P: 1 619 263 4164 P: 61 (8) 9302 2369 Brasil www.aps-supply.com...
