ZaapTV HD709N Instruction Manual

Iptv media player.
Hide thumbs

Advertisement

HD709N
INSTRUCTIONS MANUAL
IPTV MEDIA PLAYER
www.zaaptv.com

Advertisement

Table of Contents

   Related Manuals for ZaapTV HD709N

No related manuals

   Summary of Contents for ZaapTV HD709N

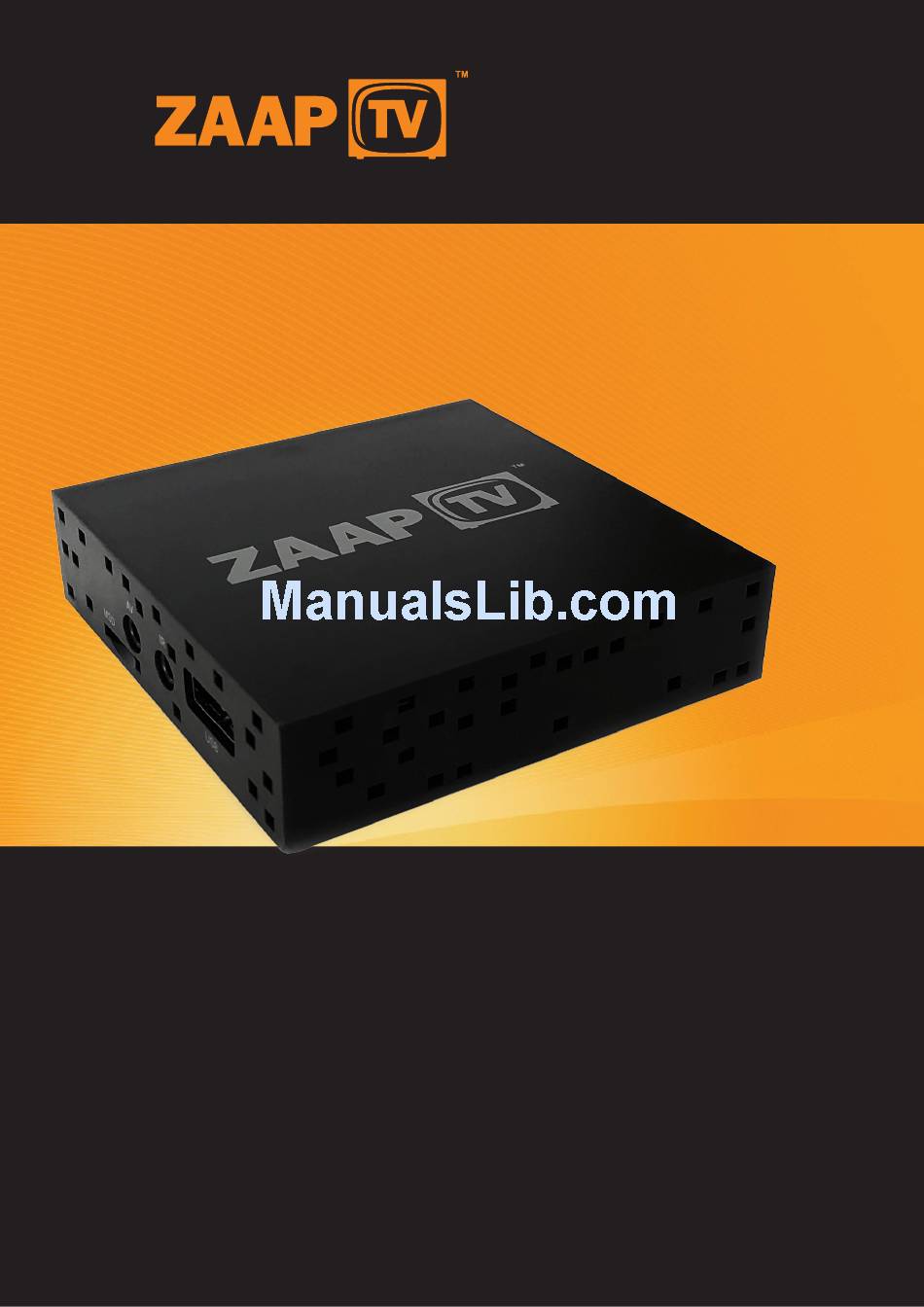

  • Page 1: Cover

    HD709N INSTRUCTIONS MANUAL IPTV MEDIA PLAYER www.zaaptv.com...
  • Page 2: Table Of Contents

    HD709N 2. Contents 1. Cover 2. Contents 3. Safety Information 4. Device Introduction 5. Connecting your Device 6. Setting up your Device 7. Basic Operations 8. Troubleshooting...
  • Page 3: Safety Information

    IMPORTANT SAFETY CONSIDERATIONS The ZaapTV™ HD709N set-top box requires careful handling to avoid potential dam- age to its internal parts. Be sure to follow these requirements during transportation and installation. The plug is the main disconnect device. It shall remain readily acces- sible and operable.
  • Page 4 Do not place anything on top of your set-top box, especially other home entertainment components. Be sure to provide adequate ventilation to prevent overheating. Install ZaapTV™ HD709N on a hard flat surface not prone to vibration or impact • and not on top of another electronic device Do not install near any heat sources such as radiators, heat registers, stoves, or oth- •...
  • Page 5 • To prevent the temporary loss of guide data and cause a temporarily non-respond- • ing ZaapTV™ HD709N, do not plug the AC power cord into a switched power out- let. FCC COMPLIANCE Note: This equipment has been tested and found to comply with the limits for a Class B digital device, un- der part 15 of the FCC Rules.
  • Page 6 HD709N junction with any other antenna or transmitter. CARING FOR THE ENVIRONMENT BY RECYCLING When you see this symbol on a ZAAPTV™ product, do not dispose of the product with residential or commercial waste. Recycling your ZAAPTV™ Equipment Please do not dispose of this product with your residential or commercial waste.
  • Page 7: Device Introduction

    INSTRUCTIONS MANUAL 4. Device Introduction We congratulate you on receiving this ZaapTV™ HD709N High-Definition All-Digital set-top box, one of the most compact and advanced interactive digital IPTV set-top boxes available today. ZAAPTV™ has combined the extraordinary features of IPTV — the interactive programming guides, almost endless programming options, Video on Demand (VOD), the incredible sound and picture quality of High-Definition TV (HDTV), and so much more.
  • Page 8 HD709N Features Video format support: H264, H265 up to 1080p ,H.265(10bit), H.264 AVC, H.264 MVC, MPEG-1, MPEG-2, MPEG-4 ASP, VC-1, AVS, MKV, WMV, MPG, MPEG, DAT, AVI, MOV, ISO, MP4, RM Audio format support: MP3, AAC, WMA, RM, FLAC, Ogg.
  • Page 9 INSTRUCTIONS MANUAL PANEL INFORMATION Power DC Input LAN/Ethernet Port HDMI 2.0 Port microSD Card Input A/V Out IR Out USB Port Remote Details REMOTE INFORMATION Power ON/OFF Reserved for future use Mute Home Button OK/Enter Button Menu Button TV Control Buttons Reserved for future use Volume UP/DOWN Back Button...
  • Page 10: Connecting Your Device

    1. Make sure you’re connected to the In- ternet without any problem (either with a router or a modem). 2. Plug in the power adapter of the HD709N set-top box to the nearby power outlet. 3a. Connect the network cable from the set-top box to the router.
  • Page 11: Setting Up Your Device

    1. Make sure you’re connected to the In- ternet without any problem (either with a router or a modem). 2. Plug in the power adapter of the HD709N set-top box to the nearby power outlet. 3a. Connect the network cable from the set-top box to the router.
  • Page 12: Basic Operations

    WiFi, you will be prompted to select your network and enter your router’s pass- word. After you finish these 5 easy steps. your device will be ready to use! Prepare to enjoy Live TV and more with your new ZaapTV™ HD709N Set-top-box. 7. Basic Operations Turning Power On and Off Plug in the supplied power adapter to the electrical outlet and to the back of your set- top-box or use a remote control to turn it on or off.
  • Page 13: Troubleshooting

    INSTRUCTIONS MANUAL 8. Troubleshooting Before calling your service provider, review this troubleshooting guide. This informa- tion is to help you quickly solve a problem. If your problem still exists, contact your service provider. PROBLEM POSSIBLE SOLUTION The set-top box may have received a software update and may not power on while the new software is being installed.
  • Page 14 HD709N PROBLEM POSSIBLE SOLUTION Verify that the mute button on the set-top box or the remote control has not been pressed. Press mute on the remote control to restore sound. • If the set-top box audio output is connected to the TV, verify that the mute button on the TV has not been pressed.
