Owner's Manual
Main Features
NiMH & NiCd Battery Compatible Charger x2
Input Voltage
................................. DC12V
Battery Voltage (cells)
........................1.2 ~ 14.4v
( 1 ~ 12 cells )
Battery Capacity
....... 270 ~ 6000mAh
Charge Amperage
....................... 0.3 ~ 9.9A
LCD Display Modes
..................... Voltage
.............. Amperage
.................. Capacity
........................... Temp
Charge Modes
.........Yokomo Charge
............... Peak Charge
............... Temp Charge
Built-in Cooling Fan

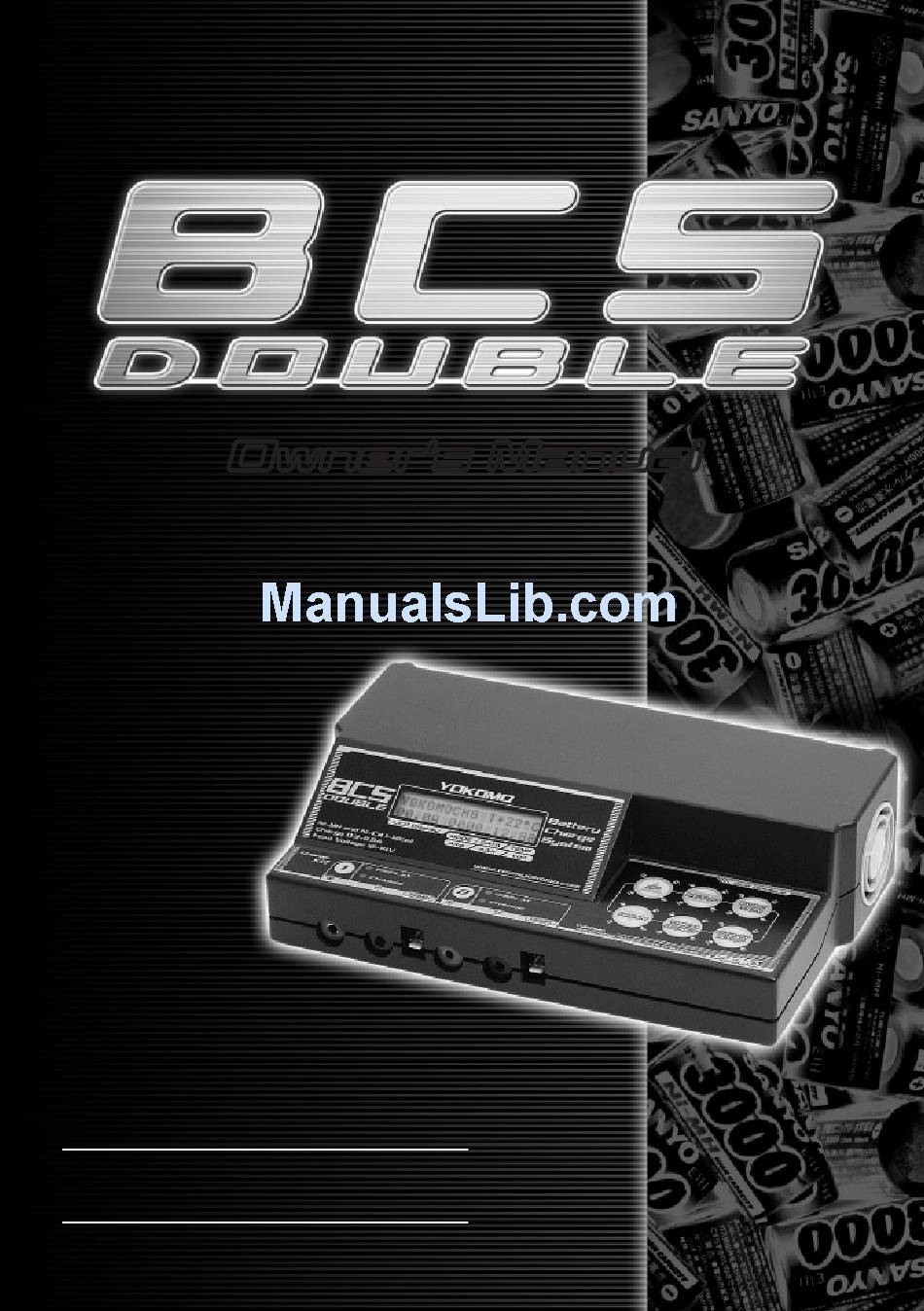

BCS DOUBLE
Owners Manual
2002.1.15
Advertisement
Table of Contents
Related Manuals for Yokomo BCS DOUBLE
Summary of Contents for Yokomo BCS DOUBLE
- Page 1 Battery Capacity ..270 ~ 6000mAh Charge Amperage ....... 0.3 ~ 9.9A LCD Display Modes ..... Voltage ....Amperage ....Capacity ......Temp Charge Modes ..Yokomo Charge ....Peak Charge ....Temp Charge Built-in Cooling Fan BCS DOUBLE Owners Manual 2002.1.15...
-
Page 2: Specifications
★ Two separate charge circuits installed. Capable of charging two batteries using separate charge mode settings. ★ In addition to the newly developed Yokomo Charge Mode (for maximum battery power), Temp Charge Mode (for temperature controlled charging) and standard Delta Peak Charge Modes are also available. - Page 3 Descriptions Input Power Cable (Red = +) LCD Display Input Power Cable (Black = -) Cooling Fan Battery Connector （※ 2） Operating Buttons Temperature Sensor Battery (Not included) Temperature Sensor Plug Battery Connecting Cord (Red = +) Battery Connecting Cord (Black = -) Read before using A protective film has been applied to the display panel and button pad areas when shipped from the factory.
-
Page 4: Basic Operation
Basic Operation Button Functions Precaution To prevent multiple commands, the keypad buttons will not respond by pressing lightly. Press the button for about 0.5~1 second. Each button is used for both the Main Screen and Setting Mode. SETUP MODE SETUP TIMER Functions: CHANGE DISPLAY Use to set the... -
Page 5: Display Information
Display Information Opening Screen (After power input) ※ The VX.XX displayed in the upper right-hand corner of the screen is the firmware version number, Automatic screen change Charge System ① Main Screen Setting Mode Charging Charge System ② Main Screen Setting Mode Charging... -
Page 6: Charge Settings
Charging Charge Settings Setting Procedure The BCS DOUBLE has many settings to provide safe, accurate charging. Always confirm your charge settings before charging. Changing screens ★ Set the settings for Charge Systems ①② . Press the FUNCTION button to change screens between Charge Systems ①②... -
Page 7: Charge Mode
This charge mode is suited for practice batteries and receiver battery packs. YOKOMOCHG Yokomo Charge [Pulse Mode] Specially developed for racing use, this revolutionary pulse charging method allows batteries to be charged for high voltage and run-time without causing any damage to the battery cells. - Page 8 Charge Cut-off Temperature (Safe Charge Setting) Always set the Charge Cut-off Temperature to prevent overcharging. Charging will stop when the battery reaches the set temperature value. Recommended Nickel Metal Hydride : 42℃ Setting Values Nickel Cadnium : 45℃ Charge Amperage Use a Charge Amperage setting best suited for your batteries.
- Page 9 Delta Peak Cut-off Voltage Pressing the TIMER/RESET button while in the Charge Setting mode will displat the Delta Peak Voltage Cut-off setting screen. Press the START/STOP button to return to the main Charge Setting screen. Use a Delta Peak Cut-off Voltage value best suited for your batteries.
-
Page 10: Preparing To Charge
Preparing to Charge Connecting the power cables Connect to power supply (Red = Positive) Connect the power cables to a power supply (stable power supply rated above 12V 14A). Connect to power supply The LCD display will light up when powered. (Black = Negative) Connecting the battery Attach the included battery cables to the plugs... -
Page 11: Charge Complete
Charging Charging Make sure that the display has returned to the Main Screen. (Same screen as when first powered) Changing Screens Press the FUNCTION button to view the screens for Charge System ①② . The green LED lamp on the front panel will indicated which screen is being displayed. -
Page 12: Timed Charging
Re-Peaking Re-Peaking the batteries before running will help obtain additional battery power. Make sure to clear the data from the previous charge before Re-Peaking. Pressing the TIMER/RESET button will clear the data. Press the START/STOP button to start charging once more. Re-Peaking the battery is the process of charging the battery once more after it has already been charged. - Page 13 Q & A Troubleshooting Nothing displayed on screen A. Problem with power supply..Not enough current coming from power supply A. Bad connection......Improperly connected or deteriorated connector A. Malfunction......Possible blown fuse (internal) or damage due to power/battery cords connected in reverse Incorrectly displayed on screen ...
