ME6000 - Introduction
This manual is to provide information to work with the ME6000 Data Logger (MegaElectronics,
current Bittium) in Aalto Behavioral Laboratory (ABL). Further information can be found from the
ME6000 Manuals and web page
https://www.bittium.com/products__services/medical/bittium_biomonitor_me6000.
Contact ABL personnel in any trouble.
Biomonitor ME6000 is a portable telemetry and data logger at 100 / 250 / 1000 / 2000 / 10000 Hz.
Several different sensors can be connected to data logger; currently there are EMG, GSR, ECG
and Accelerometer sensors in ABL.
1 System setup
This chapter explains the components and wiring of ME6000 Data Logger.

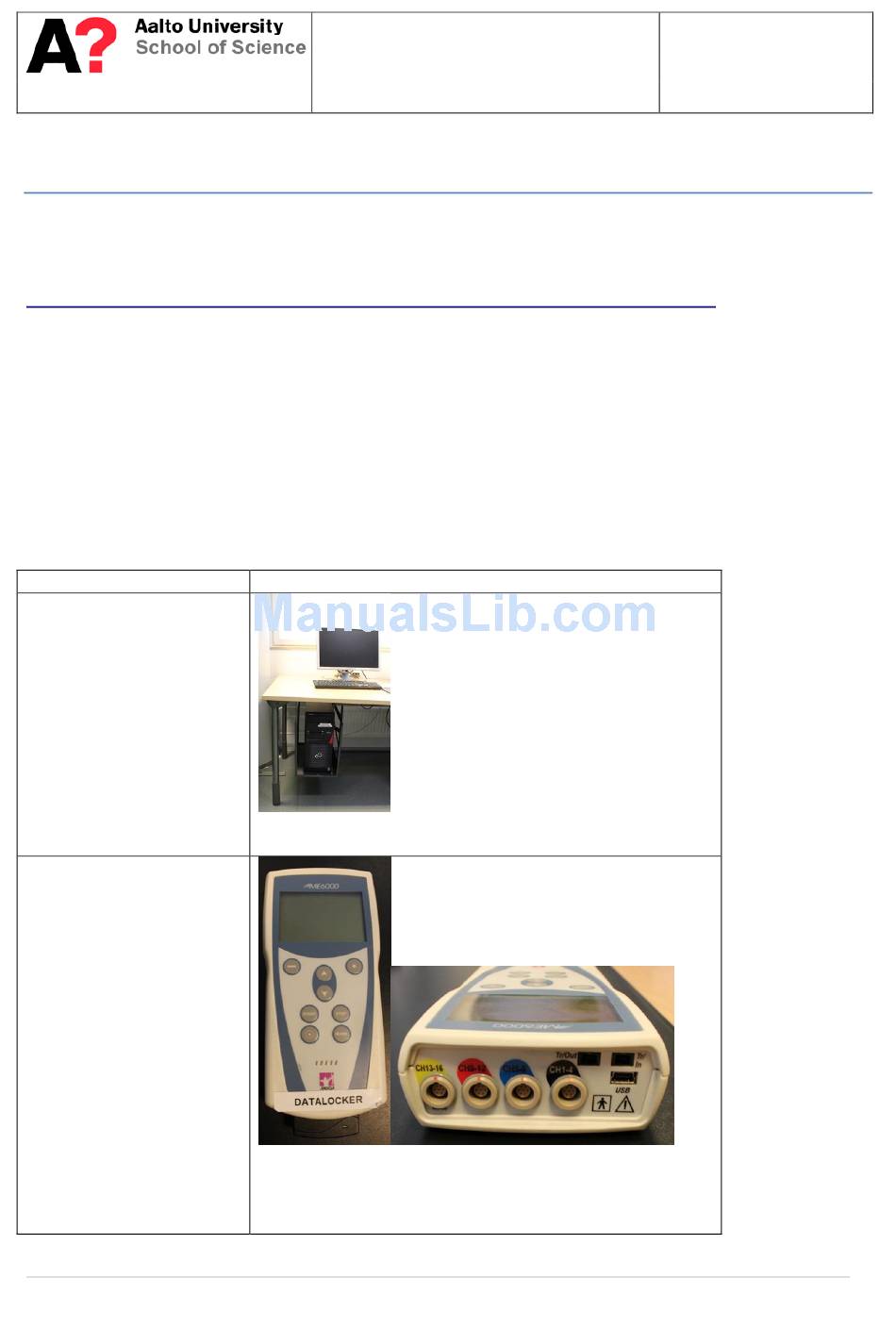

1.1) Components
Component
Biomonitor PC
ME6000 - DataLogger
'Aalto University
School of Science
Aalto Behavioral Laboratory
Aalto Behavioral Laboratory
Introduction to ME6000 Data Logger
Image, details
BIOMONITOR
Fujitsu, Celsius
DATALOGGER
ME6000, Muscle tester, Mega Electronics
MT-M6TIG-0-10EN
S/N: Z2008078
Postal Address
P.O. BOX 13000
00076 AALTO
1/13
Street Address
Otakaari 5 I
Espoo
Author, date: Veli-Matti
Saarinen,0311.2017
Contacts
+358 (0)50 4371613
abl-sci@aalto.fi

Advertisement

loading
Need help?

Need help?

Do you have a question about the ME6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Mega Electronics ME6000

Summary of Contents for Mega Electronics ME6000

  • Page 1 Contact ABL personnel in any trouble. Biomonitor ME6000 is a portable telemetry and data logger at 100 / 250 / 1000 / 2000 / 10000 Hz. Several different sensors can be connected to data logger; currently there are EMG, GSR, ECG and Accelerometer sensors in ABL.
  • Page 2 Aalto Behavioral Laboratory Operation Instruction ME6000 GSR sensor Mega Electronics EMG sensor x 16 Mega Electronics ECG sensor WBA-1-ECG, Mega Electronics ECG A375 Accelerometer Mega Electronics Ltd 3-Axismodel 3G 10G Analog isolator DATALOGGER – ANALOG ISOLATOR Mega Electronics Model: ME 3750-ISO-1...
  • Page 3 Aalto Behavioral Laboratory Operation Instruction ME6000 Resistors 100k 300k TP-LINK Model: TZ-WN620G S/N: 07215001932 2+2 Adapter Mega Electronics 800988 3/13...
  • Page 4 Aalto Behavioral Laboratory Operation Instruction ME6000 1.2) Wiring 1.3) ME6000 details Mega Electronics (Bittium) ME6000 Channels Sampling rate 100 / 250 / 1000 / 2000 / 10 000 Hz On-line monitoring USB / WiFi Portable Dimensions 181 x 85 x 35 mm...
  • Page 5 Aalto Behavioral Laboratory Operation Instruction ME6000 1.4) Consumer products Electrodes, alcohol wipes and other consumer products can be found from the AC Shelf. 2 Biomonitor PC Turn on Biomonitor PC and choose dataloggeruser (ask password from personnel). Run MegaWin software as administrator from the desktop icon MegaWin (Click the mouse right click, and then choose “Run as administrator”).
  • Page 6 Notice that the 2+2 adapter takes over 2 channels even though the sensor (for example GSR and ECG) would use only one signal line. For example GSR can be connected through the 1-2 channels of adapter to 1-4 port in ME6000. Then the signal is seen on channel 1, plus channel 2 is blocked.
  • Page 7 Aalto Behavioral Laboratory Operation Instruction ME6000 Image 1: GSR-sensor connected to ME6000 through datalocker on channel 1 After defining the setup, you can close the window (no saving needed). 2.2) Protocol Click “Protocol” icon. Choose protocol for your experiment from the dropdown menu on the top left.
  • Page 8 Aalto Behavioral Laboratory Operation Instruction ME6000 Protocol editor window. Measuring type, online monitoring and maximum duration for recording can be set. Notice that recording stops automatically when the max duration is achieved, but you can stop it anytime by manually.
  • Page 9 Close window. 3 Setting up ME6000 ME6000 works with 4 AA batteries. If you want to monitor the data stream in on-line, use USB ca- ble labeled ME6000. (WiFi option doesn’t work in ABL). Check from the system setup that ME6000 is detected.
  • Page 10 ME6000 can handle simultaneously 16 channels of sensors. The device had 4 input ports, where each port can receive 4 line signals. Different sensors can either be connected directly to ME6000 like EMG, or through 2+2 adapter (like GSR or ECG). Notice that 2+2 adapter doesn’t handle sin- gle channels but a duel.
  • Page 11 Cleaning: After the use, clean the sensor using a water and mild soap with dampened cloth. 6.1.1 Calibration Resistors (100kOhm and 300 kOhm) can be used to calibrate the system. Detailed guide for calibration procedure can be found from “800576-1.1, ME6000 sensor guide for MegaWin”. Image 2: 100kOhm and 300 kOhm resistors.
  • Page 12 Aalto Behavioral Laboratory Operation Instruction ME6000 Read more about the EMG electrodes and their placements from “800411 ME6000 user manual rev101” chapter “4 EMG Measurement”. 6.3) ECG Records electrical activity of the heart. Electrodes detect tiny electrical changes on the skin that arise from the heart ...
  • Page 13 Image 3: ECG signal on MegaWin software 6.4) Accelerometer Measures acceleration changes in free movement. Produces three line signals. Connect the device directly to the ME6000. Attach the sensor with a tape or belt to the subject. 7 Data analysis 7.1) Exporting data...
