Aeware in.k600 Manual

Techbook
Hide thumbs Also See for in.k600:

Advertisement

Table of Contents

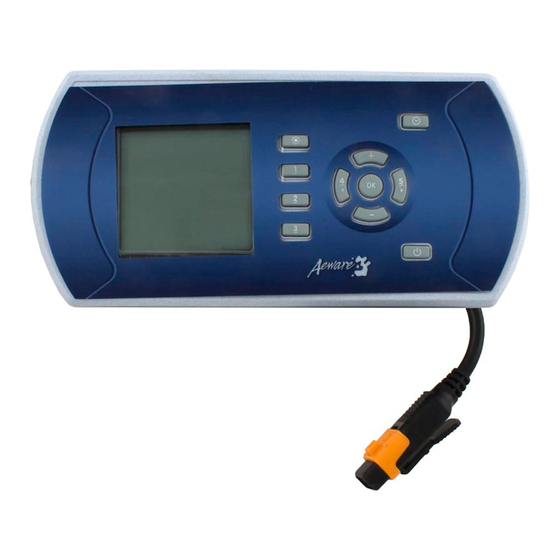

in.k600
™
series of full-function keypads
with streamlined interfaces
TechBook
Giving full control to wet fingers!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the in.k600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aeware in.k600

Summary of Contents for Aeware in.k600

  • Page 1 ™ series of full-function keypads with streamlined interfaces TechBook Giving full control to wet fingers!

  • Page 2: Table Of Contents

    Table of contents overview..................3 warning....................4 function.description............... 5 icon.description................7 installation -.low.profile................10 -.drilling.templates..............11 connections..................12 functions..................13 specifications................. 18...

  • Page 3: Overview

    ™ Advance series of full-function keypads that gives complete control to wet fingers! With.its.stunning.design,.Aeware’s®.in.k600™.series.of.advanced. keypads.are.in.xm’s™.ultimate.user.interface..They.feature.a.low. profile.with.a.large.LCD.displays,.streamlined.interfaces.that.let. users.easily.control.all.in.xm™.functions.and.programming.directly. from.spa.side,.creating.a.true.and.unique.Aeware®.user.experience. directly.from.spa.side.

  • Page 4: Warning

    WARNINGS: Before.installing.or.connecting.the.unit,. please.read.the.following. •.The.gasket.on.the.back.of.the.unit.will.prevent.water.infiltration. FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS MAY inside,.behind.the.mounted.surface..If.the.gasket.is.damaged,. SIGNIFICANTLY SHORTEN THE PRODUCT’S LIFE TIME, AND the.user.must.seal.the.back.of.the.unit.with.silicone.to.avoid.any. LEAD TO FAILURES AS WELL AS HAZARDOUS CONDITIONS*. leakage.behind.the.mounted.surface. COMMON SENSE MUST ALWAYS PREVAIL WHEN EVALUATING THE INSTALLATION AND/OR USE OF ANY ELECTRONIC CONTROL IN A FINAL APPLICATION.

  • Page 5: Function.description

    "Plus".Key "Light".Key "Ok".Key "Program".Key "Right".Key "Left".Key "Pump".Keys "Economy. "Minus".Key "On/Off".Key Mode".Key...
  • Page 6 "Plus".Key "Light".Key "Ok".Key "Program".Key "Pump"/. "Right".Key "Pump".Keys "Pump"/ "Minus".Key "On/Off".Key "Left".Key...

  • Page 7: Icon.description

    Light.icon Blower.icon Pump.icons AM/PM.(˚F/.˚C) Time,.temperature &.message.digits Set.point.icon Progress.bar.icon Service.icon Program.icon Heating.icon Filtering.icon Economy Smart.winter mode.icon mode.icon...
  • Page 8 Icon Description Light icon The."Light".icon.lights.up.when.the.light.is.on..The.icon's.number.of.rays.is.proportional.to. the.light's.intensity. Pumps icons The."Pump".indicator.numbers.light.up.and.their.icons.become.fast.animated.when.pumps. are.in.high.speed,.slower.animated.icons.when.pumps.are.in.low.speed. Blower icon The."Blower".indicator.icon.become.animated.when.blower.is.on. Service icon A.problem.has.been.detected..Do.not.enter.the.water!.Spa.service.is.required. Smart winter mode icon The."SWM".icon.automatically.turns.on.when.freeze.protection.is.active... It.flashes.while.system.purges.the.spa.plumbing. Economy mode icon The."Economy".icon.lights.up.when.filter.cycle.is.on Filter Cycle icon The."Filter.Cycle".icon.lights.up.when.filter.cycle.is.on..It.flashes.when.filtering.is.suspended.
  • Page 9 Icon description Heater icon The."Heater".icon.lights.up.when.the.heater.is.on. Progress bar A.visual.indication.of.the.time.remaining.before.an.equipment.is.turned.off.or.before.the. end.of.the.standby.mode. Set Point icon The."Set.Point".icon.automatically.turns.on.when.set.point.setting.menu.is.activated.. (SP.message.on.display)...It.flashes.when: 1-.there.is.a.call.for.heat.and.heater.has.not.started.yet, 2-.heater.has.just.turned.off.and.element.is.cooling.down.or 3.-.if.system.is.performing.a.check.flow.. Program icon The."Program".icon.lights.up.when.Programming.

  • Page 10: Installation . -.Low.profile

    Installation in.k600™ low profile Gasket.with.or.without. adhesive 3.750" Optional. wing.nuts.and. spacers To.install.the.in.k600™.low.profile,.use.the.drilling.template. provided.in.this.section..Determine.the.mounting.location.and. stick.the.template.on.chosen.location..The.user.must.cut.out.a. rectangular.shape.opening.of.7 .250".by.3.750".according.to.the. template.(see.illustration). Clean.the.installation.surface.and.peel.the.adhesive.gasket.from.the. back.of.the.keypad.. Insert.keypad.and.align.it.correctly,.then.ensure.it's.properly.glued. by.gently.pressing.evenly.on.the.entire.surface.

  • Page 11: Drilling.templates

    184.15 mm 7.250" 180.98 mm 7.125" 90.49 mm 3.563" 15.88 mm ø 0.625" TYP. 2X 95.25 mm 3.750" 47.63 mm 1.875" 4.76 mm 92.08 mm R 0.188" TYP. 4x 3.625"...

  • Page 12: Connections

    Connecting in.k600™ keypad to in.xm™...

  • Page 13: Functions

    On/Off key Pump 1 key Pump 2 key Depending.on.the.spa.manufac- In.order.to.warn.the.user,.the. Press.Pump 1 key.to.turn Press.Pump 2 key.to.turn turer,.this.key.may.have.differ- spa.light.will.flash.for.a.few. Pump.1.on.at.low.speed. Pump.2.on.at.low.speed. ent.functions:.On/Off,.Standby. seconds.before.the.exit.of. mode.or.quick.enable.of.the. Standby.mode.and.restart.the. Press.a.second.time.to.turn. Press.a.second.time.to.turn. Economy.mode. pumps..The."Stby".message.is. pump.to.high.speed.(with.a. pump.to.high.speed.(with.a. also.displayed.during.Standby. dual-speed.pump). dual-speed.pump). Standby Mode :.Use.On/Off. mode. key.to.pause.all.pumps*..
  • Page 14 Pump 3/Blower key Light key +/- keys Program key Press.Pump 3/Blower.key.to. Press.Light.key.to.turn.light.on.at. Use.( ) or.( ).key.to.set.desired. Use.Program key.to.display. turn.Pump.3/Blower.on. high.intensity. water.temperature..The.tempe- time.or.enter.Programming. rature.setting.will.be.displayed. menu.by.pressing.and.holding. Press.a.second.time.to.turn. Subsequent.presses.change.. for.5.seconds.to.confirm.your. key..In.Programming.mode,.. pump.off.. light.intensity. new.selection. the.following.parameters.can. be.set:.time,.filter.cycle's.start. A.built-in.timer.automatically. A.last.press.turns.light.off. The."Set.Point".icon.indicates. time,.duration.and.frequency,. turns.pump.off.after.20.min- that.the.display.shows.the.
  • Page 15 Setting the time Setting filter cycle start time Setting filter cycle duration Filter cycle frequency To.program.the.filter.cycle,.you. Press.Prog..key.a.fourth.time. Press.Prog..key.a.fifth.time. Enter.Programming.mode.by. must.enter.these.parameters:. holding.Prog..key.pressed. Fdxx the.start.time,.duration.and. The.display.will.show. The.display.will.show.FFxx,.with. down.for.3.sec..The.display.will. frequency..During.a.filter. with."xx".representing.the. "xx".representing.the.number.of. show.the.current.time.setting. cycle,.pumps.run.for.one.min- duration.in.hours. filter.cycles.per.day.(up.to.4). ute.to.purge.the.plumbing,. Setting the hour: then.Pump.1.runs.for.the.
  • Page 16 Setting Economy mode Setting Economy start time Setting Economy duration To.program.the.Economy. The.Economy.mode.allows.you. Press.Prog..key.an.eighth.time. When.in.Economy.mode,.the. mode,.you.must.enter.two to.lower.the.temperature.set. “Econ”.message.is.displayed. parameters:.the.start.time.and. Edxx point.of.the.spa.by.20.°F The.display.will.show. the.duration. (11.°C).during.a.certain.period with."xx".representing.the. of.the.day. duration.in..hours. Press.Prog..key.a.seventh.time. Press.Prog..key.a.sixth.time. Use.( ) or.( ).key.to.change. ESxx The.display.will.show. setting. with."xx".representing.the. Use.( ) key.to.enable.the.
  • Page 17 Setting temperature unit Water temperature regulation Cooldown Smart Winter Mode In.a.regulation.cycle,.the.system. While.performing.these.tasks,. Water.temperature.can.be. Our.Smart.Winter.Mode. first.generates.water.flow. the.heater.is.not.allowed.to. displayed.in.either.Fahrenheit. protects.your.system.from. through.the.heater.housing. turn.on.and.its.icon.flashes.. (˚F).or.Celsius.(˚C). the.cold.by.turning.pumps.on. and.the.plumbing,.in.order. The.heater.is.not.allowed.also. several.times.a.day.to.prevent. to.ensure.accurate.water. to.come.on.throughout.the. Press.Prog..key.an.nineth.time. water.from.freezing.in.pipes. temperature.readings.as.well.as. cool.down.period.of.the.heater. avoiding.heater.activation.in.dry. element. The.display.will.show.either conditions.. ˚F.or.˚C. After.verifying.pump.activation. Use.( ) or.(...

  • Page 18: Specifications

    General specifications: Environmentals: Storage temperature: 85°C.(185°F).to.-30°C.(-22°F). Operating temperature: 65°C.(149°F).to.-20°C.(-68°F) Humidity: up.to.95%.condensing Mechanical Specs: Weight: 0.4763.Kg.(1.05.lbs) Dimensions (W.x.H.x.D): Front.panel Low Profile: 8.726".x.4.227".x.0.200" Standars: . IP.ratings.IPX6 Specifications and design are subject to change without prior notice.
  • Page 19 100%...
  • Page 20 Advanced electronics! Water resistance! Gecko Alliance 9919-100665 450 des Canetons, Quebec City (QC) G2E 5W6 Canada, 1.800.78.GECKO Rev. 12/10 9225 Stellar Court, Corona, CA 92883 USA, 951.667 .2000 © 2010 Groupe Gecko Alliance Inc. www.geckoalliance.com TM trade-marks of/marques de commerce de Groupe Gecko Alliance Inc.
