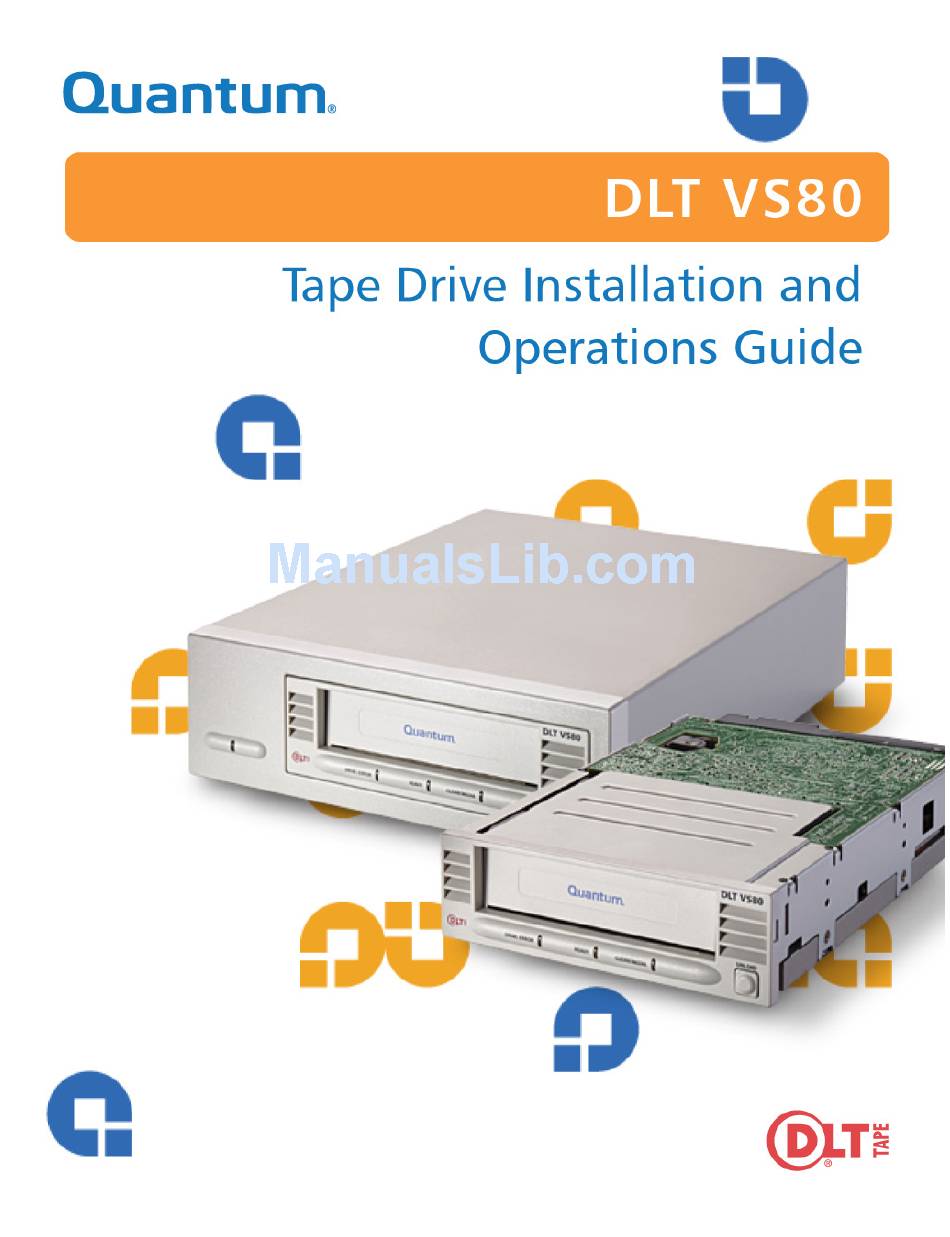

Quantum Tape Drive DLT VS80 Installation And Operation Manual

Quantum dlt vs80 tape drive installation and operations guide
Hide thumbs Also See for Tape Drive DLT VS80:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference, User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tape Drive DLT VS80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quantum Tape Drive DLT VS80

Summary of Contents for Quantum Tape Drive DLT VS80

  • Page 2: Contact Information

    Copyright © 2004 by Quantum Corporation. All rights reserved. Document Origination: Boulder, Colorado, USA. Trademarks Quantum, the Quantum logo, and the DLTtape logo are trademarks of Quantum Corporation, registered in the U.S.A. and other countries. DLTtape, DLTSage, Value DLTtape, and Super DLTtape are trademarks of Quantum Corporation.

  • Page 3: Revision History

    Updated logo and product name May 4, 2001 Edits per Jeff Faucet July 20, 2001 Updated internal unit mounting to include screw length May 12, 2004 Converted to FrameMaker, using the Quantum template and style guide per ECO C009631 May 2004...
  • Page 4 Notes May 2004 001596-01 Rev A07...

  • Page 5: Table Of Contents

    Introduction ........1-1 Purpose and Scope.
  • Page 6 Table of Contents Setting the SCSI ID............3-4 Connecting the Cables .
  • Page 7 DLT VS80 Installation ....... . 3-1 Figure 3-1. Tabletop Tape Drive Rear Panel Layout........3-4 Figure 3-2.
  • Page 8 List of Figures Notes viii May 2004 001596-01 Rev A07...
  • Page 9 DLT VS80 Installation ....... . 3-1 Table 3-1. Selecting the SCSI ID........... 3-11 Table 3-2.
  • Page 10 List of Tables Notes May 2004 001596-01 Rev A07...

  • Page 11: Introduction

    Purpose and Scope This Installation and Operations Guide is a comprehensive source of information about the DLT VS80 tape drive (internal and tabletop). This manual provides all the information you need to install and use your internal tape drive or tabletop tape drive.

  • Page 12: Conventions Used In This Manual

    Quantum’s reliable data protection products, call 1-800-624-5545 in the U.S.A. and Canada. Reader Comments Quantum is committed to providing the best products and service. We encourage your comments, suggestions, and corrections for this manual. Please send all comments to this address: Quantum Technical Publications 4001 Discovery Dr.

  • Page 13: Product Information

    This chapter introduces the DLT VS80 tape drive and provides a general overview of the product. DLT VS80 Tape Drive Overview Your Quantum DLT VS80 tape drive is a value-priced, high-reliability, high-capacity linear streaming data cartridge tape drive designed for use on entry- to mid-range computing platforms. With a...

  • Page 14: Capacity

    The tape drive is read-compatible with the DLT4000 tape drive format using DLTtape IV data cartridges. For current information on operating system, application, and tape driver compatibility, visit www.quantum.com 2.2.6 Firmware Update Capability The DLT VS80 includes Flash EEPROM technology so you can make on–site firmware updates from tape or the Small Computer System Interface (SCSI) bus.

  • Page 15: Dlt Vs80 Installation

    This chapter explains how to configure and install your tabletop or internal tape drive. Follow the steps and instructions presented in this chapter to install and configure your tape drive. Preparing to Install Your Tape Drive This section helps you prepare to install your tabletop tape drive or internal tape drive. 3.1.1 SCSI Requirements Your DLT VS80 tape drive (tabletop and internal) incorporates a wide Ultra SCSI-2 SCSI bus, but you...

  • Page 16: Before You Begin

    Chapter 3: DLT VS80 Installation 3.1.2 Before You Begin Installing your DLT VS80 tabletop tape drive requires no special tools. You will need a ballpoint pen to change the SCSI ID switch on the rear panel of the tape drive. If you are installing a DLT VS80 internal tape drive, refer to page 3-10 for instructions.

  • Page 17: Selecting A Location For Your Tabletop Tape Drive

    With the tape drive still in the shipping box, reach under and around the tape drive, carefully lift it out of the shipping box, and place it on the work surface, top facing up. Do not stand the tape drive on either end.

  • Page 18: Setting The Scsi Id

    Chapter 3: DLT VS80 Installation 3.2.2 Setting the SCSI ID All SCSI devices attached to the server or workstation must have a unique SCSI ID. Check the SCSI IDs on all other devices on the selected server or workstation, including the SCSI host bus adapter, and select an unused SCSI ID for your tape drive.

  • Page 19: Connecting The Cables

    To set the SCSI ID on the tabletop tape drive, use a small screwdriver or ballpoint pen to press the button above the SCSI ID display to select the next lower SCSI ID. Press the button below the SCSI ID display to select the next higher SCSI ID.

  • Page 20: Figure 3-3. Tape Drive Scsi And Power Cable Connections

    Chapter 3: DLT VS80 Installation Connect one end of the SCSI cable to one of the connectors on the rear panel of your tape drive, as shown in Figure To next device To SCSI host bus adapter Figure 3-3. Tape Drive SCSI and Power Cable Connections Figure 3-3 drives in the illustration are at the end of the SCSI bus.

  • Page 21: Figure 3-4. Workstation Scsi Cable Connections

    : If the SCSI cable does not fit the connector on the SCSI host bus adapter, you either have an incompatible SCSI host bus adapter or you need to purchase a cable adapter. Contact Quantum Corporation or your SCSI host bus adapter manufacturer for information.

  • Page 22: Terminating Your Tabletop Tape Drive

    Chapter 3: DLT VS80 Installation Terminating Your Tabletop Tape Drive You must terminate the tape drive if it is the last physical device on the SCSI bus (at the end of the SCSI chain). If another SCSI device is the last device on the SCSI bus, confirm that it is properly terminated and do not terminate your tape drive.

  • Page 23: Completing The Installation

    3.2.4 Completing the Installation Secure all the SCSI cable connectors by tightening their screws until snug. Make sure the power switch on the rear panel of the tabletop tape drive is in the OFF position. See Figure 3-1 for reference. Attach the female connector on the power cable to the power connector on the rear panel of the tape drive.

  • Page 24: Installing Your Internal Tape Drive

    Chapter 3: DLT VS80 Installation Installing Your Internal Tape Drive This section contains step-by-step instructions for installing your DLT VS80 internal tape drive. Be sure to read through the entire section before beginning the installation. 3.3.1 Unpacking Your Internal Tape Drive First, clear a desk or table so that you can unpack your tape drive.

  • Page 25: Configuring Your Internal Tape Drive

    3.3.2 Configuring Your Internal Tape Drive The following sections explain how to configure your internal tape drive. Setting the SCSI ID All SCSI devices that are attached to the server or workstation must have a unique SCSI ID. Check the SCSI IDs on all other devices on the selected server or workstation, including the SCSI host bus adapter, and select an unused SCSI ID for your tape drive.

  • Page 26: Terminating Your Internal Tape Drive

    Chapter 3: DLT VS80 Installation Terminating Your Internal Tape Drive You must terminate the tape drive if: It is the only SCSI device—other than the SCSI host bus adapter—on the selected server or • workstation’s SCSI bus. It is the last SCSI device on the selected server or workstation’s SCSI bus. •...

  • Page 27: Installing Your Internal Tape Drive

    : If the SCSI cable that came with the SCSI host bus adapter already has a terminator built into it, do not use another terminator. An example of such a cable is shown in Figure 3-8. SCSI Cable with Built-in Terminator 3.3.3 Installing Your Internal Tape Drive In the final installation stages, you install your tape drive in the server or workstation and connect the...

  • Page 28: Figure 3-9. Remove The Workstation Cover (Example Shown)

    Chapter 3: DLT VS80 Installation Remove the cover from the server or workstation as described in the server’s or workstation’s manuals. See Figure 3-9 Figure 3-9. Remove the Workstation Cover (example shown) Locate an available 5¼-inch drive bay and remove the front cover from the drive bay as described in the server or workstation’s manuals.

  • Page 29: Figure 3-10. Tape Drive Installation In An Open Drive Bay

    Slide your tape drive into the open drive bay as shown in Figure 3-10. Tape Drive Installation in an Open Drive Bay : Install an LVD/SE SCSI host bus adapter in the selected server or workstation now, if necessary. For more information on SCSI host bus adapter requirements, see 001596-01 Rev A07 DLT VS80 Tape Drive Installation and Operations Guide...

  • Page 30: Figure 3-11. Scsi And Power Cable Location (Internal Tape Drive)

    3-16 bus adapter, you either have an incompatible SCSI host bus adapter or you need to purchase a cable adapter. Contact your Quantum sales representative or your SCSI host bus adapter manufacturer for information. “Terminating Your Internal Tape Drive” on...

  • Page 31: Figure 3-12. Securing The Internal Tape Drive In The Installation Bay

    Secure the tape drive with the mounting screws provided, either in the sides or bottom of the tape drive sled, as appropriate for the server or workstation chassis. See AUTION Figure 3-12. Securing the Internal Tape Drive in the Installation Bay : Some servers and workstations require mounting rails for internal devices.

  • Page 32: Testing Your Tape Drive

    Chapter 3: DLT VS80 Installation To complete the installation, follow these steps: Replace the cover on the server or workstation. Attach the power cables to the server or workstation and all attached accessories. Power on the server or workstation and allow its operating system to start. Check your tape drive to make sure it is working properly by following the steps in Tape Drive.”...

  • Page 33: Troubleshooting Your Tape Drive

    Troubleshooting Your Tape Drive This section provides both general troubleshooting guidelines and an LED-specific problem/solution table to help you troubleshoot your tape drive. 3.5.1 General Troubleshooting Guidelines If you have a problem when using the tape drive, first try to isolate the cause of the problem. For example, if you have just installed a new SCSI host bus adapter and the system will not start, the cause of the problem is likely to be the adapter.

  • Page 34: Table 3-2. Understanding Errors Indicated By Front Panel Leds

    Chapter 3: DLT VS80 Installation If the LEDs on the front panel act differently than described in page 3-18, the tape drive is not working properly. tape drive: Table 3-2. Understanding Errors Indicated by Front Panel LEDs Symptom None of the tape drive’s LEDs illuminate.
  • Page 35 Table 3-2. Understanding Errors Indicated by Front Panel LEDs (Continued) Symptom The host server or workstation does not recognize the tape drive. (continued...) There are fatal or non-fatal errors for which you cannot find the cause. 001596-01 Rev A07 DLT VS80 Tape Drive Installation and Operations Guide Problem Solution The SCSI bus might be...
  • Page 36 Chapter 3: DLT VS80 Installation Notes 3-22 May 2004 001596-01 Rev A07...

  • Page 37: Dlt Vs80 Use

    : For current information on operating system, application, and tape driver compatibility, visit: www.quantum.com Front Panel Controls and Indicators This section explains what the front-panel controls and indicators are, and how they are used. See Figure 4-1.

  • Page 38: Indicator Activity During Power-On Self-Test (Post)

    Chapter 4: DLT VS80 Use 4.1.1 Indicator Activity During Power-On Self-Test (POST) Every time you power on your tape drive, it conducts a power-on self-test (POST). This test ensures that your tape drive is working properly and is ready to use. While POST is in progress, watch the front panel LEDs.

  • Page 39: Table 4-2. Indicator Activity

    Table 4-2 describes what each front panel indicator means. Table 4-2. Indicator Activity Indicator Drive Error (amber) Ready (green) Clean /Media (amber) All three LEDs External Power LED : Refer to LEDs” on page 3-20 001596-01 Rev A07 State Blinking Blinking (constant period &...

  • Page 40: Data Cartridge Use And Care

    Chapter 4: DLT VS80 Use Data Cartridge Use and Care Your tape drive uses only DLTtape IV data cartridges. Your tape drive can read—but not write to— DLTtape IV data cartridges previously written in the DLT 4000 format. : Your tape drive automatically unloads any other data cartridge types and any data cartridges whose format it cannot read.

  • Page 41: Unloading A Data Cartridge

    4.2.2 Unloading a Data Cartridge AUTION To unload a data cartridge from your tape drive, follow these steps: Press the Unload button or use your backup software to unload the data cartridge. The Ready LED blinks while the tape drive rewinds the tape. When the tape drive has rewound the tape, it unloads the data cartridge.

  • Page 42: Write-Protecting Data Cartridges

    Chapter 4: DLT VS80 Use 4.2.3 Write-Protecting Data Cartridges All DLTtape IV data cartridges have a write-protect switch to prevent accidental erasure of data. Before loading a DLTtape IV data cartridge into your tape drive, make sure the write-protect switch on the front of the data cartridge is in the position you need.

  • Page 43: Caring For Your Data Cartridges

    4.2.4 Caring for Your Data Cartridges To ensure the longest possible life for all of your DLTtape IV data cartridges, follow these guidelines: Do not drop or strike a data cartridge. Excessive shock can displace the tape leader, making the •...

  • Page 44: Using The Cleaning Cartridge

    4-4 to load the cleaning cartridge. Cleaning typically takes several Use only Quantum-approved cleaning cartridges in your tape drive. Use of any other type of cleaning cartridge can damage the read/write head in your tape drive. If you load any other type of cleaning cartridge or method, your tape drive unloads it within approximately 25 seconds.

  • Page 45: Dlt Vs80 Firmware

    This chapter explains how to update your tape drive’s firmware from a DLTtape IV data cartridge or from a file on the host server or workstation. Updating Tape Drive Firmware—Overview The DLT VS80 automatically updates the tape drive’s firmware directly from a DLTtape IV data cartridge containing the appropriate information.

  • Page 46: Creating A Firmware Update Data Cartridge

    Chapter 5: DLT VS80 Firmware Creating a Firmware Update Data Cartridge To perform the firmware update, you need a DLTtape IV data cartridge and a copy of the firmware image. This image must be byte-written without compression onto the media. You must copy the firmware image to the media instead of using a backup utility to transfer it to the tape.
  • Page 47 Press and hold the Unload button on the tape drive’s front panel until the LEDs are no longer illuminated (approximately 12 seconds), then release the Unload button. The Ready LED flashes. Within four seconds, press and release the Unload button again. All LEDs should blink, indicating that the tape drive is in firmware upgrade mode.

  • Page 48: Troubleshooting The Firmware Upgrade

    Chapter 5: DLT VS80 Firmware 5.3.2 Troubleshooting the Firmware Upgrade If the firmware upgrade failed, the tape drive does not unload the Firmware Upgrade Data Cartridge at the end of the process. Refer to Table 5-1. Firmware Upgrade Troubleshooting Problem The data cartridge is not a valid Firmware Upgrade Data Cartridge.

  • Page 50: Rev A
