Overview
The Intech Micro 2300 series is a system of modular I/O Remote Stations, that add an even lower cost option to
Intech's already extensive intelligent I/O Remote Station family, which connect automatically to the Intech
MicroScan V5 logging plus SCADA software package.
The 2300 series I/O stations are made up of stand-alone Digital and Analogue—Input/Output stations.
Communications between the computer running MicroScan V5 and the 2300 series stations is RS485
(1 pair cable) multi drop as standard with an option for TCP.
A 32bit ARM CPU is used in the 2300 series stations to provide high speed data processing and fast
communications turn around times. All 2300 series stations have been equipped with status led's which are used
to indicate the status of the Inputs or Outputs. This visual indication assists with fault finding and diagnostics.
All the I/O stations clip directly onto an industry standard DIN rail. All stations have a minimum isolation of
1000VAC rms between the field and logic.
When connecting to MicroScan V5 software

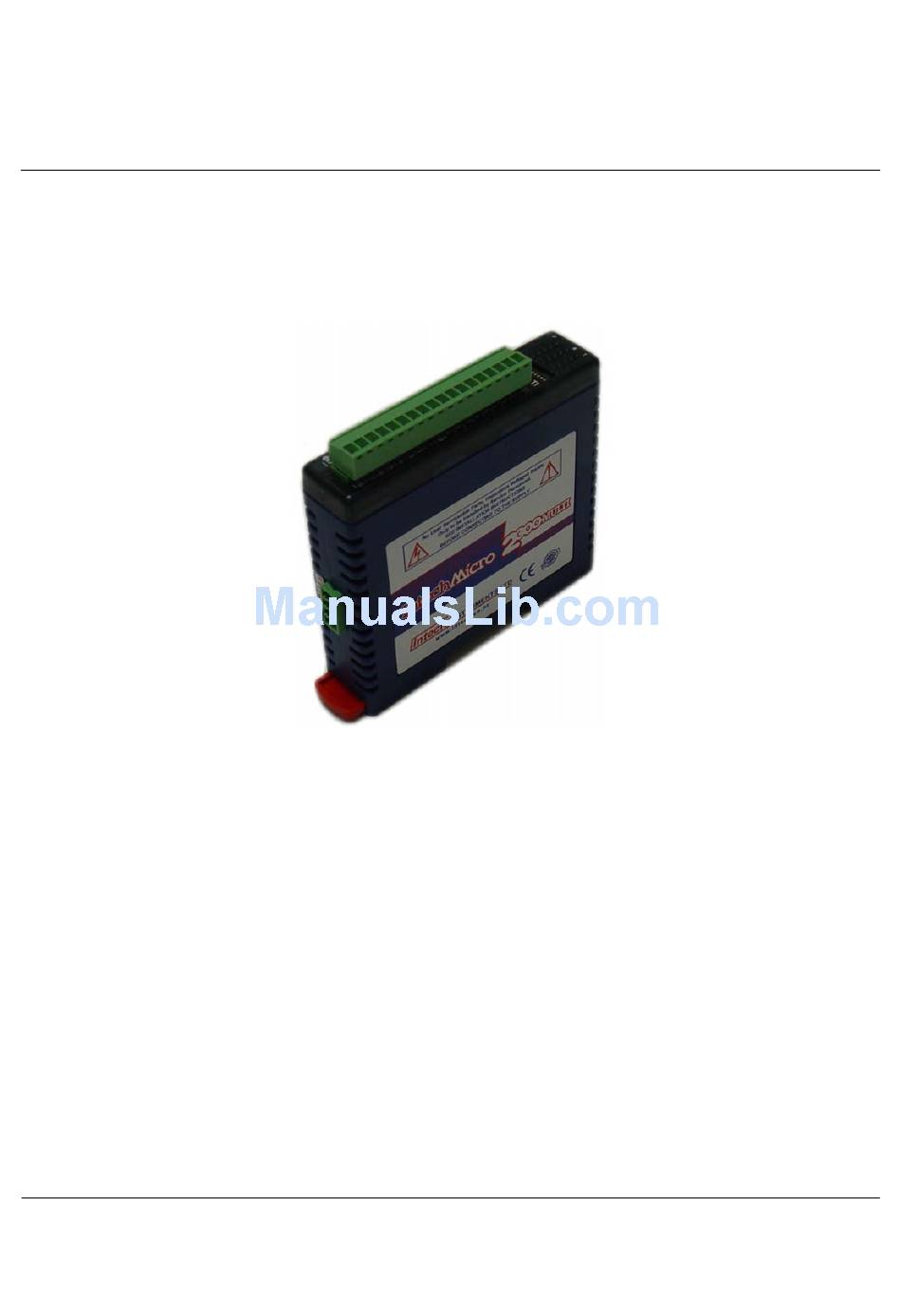

INTECH Micro
2300-MULTI
Mixed Inputs and Outputs Station
Installation Guide
14.26-1
Advertisement
Related Manuals for Intech Micro 2300-MULTI
Summary of Contents for Intech Micro 2300-MULTI
- Page 1 Mixed Inputs and Outputs Station Overview The Intech Micro 2300 series is a system of modular I/O Remote Stations, that add an even lower cost option to Intech’s already extensive intelligent I/O Remote Station family, which connect automatically to the Intech MicroScan V5 logging plus SCADA software package.
- Page 2 Section A: 2300-MULTI Installation Guide Index. Section A: Description, Ordering and Specifications. Index. Page 2 Features, Description and Ordering Information. Page 3 Specifications. Page 4 Section B: Station ID Tables. Page 5 Section C: Status Indicators. Dimensions. Page 6 Power and RS485 Comms Wiring.
- Page 3 Analogue output option : 0~10V DC 1.1 Factory Configurations The Intech Micro 2300 series I/O Remote Stations are factory configured to connect directly to MicroScan V5 software. Only the Station number (station ID) needs to be set via the easily accessible dip switches. No other station settings are required, making the new 2300 series one of the most friendly available.
- Page 4 2300-MULTI Specifications. RTD Inputs: -Input Points -RTD Configuration 2 or 3 Wire -Resolution 0.1°C -Drift 100ppm/°C Typ. -Line resistance effect < 0.1°C balanced -Max. line resistance 100ohms -Isolation 1500Vrms between field and logic RTD Type: -Number Type Range Accuracy PT100 -200 to 850°C...
-
Page 5: Dip Switch Settings
Section B: Station ID Table. The following table assists with the setting up of DIP switches for the required Station ID (Station number). STATION STATION DIP SWITCH SETTINGS DIP SWITCH SETTINGS 14.26-5... -
Page 6: Section C. Status Indicators
2300-MULTI Dimensions. The 2300-MULTI enclosure is shown below. The station clips directly onto an industry standard DIN rail. Field wiring is on the top of the station via a separate plug in connector. The station power and RS485 communications wiring are on a separate plug in connector on the side of the housing. - Page 7 If using the USB485 converter, do not connect to the computer until after MicroScan has been installed. MODBUS Applications: If using the 2300-MULTI station in other applications where MODBUS is required, please refer to the 2300-MULTI MODBUS supplementary manual which is available for download from the Intech website: www.intech.co.nz/2300...
- Page 8 Do not subject to vibration or excess temperature or humidity variations. Do not mount in cabinets with power control equipment. To maintain compliance with the EMC Directives the 2300-MULTI is to be mounted in a fully enclosed steel fire cabinet. The cabinet must be properly earthed, with appropriate input / output entry points and cabling.
