www.monoequip.com

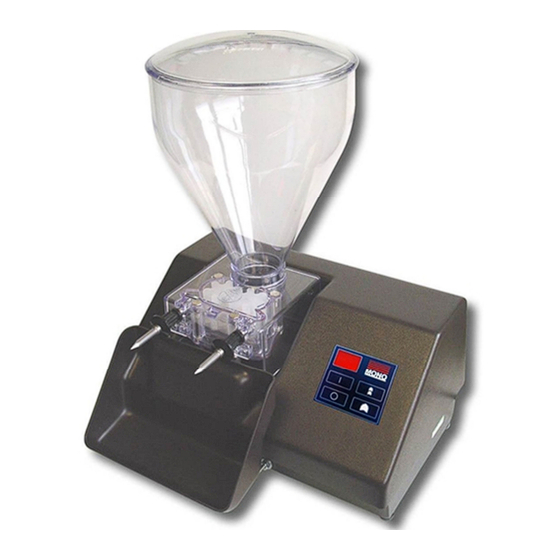

ELECTRONIC FILLER UNIT
(JAMMER)
SPARES MANUAL
MACHINE NO.FG053
When ordering spares please quote the machine serial number which can be found
on the silver information plate of the machine and on the front cover of your manual.
MONO EQUIPMENT
Tel. +44(0)1792 561234
Queensway
email:spares@monoequip.com
Swansea West Industrial Estate
Spares Tel.+44(0)1792 564039
Swansea. SA5 4EB UK
1
Fax. 01792 561016
FG053 JAMMER SPARES REV A17 5-09-17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mono FG053
Summary of Contents for Mono FG053
- Page 1 MONO EQUIPMENT Tel. +44(0)1792 561234 Queensway email:spares@monoequip.com Swansea West Industrial Estate Spares Tel.+44(0)1792 564039 Swansea. SA5 4EB UK Fax. 01792 561016 FG053 JAMMER SPARES REV A17 5-09-17...
-
Page 2: External Parts
INTERNAL PARTS Page 7 Motor etc SECTION 3 REAR PARTS (US ONLY) Page 10 On/off switch etc WARNING - Isolate the FG053 and disconnect from the mains supply before attempting any maintenance or fault investigation FG053 JAMMER SPARES REV A17 5-09-17... - Page 3 SECTION 1 EXTERNAL PARTS Part numbers and descriptions are on the following pages FG053 JAMMER SPARES REV A17 5-09-17...
- Page 4 PARTS CAN BE ORDERED INDIVIDUALLY HOPPER LID - 053-02-02100 HOPPER CHAMBER – 053-02-20000 DRIVEN GEAR - 053-02-00100 DRIVE GEAR - 053-02-00200 HOPPER SEAL A900-12-126 PUMP COVER ASSEMBLY WITH DRIVE PINS - M053-KSX002 KNURLED BOLT - 053-02-00800 FG053 JAMMER SPARES REV A17 5-09-17...
- Page 5 OTHER FILLER UNIT PARTS AVAILABLE: HOPPER PUMP COVER Complete with pins M053-KSX002 HOPPER LID 053-02-02100 KNURLED BOLT 053-02-00800 HOPPER SEAL A900-12-126 ACTUATING TRAY 053-01-30100 FG053 JAMMER SPARES REV A17 5-09-17...
- Page 6 B902-89-004 RUBBER FOOT B900-18-098 NOZZLE M053-03-03900 8.0mm diameter -- SHORT M053-03-03904 10.0mm diameter -- LONG M053-03-04700 11.0mm diameter -- SHORT M053-03-04600 4 prong nozzle M053-03-05000 4 prong nozzle protection cap MOTOR DRIVE SHAFT M053-01D05300 FG053 JAMMER SPARES REV A17 5-09-17...
- Page 7 SECTION 2 INTERNAL PARTS FG053 JAMMER SPARES REV A17 5-09-17...
-
Page 8: Emi Filter
ACTUATING SWITCH B765-07-001 ACTUATING SWITCH RUBBER COVER B765-07-001 B917-93-011 US version B917-93-001 UK version EMI FILTER B773-48-002 FG053 JAMMER SPARES REV A17 5-09-17... -
Page 9: Gear Motor
-- GEAR MOTOR B892-74-015 (18:1) FG053-Z01 B892-74-014 (12:1) FG053-Z02 Capacitor B842-23-012 Resistor supplied with cable as assembly 053-25-10300 GEAR MOTOR B892-74-006 B892-74-006 For NON-US version: Capacitor 14 and resistor 15 Supplied as: Loom assembly 053-25-10800 FG053 JAMMER SPARES REV A17 5-09-17... -
Page 10: Toggle Switch
SECTION 3 REAR PARTS (US ONLY) NOTE: THE NON-US VERSION HAS A BLANKING PLATE AT THE REAR TOGGLE SWITCH B765-07-002 FUSE A900-85-009 FOOT SWITCH B842-07-032 FOOT SWITCH SOCKET AND LOOM 053-25-10200 FG053 JAMMER SPARES REV A17 5-09-17...
