Serial Device Server - RS232/RS485 to Ethernet converter
www.usr.cn
Serial Device Server - RS232/RS485 to Ethernet converter

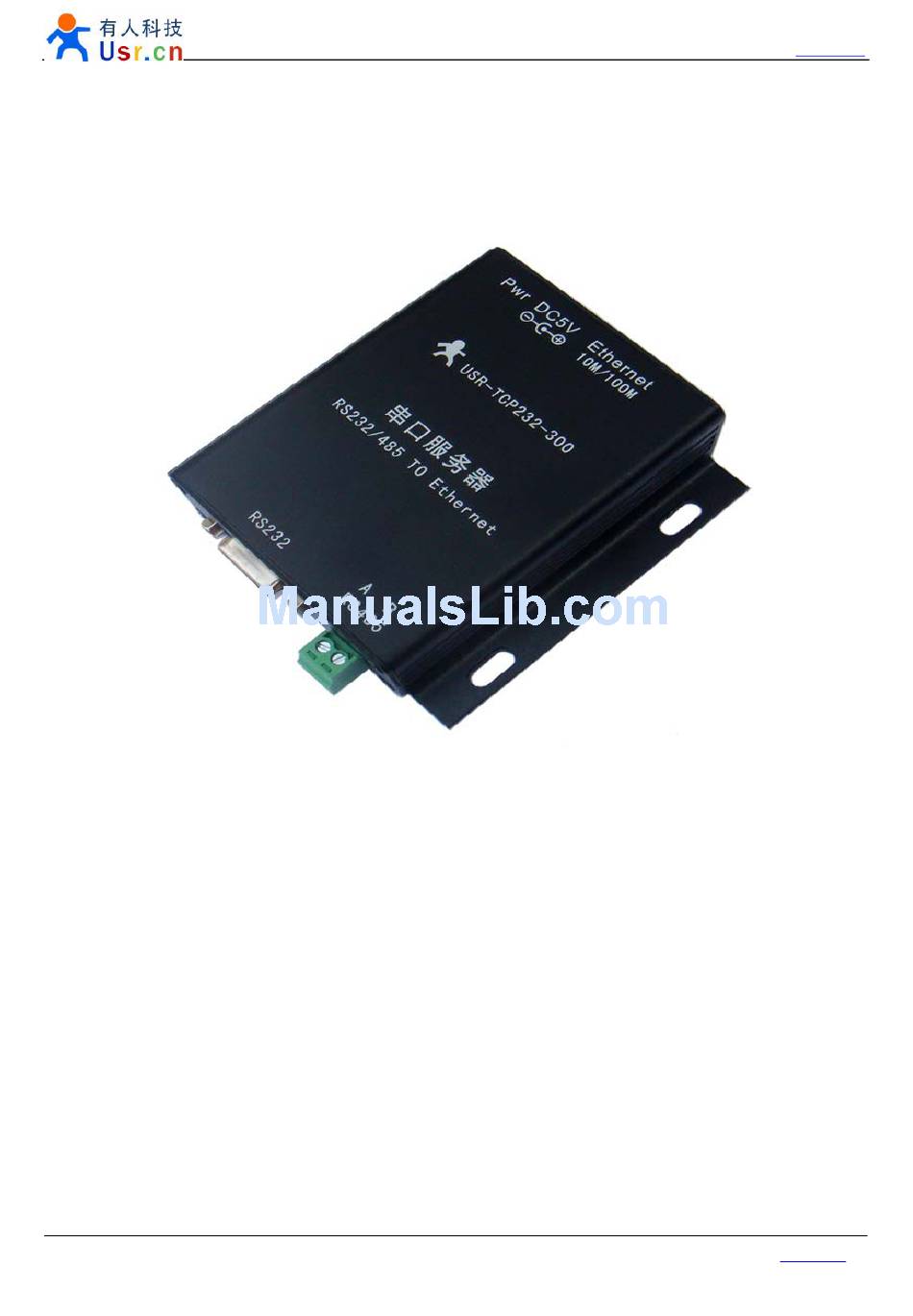

USR-TCP232-300
Hard version: V2.0
File version: V1.1
Serial Device Server - RS232/RS485 to Ethernet converter is an Equipment for convert TCP or UDP socket data
to RS232 or RS485, easy to use, low price, low power, 32 bits arm on board, high speed, high Stability.
Key words: TCP/IP, TCP, UDP, RS232, Ethernet, RS485, Serial Ethernet Server
Our concept: simple functions, stable performance, reasonable price.
We can supply Custom services, hardware, software and Server, welcome to contact us.
Jinan USR Technology Co., Ltd.
Page 1 of 13
tec@usr.cn
Advertisement
Table of Contents
Related Manuals for Usr RS232
Summary of Contents for Usr RS232
- Page 1 Serial Device Server - RS232/RS485 to Ethernet converter is an Equipment for convert TCP or UDP socket data to RS232 or RS485, easy to use, low price, low power, 32 bits arm on board, high speed, high Stability. Key words: TCP/IP, TCP, UDP, RS232, Ethernet, RS485, Serial Ethernet Server Our concept: simple functions, stable performance, reasonable price.
-
Page 2: Table Of Contents
Serial Device Server - RS232/RS485 to Ethernet converter www.usr.cn Content 1. Product introduce ..............................3 1.1 Introduction ..............................3 1.2 Function Features ............................3 1.3 Product Features............................3 1.4 Applications Area ............................4 1.5 Order information............................4 1.6 Electrical parameters ............................ 4 1.7 Packet list .............................. -
Page 3: Product Introduce
Serial Device Server - RS232/RS485 to Ethernet converter is an Equipment for convert TCP or UDP socket data to RS232 or RS485, easy to use, low price, low power, 32 bits arm on board, high speed , high Stability. This is a multi-functional embedded Ethernet serial data conversion device that integrates a TCP / IP protocol... -
Page 4: Applications Area
With shell serial servers, USR-TCP232-300 RS232/RS485 (this product) network setting parameters Model Description: USR is our brand, TCP232 that TCPIP to serial module product, 2/4/T that serial-side level in the form. 1.6 Electrical parameters Operating voltage: 5V Operating current: 200mA Operating Temperature: -25 ~ 75 °... -
Page 5: Work Mode
2. Work mode 2.1 System Block Diagram USR-TCP232-300 is bridge to connect the network to Serial device, with the RS232/RS485 to Ethernet convert module; users can easily manage and control network devices, application diagram below. 2.2 TCP Client mode When work at TCP client mode, the module auto connect to destination IP and port, make a TCP connection for send or receive data. -
Page 6: Udp Client Mode
Serial Device Server - RS232/RS485 to Ethernet converter www.usr.cn 2.3 UDP client mode Work at UDP mode, Module listen a UDP port, and pc listen a UDP port, when need to send data, UDP packet will be send. RS232 RS485 System 2.4 UDP server Mode... -
Page 7: Tcp Server Mode
Serial Device Server - RS232/RS485 to Ethernet converter www.usr.cn RS232 RS485 System PC-A PC-B 2.5 TCP server Mode According to number of the TCP connecting, the hardware/software implement may be varying. So, only OEM version supported. Jinan USR Technology Co., Ltd. -
Page 8: Hardware Description
1. Male to Female direct serial cable: connect serial server and the computer directly to debugging and Testing. 2. Male to Male and Cross Pin2 and Pin3 serial cable: used to connect RS232 serial port server and general user equipment. -
Page 9: Mechanical Dimensions
Serial Device Server - RS232/RS485 to Ethernet converter www.usr.cn RJ45 internet interface: Auto detected 10M/100M RJ45 interface, support AUTO MDI/MDIX，that is to say you can use crossover cable or a straight cable to connect it to PC for test. Name... -
Page 10: Configure
Serial Device Server - RS232/RS485 to Ethernet converter www.usr.cn 4. Configure parameters: work mode， source IP, source port， net mask， gateway， UART baud rate， destination IP， destination port. 4.1 configure through RJ45 Note: This module does not support network settings by default, if you need network settings module ,please tell us before buying, network settings and serial port settings can only choose one. -
Page 11: Model Test
Default work mode test: 1. What you need for test, A PC with a RS232 interface, 5V Power adapter, RS232 cable, Ethernet Cable, Test software. If your PC has no RS232 interface, you can use a USB to RS232 convert product. - Page 12 4. Open the test software, choose Correct COM port, open com port, listen TCP port. After a short while, the module will connect to the software, as you can see 192.168.0.7:20108. Now you can send from RS232, receive from Ethernet; and send from Ethernet, receive from RS232. Jinan USR Technology Co., Ltd.
-
Page 13: Contact Us
Serial Device Server - RS232/RS485 to Ethernet converter www.usr.cn 6. Contact us Contact us: Name: Jinan USR Technology Co., Ltd. Website: http://www.usr.cn http://en.usr.cn Address: Shengfu garden, D5-3-302, Jinan, Shandong, China Email: sales@usr.cn tec@usr.cn MSN: usrcn@hotmail.com Phone: +86-531-55507297 7. Doc History Version 1.0 2011-05-26...
