RS232
/RS485
RS232
RS232/RS485
RS232
/RS485 TO
/RS485
Jinan USR IOT Technology Limited

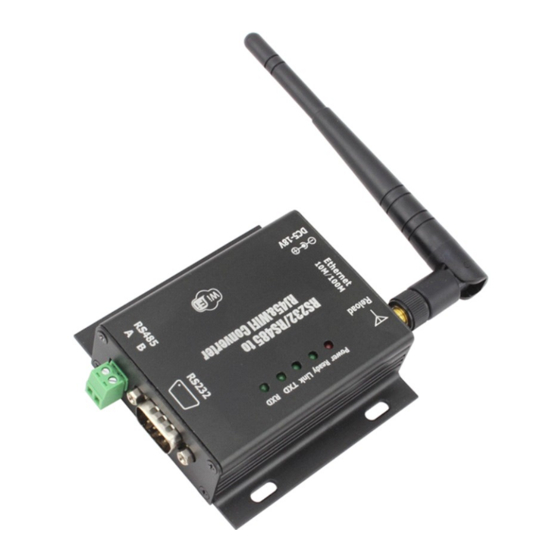

RS232/RS485 to RJ45&WIFI converter
TO
RJ45&WIFI
TO RJ45&WIFI
TO
RJ45&WIFI CONVERT
RJ45&WIFI
(USR-WIFI232-610)
(USR-WIFI232-610)
(USR-WIFI232-610)
(USR-WIFI232-610)
page 1 of 22
CONVERT
SERVER
CONVERT SERVER
CONVERT
SERVER
SERVER
Hard version: V1.0
File version: V1.0
http://en.usr.cn
tec@usr.cn
Advertisement
Table of Contents
Related Manuals for Usr USR-WIFI232-610
Summary of Contents for Usr USR-WIFI232-610

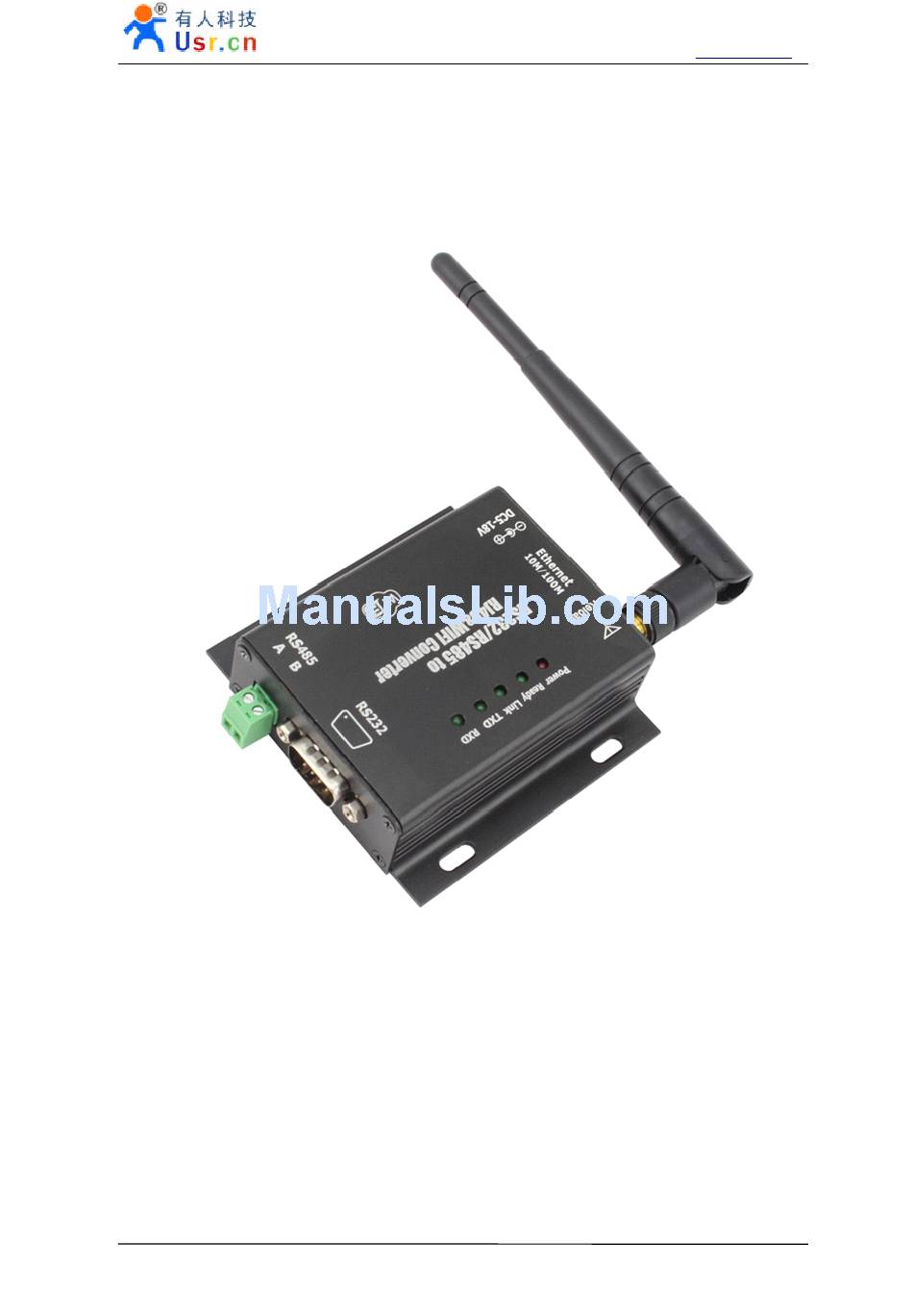

- Page 1 /RS485 RJ45&WIFI CONVERT SERVER RS232 RS232 RS232/RS485 /RS485 /RS485 TO TO RJ45&WIFI RJ45&WIFI RJ45&WIFI CONVERT CONVERT CONVERT SERVER SERVER SERVER (USR-WIFI232-610) (USR-WIFI232-610) (USR-WIFI232-610) (USR-WIFI232-610) Hard version: V1.0 File version: V1.0 Jinan USR IOT Technology Limited page 1 of 22 tec@usr.cn...
-
Page 2: Table Of Contents
4.5 Wired network+WIFI to serial..................17 4.6 AP+STA Instruction....................... 17 5. Program Resources.........................18 5.1 Computer USR-TCP232-Test..................19 5.2 Android USR-TCP232-Test..................19 5.3 IOS USR-Socket Tools....................21 5.4 Socket programming test(VB Dephi Poland c++)............. 22 6. Contact us..........................22 Jinan USR IOT Technology Limited page 2 of 22... -
Page 3: Product Introduce
Features 1.2 Features Features 1. Inner board core module specifications, please reference to USR-WIFI232-C 2. Support hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with computer pin definition 3. DC5~18V wide voltage input, can provide 2A current MP1482DS DCDC power supply chip, keep system reliability. -
Page 4: Electronic Parameters
Serial command AT+instruction set Software Software Software Software Network Protocol TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP parameters parameters parameters parameters Max. TCP Connection User Web Server＋AT command config Configuration User Application Support customized application software Jinan USR IOT Technology Limited page 4 of 22 tec@usr.cn... -
Page 5: Packing List
PC COM port. Use cross cable connected with PC(2-3cross,7-8cross, 5-5 direct, 7-8 can disconnect, but MUST NOT connect with PC directly), There are 6 pins in work, others is NC. Jinan USR IOT Technology Limited page 5 of 22 tec@usr.cn... - Page 6 1 seconds and free it, wait about 10 seconds until the module restart, the green LEDs all off and then Ready LED on. Then the module goes to factory default settings. Jinan USR IOT Technology Limited page 6 of 22 tec@usr.cn...
-
Page 7: Size And Install
RS232/RS485 to RJ45&WIFI converter http://en.usr.cn Size install 2.3 Size Size Size and and install install install Jinan USR IOT Technology Limited page 7 of 22 tec@usr.cn... -
Page 8: Application
RS232/RS485 to RJ45&WIFI converter http://en.usr.cn 3. 3. 3. 3. Application Application Application Application 3.1 Application Application Application Application of of of of AP Jinan USR IOT Technology Limited page 8 of 22 tec@usr.cn... -
Page 9: Application Of Sta
Application Application of of of of STA USR-WIFI232-610 as STA(use the AP CLI interface), connect to other AP, to compose a wireless network. All of the STA take AP as the wireless network center, and the mutual communication between STA is through AP forwarding. -
Page 10: Application Of Ap+Sta
3 3 3 3 .3 .3 .3 .3 Application Application Application Application of of of of AP+STA AP+STA AP+STA AP+STA USR-WIFI232-610 can support AP+STA mode. That is the module support a AP interface and a STA interface at the same time. AP+STA AP+STA AP+STA AP+STA function function... -
Page 11: Application Of Wireless Serial Port(One Ap, One Sta)
RS232/RS485 to RJ45&WIFI converter http://en.usr.cn When USR-WIFI232-610 used as AP, other computers and equipments can be used as STA connected to this device through RJ45(network cable). When USR-WIFI232-610 used as STA, network port connected to computer via RJ45, wireless added to wireless router to networking. -
Page 12: Function Specifications And Test
RS232/RS485 to RJ45&WIFI converter http://en.usr.cn USR-WIFI232-610 module can be set as STA or AP. So the device logically supports two wireless interfaces, one as STA, another interface is equivalent to a AP, other STAs can connect to wireless network via the module AP interface. - Page 13 WIFI network to setup the module, you still need to install the gtk2-runtime.exe, Open WIFI network card and Forbidden RJ45 network card, setup PC IP address to 10.10.100.123. Run A11_Config_net_en.exe Jinan USR IOT Technology Limited page 13 of 22 tec@usr.cn...
- Page 14 HF-A11x_AP network, after WIFI network ok, the module will auto connect to the setup software, the led go to Green, Click Read, then you can configure the WIFI module settings. Jinan USR IOT Technology Limited page 14 of 22 tec@usr.cn...
-
Page 15: Serial To Wifi Transparent Transmission
USR-WIFI232-610 support serial port transparent transmission mode, can realize RS232 serial plug and play, to minimize the complexity of using. In this mode, all data that need transmit and receive are transparent transmission between serial interface and WIFI, don't make any resolution. -
Page 16: Serial To Ethernet Transparent Transmission
USR-WIFI232-610 device provides a 100M Ethernet interface, through which customers can realize WIFI port, Serial port and Ethernet port these three ports interworking. In building network aspect, The USR-WIFI232-610 support bridging mode and routing mode to deal with different specific applications. -
Page 17: Wired Network+Wifi To Serial
USR-WIFI232-610 support serial to Ethernet and serial to WIFI communication at the same time. As shown in picture, USR-WIFI232-610 set as TCP Server, support Ethernet and WIFI communicate with module at the same time. If module as TCP Client, serial port will access to TCP Server to communicate automatically. -
Page 18: Program Resources
RS232/RS485 to RJ45&WIFI converter http://en.usr.cn In the picture, USR-WIFI232-610 use the AP+STA function, module STA interface can be connected to router, and network server through TCP connection. At the same time, the module AP interface is also available, cellphone/PAD ect can connect to AP interface(through TCPB connection) to control serial equipment or set the module. -
Page 19: Computer Usr-Tcp232-Test
USR-TCP232-Test USR-TCP232-Test USR-TCP232-Test USR-TCP232-Test.exe is developed by Jinan USR IOT Technology Co., Ltd, the serial port and network commissioning test software combo. test the serial port to the RJ45/WIFI network communication, we connect USR-WIFI232-610 RS232 port to computer, RJ45/WIFI network port also connected with computer network(reference to USR-WIFI232-X.-4.0 3.2 chapter) - Page 20 This software support TCP Server, TCP Client, UDP Server, UDP Client mode, support English automatic switching. This program developed by Jinan USR IOT Technology Co., Ltd, just for customers free test usage, please do not directly used for commercial purposes.
-
Page 21: Ios Usr-Socket Tools
Iphone APP store link: https://itunes.apple.com/us/app/usr-sockettools/id630433197?mt=8 Or you can input USR-SocketTools to search USR-SocketTools is suitable for any network device, support TCP Client, TCP Server, UDP. Through your Iphone to realize sending data to specified IP and port, easy to test. -
Page 22: Socket Programming Test(Vb Dephi Poland C++)
Remark: OEM and ODM accepted 6. 6. 6. 6. Contact Contact Contact Contact us Company: Jinan USR IOT Technology Limited Address: 1-523, Huizhan Guoji Cheng, Gaoxin Qu, Jinan, Shandong, China Tel: 86-531-55507297 86-531-88826739-803 Web: http://en.usr.cn Skype: lisausr Email: sales@usr.cn tec@usr.cn...
