Summary of Contents for Appliance 365 UEHC602

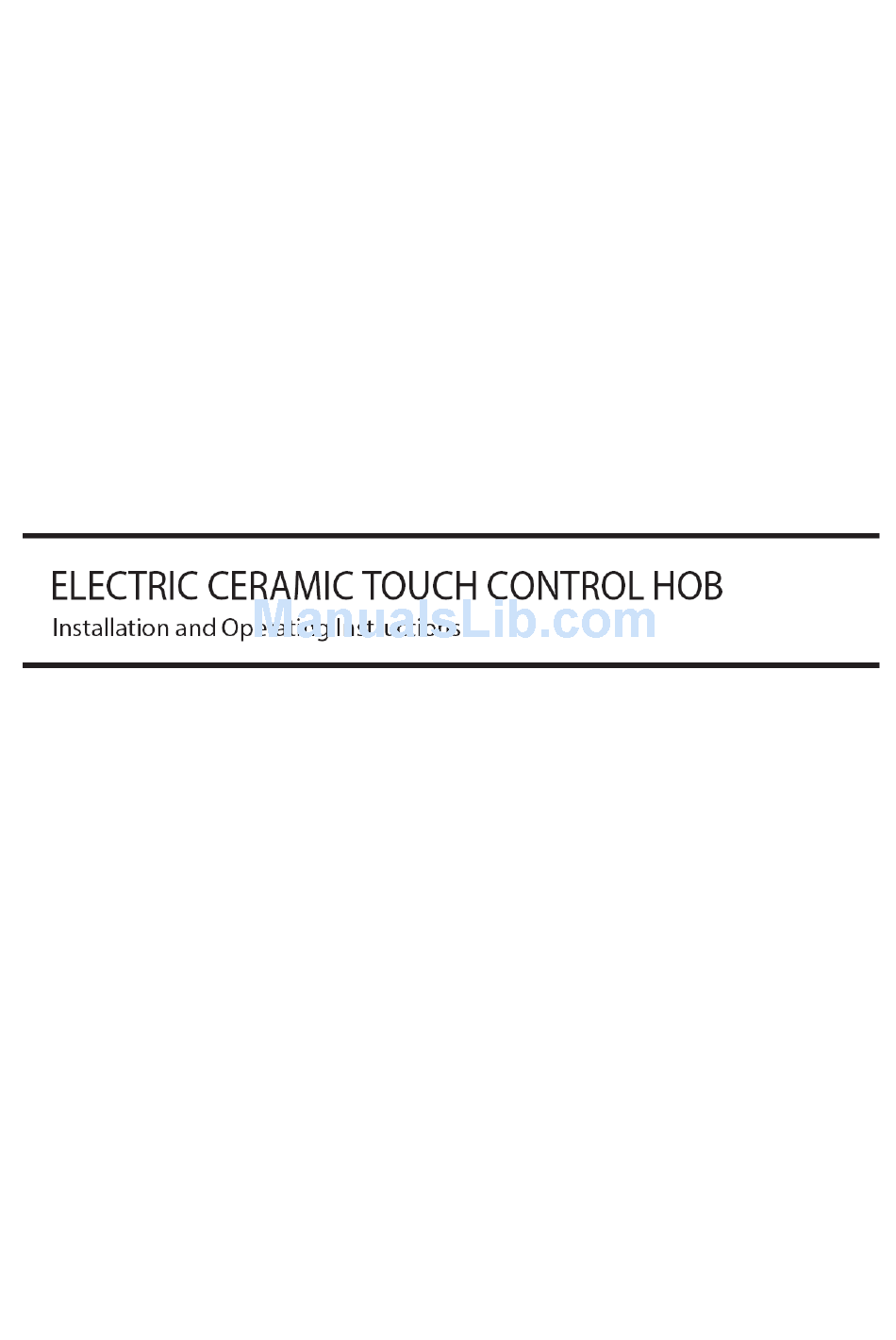

- Page 1 Model: UEHC602...
- Page 2 Make a note of the serial number of your appliance here for future reference. You will find this on the rating plate on the underside of the hob: Serial Number: _______________________________________ Appliance 365 Limited, 730 Mandarin Court, Centre Park, Warrington, WA1 1GG...
-
Page 3: User Instructions
USER INSTRUCTIONS Installation All operations relating to the installation (eg; electrical connection) must only be carried out by a qualified electrician following the regulations and standards in force. For specific instructions, please read the section ‘Installation Instructions’. Safety Precautions • To avoid any possible hazard, the appliance should be installed by a qualified electrician only. -
Page 4: Temperature Setting
How to use the hob To turn the hob on / off To turn the hob on, select a cooking zone then rotate the control knob to the power setting required. This hob has 11 power settings labelled 1 to 11. The higher the number, the more powerful the heat as detailed in the table below: Temperature Setting Heat Intensity... - Page 5 Pilot lights This model is equipped with a series of pilot lights. When illuminated these lights signify the following: A – One or more heating elements are switched on. B – Residual heat indicator confirming that the temperature of the designated element is above 50°...
- Page 6 Scraper shown for illustration purposes only Remove stray bits and grease drops from the cooking surface with a special ceramic hob scraper (fig 4). Ceramic hob scrapers can be purchased from any DIY retailer or Kitchen Specialist. Clean the hot area with “Hob Brite” or another specialist hob cleaner and a paper towel.
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Installation These instructions are for a qualified electrician as a guide to the installation, adjustment and maintenance, according to the regulations and standards in force. The appliance must always be disconnected from the electricity supply before carrying our any of these operations. The appliance should be fitted into a worktop as illustrated below: Front view Side view... - Page 8 Ensure the power supply cable is installed clear of the hob and any other possible heat sources. Figure 7...
-
Page 9: Technical Information
TECHNICAL INFORMATION Heating Elements Element type Diameter Power Heat settings Standard x 2 145mm 1200W 1 - 11 Medium 180mm 1700W 1 - 11 Large 210mm 2100W 1 - 11... - Page 10 Appliance365 End User Warranty Conditions The conditions below outline the prerequisites and scope of the warranty offered by Appliance 365 Limited (“we / us”) to consumer end users of appliances supplied by or through us. Please note that these conditions do not affect your statutory rights or the obligations of your retailer and your contract with them.
- Page 11 If repairs or other interventions are carried out by persons not authorised by us to take such action, or if our appliances are fitted with non-original spare parts, extras or accessories; and / In the event of physical or verbal abuse towards any member of our staff. 6.
- Page 12 Model: UEHC602 Appliance 365 Ltd Cranage House 730 Mandarin Court Warrington Cheshire WA1 1GG www.appliance365.co.uk November 2009...
