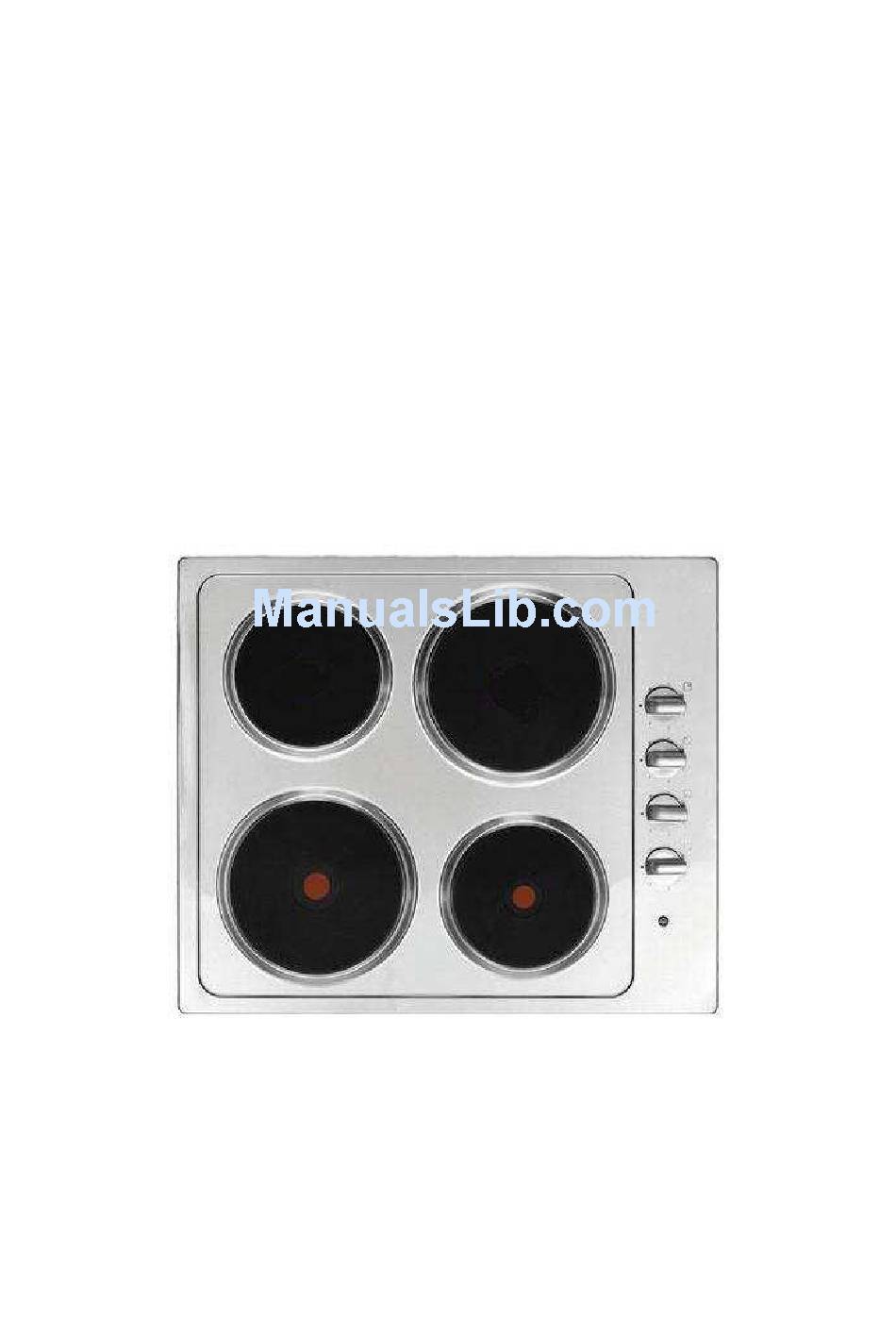

- Page 1 Electric Solid Plate Hob User and Installation Manual Model: UEHS601SS...
-
Page 3: Customer Service
• Please keep your receipt or invoice in a safe place as they will be required as proof of date of purchase. Appliance 365 Limited, 730 Mandarin Court, Centre Park, Warrington, WA1 1GG Please make a note of the serial number of your appliance here as this will be requested in the event of a servicing requirement. -
Page 4: During Use
These instructions have been drawn up for your safety and that of others. We therefore request you read them carefully before installing and using this appliance. Keep this instruction manual in a convenient place near the appliance for future reference. If the appliance is sold or moved, make sure that the manual is handed over to the new user. -
Page 5: General Safety
5. GET OUT, STAY OUT and CALL 999 General safety This appliance must only be used by adults. Make sure that children are kept away from hot cooking areas when the appliance is in use. Children must not be left un-supervised or allowed to touch or play with the appliance controls. -
Page 6: Using Your Appliance
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. -
Page 7: Cleaning And Maintenance
Always turn the control knob to the off position (0) when cooking has been finalised. Reheating Cooking Frying Power level 1 or 2 3 or 4 5 or 6 Advice on the use of solid plate hobs • Use only flat-bottomed pans with a diameter not less than the diameter of the element itself. -
Page 8: Service And Parts
Clean the elements (solid plates) with a moist cloth then lightly oil them. Do not use the following products: - household detergents or bleaches. - soaped scouring pads. - steel wool scouring pads. - stain removers for baths or sinks. - paint remover, acids or similar solvents. - Page 9 appliance (see data plate). 2) The power supply system has an Earth connection in good working order in accordance with the Regulations in force; 3) The omni polar isolation switch used is easily accessible with the appliance installed. 4) When the appliance is installed above a built in oven, the two appliances must be connected to the electrical supply separately to ensure the easy removal and safe operation of the appliances.
-
Page 10: Building Into Fitted Kitchen Units
Building into fitted kitchen units This hob is designed for installation into fitted kitchen units up to 600mm deep on the assumption that the clearances indicated below are observed. The worktop height should be between 40 and 50mm. The wall and worktop materials must be able to withstand temperatures of up to 80° C, likewise with any components used in their construction / installation. - Page 11 adequate ventilation to the rear. Ventilation slot >30mm Fig 1 The panel underneath the hob must be easily removable to allow for any servicing requirements. Inserting and fixing the hob Before inserting the hob into the work surface, place the adhesive seal (E) on the underside of the hob as shown below.
-
Page 12: Technical Data
Secure the hob to the underside of the worktop using the fixings provided. Screw one end of the bracket into the pre-drilled holes in the underside of the hob. The other end of the bracket should be located underneath the worktop to secure the hob in position. - Page 14 Appliance365 End User Warranty Conditions The conditions below outline the prerequisites and scope of the warranty offered by Appliance 365 Limited (“we / us”) to consumer end users of appliances supplied by or through us. Please note that these conditions do not affect your statutory rights or the obligations of your retailer and your contract with them.
- Page 15 If repairs or other interventions are carried out by persons not authorised by us to take such action, or if our appliances are fitted with non-original spare parts, extras or accessories; and / or In the event of physical or verbal abuse towards any member of our staff. In the event that a warranty claim is verified as valid, warranty provision will be free of charge and we will decide (at our discretion) whether this will take the form of a repair or the replacement of the appliance.
- Page 16 Note: Consistent with our continuing product development policy, improvements may have been made which render the contents of this package slightly different to that shown. Model No. UEHS601SS October 2009 Appliance 365 Ltd. Cranage House 730 Mandarin Court Centre Park...
