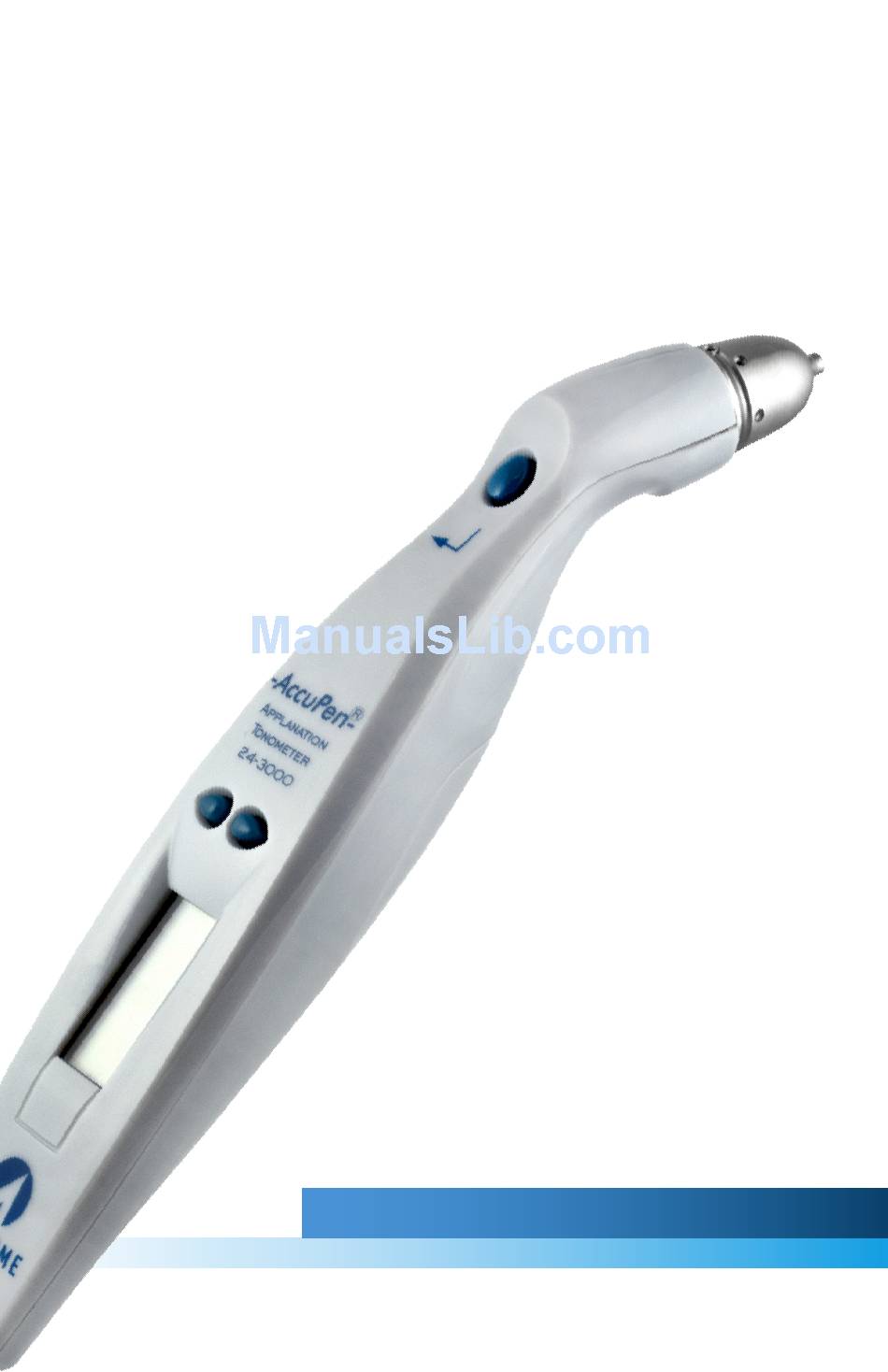

- Page 1 AccuPen Handheld Tonometer AccuPen User’s Guide 24-3002 Rev-I...
- Page 2 (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by Accutome, Inc., could void the FCC compliance and negate your authority to operate the product.
-
Page 3: Table Of Contents
Table of Contents Chapter 1: Introduction AccuPen Overview Features Measurements About This Manual Chapter 2: Safety Safety Information Safety Issues to Consider When Using the AccuPen Indications for Use Battery Disposal Symbol Definitions for the AccuPen Safety Precautions Maintenance Disinfection Cleaning... - Page 4 Accutome AccuPen User’s Guide Storage Troubleshooting Chapter 5: Specifications Overview Physical Specifications Environmental Specifications Measurement Accuracy EMC Compliance Information Chapter 6: Warranty & Repairs Warranty Product Returns Service and Repair All Other Returns Nonreturnable Merchandise Replacement Parts www.accutome.com • (800) 979-2020 US & CA • (610) 889-0200 International • +31 (0) 485-350300 Europe...
- Page 5 Table 5.6 - Guidance and Manufacturer’s Declaration - Electromagnetic Immunity Table 5.7 - Recommended Separation Distances between Portable and Mobile Rf Communications Equipment and the AccuPen Table 6.1 - Accutome Replacement Parts (800) 979-2020 US & CA • (610) 889-0200 International • +31 (0) 485-350300 Europe •...
-
Page 6: Chapter 1: Introduction
• Allows entry of CCT (Central Corneal Thickness) and provides Adjusted IOP based on manually entered corneal thickness measurements • The body of the AccuPen is angled from the probe tip, and both the body and the tip have sighting lines that allow easy visualization of the cornea, facilitating both centration and perpendicularity •... -
Page 7: Measurements
Provides AccuPen physical and operational specifications. Chapter 6 - Warranty & Repairs Describes AccuPen warranty information and repair procedures. After reading this manual, you will be able to set up the AccuPen, take measurements, and enter and calculate Adjusted IOP. www.accutome.com... -
Page 8: Chapter 2: Safety
• Specific safety precautions associated with the AccuPen • General safety precautions Safety Issues to Consider When Using the AccuPen The AccuPen is noninvasive. The strain gauge sensor probe tip, covered with a single-use latex disposable, touches the surface of the anesthetized cornea during the scanning process. -
Page 9: Symbol Definitions For The Accupen
ToxCo, Inc. 3200E Frontera, In accordance with these directives, the Anaheim, California 92806 AccuPen lithium cells do not contain Contact Person: David Miller dangerous substances. The reaction Email: DMiller320@aol.com products are inorganic and do not Phone: (714) 879-2076... -
Page 10: Safety Precautions
Cleaning Keep the surfaces of the AccuPen free of dust and dirt and store the instrument in a dry and cool place so as not to adversely affect any electronic parts. -
Page 11: Warnings
2. Submerge the tip of the AccuPen in Isopropyl Alcohol to loosen any debris that may have accumulated in the sensor housing NOTE: Allow the tip of the AccuPen to soak in the Isopropyl Alcohol for two to three minutes, frequently moving the tip in the solution to aid in the loosening of debris. -
Page 12: Avoiding Equipment Damage
Safety The device covers must not be removed except by qualified personnel. There are no user controls inside the unit. To avoid injury, do not operate the AccuPen without protective covers. The system is intended to operate from a 3.6 V lithium battery. -
Page 13: Chapter 3: Getting Started
See Chapter 6 of this manual for contact information. Battery Specification and Installation The power source for the AccuPen is a 3.6 V Lithium battery. The battery is included with the AccuPen and must be installed before use. Battery Specification Use only one (1) 3.6 V, XENO model XLP-050F lithium battery, or an equivalent. -
Page 14: Battery Installation
Initial AccuPen Tonometer Setup The followiing steps outline the basic setup of the AccuPen. If the battery is not installed in the AccuPen, install the battery as described in “Battery Installation” on page 5 and 6 of this guide. 2. To return to the Measurement screen, press and hold the Action Control button for 2 to 3 seconds until the Measurement screen appears. -
Page 15: Calibration
Figure 3.4. Figure 3.4 - Calibration Probe Horizontal Position 3. Wait for a beep and then hold the AccuPen so that the probe is straight up in a vertical position. Press the Action Control button as shown in Figure 3.5. -
Page 16: Basic Operation
4. Record the data in the Patient Record. How to Power On the AccuPen With the battery installed, the AccuPen is always powered. However, after a period of nonuse, the unit turns off sections of the electronics, including the LCD, to conserve power. To restore the unit to full power, press any control button. -
Page 17: How To Take A Measurement
3. Gently tap the sensor tip on the patient’s eye. 4. The AccuPen will automatically proceed to the next empty measurement if it is available. 5. The AccuPen will emit a high-pitched chirp (beep) when you have automatically acquired a measurement. -
Page 18: Table 3.1 - Iop Correction Values
Review of Ophthalmology, July 2002. Leon Herndon, MD, Duke University, Glaucoma Service, Pages 88, 89, 90. WARNING! CCT ADJUSTMENTS ARE NOT SUPPORTED BY PERFORMANCE DATA. (800) 979-2020 US & CA • (610) 889-0200 International • +31 (0) 485-350300 Europe • www.accutome.com... -
Page 19: Chapter 4: Maintenance, Storage & Troubleshooting
When not in use, the AccuPen Tonometer and all accessories should be placed in the storage case. 2. If the AccuPen Tonometer is not to be used for an extended period of time, remove the battery from the device. Troubleshooting Refer to Table 4.1 below for information on identifying and correcting problems that... -
Page 20: 979-2020 Us & Ca • (610) 889-0200 International • +31 (0) 485-350300 Europe • Www.accutome.com
Maintenance, Storage, & Troubleshooting Table 4.1 - Continued AccuPen Troubleshooting Information Symptom Probable Cause Correction Multiple variable Battery is low Replace battery (see Chapter 3) readings Mechanical or Arrange for repair through electronic damage Accutome Technical Service Group (see Chapter 6) -
Page 21: Chapter 5: Specifications
Chapter 5: Specifications Specifications Overview This section provides the physical and operational specifications of the AccuPen. Physical Specifications Table 5.1 below lists the physical specifications of the AccuPen instrument and associated peripherals. Table 5.1 - AccuPen Physical Specifications Main Unit Dimensions 18.4 cm X 3.2 cm X 3.2 cm (7.25”... -
Page 22: Environmental Specifications
Specifications Environmental Specifications Table 5.2 below lists the AccuPen system operating and storage values for temperature and humidity. Table 5.2 - Environmental Specifications Temperature Operating +10°—40°C (50°—104°F) Storage -20°—60°C (-4°—140°F) Relative Humidity Operating 20—80% (noncondensing) Storage 15—90% (noncondensing) Atmospheric Pressure Operating 700—1060 hPa... -
Page 23: Electromagnetic Emissions
Table 5.4 - Guidance and Manufacturer’s Declaration - Electromagnetic Emissions The AccuPen is intended for use in the electromagnetic environment specified below. The customer or the user of the AccuPen should ensure that it is used in such an environment. Emissions Test... -
Page 24: Electromagnetic Immunity
Table 5.6 - Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The AccuPen is intended for use in the electromagnetic environment specified below. The customer or the user of the AccuPen should ensure that it is used in such an environment. Immunity... -
Page 25: Table 5.7 - Recommended Separation Distances Between Portable And Mobile Rf Communications Equipment And The Accupen
Table 5.7 - Recommended Separation Distances between Portable and Mobile Rf Communications Equipment and the AccuPen The AccuPen is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the AccuPen can help prevent... -
Page 26: Chapter 6: Warranty & Repairs
Any product that is proven to be defective will be repaired or replaced, at our discretion, free of charge, up to one year from the date of purchase by the initial user of the equipment from Accutome, Inc., or any of its authorized distributors. -
Page 27: Nonreturnable Merchandise
• Merchandise held longer than 60 days Replacement Parts Table 6.1 below lists items that are available from Accutome, Inc., or from your local sales representative. Please be sure to use the Accutome part number for the item when placing an order. - Page 28 Warranty & Repairs (800) 979-2020 US & CA • (610) 889-0200 International • +31 (0) 485-350300 Europe • www.accutome.com...
- Page 29 US and Canada (800) 979-2020 International (610) 889-0200 Info@accutome.com www.accutome.com...
