Security Board
BNX-H81
Always at the forefront of innovation
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BNX-H81 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BESTEK BNX-H81

Summary of Contents for BESTEK BNX-H81

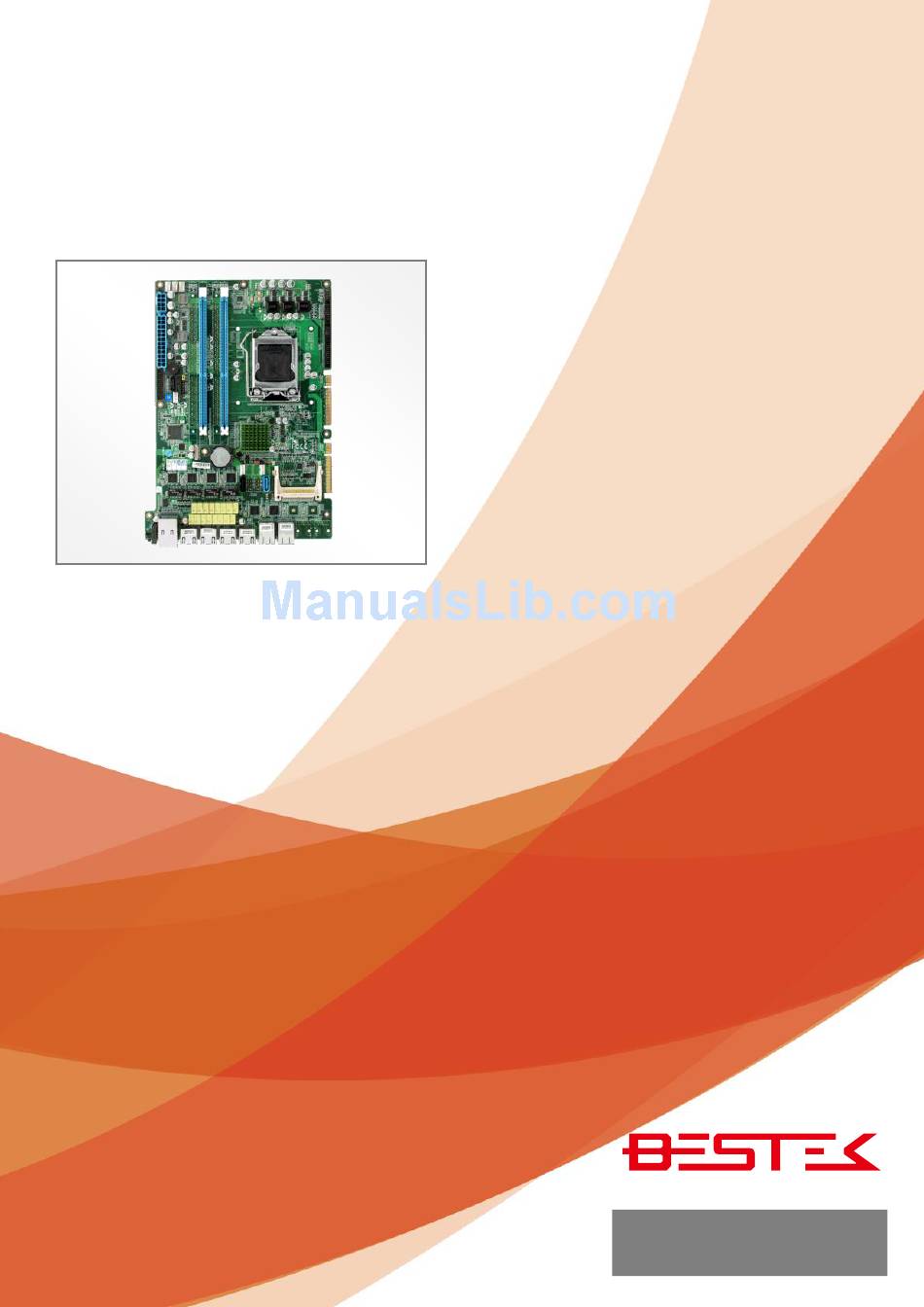

  • Page 1 Security Board BNX-H81 Always at the forefront of innovation User Manual...

  • Page 2: Copyright

    Copyright This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation adaptation without the prior written permission from the copyright holders. This publication is provided for informational purposes only.

  • Page 3: Warranty

    Warranty 1. Warranty does not cover damages or failures that are raised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifications. 2. The warranty is void if the product has been subject to physical abuse, improper installation, modification, accidents or unauthorized repair of the product.

  • Page 4: Safety Measures

    Safety Measures To avoid damage to the system: • Use the correct AC input voltage range. To reduce the risk of electric shock: • Unplug the power cord before removing the system chassis cover for installation or servicing. After installation or servicing, cover the system chassis before plugging the power cord.

  • Page 5: Table Of Contents

    Table of Content Copyright ..................................2 Trademarks ..................................2 FCC and DOC Statement On Class A ..........................2 Warranty ..................................3 Static Electricity Precautions ............................3 Safety Measures ................................4 Before Using the System Board ............................. 4 Table of Content ................................5 Chapter 1 General Information 1.1 Main Feature ................................
  • Page 6 Chapter 5 Programming Guide 5.1 Watchdog Timer ............................. 42 5.2 Programmable LED ............................47 5.3 LAN Bypass ..............................49 5.4 Programmable Switch ............................52...

  • Page 7: Chapter 1 General Information

    Chapter 1 General Information...

  • Page 8: Main Feature

    1.1 Main Feature Network Security Board BNX-H81 is a Network Security Board, featuring on Intel® H81 chipset, supports Intel® Gen-4 LGA1150 Xeon E3-1200 V3 and Celeron®, Pentium®, Core®-i3/i5/i7 processors that carry the built-in Intel® HD Graphic engine. Below is a brief list of available processors as a quick reference: ...

  • Page 9: Specifications

    1.2 Specifications Core Engine Chipset Intel® H81 PCH Processor Support Intel® Gen-4 Core i3, i5, i7, Pentium® , Celeron® Processor Single LGA1150 Processor Socket Memory 2x DDR3 1066/1333 ECC/Non-ECC Unbuffered DIMM Slots, up to 16GB ECC Memory only compatible with E3-1200 V3 Processor Display CPU Integrated Ethernet...

  • Page 10: Optional Lan Modules

    1.3 Optional LAN Modules BEM-H81-710-F2 Type LAN Module Chipset Intel® XL710-AM2 Interface PCIe 3.0 X8 Network Port Two QSFP 40G BEM-H81-710-F4 Type LAN Module Chipset Intel® XL710-AM1 Interface PCIe 3.0 X8 Network Port Four SFP+ 10G BEM-C600-599-F2 Type LAN Module Chipset Intel®...

  • Page 11: Board Layout

    1.4 Board Layout Figure 1.1: Board Layout of BNX-H81...
  • Page 12 Chapter 2 Preparation...

  • Page 13: Before You Begin

    2.1 Before You Begin A stable and clean working environment are essential. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated. Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: A Philips screwdriver ...

  • Page 14: Setting Jumpers

    A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is SHORT.

  • Page 15: Edge Connectors

    2.4 Edge Connectors Programmable Switch LED Indication RJ45 Console Port Six RJ45 Gigabit LAN Ports Dual USB 3.0 Ports...

  • Page 16: Location Of Jumpers And Connectors

    2.5 Locations Of Jumpers and Connectors...
  • Page 17 List of Onboard Connectors Front Panel Connector 1 Front Panel Connector 2 KB/MS1 PS2 Keyboard Mouse Pin Header VGA1 VGA Pin Header COM2 RS-232 Pin Header USB2 USB 2.0 Pin Header SATA5 ~ SATA6 SATA3 Connector LAN1 ~ LAN6 RJ45 Gigabit LAN Ports CPU_FAN1 4-pin CPU Fan Connector SYS_FAN1...

  • Page 18: Jumpers

    2.6 Jumpers ► CMOS Jumper (CMOS) Definition Normal Operation (default) Clear CMOS ► AT/ATX Power Mode Jumper (JP2) Definition ATX Mode AT Mode...

  • Page 19: Internal Connectors

    2.7 Internal Connectors Front Panel Connector (FP1) Definition Definition Speaker (+) KB Lock (+) Buzzer (-) I2C Bus SMB Clock Speaker (-) I2C Bus SMB Data Front Panel Connector (FP2) Definition Definition Power Switch (+) Reset Switch (+) Power Switch (-) Reset Switch (-) HDD LED (+) Power LED (+)

  • Page 20: Pin Definition

    RS-232 Pin Header (COM2) Definition Definition DCD2X SIN2X SOUT2X DTR2X DSR2X RTS2X CTS2X RI2X Keyboard Mouse Pin Header (KB/MS1) Definition Definition KBDATA KBCLK +5V_KB MSDATA MSCLK LED Indicators Definition Bypass #1 LED Bypass #2 LED Power LED Programmable LED HDD LED...

  • Page 21: Chapter 3 Operation

    Chapter 3 Operation...

  • Page 22: System Memory

    3.1 System Memory BNX-H81 has Intel® H81 chipset built-in, and supports dual channel non-ECC, un-buffered DDR3- 1066/1333/1600MHz memory modules. Two DIMM slots support up to 16GB Memory Capacity. 3.2 Installing Memory To install Memory 1. Open up the two side tabs on the slot.
  • Page 23 4. To remove the Memory modules, please push the tabs outwards, and the memory modules will be automatically disengaged.

  • Page 24: Installing Lga1150 Intel® Core-I Cpu, Heatsink, And Fan

    3.3 Installing LGA1150 Intel® Core-i CPU, Heatsink, and Fan BNX-H81 supports Intel® LGA1150 Gen-4 Core-i Processor. For a reference list of supported processor, please refer to the specification section. The socket 1150 is formed up with sensitive arrays of pins, improper or careless installation may cause permanent harm to the socket pins.
  • Page 25 Step (B): Install the Processor 1. Hold the processor with your thumb and index finger as shown to align your fingers with the socket cutouts. 2. Make sure that the processor Pin#1 indicator (gold triangle) is aligned with the Pin#1 chamfer on the socket. 3.
  • Page 26 Step (D): Install a Heatsink Note: Heatsinks that come with boxed Intel® processors use pre-applied Thermal Interface Material (TIM) and do not need thermal grease. If a different heatsink is used, please refer to manufacturer’s instructions. 1. Place the heatsink onto the processor socket.

  • Page 27: Adding Power Connectors

    3.4 Adding Power Connectors BNX-H81 motherboard requires correct power plan to properly support Intel® LGA1150 Gen-4 Core-i Processor. Please add the 24-pin ATX Power Connector on the blue connector, and 8-pin 12Vdc Power Connector on the red connector. In case your power supply does not come with 8-pin 12Vdc Power Connector, please at least add the 4-pin 12Vdc Power Connector onto it.

  • Page 28: Adding Compactflash Cards

    3.5 Add CompactFlash Card  Please do not add CFast card onto this socket.  Make sure to shut down the system board before adding your CompactFlash card.

  • Page 29: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 30: About The Bios

    About the BIOS The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

  • Page 31: Entering Setup

    4.1 Entering Setup When the system is powered on, the BIOS will initiate the Power-On-Self-Test (POST) routines. These routines perform various diagnostic checks. If an error is encountered, the error will be reported in one of two different ways: If the error occurs before the display device is initialized, a series of beeps will be transmitted. ...

  • Page 32: The Main Menu

    Figure 4-1: BIOS Setup Utility Main Menu The menu bar on the top of the first screen has the following submenus:  Main: Basic system configuration.  Advanced: Advanced system settings.  Chipset: Other functions.  Boot: System boot configuration. ...

  • Page 33: The Advanced Menu

    4.5 The Advanced Menu In this section, you may set the configurations for the following items: Super IO Configuration, H/W Monitor, Serial Port Console Redirection, Power Management, CPU Configuration, SATA Configuration, USB Configuration, and LAN Bypass Configuration. Super IO Configuration Serial Port 0/1 Configuration Serial Port This setting enables/disables the specified serial port.
  • Page 34 H/W Monitor Smart Fan Function Smart Fan Mode Select a proper Smart Fan Mode from: Full On, Automatic, or Manual Fan Off Temperature Limit Fan will be turned off with temperature lower than this setting. Options: 0-127. Fan Start Temperature Limit Fan will be turned on with temperature higher than this setting.
  • Page 35 Power Management Power Mode Select AT/ATX Power Mode ACPI Sleep State Select to enable suspend-to-RAM Restore AC Power Loss This setting specifies whether your system will reboot after a power failure or interrupt occurs. Available settings are: [Power Off] Leaves the computer in the power off state. [Power On] Leaves the computer in the power on state.
  • Page 36 SATA Configuration SATA Controller Select to enable/disable SATA Controller. SATA Mode Selection Select a proper SATA mode from IDE or AHCI mode. USB Configuration Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB device available only for EFI applications.

  • Page 37: The Chipset Menu

    4.6 The Chipset Menu PCH-IO Configuration PCIE LAN Port n Select to enable the control of PCI Express Root Port System Agent (SA) Configuration VT-d Check to enable VT-d function on MCH.

  • Page 38: The Boot Menu

    4.7 The Boot Menu Quiet Boot Select to enable/disable Quiet Boot function. Launch 82574L # PXE Enable/disable boot on LAN function on 82574L # Boot Option Priorities The items allow you to set the sequence of boot devices where BIOS attempts to load the disk operating system.

  • Page 39: The Security Menu

    4.8 The Security Menu Administrator Password Administrator Password controls access to the BIOS Setup utility. Users will be prompted for Administrator password only when they enter BIOS Setup. User Password User Password controls access to the system at boot and access to the BIOS Setup utility. Users will be prompted for User password when they power on the system or enter BIOS Setup.

  • Page 40: The Save & Exit Menu

    4.9 The Save & Exit Menu Save Changes and Reset Save changes to CMOS and reset the system. Discard Changes and Reset Abandon all changes and reset the system. Restore Defaults Restore the preset defaults.

  • Page 41: Chapter 5 Programming Guide

    Chapter 5 Programming Guide...

  • Page 42: Watchdog Timer

    5.1 Watchdog Timer Super I/O Register Table Default Value Note Index 0x2E SIO MB PnP Mode Index Register 0x2E or 0x4E Data 0x2F SIO MB PnP Mode Data Register 0x2F or 0x4F WDT Register Table Register BitNum Value Note Time of watchdog timer (0~255) Timer Counter 0x07 0x73...
  • Page 43 ************************************************************************************ // SuperIO relative definition (Please reference to Table 1) #define byte SIOIndex //This parameter is represented from Note1 #define byte SIOData //This parameter is represented from Note2 #define void IOWriteByte(byte IOPort, byte Value); #define byte IOReadByte(byte IOPort); // Watch Dog relative definition (Please reference to Table 2) #define byte TimerLDN //This parameter is represented from Note3 #define byte TimerReg //This parameter is represented from Note4 #define byte TimerVal // This parameter is represented from Note24...
  • Page 44 ************************************************************************************ VOID Main(){ // Procedure : BestekWDTConfig // (byte)Timer : Time of WDT timer.(0x00~0xFF) // (boolean)Unit : Select time unit(0: second, 1: minute). BestekWDTConfig(); // Procedure : BestekWDTEnable // This procudure will enable the WDT counting. BestekWDTEnable(); ************************************************************************************ // Procedure : BestekWDTEnable VOID BestekWDTEnable (){ WDTEnableDisable(EnableLDN, EnableReg, EnableBit, 1);...
  • Page 45 ************************************************************************************ VOID SIOEnterMBPnPMode(){ Switch(SIOIndex){ Case 0x2E: IOWriteByte(SIOIndex, 0x87); IOWriteByte(SIOIndex, 0x01); IOWriteByte(SIOIndex, 0x55); IOWriteByte(SIOIndex, 0x55); Break; Case 0x4E: IOWriteByte(SIOIndex, 0x87); IOWriteByte(SIOIndex, 0x01); IOWriteByte(SIOIndex, 0x55); IOWriteByte(SIOIndex, 0xAA); Break; VOID SIOExitMBPnPMode(){ IOWriteByte(SIOIndex, 0x02); IOWriteByte(SIOData, 0x02); VOID SIOSelectLDN(byte LDN){ IOWriteByte(SIOIndex, 0x07); // SIO LDN Register Offset = 0x07 IOWriteByte(SIOData, LDN);...
  • Page 46 ************************************************************************************ VOID SIOBitSet(byte LDN, byte Register, byte BitNum, byte Value){ Byte TmpValue; SIOEnterMBPnPMode(); SIOSelectLDN(byte LDN); IOWriteByte(SIOIndex, Register); TmpValue = IOReadByte(SIOData); TmpValue &= ~(1 << BitNum); TmpValue |= (Value << BitNum); IOWriteByte(SIOData, TmpValue); SIOExitMBPnPMode(); VOID SIOByteSet(byte LDN, byte Register, byte Value){ SIOEnterMBPnPMode();...

  • Page 47: Programmable Led

    5.2 System LED NSP-20H8 comes with one System LED of which the status is programmable. Table 1: Truth Table of System LED STA_LED2 STA_LED1 STA_LED0 LED States LED Off Red Blinking (Slowly) Red Blinking (Quickly) Reserved Green Blinking (Slowly) Green Blinking (Quickly) Green Table 2: Status LED Relative Register Mapping Table Attribute...
  • Page 48 ************************************************************************************ #define Word LED2Add //This parameter is represented from Note1 #define Word LED1Add //This parameter is represented from Note2 #define Word LED0Add //This parameter is represented from Note3 #define Byte LED2Bit //This parameter is represented from Note4 #define Byte LED1Bit //This parameter is represented from Note5 #define Byte LED0Bit //This parameter is represented from Note6 #define Byte UnitVal //This parameter is represented from Note7 ************************************************************************************...

  • Page 49: Lan Bypass

    5.3 LAN Bypass Table 1: Bypass Pair Selection Table LAN_ID2 LAN_ID1 LAN_ID0 By Bypass Pair selected Bypass Pair 1 Selected Bypass Pair 2 Selected Bypass Pair 3 Selected Bypass Pair 4 Selected Bypass Pair 5 Selected Bypass Pair 6 Selected Bypass Pair 7 Selected Bypass Pair 8 Selected Table 2: LAN Bypass Relative Register Table...
  • Page 50 Table 3: LAN Bypass Relative Register Mapping Table Attribute Register(I/O) BitNum Value LAN_ID2 0xA05(Note1) 7(Note8) (Note15) LAN_ID1 0xA05(Note2) 6(Note9) (Note15) LAN_ID0 0xA00(Note3) 6(Note10) (Note15) PWR_ON 0xA00(Note4) 4(Note11) (Note15) PWR_OFF 0xA00(Note5) 2(Note12) (Note15) WDT_EN 0xA00(Note6) 1(Note13) (Note15) ACT_EN 0xA00(Note7) 5(Note14) (Note15) ************************************************************************************ #define Word LAN_ID2 //This parameter is represented from Note1 #define Word LAN_ID1 //This parameter is represented from Note2...
  • Page 51 VOID SET_Value (Word IoAddr, Byte BitNum,Byte Value){ BYTE TmpValue; TmpValue = inportb (IoAddr); TmpValue &= ~(1 << BitNum); TmpValue |= (Value << BitNum); outport(IoAddr, TmpValue); ************************************************************************************ VOID Main(){ //Select LAN kit refer to table 1 SET_Value (LAN_ID2, LANID2, UnitVal); SET_Value (LAN_ID1, LANID1, UnitVal); SET_Value (LAN_ID0, LANID1, UnitVal);...

  • Page 52: Programmable Switch

    5.4 Programmable Switch Table 1: Programmable Switch Relative Register Table Function Description BTN_STS Reading this register returns the pin level status which is normal high active low. 0: Pin Level States Low. 1: Pin Level States High. Table 1: Programmable Switch Register Mapping Table Attribute Register(I/O) BitNum...
