WARMER or WARMER/COOKER
FW-S500
Warmer
Model
Description

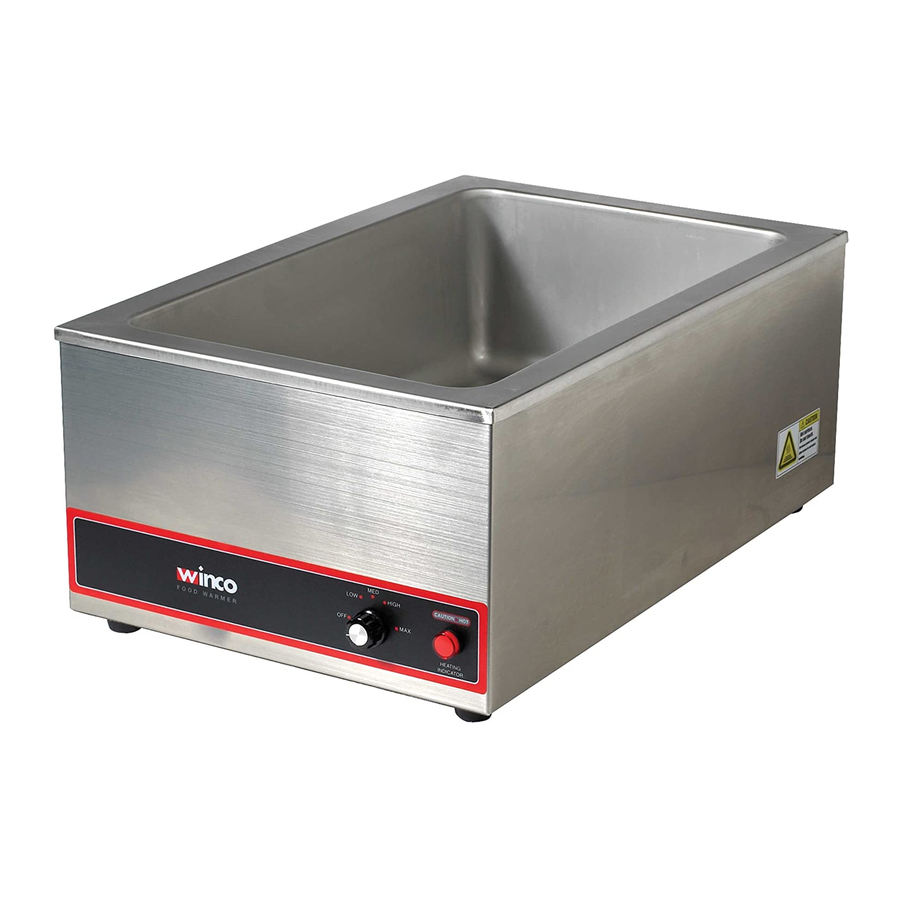

FW-S500 Electric Warmer
FW-S600 Electric Cooker/
Warmer
* One (1) dedicated 20 Amp circuit with a single outlet is required for the unit.
BEFORE OPERATING ANY EQUIPMENT, READ AND FAMILIARIZE YOURSELF WITH THESE USE AND SAFETY INSTRUCTIONS
Congratulations on your purchase of this WINCO® commercial equipment. WINCO takes pride in the quality of
its products. When used as intended and with proper care and maintenance, you will experience years of reliable
operation from this equipment. To ensure best results, it is important that you read and follow the instructions in this
manual carefully. It's important to save these instructions for future reference.
COMMERCIAL
Operating Instruction Manual
Size
22-⅜"L x 14-9/16"W x 9-½"H
Well inner depth: 6"
22-⅜"L x 14-9/16"W x 10-7/8"H
Well inner depth: 6"
ELECTRIC
FW-S600
Warmer/Cooker
Voltage
Hz
120V
50/60
120V
50/60
Wattage
1200*
1500*
Advertisement
Table of Contents
Related Manuals for Winco FW-S500
Summary of Contents for Winco FW-S500
-
Page 1: Specifications
BEFORE OPERATING ANY EQUIPMENT, READ AND FAMILIARIZE YOURSELF WITH THESE USE AND SAFETY INSTRUCTIONS Congratulations on your purchase of this WINCO® commercial equipment. WINCO takes pride in the quality of its products. When used as intended and with proper care and maintenance, you will experience years of reliable operation from this equipment. -
Page 2: Warnings
Introduction Congratulations on the purchase of your WINCO® countertop equipment. Please take the time to carefully read through this manual to ensure the machine is operated and maintained properly, to ensure the best possible performance from this product for many years. -
Page 3: Table Of Contents
This unit is intended to be used in commercial food-service operations only. It is not intended for household, industrial or laboratory use. Recommended to use with WINCO® stainless steel steam table pans, covers and adaptor bars, or high-heat poly pans and lids. -
Page 4: Important Safeguards
Important Safeguards To ensure safe installation and operation, please carefully read and understand the following statements. Unless the operator is adequately trained and supervised there is a possibility of serious injury. Owners of this equipment bear the responsibility to make certain that this equipment is used properly and safely, and to strictly follow all of the instructions contained in this manual and the requirements of local, state or federal law. - Page 5 Caution Before Using Appliance 1. Read all instructions carefully. Do not use this appliance for 7. The use of accessory attachments not recommended by WINCO® anything other than its intended use. may cause fire, electric shock or injury.
-
Page 6: Operation
FW-S600 3. Place stainless steel or high-heat poly pans (inset pans) into the unit well pan. If using the appliance as a warmer (FW-S500 or FW-S600), the contents placed in the food pans should be previously cooked as the purpose of the warmer is to hold contents at the proper desired temperature. -
Page 7: Steam Table Pan Configurations
Steam Table Pan Configuration Examples Utilize stainless steel steam table pans, insets and adaptor bars (sold separately) by WINCO® to ½ achieve the following popular pan configurations, or customize for all of your serving needs: Full-Size ½... -
Page 8: Features, Wiring Diagram
Model FW-S500 Model FW-S600 10-7/8" 9-1/2" 22-3/8" 22-3/8" 14-9/16" 14-9/16" Wiring Diagram THERMAL CONTROL SWITCH 122~340°F (50~171°C) 16A 125V AC POWER SUPPLY 120V AC 60Hz DS (RED) HEATING GROUND HEATING ELEMENT LAMP 1200W \ 120V FW-S500 Food Warmer FW-S600 Food Cooker/Warmer... -
Page 9: Safety & Troubleshooting
DO NOT send unit to WINCO without first contacting our customer service department. See "Limited Warranty" section on page 10 for details. Troubleshooting If your WINCO appliance does not operate, please check the following prior to placing a service call. pRoblem mIGht be cAused by couRse of ActIoN Power supply Check power source &... -
Page 10: Limited Warranty
Limited Warranty WINCO® warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or workmanship for a period of 1 year. The labor warranty is one year from original installation or 18 months from actual factory shipment date, whichever date occurs first. - Page 11 2. Freight damage. 3. Improper installation or alteration of equipment. 4. Use of generic or after-market parts. 5. Repairs made by anyone other than a WINCO® designated service provider. 6. Lubrication. 7. Expendable wear parts, adjustable feet, blown fuses, lamps, etc.
- Page 12 Model: FW-S500 / S600 www.wincous.com...
